Reference Number: 142393

One (1) Used

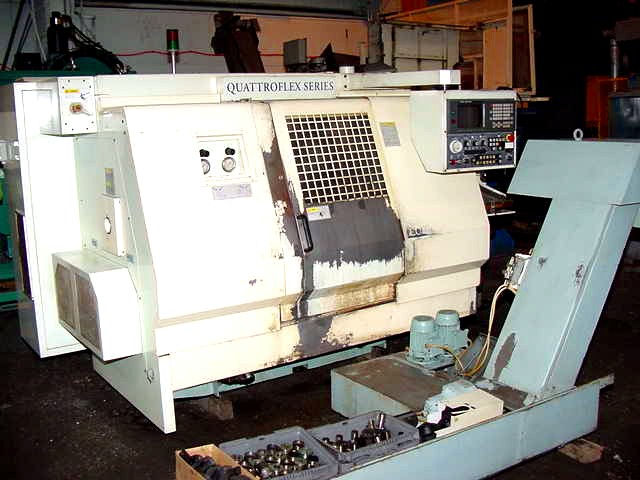

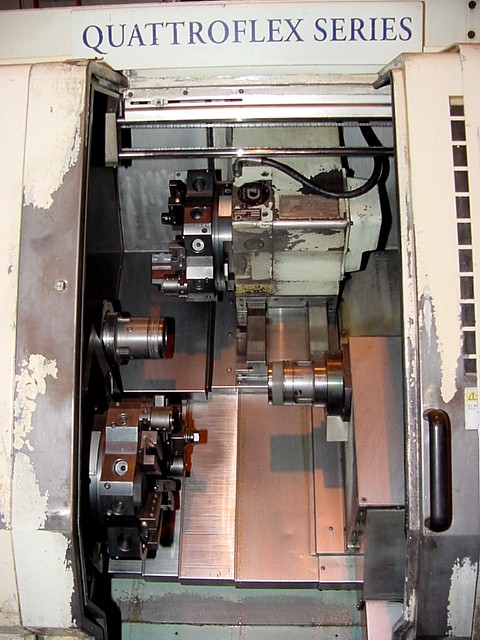

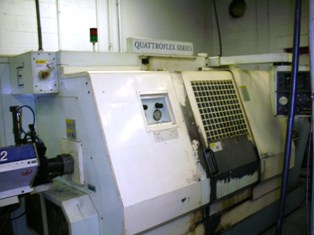

           Eurotech Elite Quattroflex 420-SLL 7-Axis CNC Turning Center
                     * Live Tooling * Sub-Spindle * Barfeed *
                                     New 1997

  general specifications as per brochure

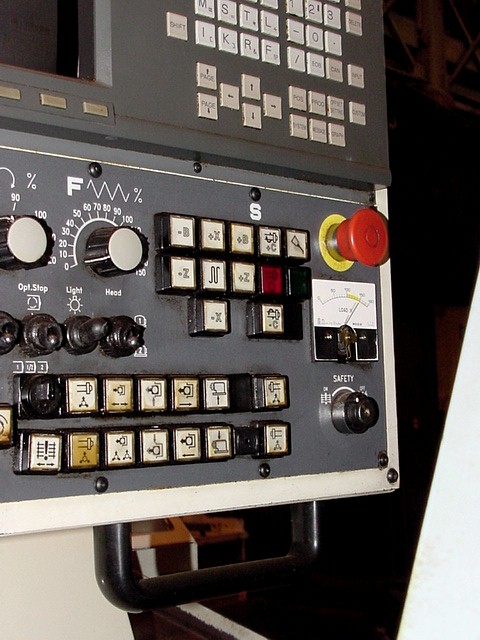

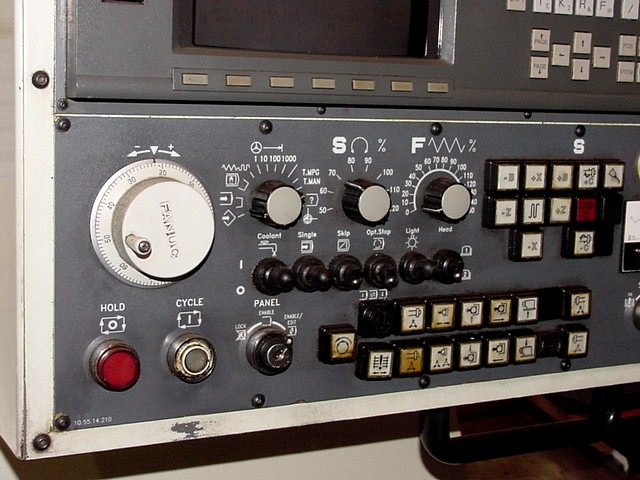

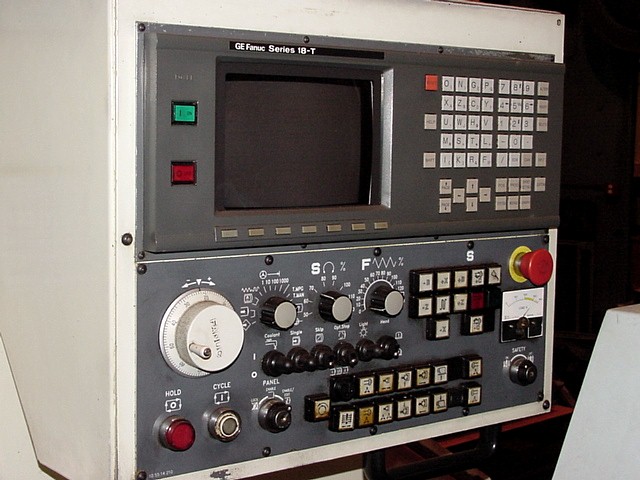

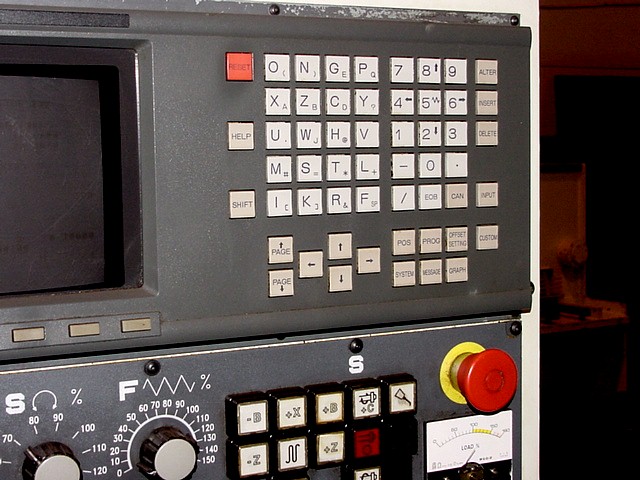

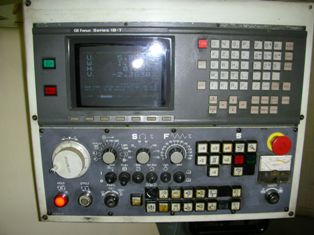

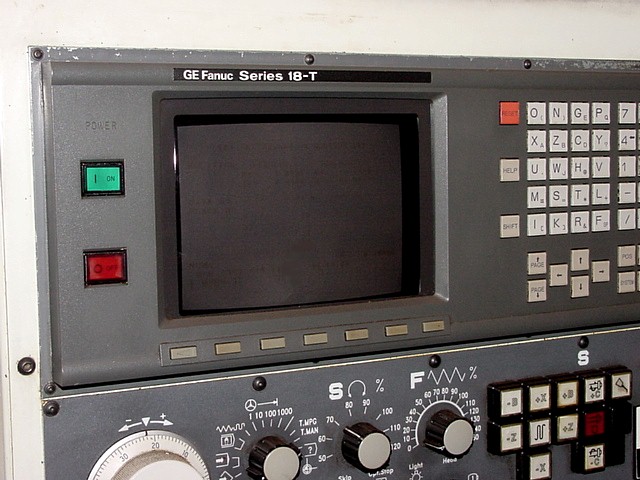

  cnc control:                             fanuc 18t
  main spindle:
    bar capacity:                         41 mm
    max. machining diameter:              160 mm
    max. machining length:                300 mm
    max. swing:                           200 mm
    distance between noses:               560 mm
    variable speed range:                 100 - 5,000 rpm
    spindle nose:                         asa 5"
    spindle bore:                         52 mm
    inside dia of front bearing:          80 mm
    chuck diameter:                       165 mm
    collet assy:                          din 6343
    motor power:                          11 - 15kw (50%)
    # of tools:                           12
    type:                                 bi-directional
    tool shank for outer turning:         20 x 20 mm
    tool shank for inner turning:         25 mm
    turret indexing (1 pos) (sec):        0.4
    # of live tools:                      6
    variable speed range:                 100 - 3,000 rpm
    motor power (kw):                     1.5 - 3.7 kw
    x-axis stroke:                        175 mm
    z-axis stroke:                        305 mm
    raid traverse rate (x/z-axis):        12/20
  sub-spindle:
    bar capacity:                         25 mm
    max. machining diameter:              100 mm
    max. machining length:                150 mm
    max. swing:                           150 mm
    distance between noses:               560 mm
    variable speed range:                 100 - 5,000 rpm
    spindle nose:                         asa 4"
    spindle bore:                         42 mm
    inside dia of front bearing:          65 mm
    chuck diameter:                       130 mm
    collet assy:                          din 6343
    motor power:                          3.7-5.5kw (50%)
    # of tools:                           12
    type:                                 bi-directional
    tool shank for outer turning:         20 x 20 mm
    tool shank for inner turning:         25 mm
    turret indexing (1 pos) (sec):        0.4
    # of live tools:                      6
    variable speed range:                 100 - 3,000 rpm
    motor power (kw):                     1.5 - 3.7 kw
    x-axis stroke:                        132 mm
    y-axis stroke:                        155 mm
    z-axis stroke:                        340 mm
    rapid traverse rate (x/y/z-axis):     12/20/20
  controlled c-axis:
    type:                                 cs (direct)
    min. programmable value:              0.001 deg
    max. rapid traverse (rpm):            80
  cooling system:
    tank capacity (l):                    150
    pump nominal displacement (l/min):    50
    electropump rating (kw):              0.75
  dimensions (approx.):                    143.81" x 76.44" x 72.11"
  weight (approx.):                        10,780 lbs
  equipped with (must be verified by buyer):

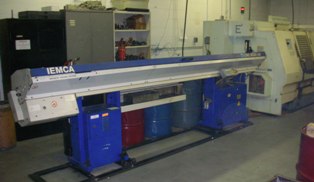

    iemca boss 42 magazine type barfeed
    parts catcher
    coolant system
    chip conveyor
    splash guards
    turret tooling

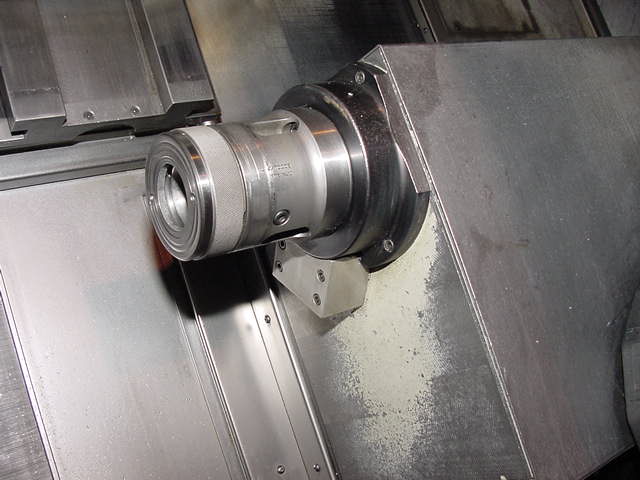

    (2) collet chucks

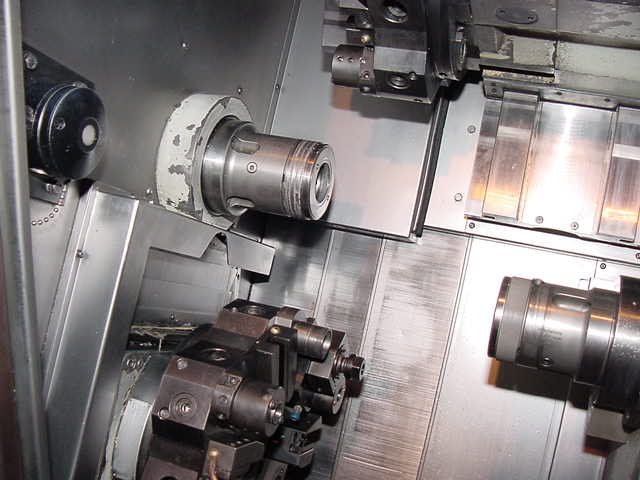

    main & sub spindles
    c-axis on main & sub spindles

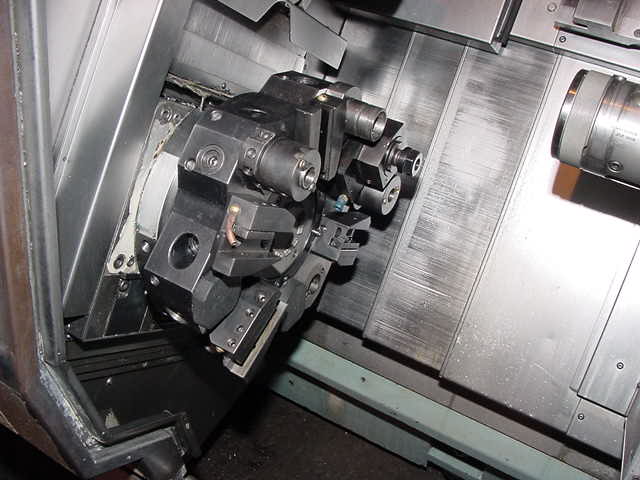

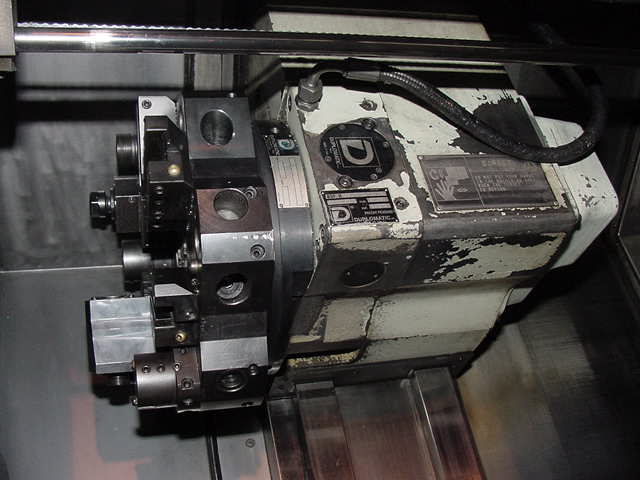

    upper & lower turrets w/live tooling
    misc. live tools
    misc. o.d. & i.d. tools
