Reference Number: 142397

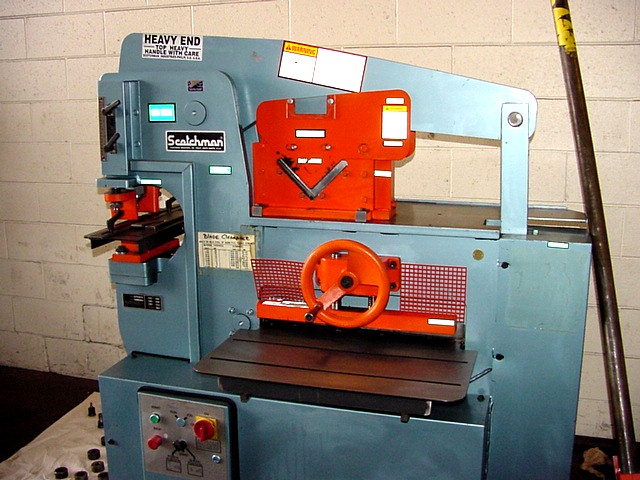

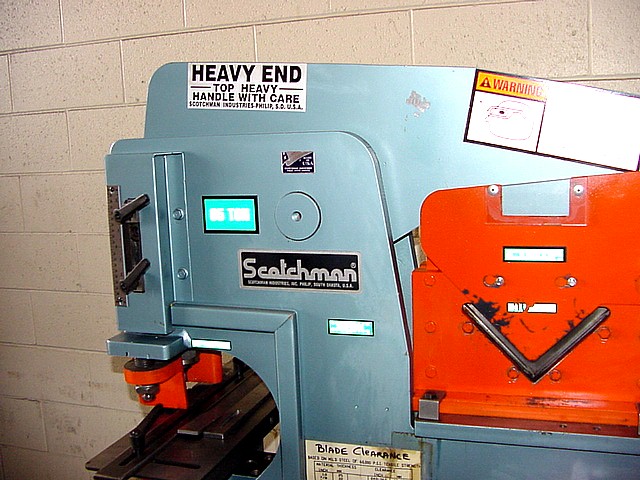

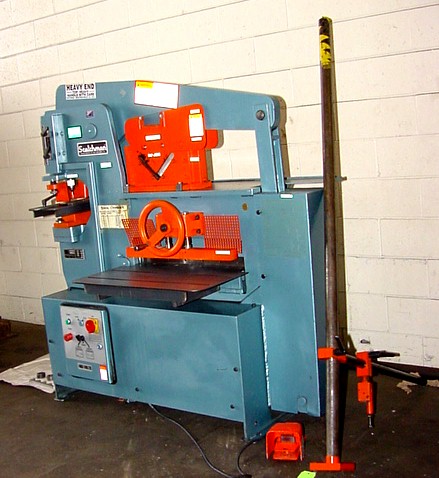

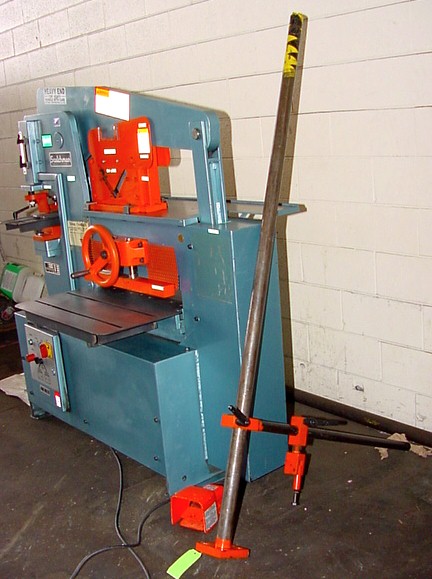

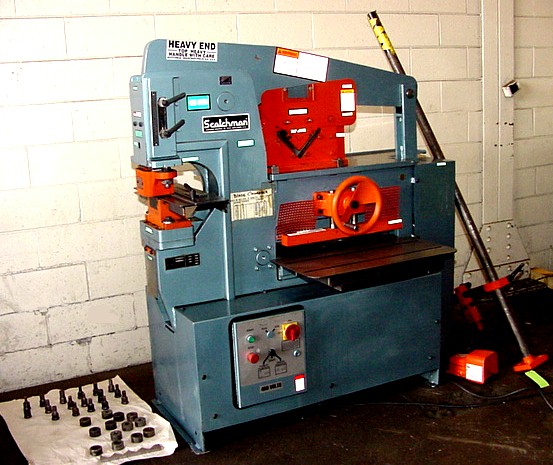

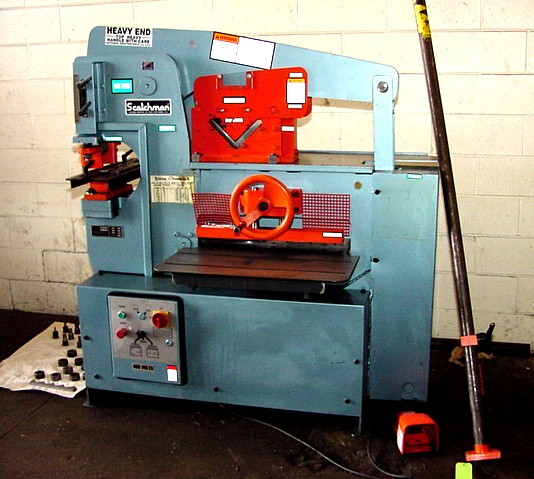

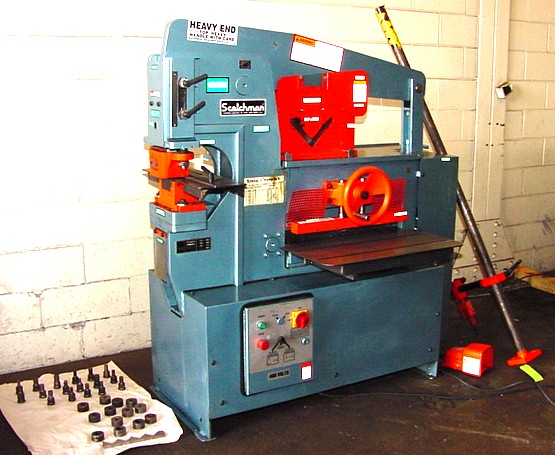

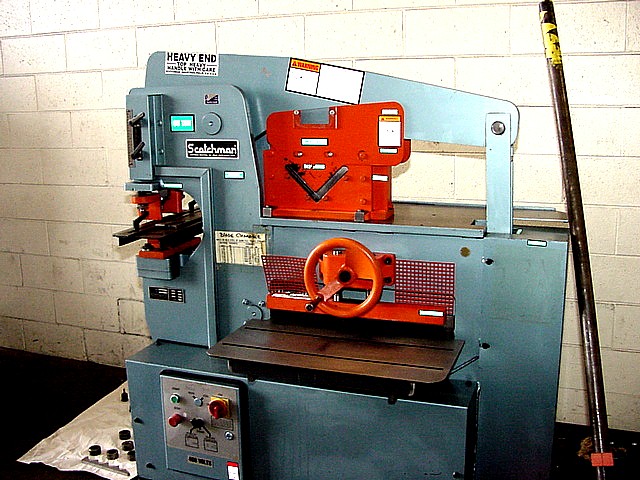

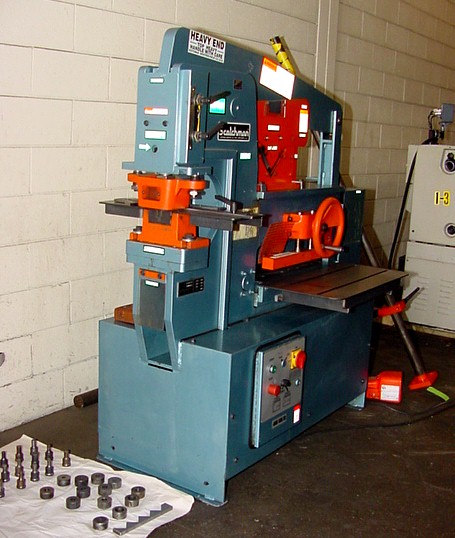

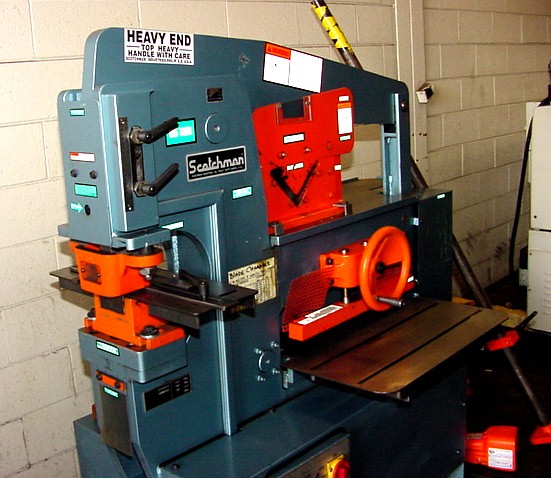

Price: $10,45065 Ton Scotchman Hydraulic Ironworker FEATURES

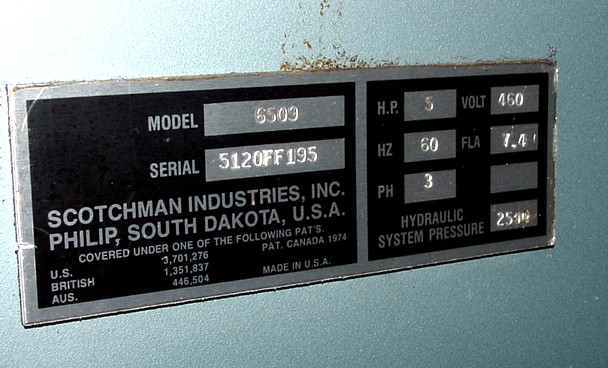

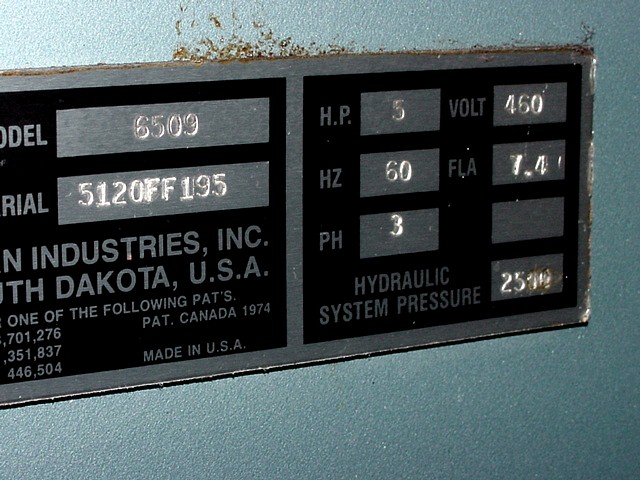

Model 6509 S/N 5120FF195 New 1995

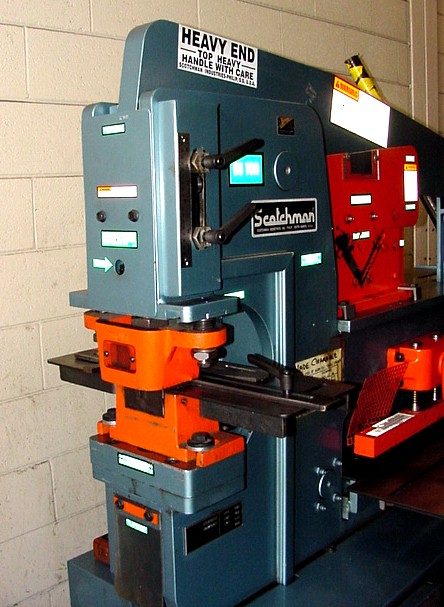

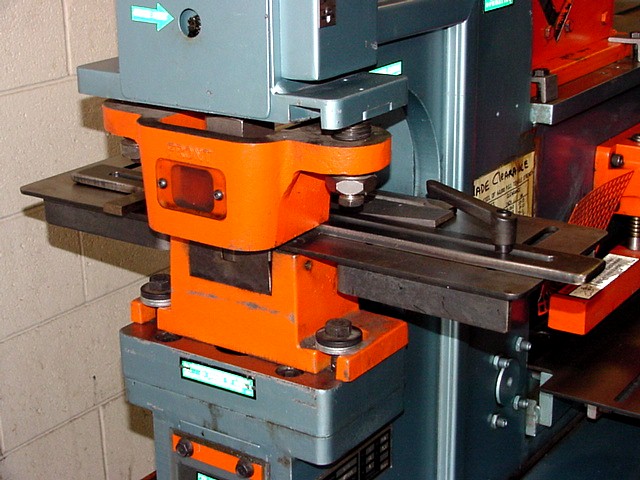

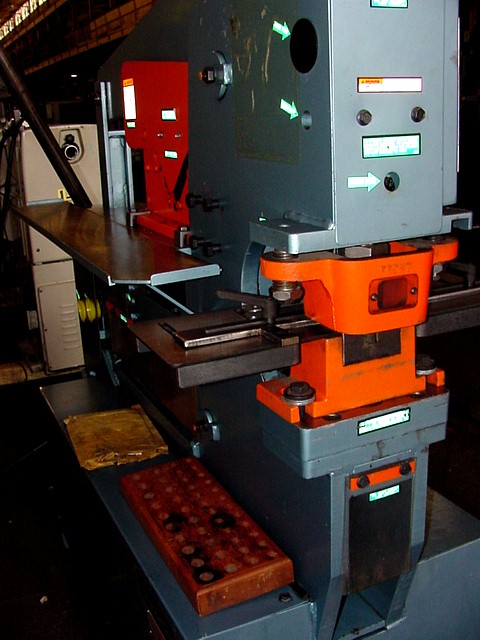

65 Ton Punch Station (1-1/16" in 3/4")
Keyed Punch Ram for Safety
9" Throat Depth
Punch Gauging Table w/Fence and Scale
Die Holder Complete with 2" Die Insert
Punch Nut with Wrench and Stripper

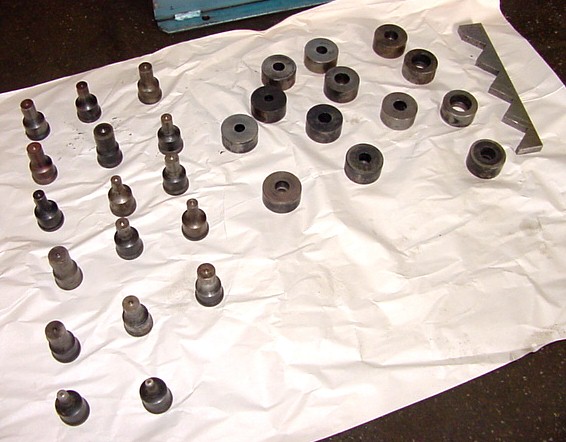

One Round Punch & Die: Max. Dia. 1-1/4"
Punch Jog Control

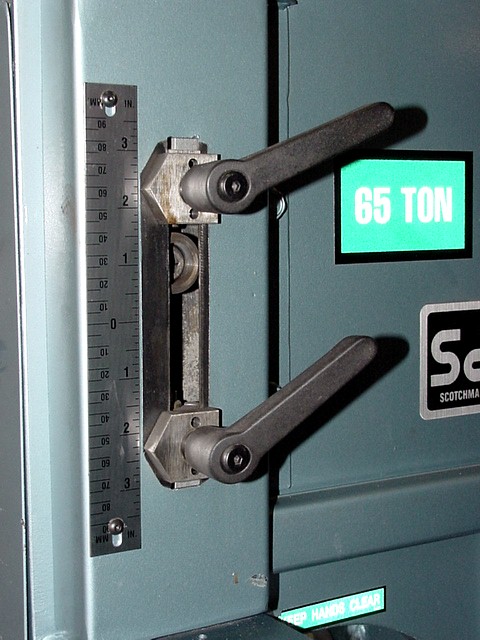

Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal

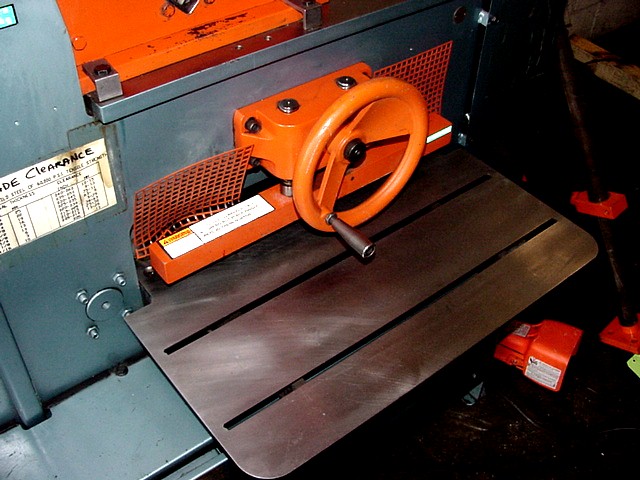

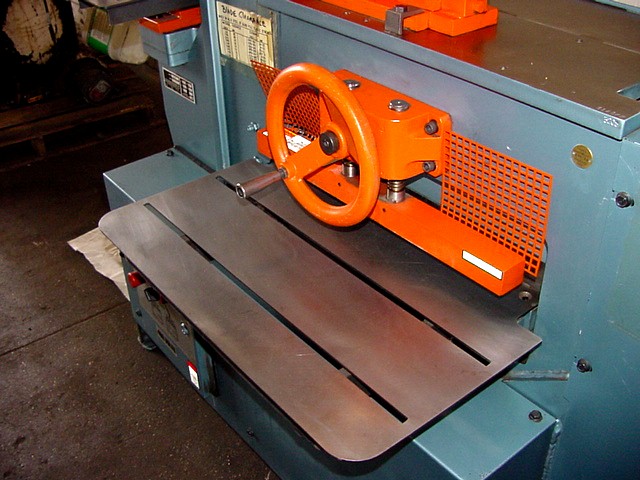

24" Flat Bar Shear with 4-Way Reversible
Blade (1" x 6", 1/4" x 24")

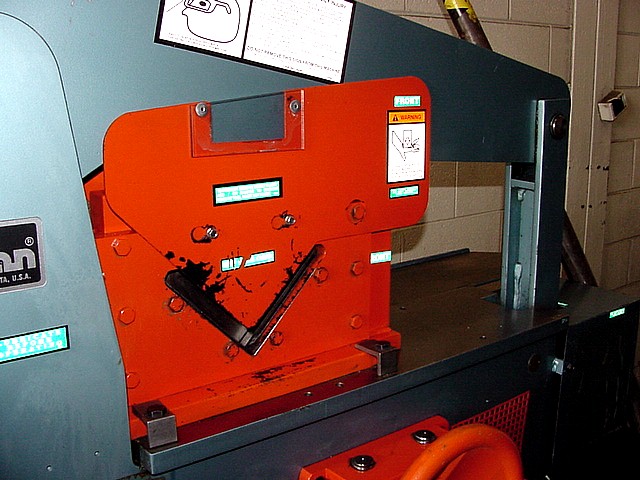

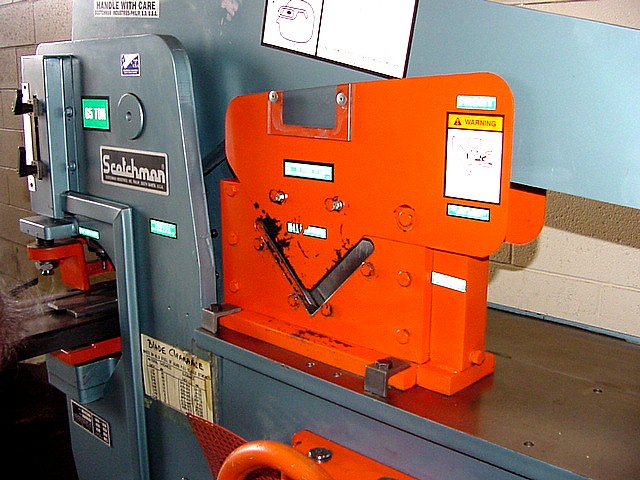

Angle Shear Capacity
6" x 6" x 3/8" and 5" x 5" x 1/2"
Tool Table Work Area
Two-Stage Hydraulic Pump

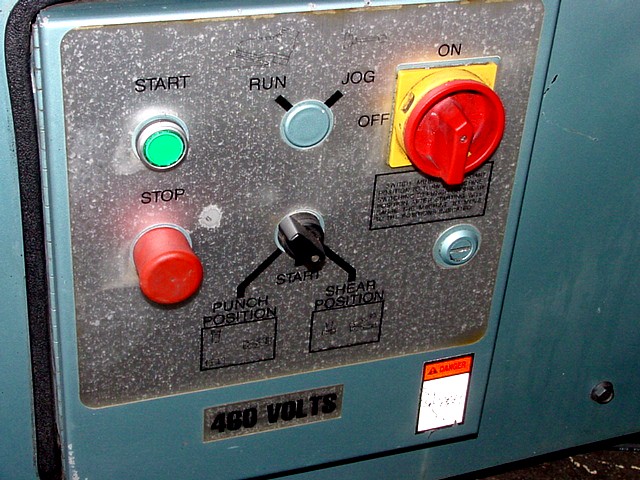

Electrical Box with Emergency Palm Button & Lock-out Tag-out Accommodations
460 volt /3 Phase Electrics
All Guards Necessary to Comply with
ANSI B 11-5 Standards
Forklift Accommodations
Made in USA CAPACITIES & SPECIFICATIONS
Rated On: 65,000 PSI Tensile - A 36 Mild Steel
Punching Capacity: 65 Ton, 1-1/16" in 3/4"
Special Tooling: 4" Max. Dia.
Throat Depth: 9"
Flat Bar Shear: 24" Length, 1" x 6", 3/4" x 10", 3/8" x 16", 1/4" x 24"
Opt. Saber Blade: 1" x 8", 1/2" x 16"
Angle Shear 90 Degrees: 6" x 6" x 3/8"
Angle Shear 45 Degrees: 3" x 3" x 3/8"
Angle Shear 45 Degrees (with Bar Shear): 4" x 4" x 1/2"
Brake 12": 40 Ton
Brake 24": 30 Ton
Open End Brake: Max. 1/4" x 6" Flat or Angle Iron
Pipe Notcher - Schedule 40 ID: ¾", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher: 2" x 2-1/2" x 3/8"
90 Deg. V. Notcher: 6" x 6" x 5/16"
Channel Shear: 2" to 5" Adj.
Rod Shear
Round Rod: 1/4" to 1-1/4", 9 Cav.
Square Rod: 1/4" to 1", 1 Cav.
Square Tube Shear: ½" to 2", 14 ga.
Picket Tool: ½", ¾", 1"
Offset Die Holder: Max. 40 Ton
SPM - Light Material: ¼" Stroke
SPM - Heavy Material: ¾" Stroke
Hydraulics: 2,500 PSI
Motor: 5 hp, 3 ph, 460 Volts
Dimensions: 24"W x 60"L x 66"H
Weight: 2,750 Lbs.
