Reference Number: 142405

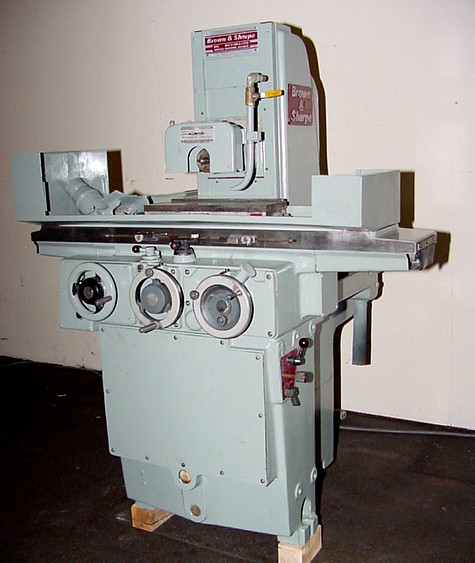

6" X 18" BROWN & SHARPE HYDRAULIC SURFACE GRINDERPrice: On Request
MODEL: 618 MICROMASTER S/N: 523-6181-5784 NEW: 1975
Width and Length Ground ................................................. 6 X 18"
Height of Work Ground with 8" Wheel .............................. 15"
Grinding Wheel Size ................................................... 8" X 1/2" X 1-1/4"
Maximum Longitudinal Travel ........................................... 22"
Hydraulic Powered Long. Table Speed ............................ 5' - 100' FPM
Cross Feed Travel .............................................................. 7"
Automatic Cross Feed Increment Table Pass . .................. 0.01" TO .025"
Cross Feed Rapid Traverse Rate ........................................ 12' FPM
Power Wheel Truing RAte ................................................. 10" IPM
Cross Handwheel, Graduated to Read to ........................... 0.0002"
Vertical Travel of Spindle .................................................. 15-3/4"
Vertical Movement of Table per Handwheel Rev. .............. 0.05"
Vertocal Handwheel, Graduated to Read to ..................... 0.0002"
Vertical Fine Knob, Graduated to Read to ......................... 0.0001"
Approximate Machine Weight: ........................................... 3,500 LBS
EQUIPPED WITH:
- HYDRAULIC LONGITUDINAL AND CROSS FEEDS
- SELF-CONTAINED HYDRAULIC SYSTEM
- ALL THREE HANDWHEELS @ OPERATOR'S HIP LEVEL
- FINE FEED KNOB FOR VERTICAL HANDWHEEL (.0001" GRAD.)
- 6" X 18" PERMANENT MAGNETIC CHUCK
- B & S 1.5 H.P. DIRECT DRIVE "SUPER-PRECISION" SPINDLE
- COMPLETE COOLANT SYSTEM w/TANK, PUMP, GUARDS, HOSES, ETC
- INLET FOR DUST COLLECTOR
- 3/60/230-460 VOLT ELECTRICS
** VERY GOOD CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. FACILITY **
