Reference Number: 142409

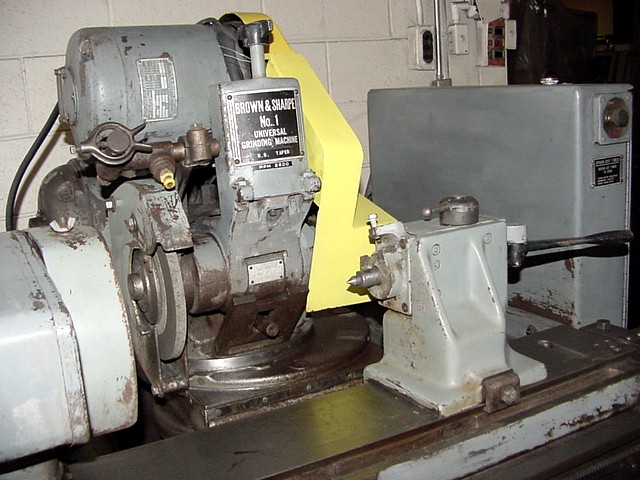

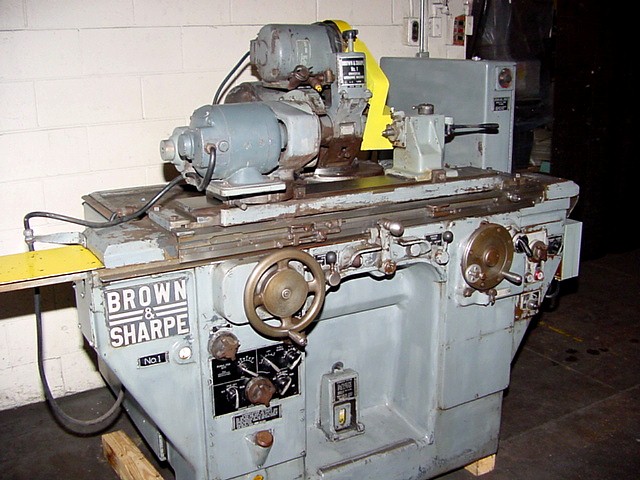

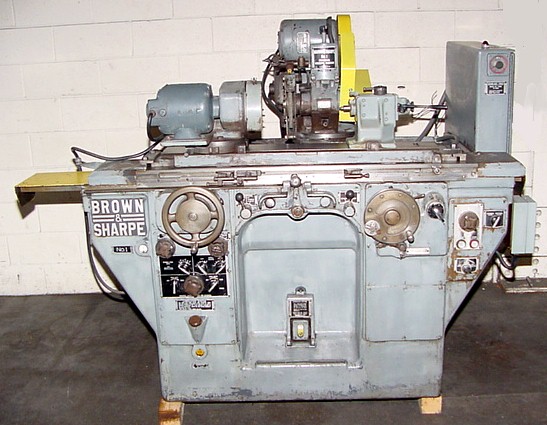

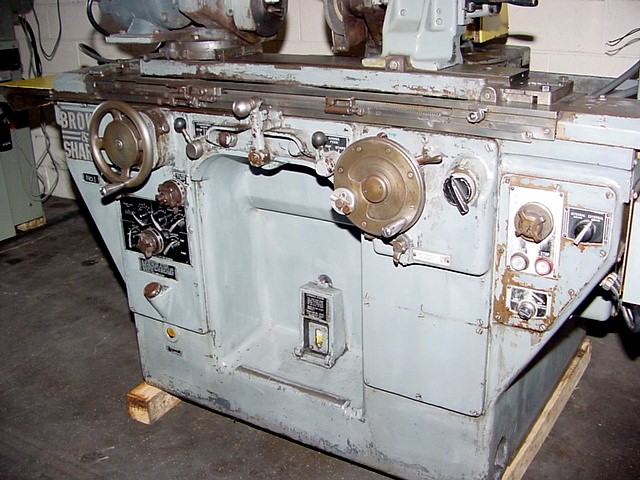

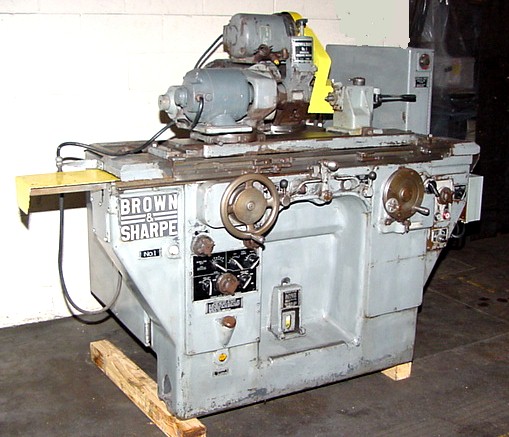

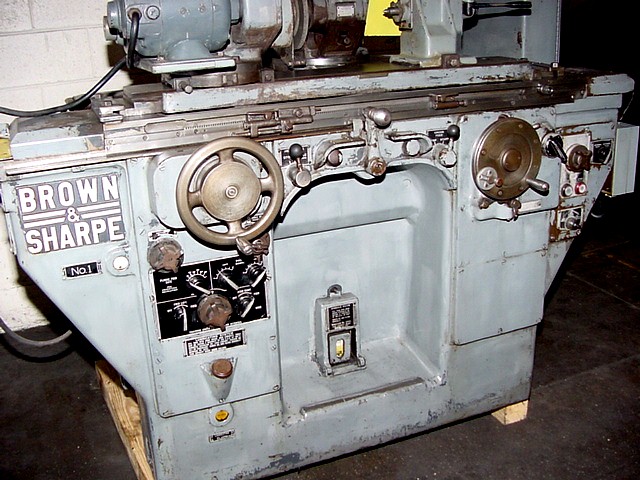

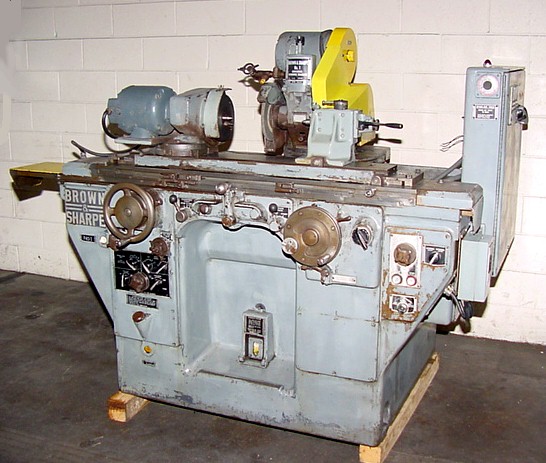

                10" X 20" BROWN & SHARPE
         UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

 *** FULL AUTO CYCLE GRINDER w/HYDRAULIC TABLE TRAVERSE,
     AUTO INFEED, AUTO PLUNGE, RAPID WHEELHEAD ADVANCE
     & RETRACTION & SPARKOUT TIMER CONTROL ***

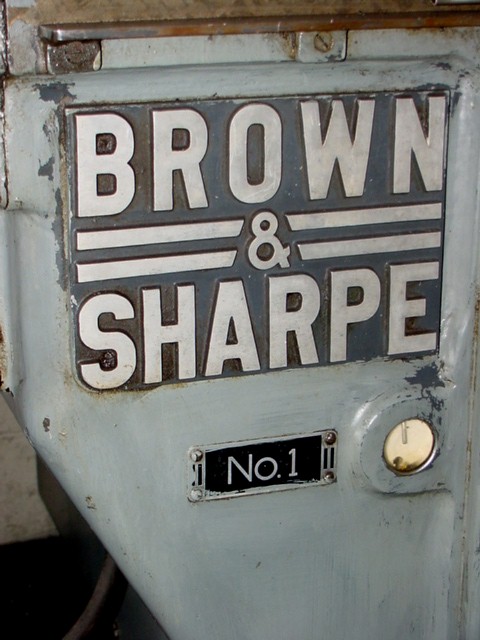

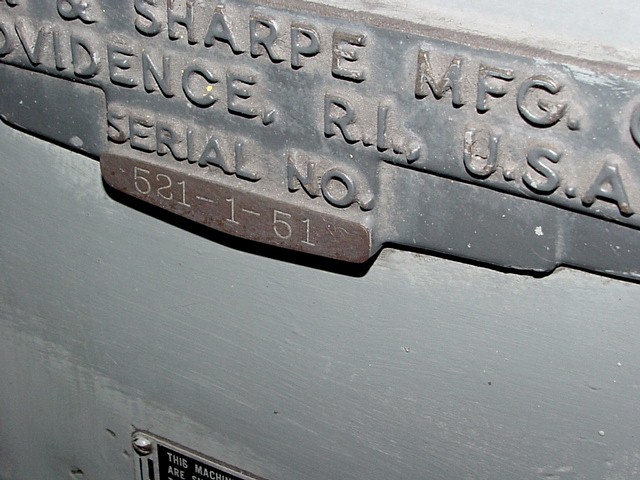

       MODEL:  #1A    S/N:  521-1-51    NEW:  1953

 SWING OVER TABLE .................................. 10"
 DISTANCE BETWEEN CENTERS, NOMINAL ................. 20"
 DISTANCE BETWEEN CENTERS, MAXIMUM ............. 22-3/4"

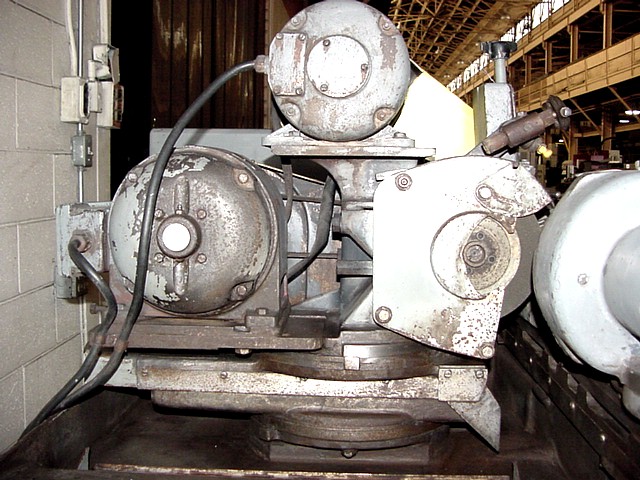

 GRINDING WHEEL MOTOR ............................. 2 HP
 WHEELHEAD SPINDLE SPEEDS .......... INFINITELY VARIABLE
 GRINDING WHEEL SIZE ..................... 10" X 1" X 3"

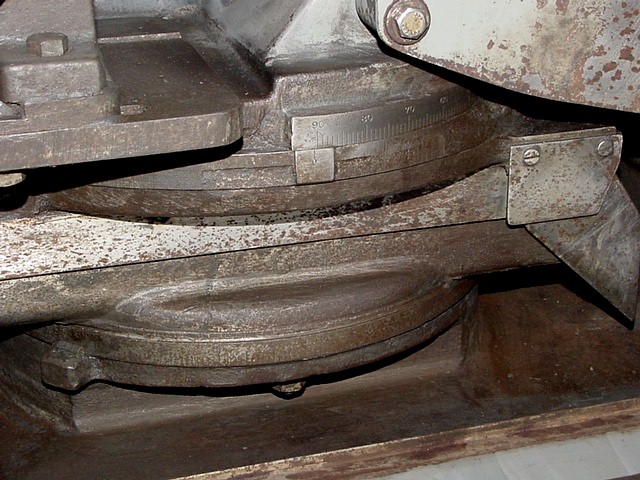

 SWIVEL AT THE WHEELSLIDE ........ 90 DEGREES EITHER WAY
 WHEEL SPINDLE SWIVELS ........... 90 DEGREES EITHER WAY

 HEADSTOCK MOTOR ................................ 1/4 HP

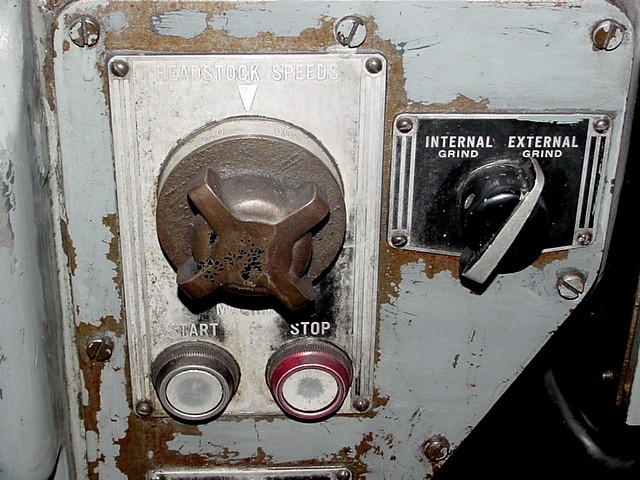

 INFINITELY VARIABLE SPINDLE SPEEDS ...... 60 TO 600 RPM
 HEADSTOCK SPINDLE NOSE TAPER .................... A2-5"
 HEADSTOCK SWIVELS EITHER SIDE OF ZERO ...... 90 DEGREES

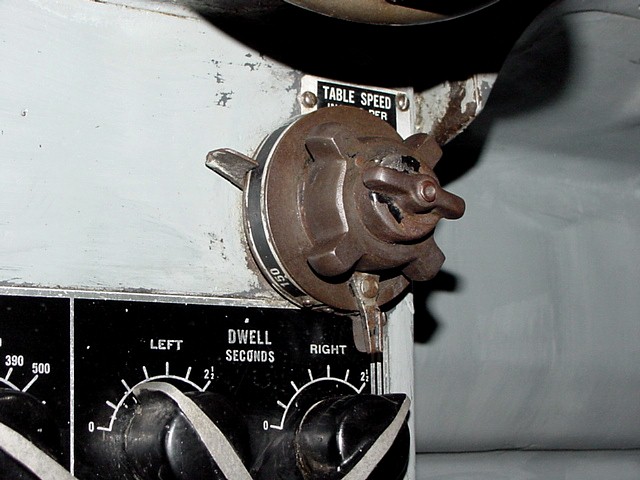

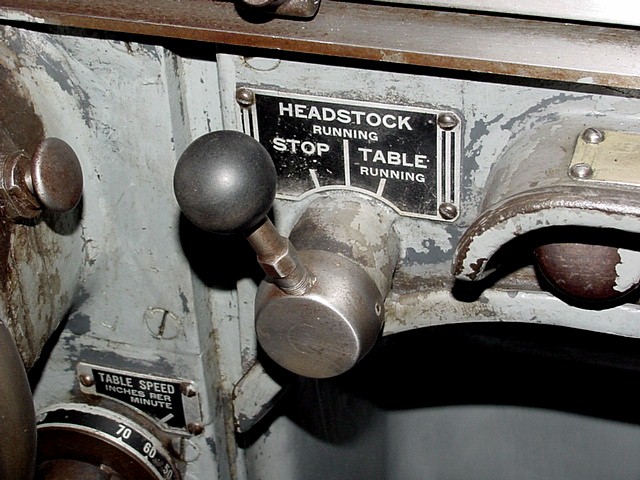

 INFINITELY VARIABLE TABLE SPEED ........ 3" TO 150" IPM
 TABLE PER REV. OF HANDWHEEL:
  SLOW ........................................... 0.1"
  FAST ........................................... 1.5"
 DWELL AT EACH OR ALTERNATE TABLE REV. .. 0 - 2-1/2 SEC.

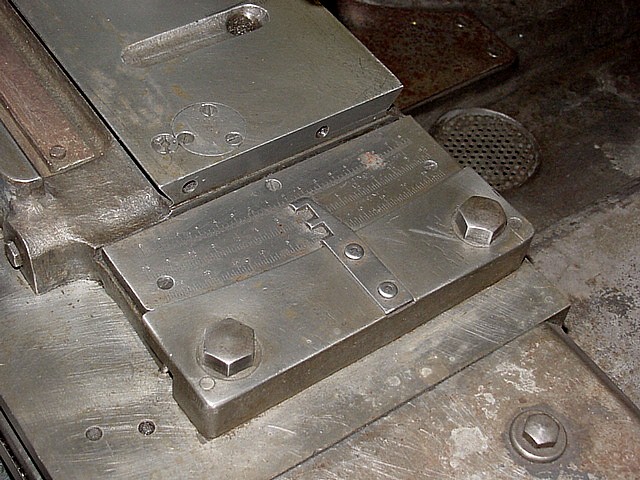

 TABLE SWIVEL, SCALES FOR ANGULAR SETTING ... 8-1/4 DEG.
 SCALES-TAPER PER FT. ..................... 3-1/2" (25%)

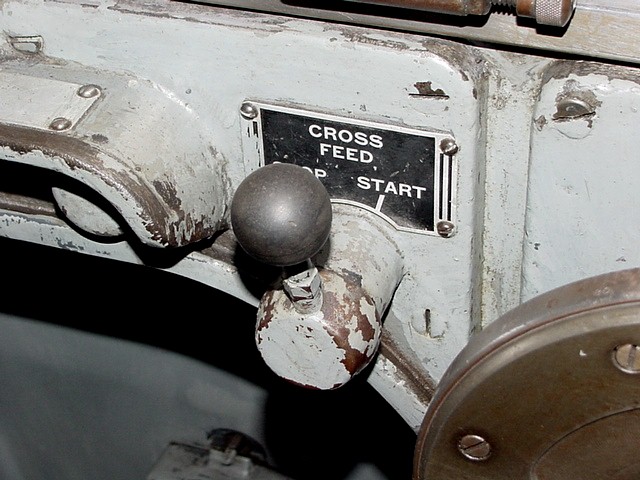

 AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER OR WORK
  AT EACH OR ALTERNATE REVERSALS ...... 0.0001" - .003"

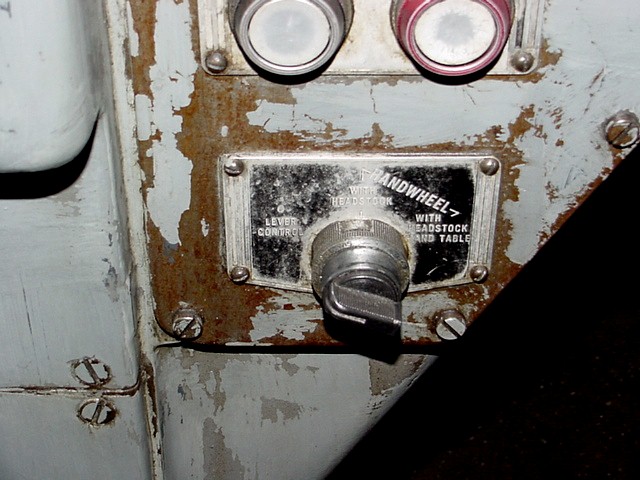

 HAND FEED PER REV. OF HANDWHEEL:
  SLOW ........................................... 0.1"
  FAST ........................................... 0.3"

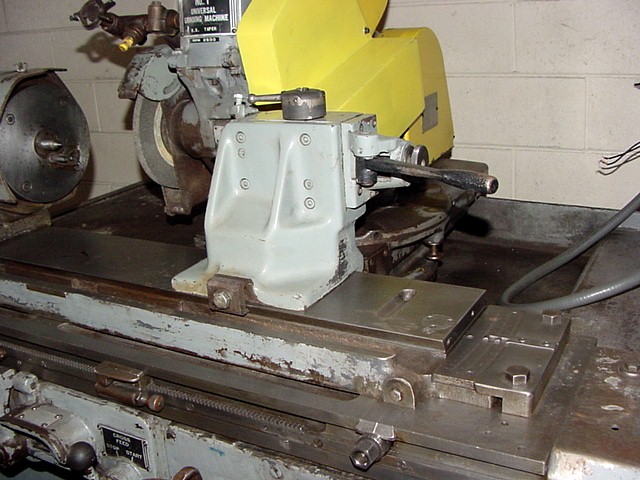

 TAILSTOCK SPINDLE TAPER ...................... #7 JARNO
 TAILSTOCK SPINDLE TRAVEL ......................... 5/8"
 APPROXIMATE WEIGHT .......................... 5,100 LBS

 EQUIPPED WITH:
     SWING DOWN INTERNAL GRINDING ATTACHMENT W/SPINDLE

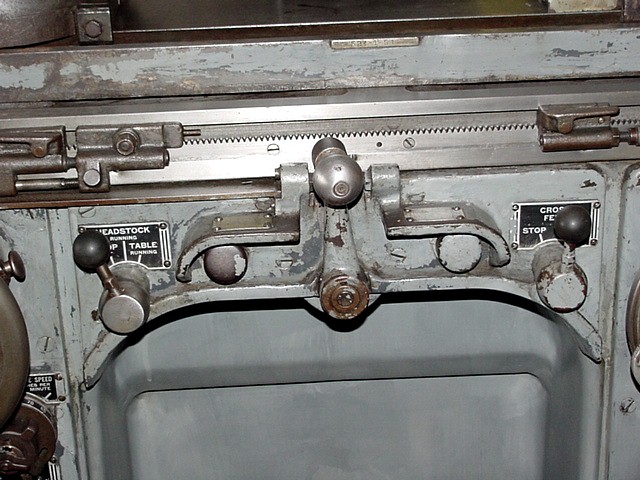

     HYDRAULIC TABLE TRAVERSE

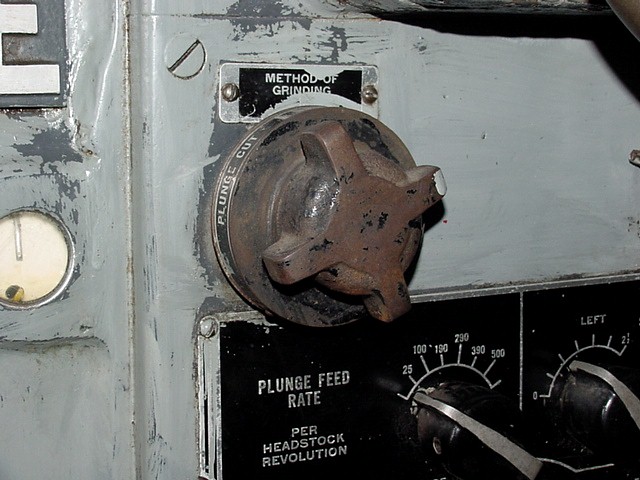

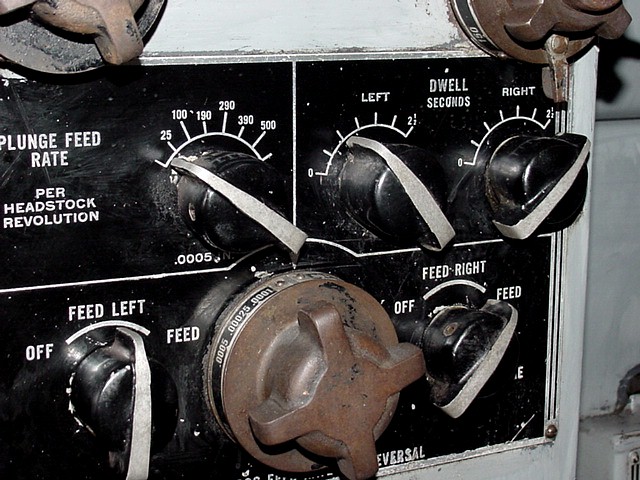

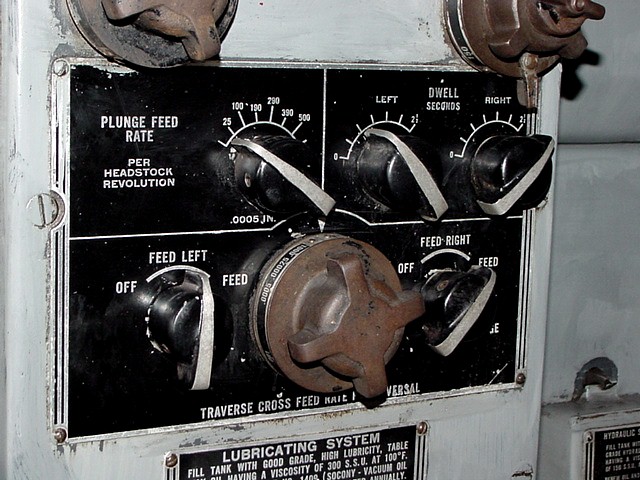

     PLUNGE INFEED
     ADJUSTABLE TABLE DWELL

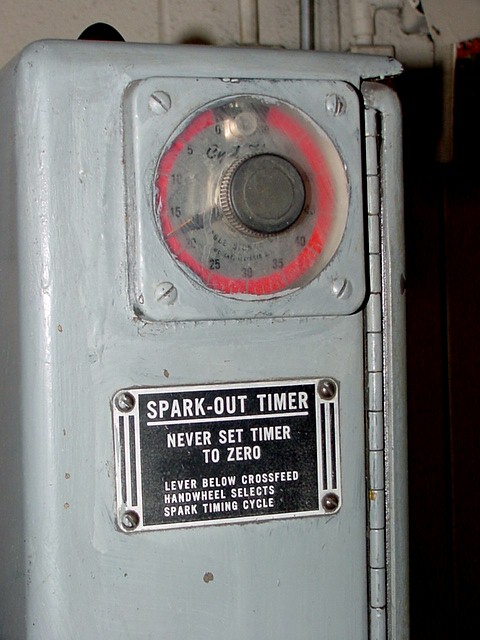

     SPARKOUT TIMER
     RIGHT OR LEFT END WHEEL MOUNTING
     SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
       SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
       COMBINATION STRAIGHT AND TAPER GRINDING,
       EXTERNAL OR INTERNAL

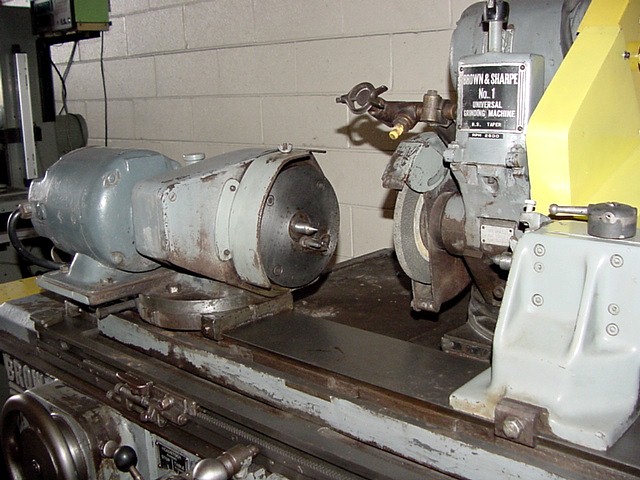

     DUAL DEAD/LIVE HEADSTOCK SPINDLE

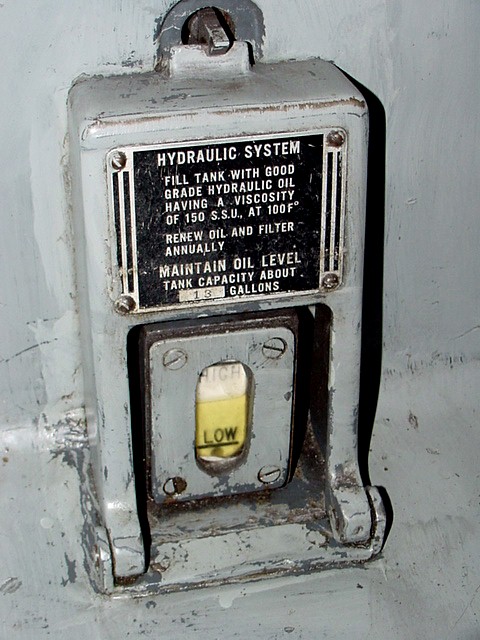

     PULL-OUT HYDRAULIC SYSTEM
     3/60/220-440 VOLT MOTORS

 SPECIAL NOTE:
 SERVICED BY BROWN & SHARPE FACTORY TECHNICIAN IN 08/2006.
  MACHINE IS READY TO BE PUT INTO SERVICE .... JUST PLUG IN
  & GO!

 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
 ** EXCEPTIONAL CONDITION & APPEARANCE **
