Reference Number: 142412

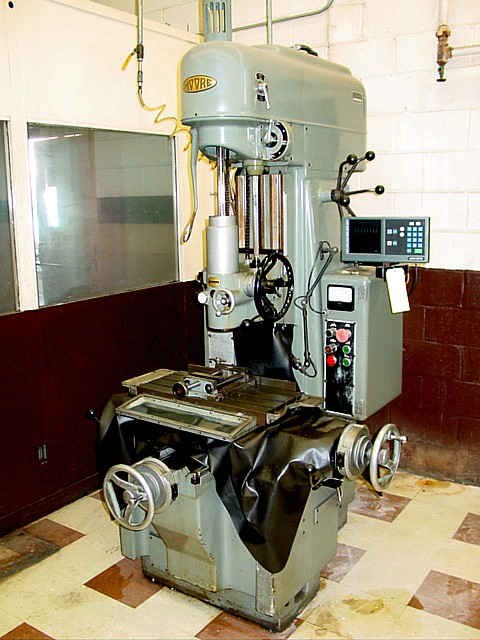

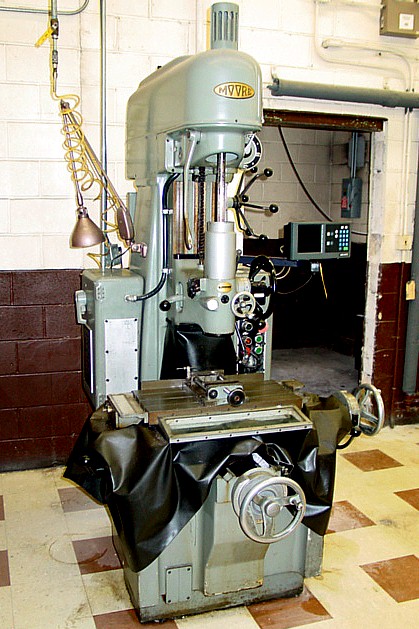

  MOORE #3 JIG BORER

 ** WITH DRO & TOOLING **

 MODEl: B-18              S/N: B-1868            NEW: 1984

 TABLE SIZE ............................... 11" X 24" TABLE
 LONGITUDINAL TABLE TRAVEL ................ 18"
 CROSS TABLE TRAVEL ....................... 11"
 SPINDLE HOUSING VERTICA TRAVEL ........... 12"
 SPINDLE QUILL TRAVEL ..................... 5"
 TABLE TOP TO SPINDLE, MIN. ............... 3- 7/8"
                      MAX. ............... 20- 13/16"
 SPINDLE TO COLUMN WAYS ................... 10"
 SPINDLE TO COLUMN BELOW WAYS ............. 13- 3/4"

 BORING CAPACITY .......................... 5/32" TO 5"
 SPINDLE SENSITIVITY .............. PERMITS DRILLING HOLES
                                     W/#80 (.0135") DRILL
 INFINITELY VARIABLE SPINDLE SPEEDS ....... 60 TO 2,250 RPM
 FEEDS PER REV. (3) .............. 0.000075", .0015" & .003"

 APPROX. WEIGHT ........................... 4,000 LBS.
 APPROX. DIMENSIONS ..................... 58" X 60" X 89"H

 STANDARD FEATURES:
 ACU-RITE TWO-AXIS DIGITAL READOUT DISPLAY
  w/.0001" RESOLUTION
 HARDENED WAYS
 HARDENED, GROUND & LAPPED LEADSCREWS
 LEADSCREWS ARE IN OIL BATH
 TWO-SPEED MOTOR (1 H.P./2 H.P.)
 MACHINE IS PRESENTLY WIRED FOR 440 VOLTS

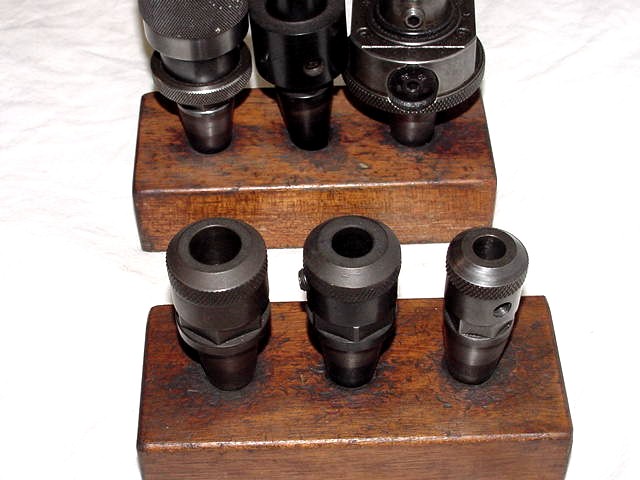

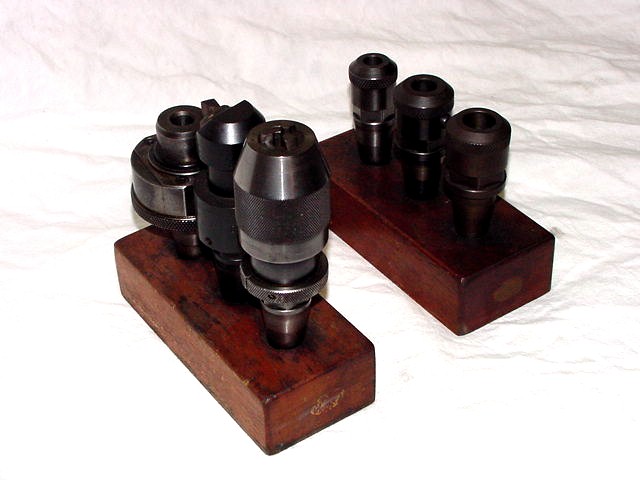

 TOOLING PACKAGES INCLUDED WITH THE MACHINE:

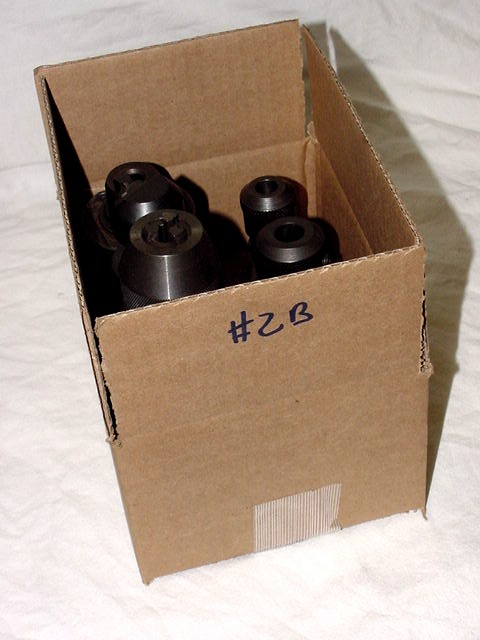

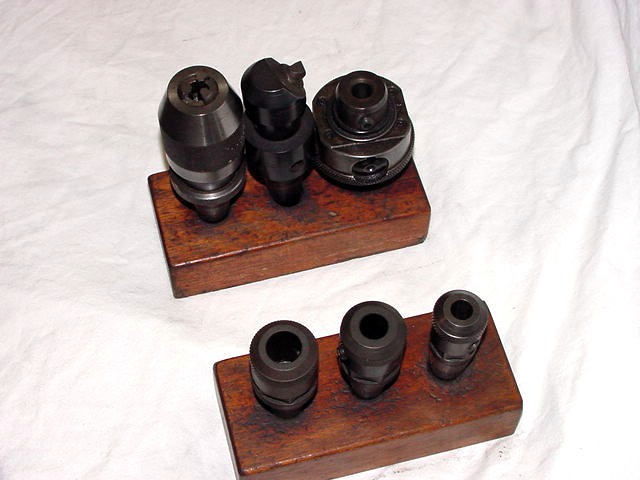

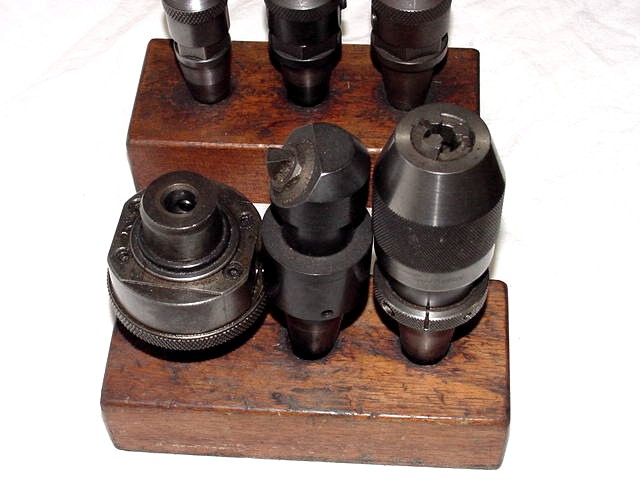

 #2B
 (1) ALBRECHT KEYLESS HAND CHUCK - 1/32-1/2, MOORE SHANK
 (1) BORING CHUCK, MOORE CHUCK
 (1) DEVLIEG MICROBORE, BORING BAR / MOORE SHANK
 (3) MOORE COLLETS - 1/2, 5/8, 3/4

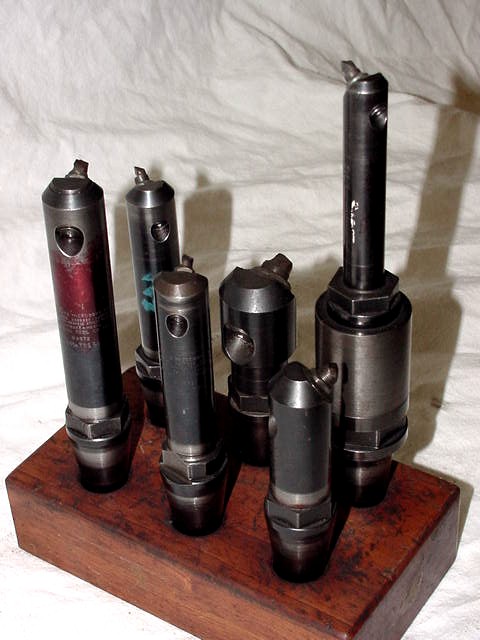

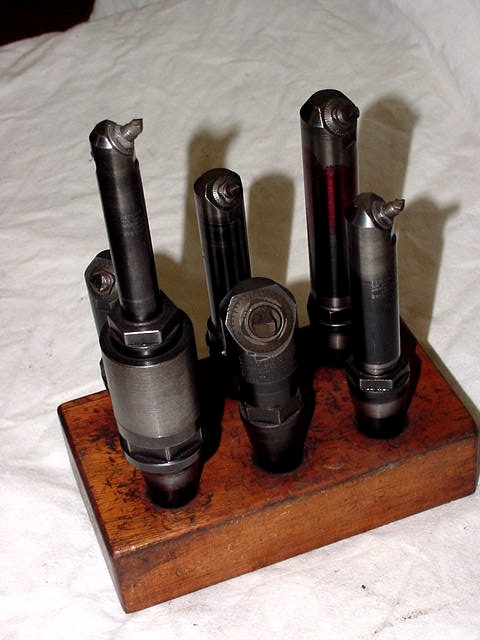

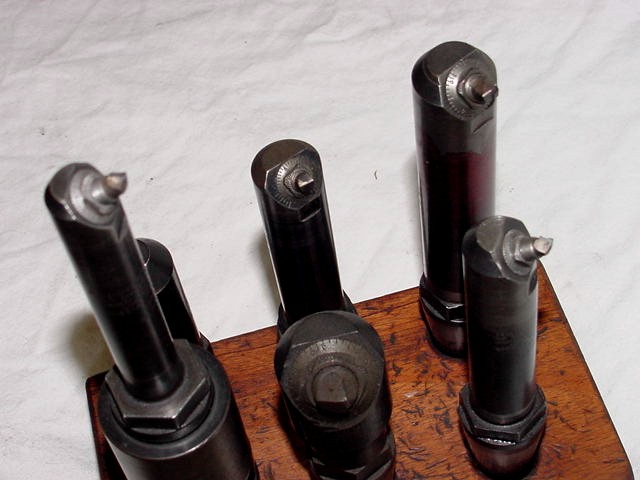

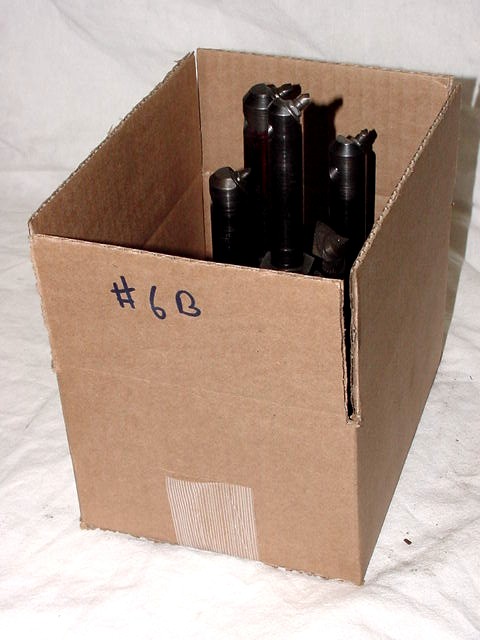

 #6B

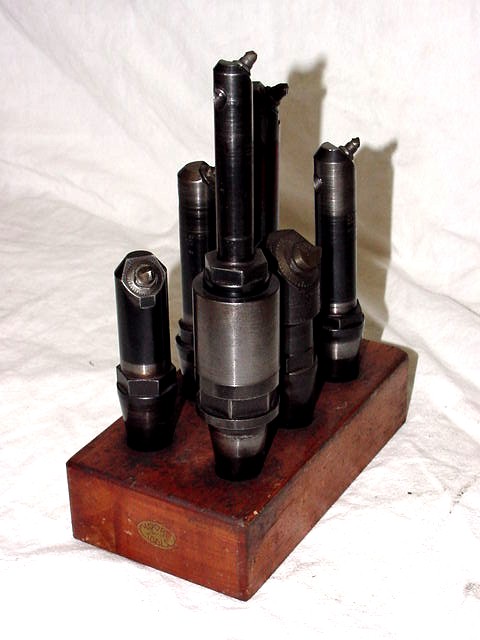

 (6) DEVLIEG MICROBORE, BORING BARS, MOORE SHANKS


  "EXCELLENT" CONDITION & APPEARANCE (ORIGINAL PAINT)
 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
