Reference Number: 142475

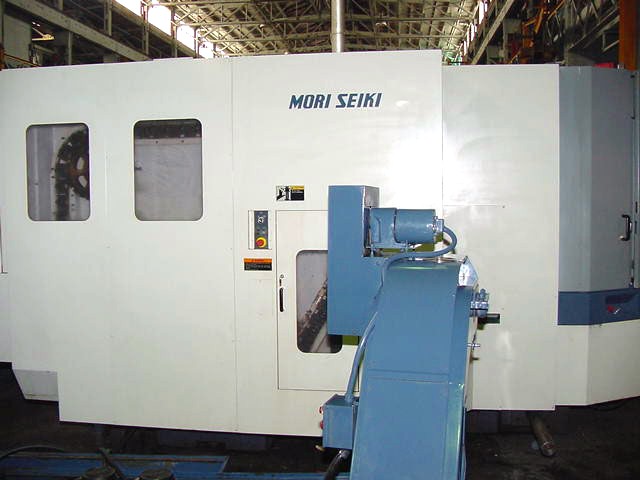

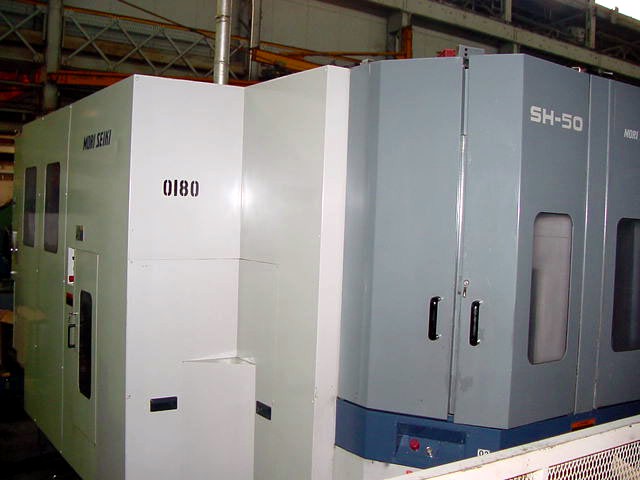

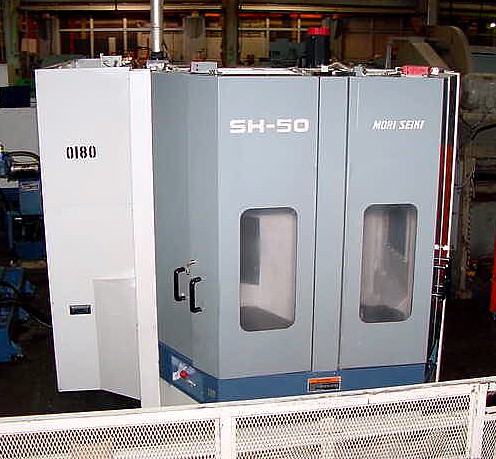

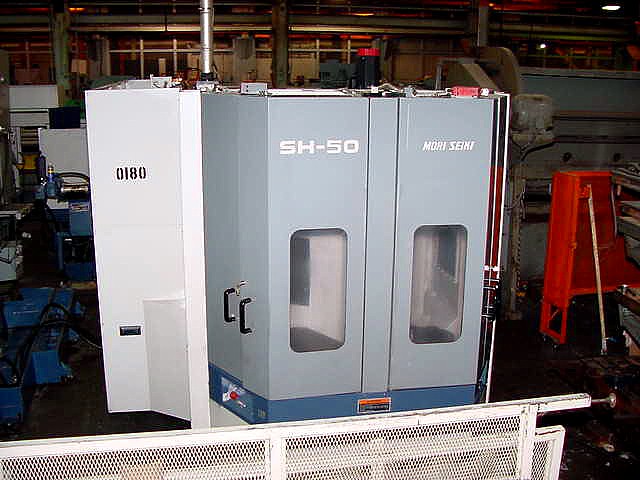

MORI-SEIKI SH-50 CNC HORIZONTAL MACHINING CENTERPrice: $79,500
NEW: 1996
SPECIFICATIONS:
PALLET DIMENSIONS...................... 19.7" x 19.7"
NUMBER OF PALLETS...................... 3
TABLE LOAD CAPACITY.................... 2,200 LBS.
MAXIMUM WORKPIECE SIZE D X H........... 28.7" x 26.8"
AXIS TRAVELS X - AXIS.................. 24.8"
Y - AXIS.................. 23.6"
Z - AXIS.................. 25.6"
B - AXIS.................. 1 Degree
SPINDLE CENTER TABLE TOP............... 2.0" - 25.6"
TABLE CENTER TO SPINDLE................ 5.9" - 31.5"
SPINDLE MOTOR 30 MIN./CONT............. 30/24.8 HP

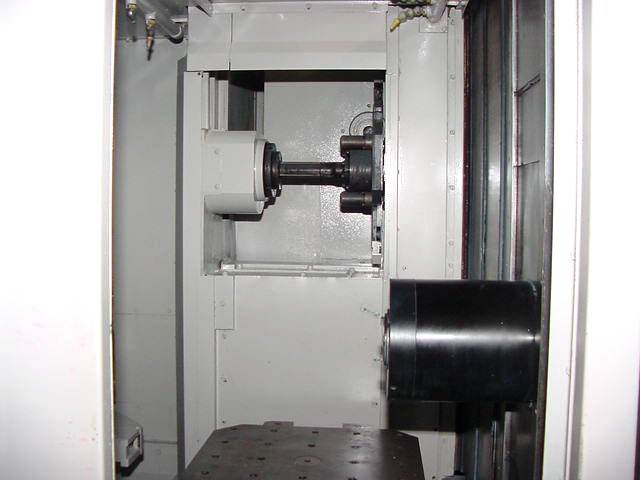

SPINDLE NOSE........................... CAT #40
SPINDLE SPEED.......................... 12,000 RPM
RAPID TRAVERSE......................... 1260 IPM
TOOL MAGAZINE CAPACITY................. 60 ATC
MAX. TOOL DIAMETER/LENGTH/WEIGHT....... 5.9"/14.2"/26.4"
TOOL CHANGE TIME TOOL TO TOOL.......... 1.3 SECS.
MACHINE WEIGHT......................... 33,800 LBS.
EQUIPPED WITH:

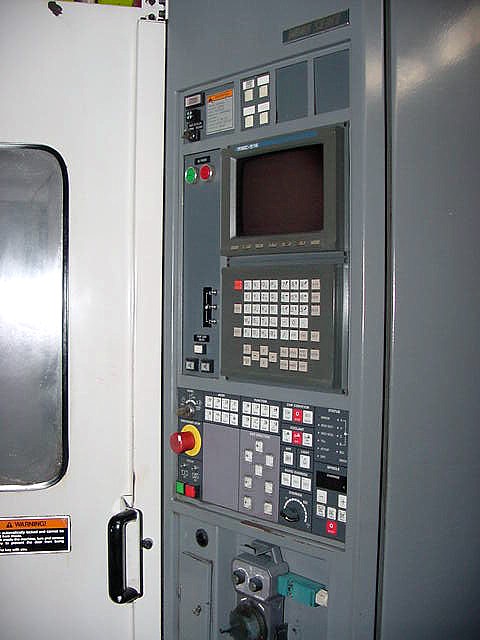

MSC-516 CNC CONTROL

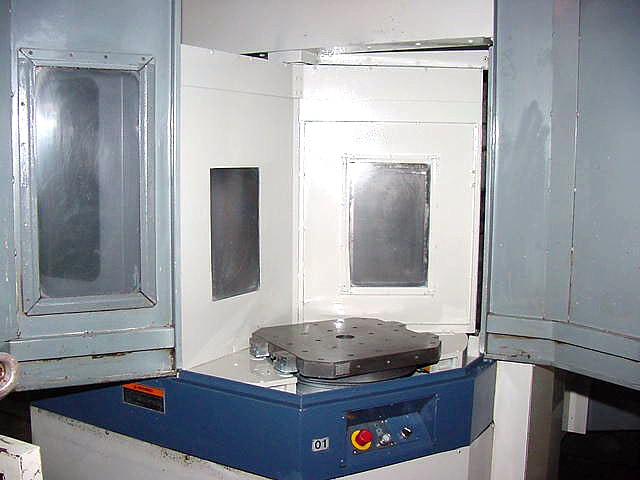

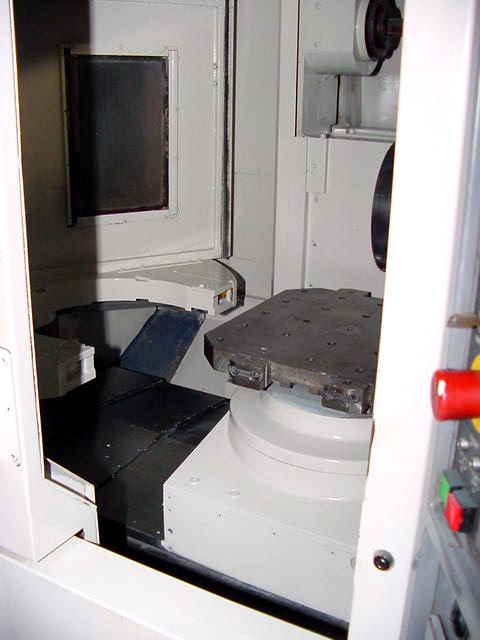

3 PALLET CHANGER
CHIP CONVEYOR
COOLANT THRU SPINDLE
HELICAL
FLOOD COOLANT
ALL AVAILABLE MANUALS
