Reference Number: 142487

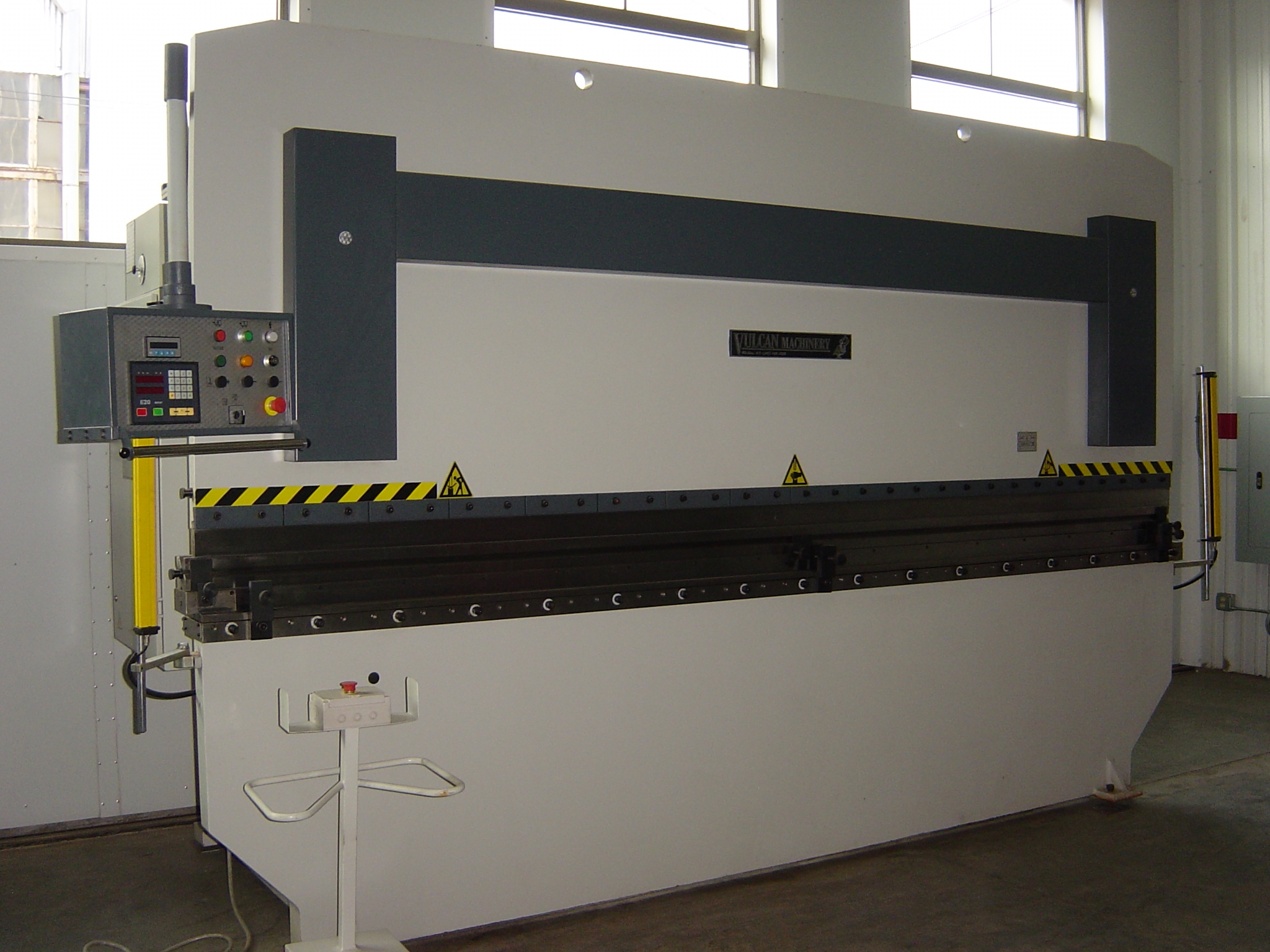

Price: $64,500VULCAN 185 TON
CNC HYDRAULIC PRESS BRAKE
Type PPTK 165/40
Pressing force - 165 tons
Working length - 13 ft.
Distance between housing - 10 ft.
Stroke of ram - 5.9 inches
Adjustment of ram travel - 4.7 inches
Distance between table and ram - 13.8 inches
Depth of throat - 11.8 inches
Width of table - 7 inches
With 4 way die
Approaching speed - 234 inches per minute
Working speed - 20 inches per minute
Returning speed - 161 inches per minute
Motor power - 15 HP
Machine weight - 23,153 lbs
Backgauge distance - 23.6 inches
Length of machine - 171.25 inches
Width of machine - 61 inches
Height of machine - 109 inches
Machine comes with Operation manual
Electrical requirements - 220/480 volts 3 phase 60 cycle
Condition - SLIGHTLY USED
Machine under power and ready to demo.
