Reference Number: 142488

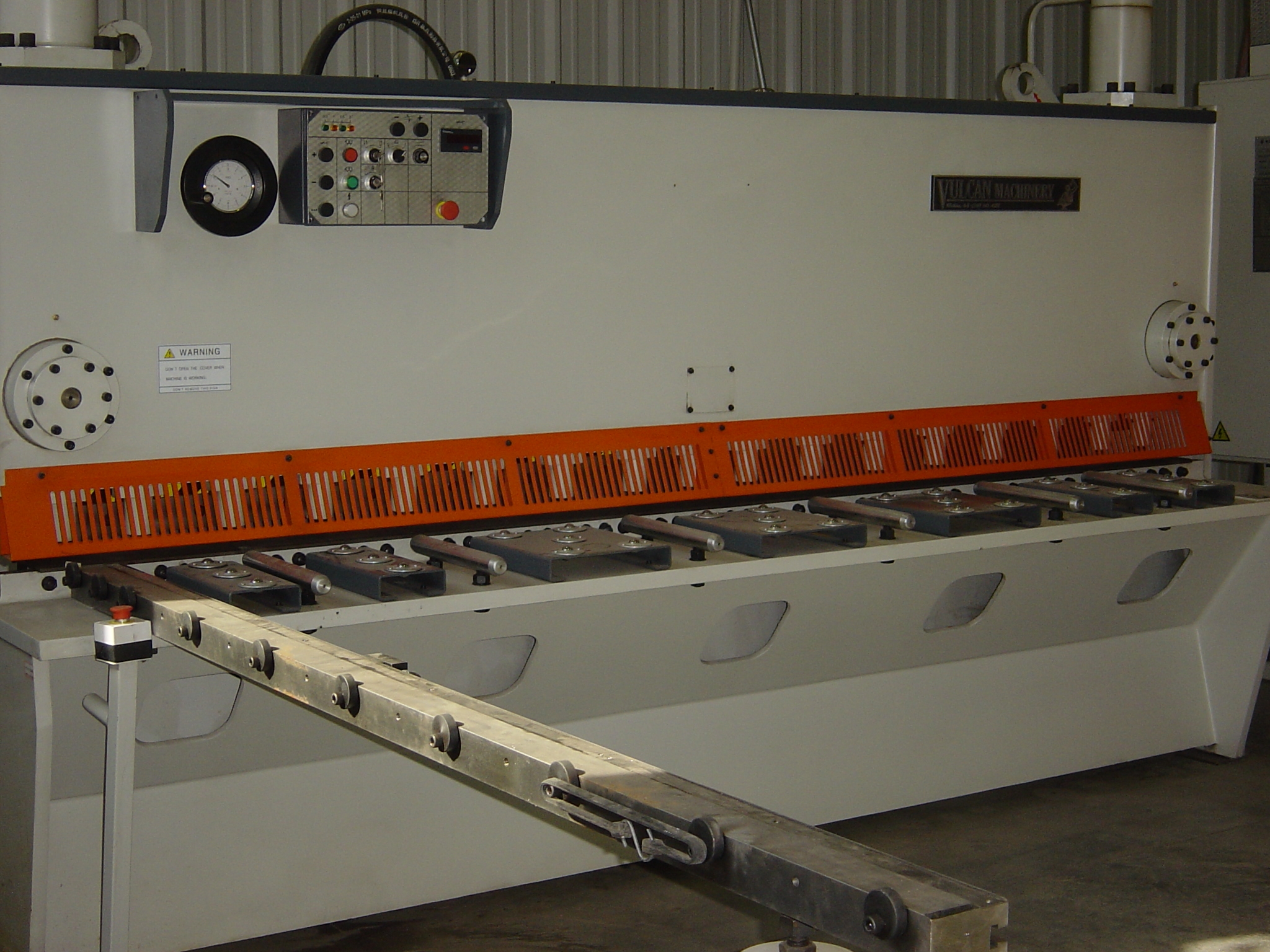

Price: $39,500VULCAN 5/16" X 10 FT. CAPACITY Cutting thickness - .315
CNC HYDRAULIC SQUARING SHEAR
Cutting width - 10 ft
Depth of throat - 4 inches
Cutting angle - 0.5-2 deg (powered)
Stroke - .590 - 1.771 inches
Powered rake adjustment
Powered clearance adjustment
Shadow lighting
Maximum stroke of top beam - 5.12 inches
Maximum plate holder force - 15 tons (with 17 hydraulic hold downs
Maximum cutting force - 20 tons
Range of back gauge - .200 - 29.5 inches
Main motor - 15 HP
Overall dimension - Length - 148 inches / Width - 117 inches / Height - 86 inches
Weight of machine - 14,300 lbs
Electrical requirements - 220/480 volts 3 phase 60 cycles
Comes with operation manual
Condition - SLIGHTLY USED.
Machine under power, ready to demo.
