Reference Number: 142506

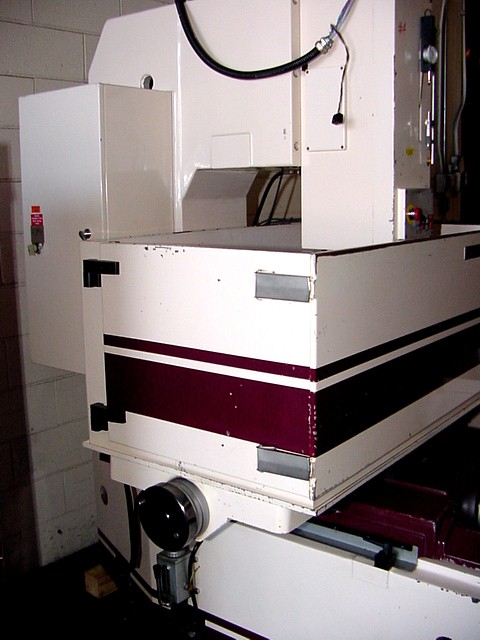

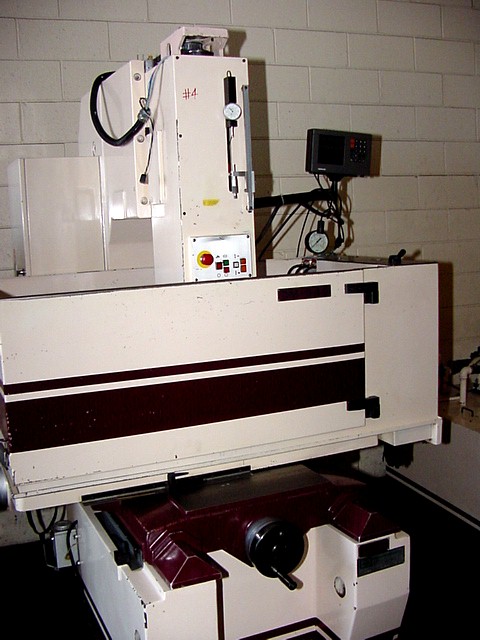

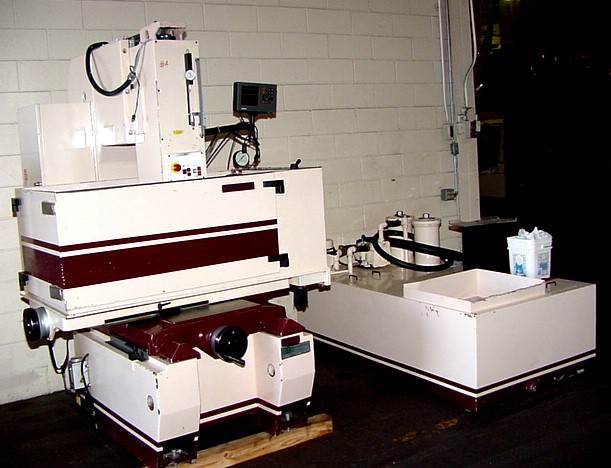

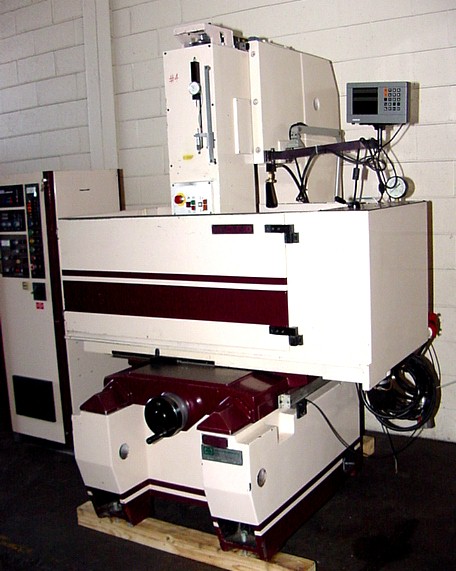

CHEVALIER "LARGE CAPACITY" RAM TYPE EDM

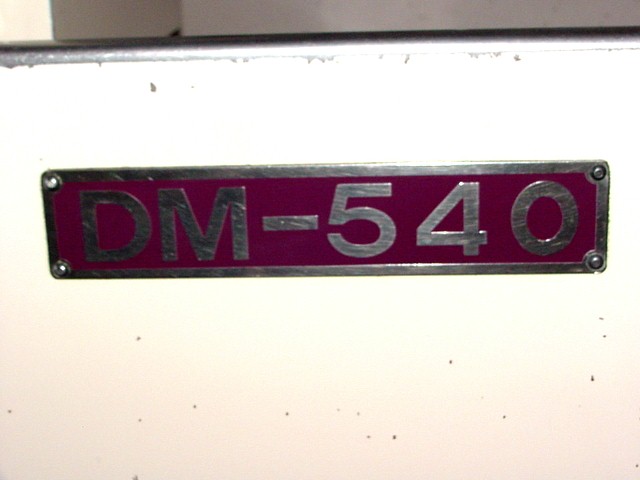

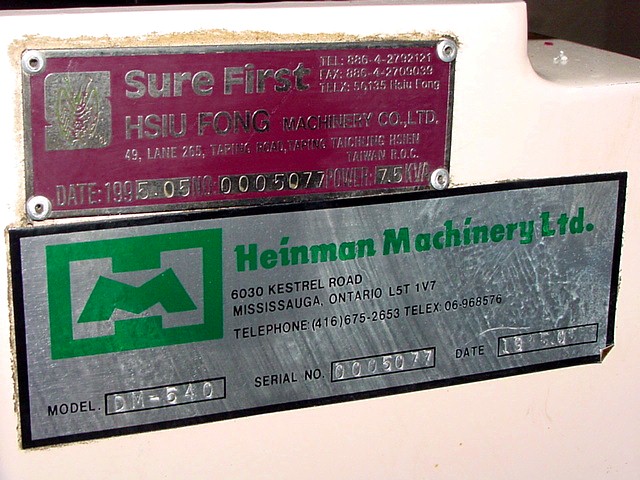

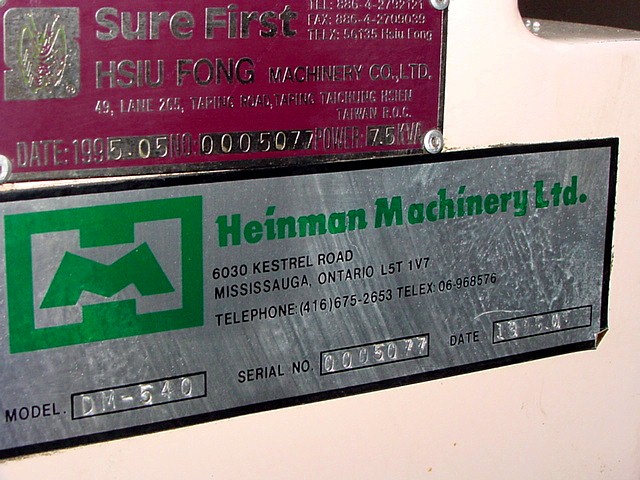

 MODEL: DM-540      S/N: 005007      NEW: 1995

 WORK TABLE SIZE ...................... 33.5" x 17.7"
 LONGITUDINAL TABLE TRAVEL ............ 19.7"
 CROSS TRAVEL ......................... 15.7"
 WORTANK SIZE (INSIDE DIMS.) .......... 47.2" x 27.5" x 18"H

 PLATEN SIZE .......................... 10" x 15- 3/8"
 PLATEN TO TABLE ...................... 25.4" MAX.
 THROAT DISTANCE ...................... 22- 1/4"
 RAM TRAVEL ........................... 7.9"
 QUILL TRAVEL ......................... 7.9"
 MAX. WEIGHT ON PLATEN ................ 660 LBS.
 MAX. WORKPIECE WEIGHT ON TABLE ....... 3,960 LBS.

 DIELECTRIC RESEVOIR .................. 210 GALS.
 WORKTANK TANK CAPACITY ............... 140 GALS.
 HYDRAULIC RESEVOIR ................... 20 GALS.

 APPROX. WEIGHT ....................... 5,700 LBS.
 MACHINE DIMS ..................... 67"L-R, 75"D, 83" H
 TANK IS .............................43" X 77" X 38"H
 CABINET IS ............................ 24" X 36" x 60"H

 EQUIPPED WITH:

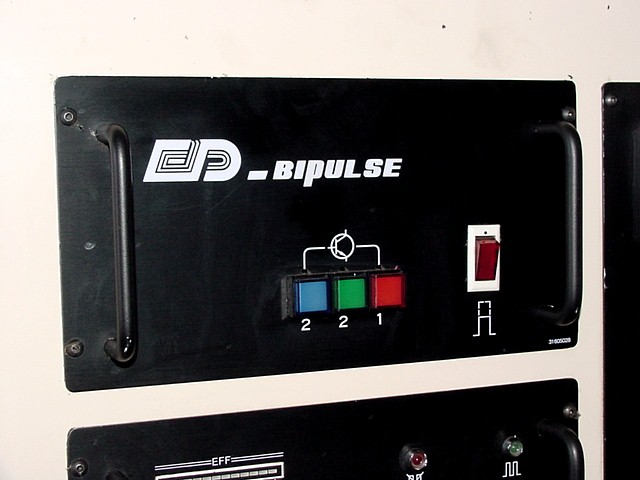

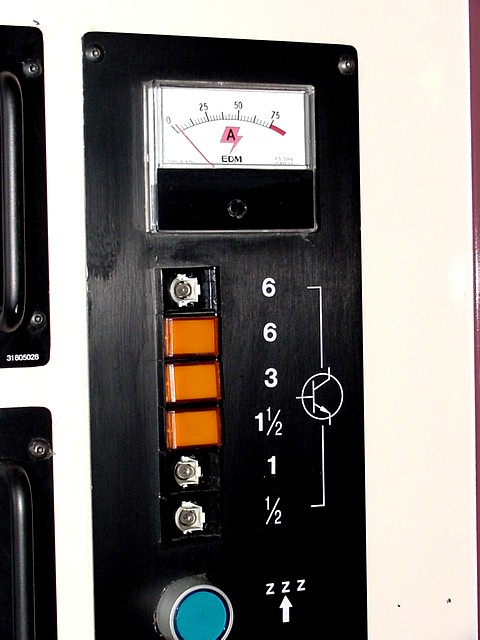

 CHEVALIER 75 AMP POWER SUPPLY

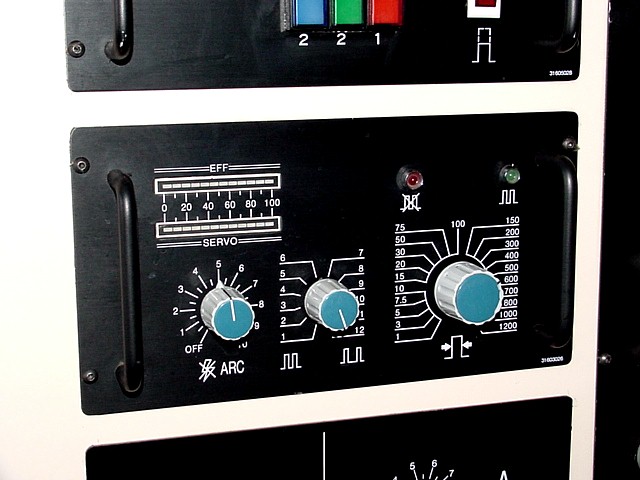

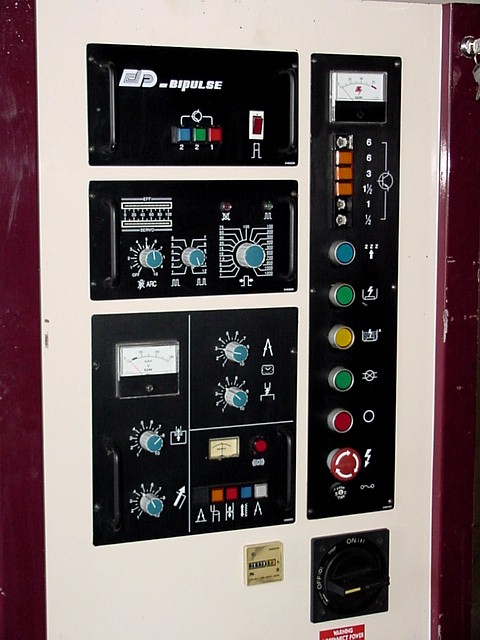

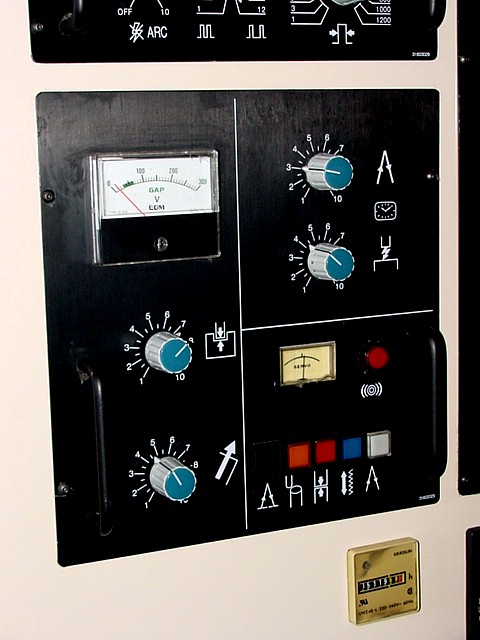

  -SIMPLE, UNDERSTANDABLE SPARK & SERVO CONTROLS
  -SERVO CONTROLS FEATURING DITHER, MANUAL, EDGE FINDER,
  AUTO RETRACT, AUTO LOCK, ORBIT STOP, ORBIT LOCK,
  SERVO SPEED & GAP ADJUST
  -LOW PEAK CURRENT, ARC DURATION (.5 TO 1843 MICROSECONDS)
  & % ON-TIME SELECTIONS FOR ULTRA-FINE FINISHING

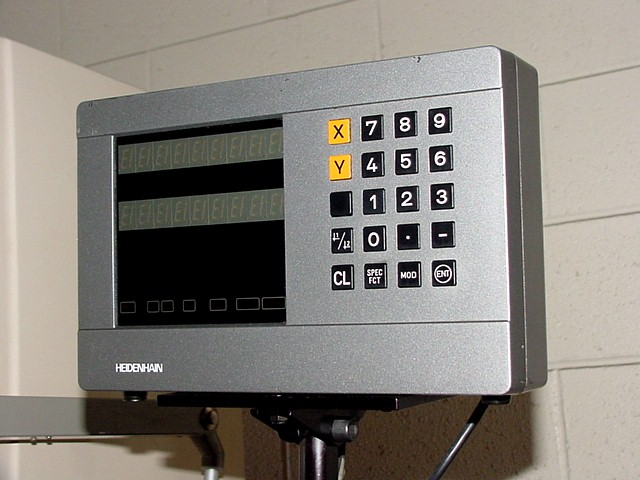

 "HEIDENHAIN" 2-AXIS DIGITAL READOUT DISPLY
 MICROMETER DOWN STOP

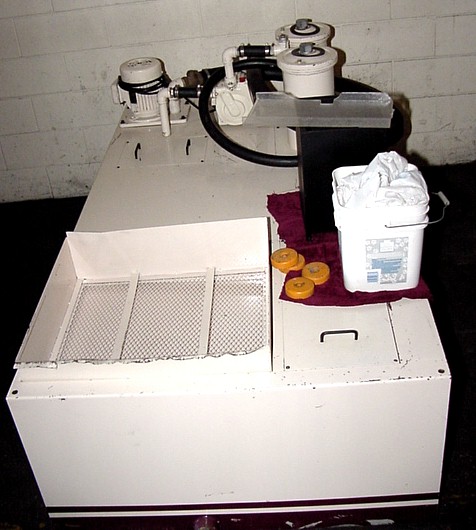

 LARGE EXTERNAL TANK
 MACHINE IS 220/240/380/415/440/575 VOLTS
 PRESENTLY SET-UP FOR 3/60/575 VOLTS

 ** F.O.B. HARRISON, N.J. **
 ** EXCEPTIONAL CONDITION & APPEARANCE **
