Reference Number: 142507

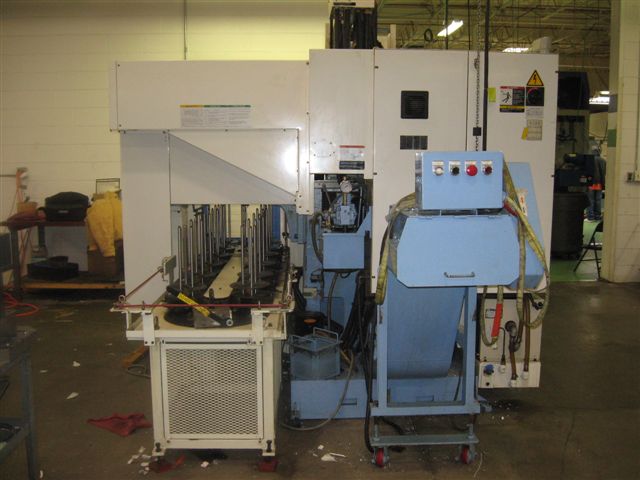

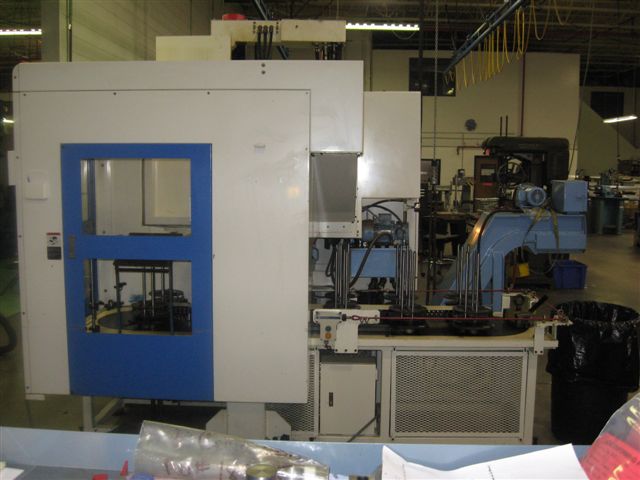

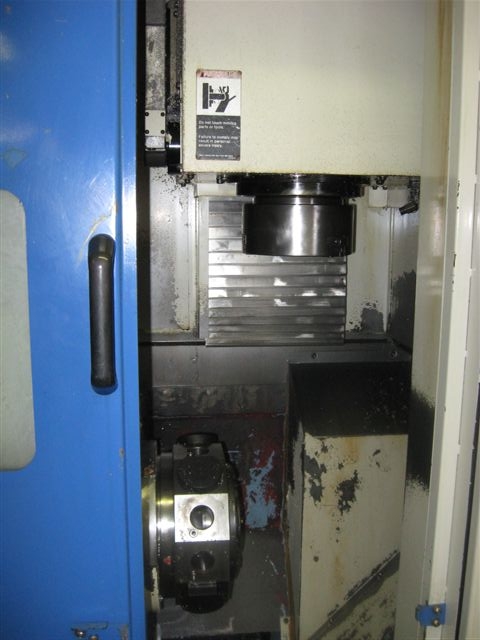

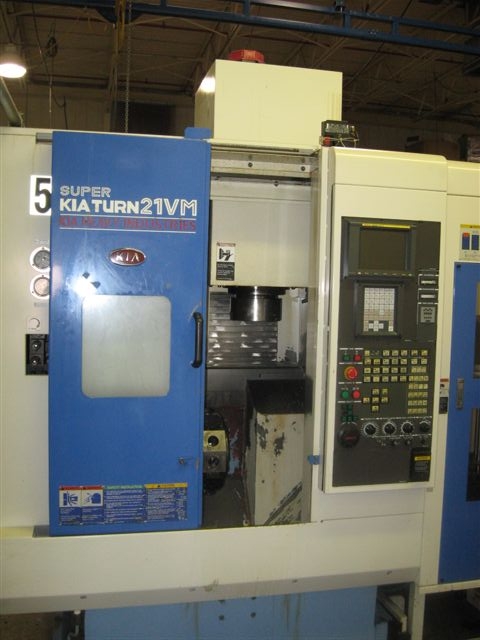

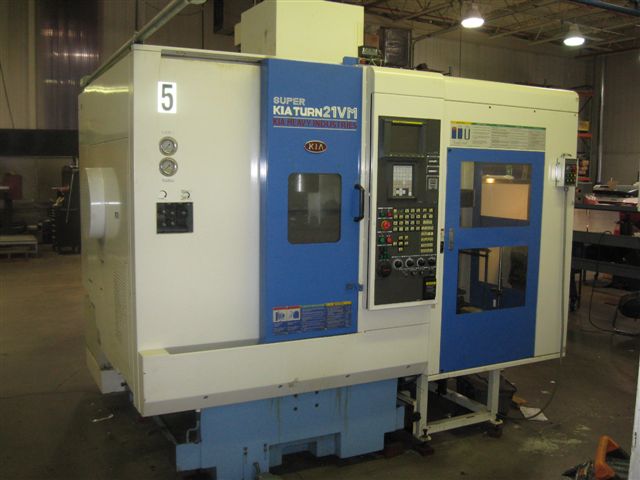

KIA VERTICAL CNC LATHEPrice: On Request
MODEL: SKT 21VM
SPECIFICATIONS:
SWING OVER CROSS SLIDE ................... 26.77"
SWING OVER BED ........................... 15.75"
MAX. TURNING DIA. ........................ 13.78"
MAX TURNING LENGTH ....................... 5.91"
STANDARD TURNING DIA. .................... 9.84"
CHUCK SIZE ............................... 8"
REVOLUTION SPEED ......................... 30-5000 RPM
SPINDLE NOSE ............................. A2-6
C-AXIS LEAST INPUT INCREMENT ............. 0.001
X-AXIS TRAVEL ............................ 49.41"
Z-AXIS TRAVEL ............................ 12.6"
RAPID TRAVERSE X/Z AXES .................. 1181 IPM
NO. OF TOOLS ............................. 12
NO. OF LIVE TOOL STATIONS ................ 12 (VDI 40)
ROTATING SPEED ........................... 4,000 RPM
MAIN SPINDLE MOTOR ....................... 15/10 HP
LIVE TOOL MOTOR .......................... 5/3 HP
APPROX. WEIGHT ........................... 9920 LBS.
APPROX DIMENSIONS (MACHINE)............... 105"x83"
EQUIPPED WITH:
- FANUC 0iT CNC CONTROL
- 8" 3-JAW HYD. CHUCK
- CHIP CONVEYOR
- ALL AVAILABLE LIVE AND STANDARD TOOLHOLDERS
