Reference Number: 142531

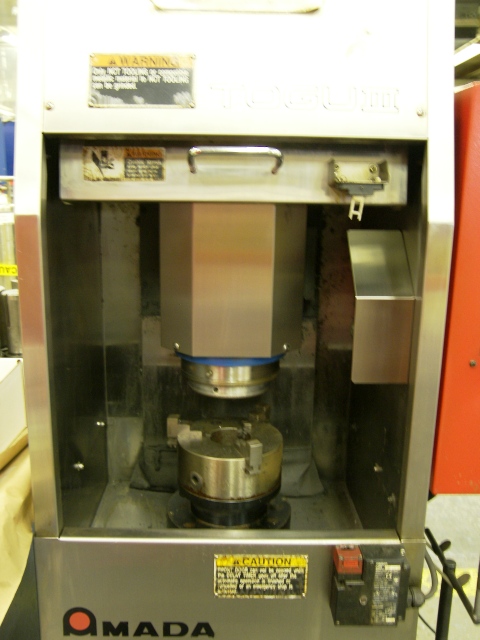

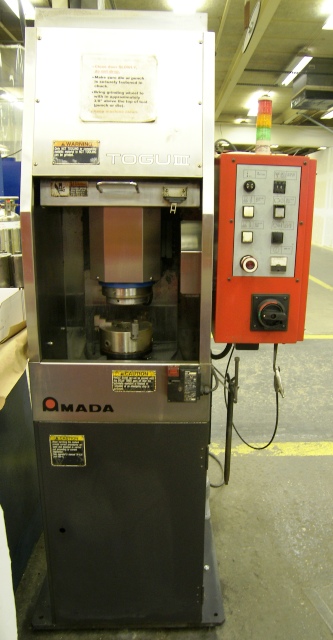

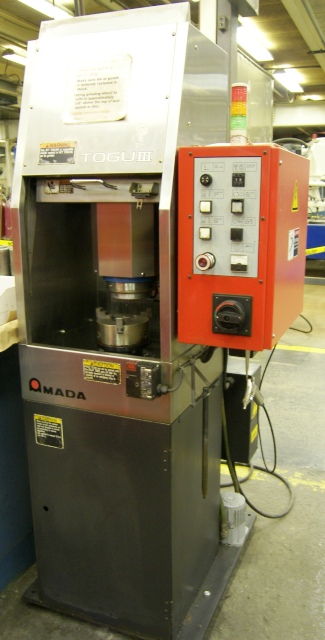

Maximum grinding amount: 0.099"AMADA Automatic Punch & Die Grinder, Model: Togu III
(New December 2000)
Maximum/Minimum tool diameter: 6.299 (type E, 4.5"
die) 0.059"
Maximum/Minimum tool height: 5.906" (With Type E
Shear-Angled Punch Body
is Used/ Chuck Jaw
Height
Standard grinding wheel dia.: 5.315"
Spindle motor: 1.5 kW
Spindle rotating speed: 3000 R.P.M.
Vertical travel distance: 9.449"
Vertical feed motor: DC Servo Motor
Jog feed speed: 11.811 I.P.M.
Positioning speed: 1.1811 I.P.M.
Grinding speed: 0.0023622 I.P.M.
Table motor: 0.1 kW
Table rotating speed: 72 R.P.M.

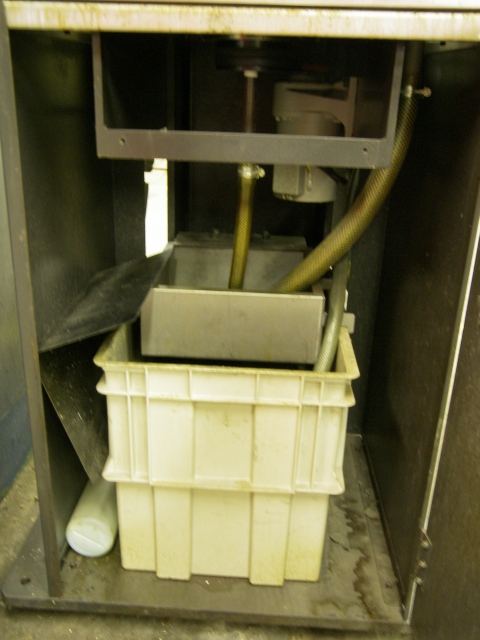

Coolant tank capacity: 8.90 Gallons
Coolant pump motor: 0.06 kW
Supply voltage: 200 Volts
Electric power consumption: 2.5 Kva
Equipped with:

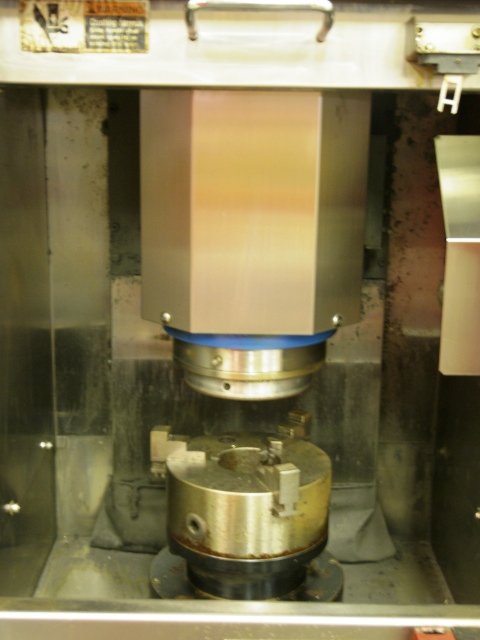

6" Diameter scroll-type three-jaw chuck
F.O.B. New York
Price: On Request
