Reference Number: 142547

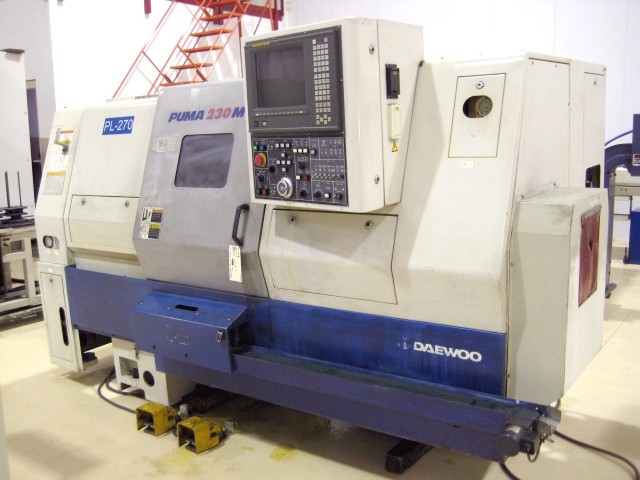

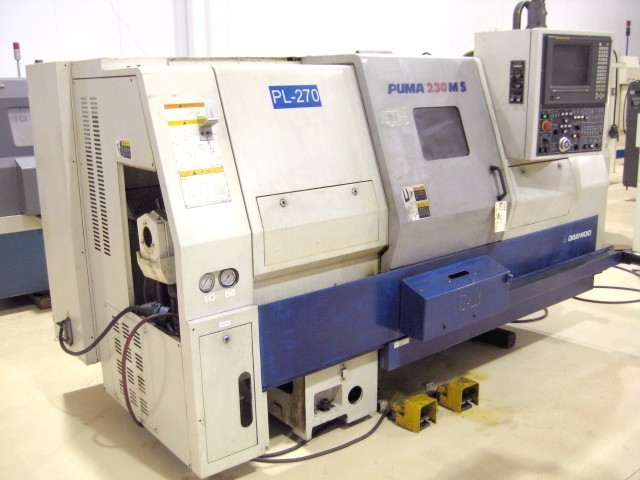

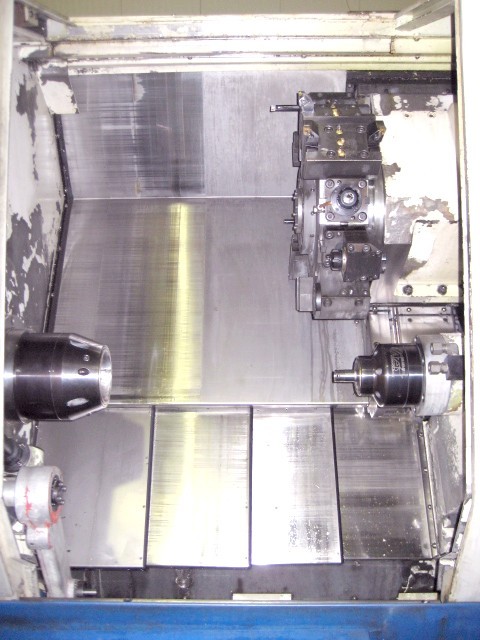

DAEWOO PUMA 230MSB CNC TURNING CENTER
 GENERAL SPECIFICATIONS:
 DATE OF MANUFACTURE 6/2000
 SWING OVER BED 21.7"
 SWING OVER SADDLE 15.4"
 MAXIMUM TURNING DIAMETER 11.4"
 DISTANCE BETWEEN SPINDLE NOSES 32.3"
 X/Z AXIS TRAVEL 8.1" / 22.8"
 C AXIS INDEXING 0.001º
 B AXIS TRAVEL (PICKOFF) 22.8"
 RAPID TRAVERSE RATE X AXIS 945 IPM
 RAPID TRAVERSE RATE Z AXIS 1181 IPM
 SPINDLE NOSE / SPINDLE BORE A2-6 / 2.99"
 MAXIMUM BAR CAPACITY 2.5"
 MAIN SPINDLE SPEEDS 45 - 4,500 RPM
 SPINDLE MOTOR 20 HP

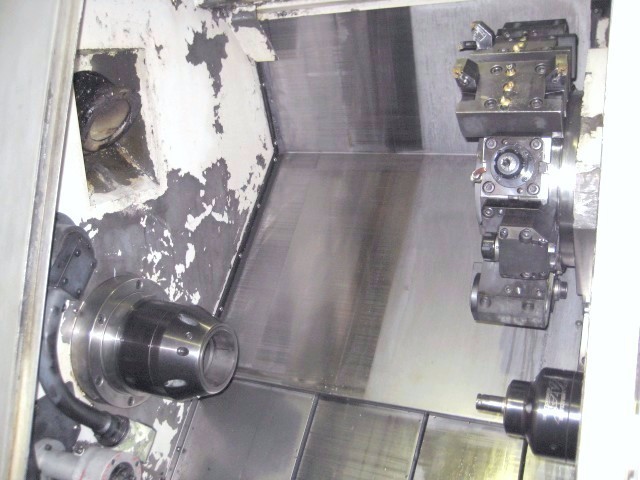

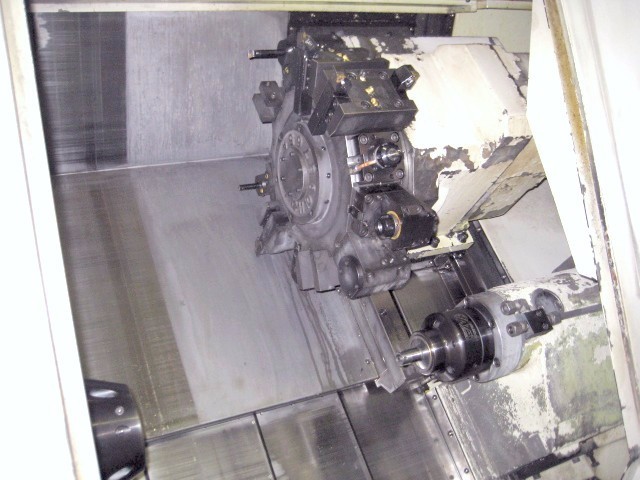

 TURRET CAPACITY 12 STATIONS
 LIVE TOOLING MOTOR 5 HP AC
 LIVE TOOLING SPEEDS 60 - 6,000 RPM
 SUB SPINDLE SPEEDS 60 - 6,000 RPM
 SUB SPINDLE MOTOR 7.5 HP
 APPROXIMATE DIMENSIONS 130" x 66" x 72"
 MACHINE WEIGHT (APPROXIMATE) 10,500 LBS
 EQUIPPED WITH:
 FANUC 18T CNC CONTROL WITH 9" CRT SCREEN,
 RS-232C PORT INTERFACE FOR DNC OPERATION,
 8" and 5" CHUCKS, (2) COLLET CHUCKS INCLUDED,

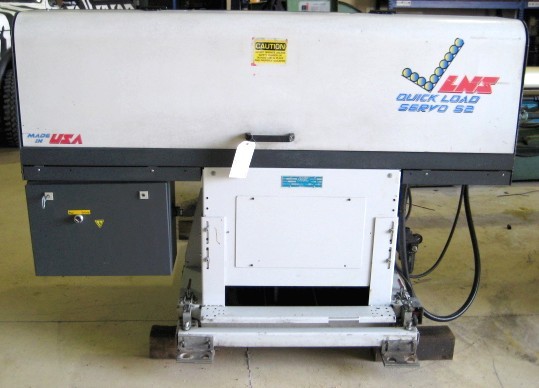

 LNS QL SERVO S2 BARFEED

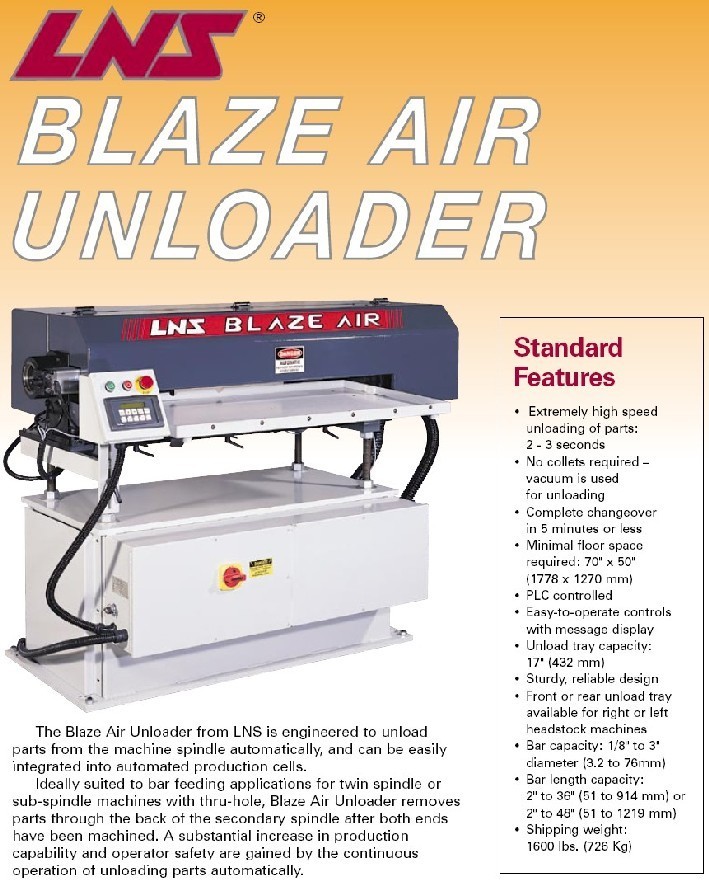

 LNS BLAZE AIR AUTOMATIC PART UNLOAD VACUUM SYSTEM,
 AUTO PARTS CATCHER, UNIVERSAL BARFEED INTERFACE,
 SPINDLE SYNCHRONIZATION FOR SUB SPINDLE PICKOFF,
 LIVE MILLING TOOL HOLDERS INCLUDED,
 REAR DISCHARGE CHIP CONVEYOR, PARTS CONVEYOR(5'),
 STANDARD COOLANT SYSTEM WITH TANK & PUMP,
 ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANAULS
