Reference Number: 142565

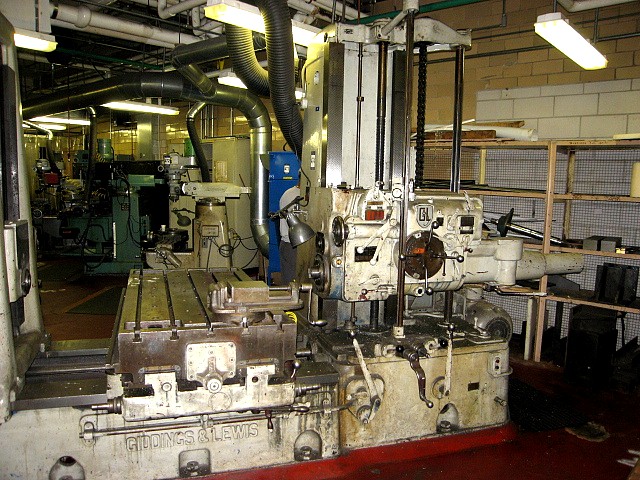

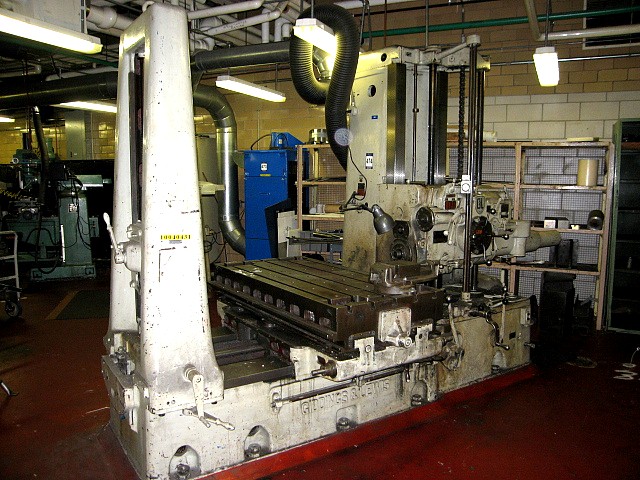

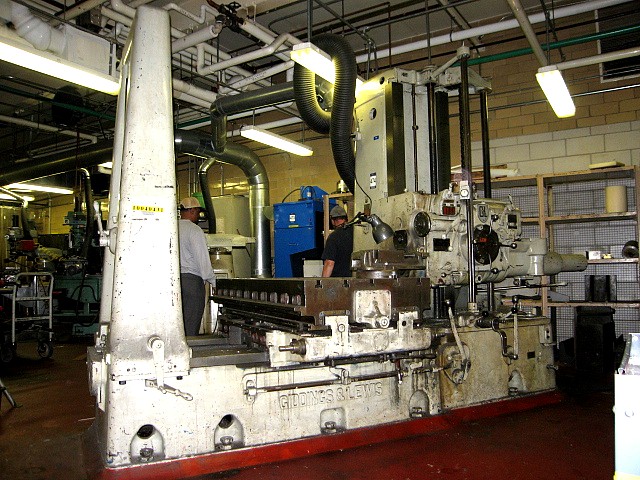

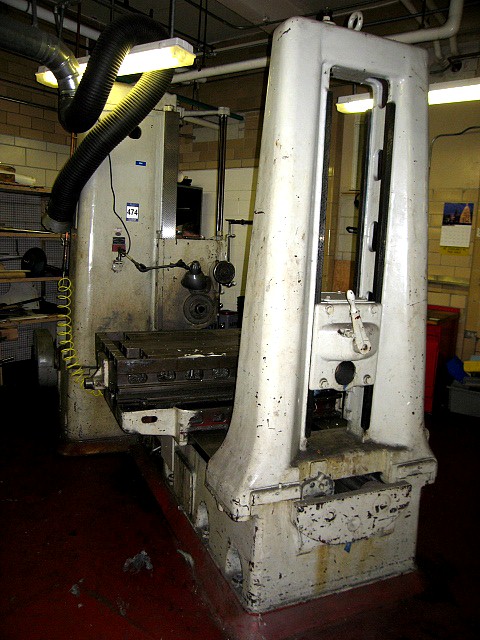

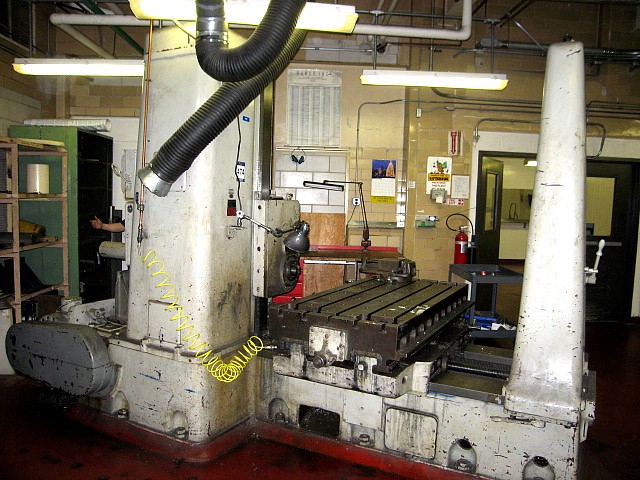

SPECIFICATIONS:3" GIDDINGS & LEWIS HORIZONTAL BORING MILL
MODEL 330-T, S/N: 6553, NEW: 1943
DIAMETER .......................... 3"
MAIN SPINDLE TAPER ................ #5MT
AUX. SPINDLE TAPER ................ #2MT
SPINDLE TRAVEL .................... 24"
VERTICAL TRAVEL OF HEAD ........... 42"

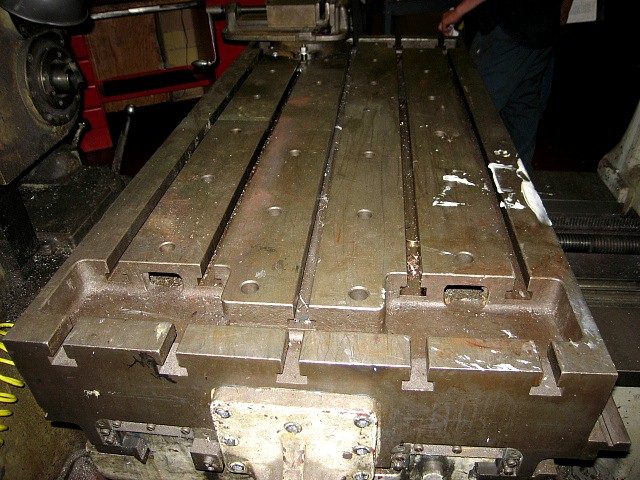

TABLE SIZE ........................ 30" X 62"
CROSS-TRAVEL OF TABLE ............. 48"
SADDLE TRAVEL (IN & OUT) .......... 48"

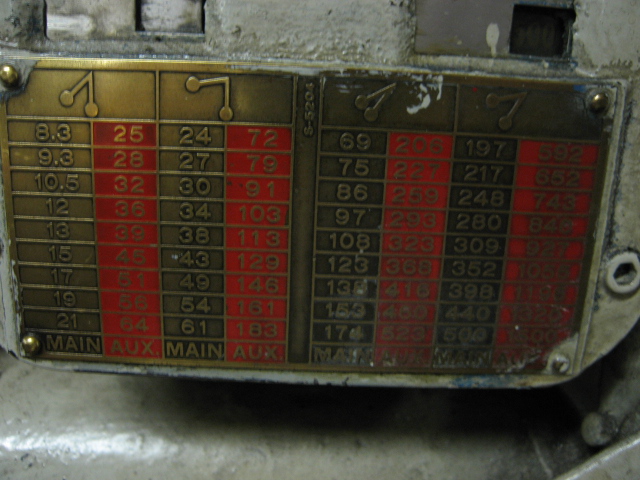

MAIN SPINDLE SPEEDS (36) .......... 8.3 TO 500 RPM
AUXILLARY SPINDLE SPEEDS(36) ...... 25 - 1500 RPM
THREAD PITCHES (5) ................ 8, 10, 13, 16, 20
APPROXIMATE WEIGHT ................ 22,500 LBS.
EQUIPPED WITH:
TAILSTOCK
THREADING
RAPID TRAVERSE IN ALL DIRECTIONS
MANUAL CLUTCH

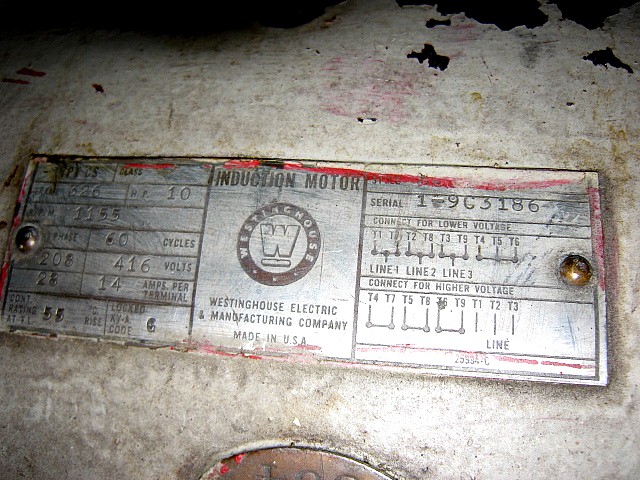

10 HORSE POWER MAIN MOTOR
PURCHASED FROM A FORTUNE 500 TOOLROOM
CONDITION: **** EXCELLENT ****
Price: $14,500
