Reference Number: 142571

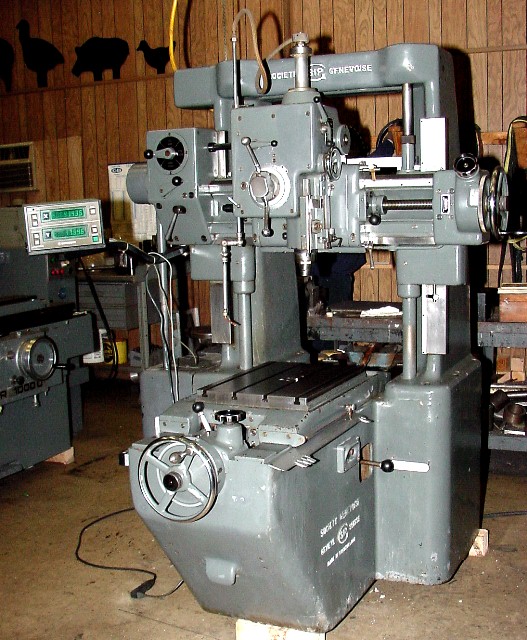

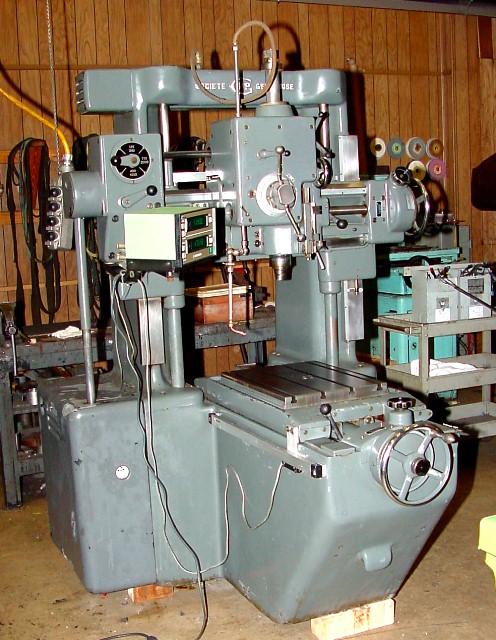

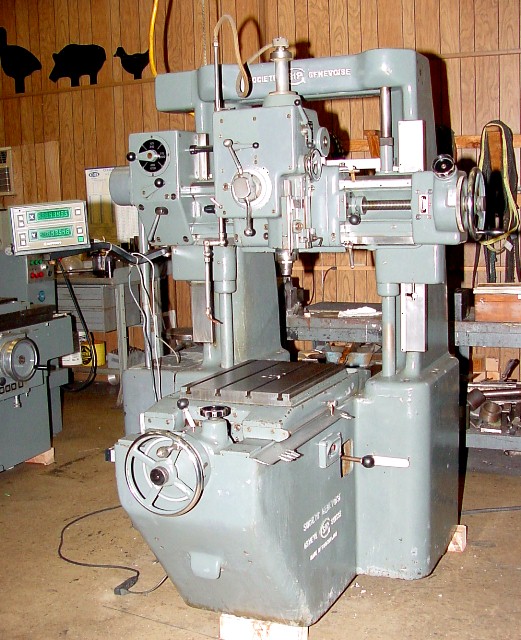

SIP BRIDGE TYPE "ULTRA-HIGH PRECISION" JIG BOREREQUIPPED WITH:

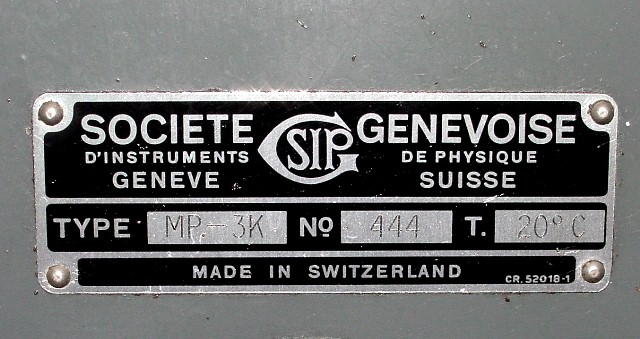

** MADE IN SWITZERLAND **
MODEL: MP-3K S/N: 444 NEW: 1966
WORKING RANGE:
Table Working Surface: 20-1/2" x 15"
Longitudinal Travel of Work Table: 18"
Transverse Travel of Spindle Saddle: 14"
Maximum Distance from Table Top to Spindle End: 24-1/2"
Free Space Between Uprights: 23-1/2"
SPINDLE:
Internal Taper: Morse 2
External Taper: Special Taper SIP 2E
(8) Spindle Speeds: 75, 125, 210, 340, 480, 770, 1250 & 2000 RPM
(6) Power Feeds: 0.0008", 0.0016", 0.0025", 0.0035", 0.005" & 0.007"
Drilling Capacity (In Cast Iron): 1"
Boring Capacity: 4"
Spindle Quill Travel: 6"
Travel of Vertical Slide: 15-3/8"
Overall Size: 60" L-R x 69" F-B x 82" H on 3" Blocks
Weight: Approx. 4,000 Lbs.
MITUTOYO 2-Axis Digital Readout Display with 1 um (1 Micron)
Glass Scales
SIP Model PD-3 Rotary Table (S/N: 392), 13- 3/4" Diameter, Height to Top of Face is 4- 7/8"
SIP Locating Microscope with 12.5X Lens, Unit Mounts on Spindle
SIP Locating Dial Indicator
Spotting Tool with Morse Taper Adaptor
Boring Had, Mounts in Spindle
Drill Chuck, Swiss Made, 1/64" to 25/32" Drilling Capacity
Presently Wired for 3 Phase, 60 Cycle, 220-440 Volts
** Exceptional Condition & Appearance **
** Inspect Under Power in our Harrison, N.J. Warehouse **
Price: $7,500
