Reference Number: 142586

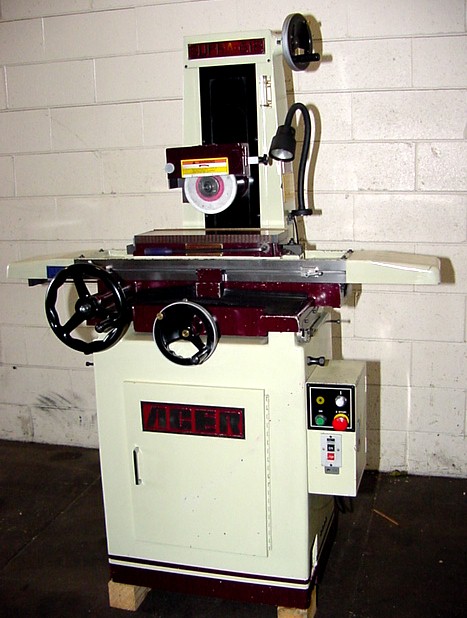

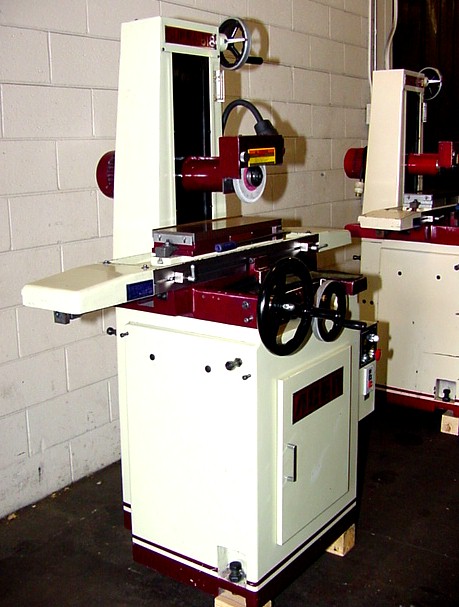

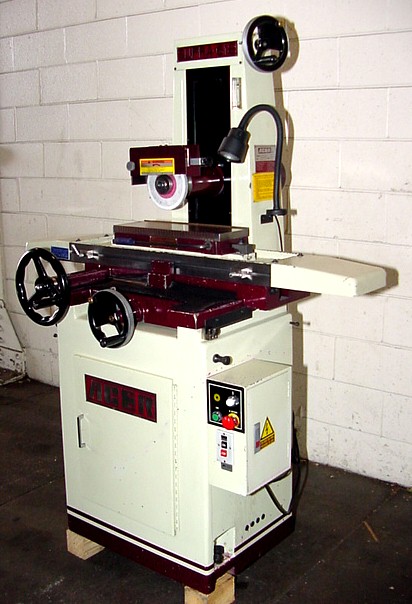

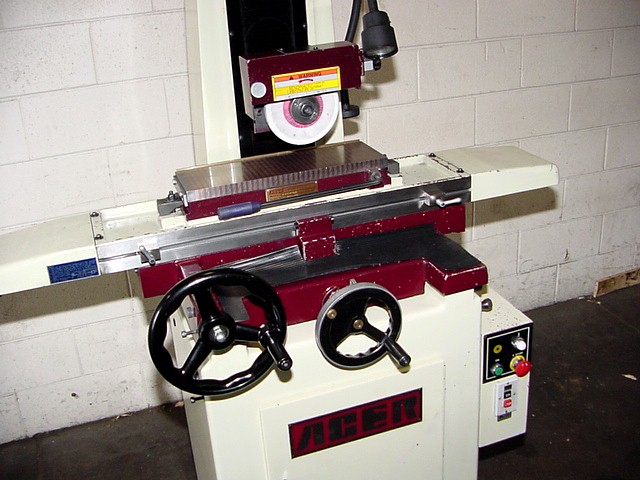

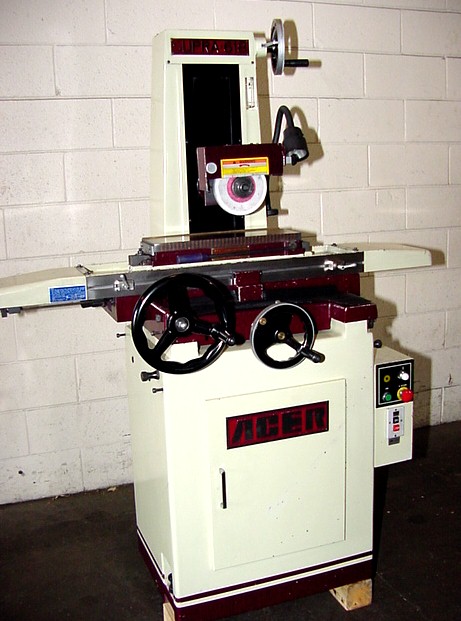

6" x 18" ACER "PRECISION" HAND FEED SURFACE GRINDER
 w/ROLLER BEARING TABLE

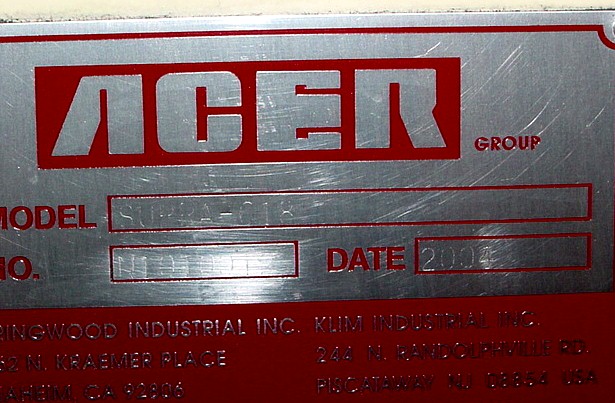

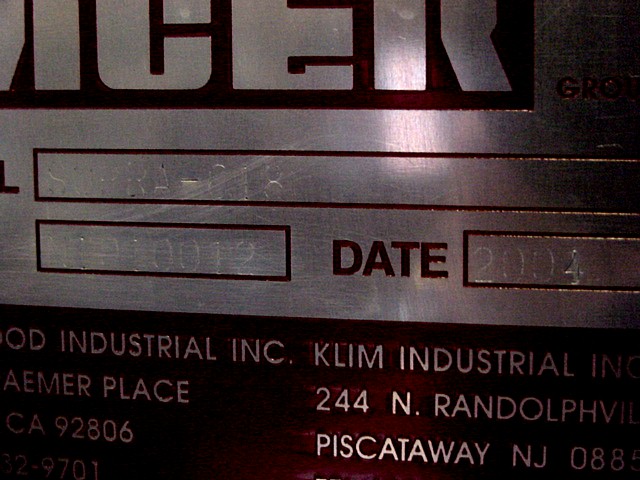

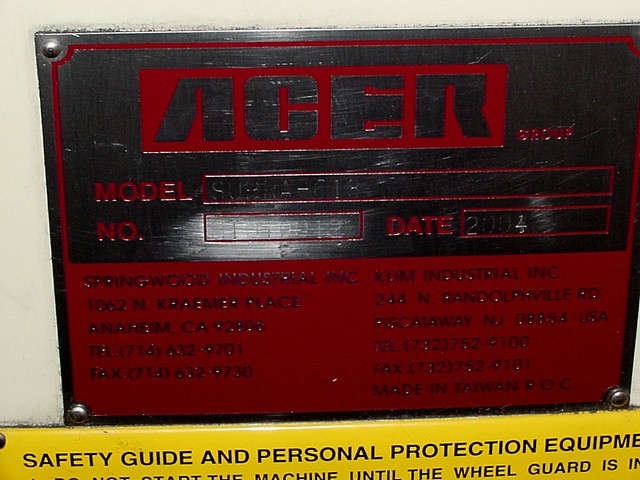

 MODEL: SUPRA-618     S/N: 11010012     NEW: 2004



 WIDTH & LENGTH GROUND ........................... 6" X 18"
 MAX. DISTANCE, TABLE TO SPINDLE CENTER ............... 18"
 LONGITUDINAL TABLE TRAVEL .............................20"
 CROSS TRAVEL ..................................... 7- 1/2"
 GRINDING WHEEL CAPACITY ............ 8" X 1" X 1-1/4" BORE

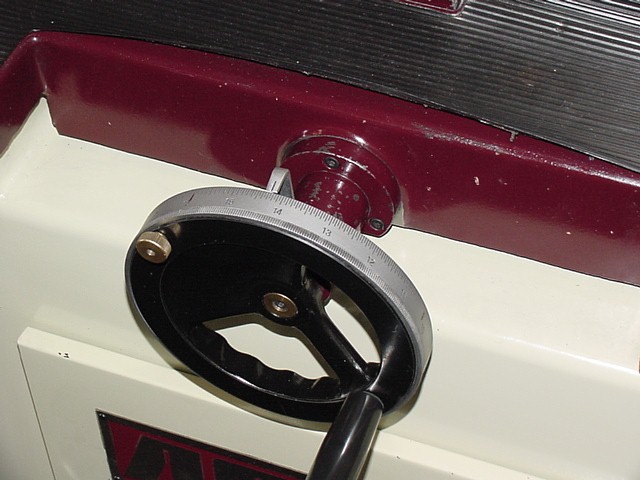

 CROSS FEED, HANDWHEEL PER GRAD. .................. 0.0005"
 CROSS FEED, PER REV. ............................... 0.02"

 VERTICAL FEED PER REV. OF HANDWHEEL ..... .......... 0.05"
 VERTICAL FEED, HANDWHEEL PER GRAD. ............... 0.0001"

 APPROX. WEIGHT ............................... 1,584 LBS.
 APPROX. DIMENSIONS ...................... 52" X 38D" X 66"H

  EQUIPPED WITH:
 MEEHANITE CASTING FOR MACHINE
 LONGITUDINAL TABLE TRAVEL ON BALL BEARINGS DRIVEN BY A
  TIMING BELT, WHICH ENCLOSES HIGH TENSILE STEEL CORES THAT
  ENSURE SMOOTH TABLE MOVEMENT & LONGEVITY OF THE BELT.
 PRECISION HARDENED & GROUND CROSSFEED LEADSCRW WITH
  DOUBLE NUTS
 EXTRA WIDE SADDLE & TURCITE-B LINING DOUBLE VEE CROSSFEED
  WAYS.  THE DISTANCE BETWEEN 2V IS 19.6".  THUS ASSURING
  THE 18" TABLE MOVEMENT IS ALWAYS WITHIN THE MACHINE'S BASE.
 HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN
 AUTOMATIC LUBRICATION SYSTEM, LOCATED IN THE MACHINE'S BASE

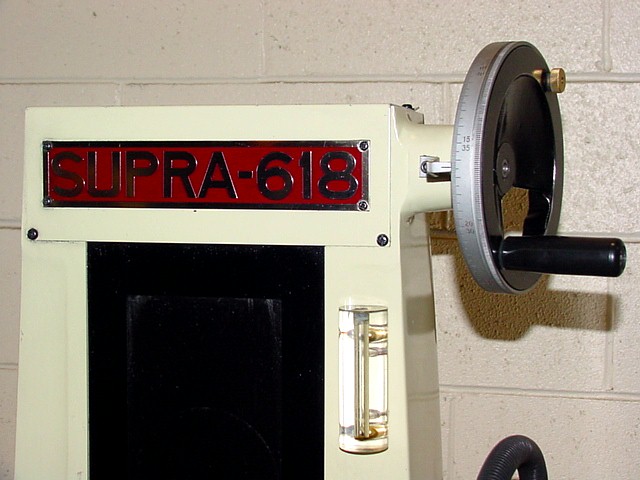

 AUTO LUBE INDICATOR LOCATED JUST BELOW VERTICAL HANDWHEEL,
  AT THE OPERATOR'S EYE LEVEL

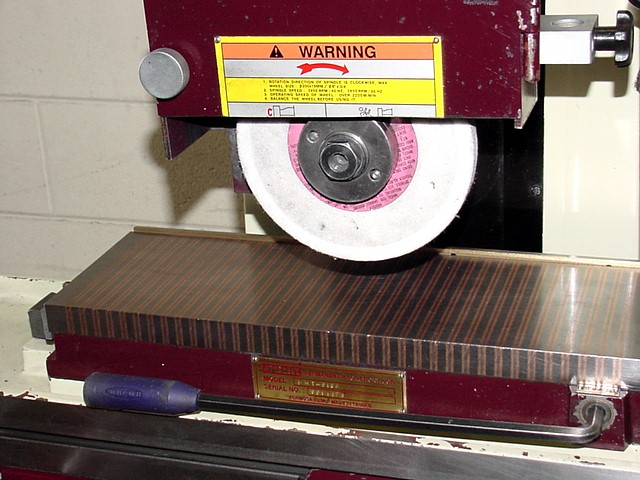

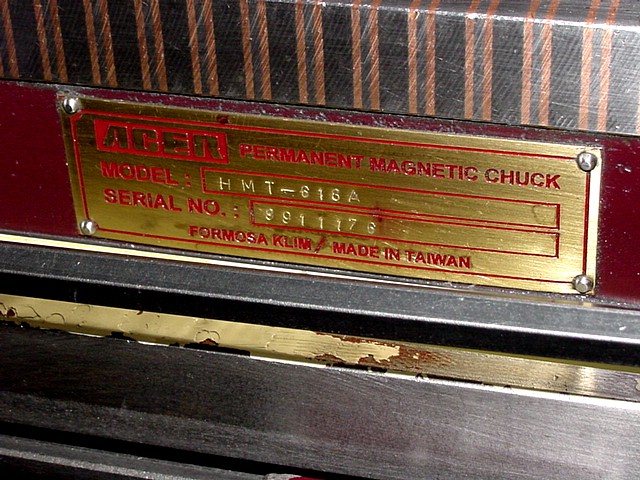

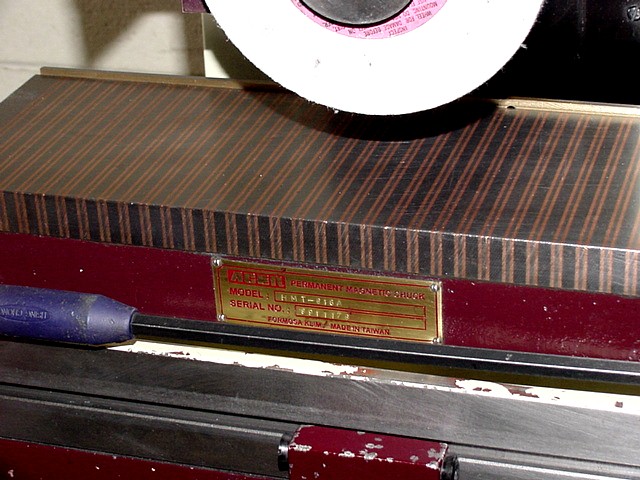

 FINE-DIVISION PERMANENT MAGNETIC CHUCK
 HALOGEN WORK LIGHT
 SET-UP FOR DRY GRINDING
 2 H.P. 3/60/230-460 VOLT HIGH PRECISION CARTRIDGE-TYPE

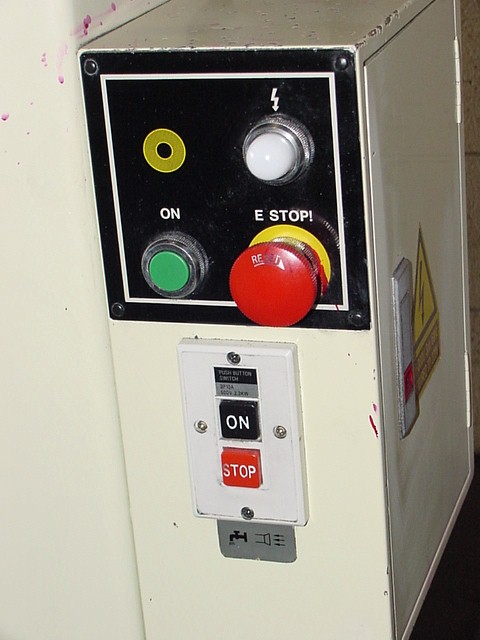

  SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS


 * * EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
