Reference Number: 142593

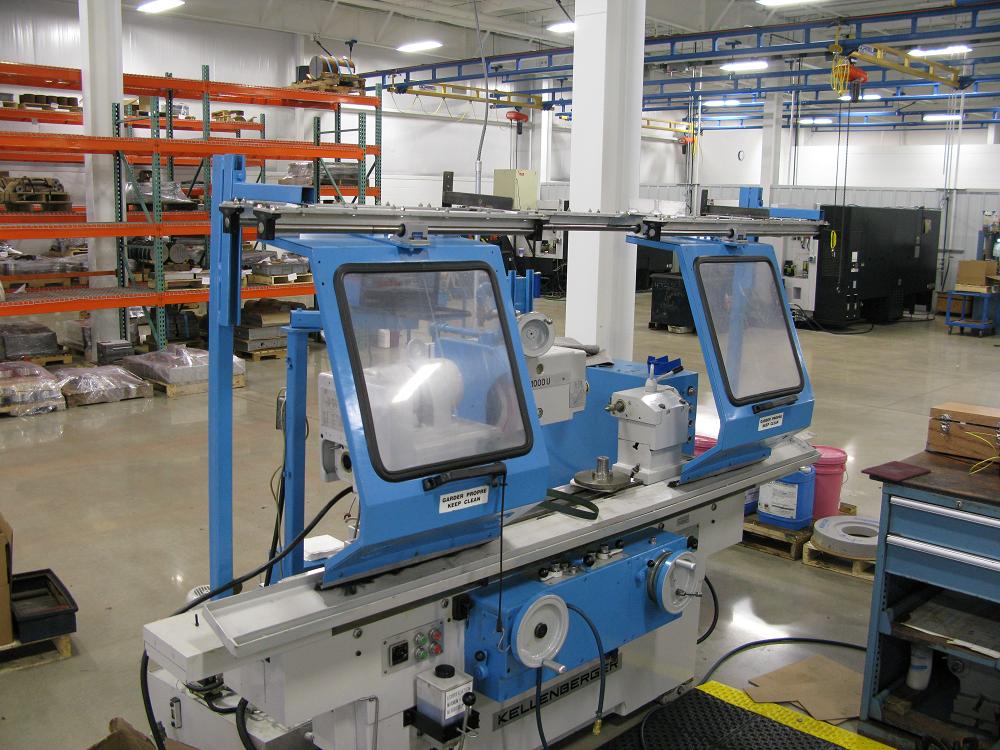

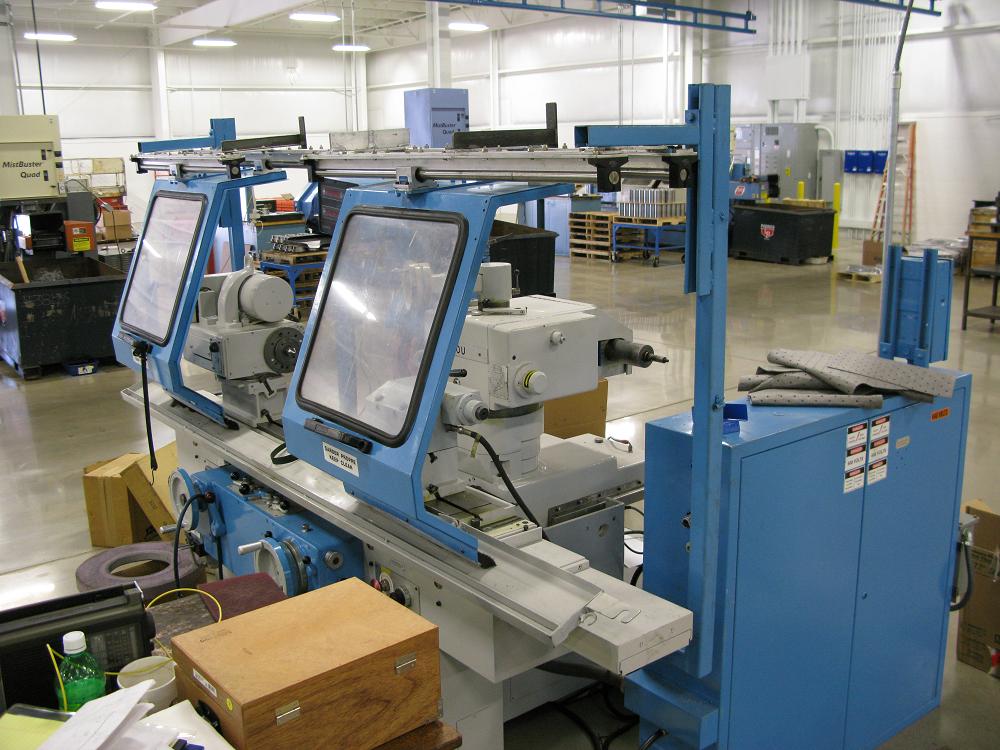

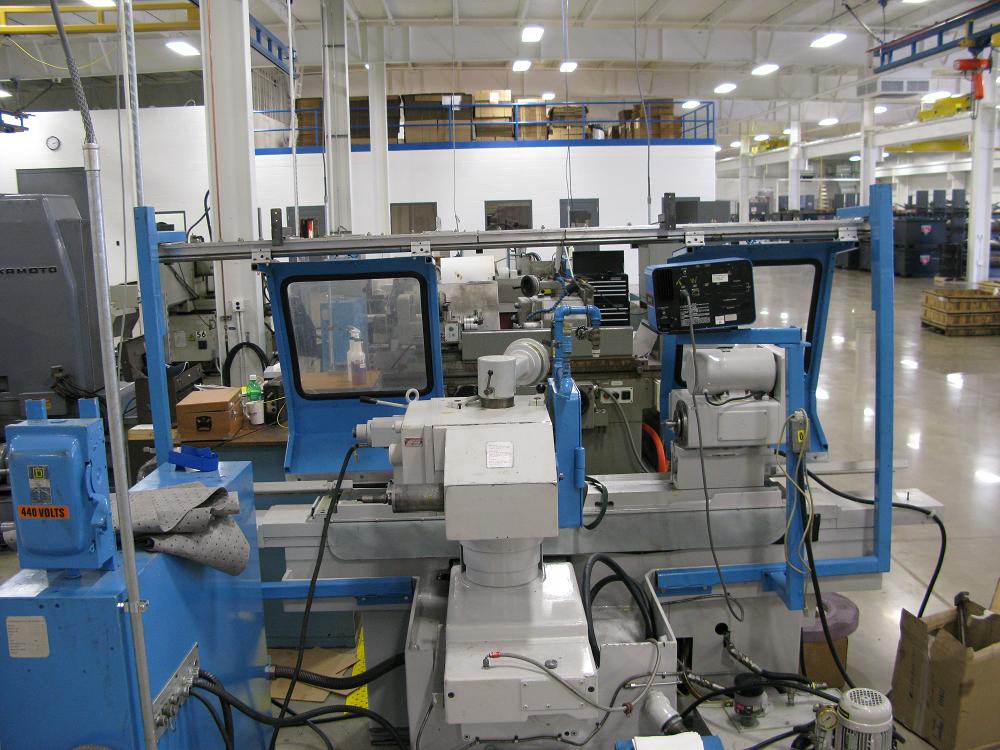

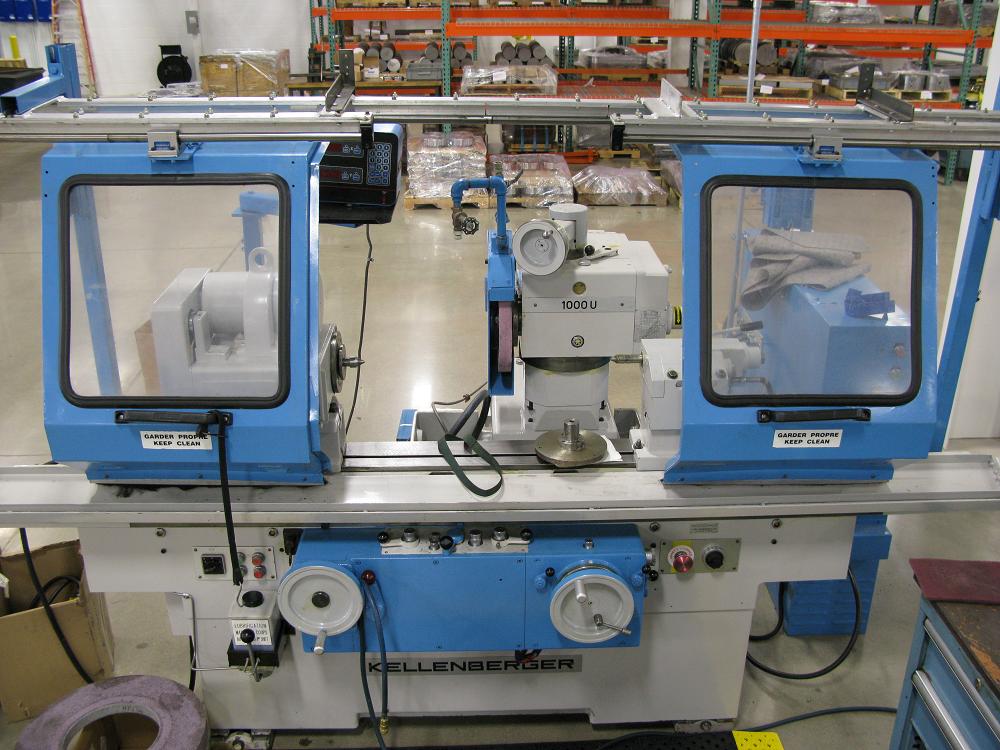

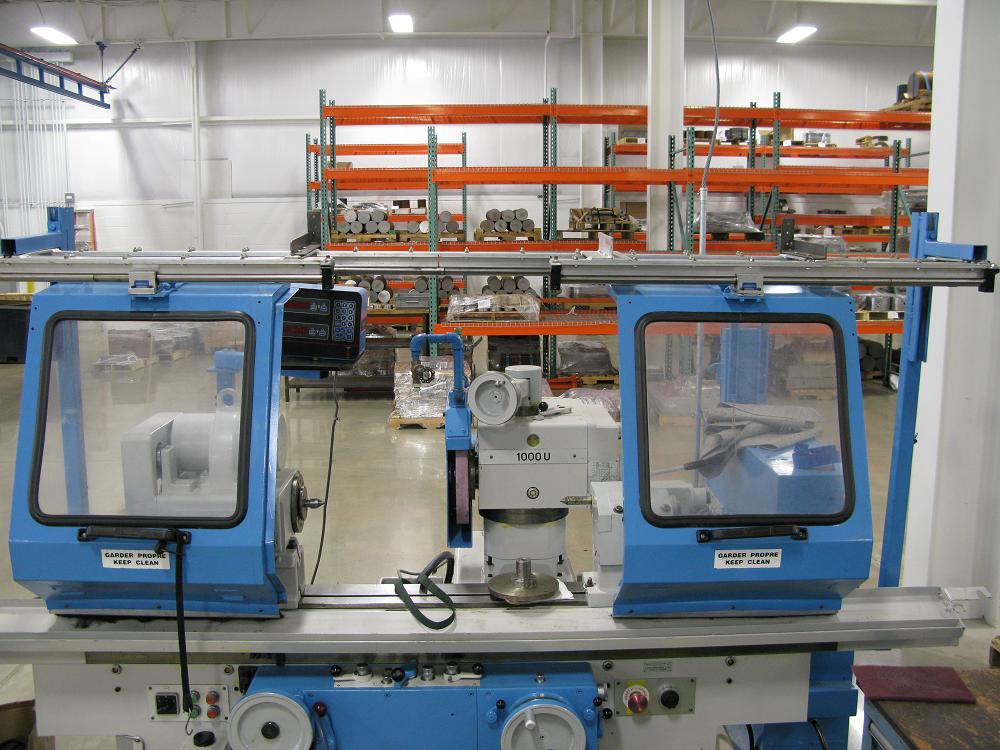

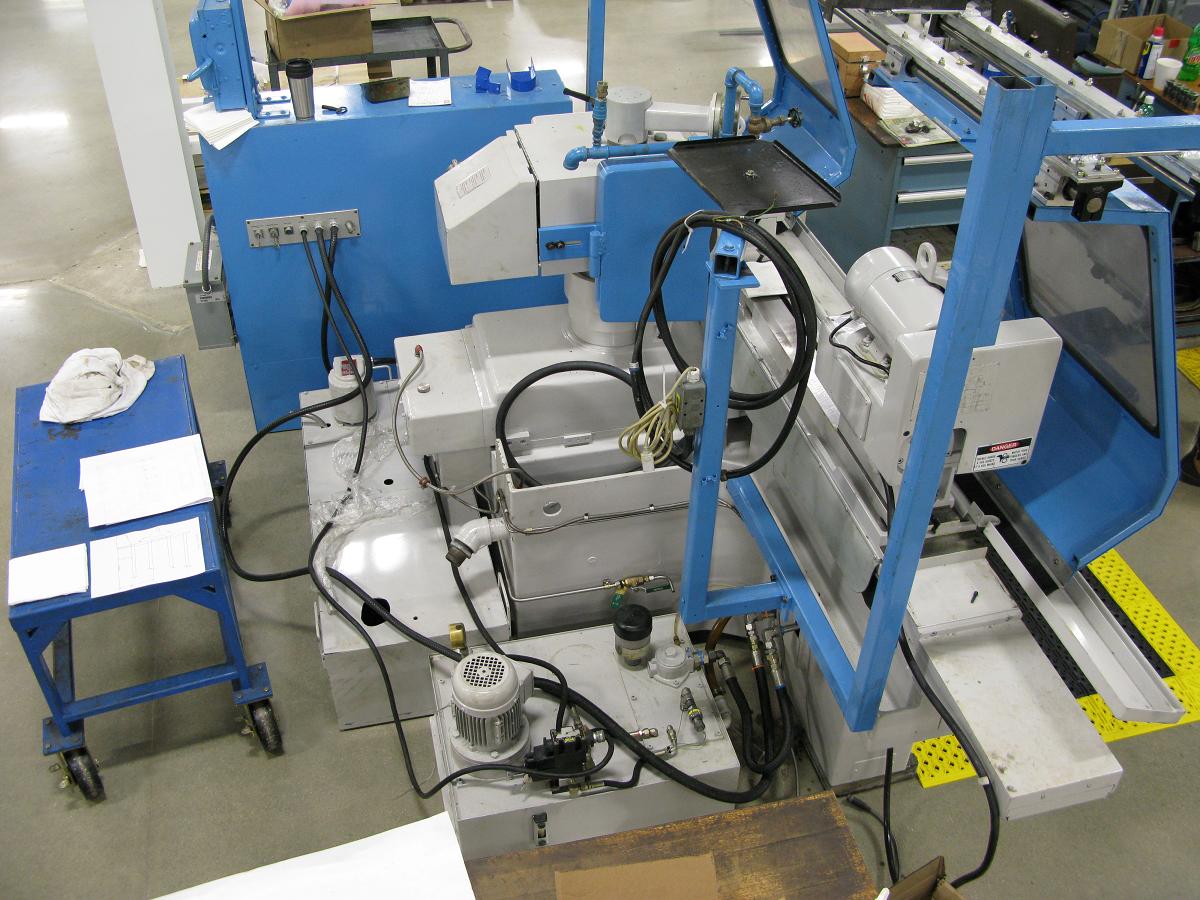

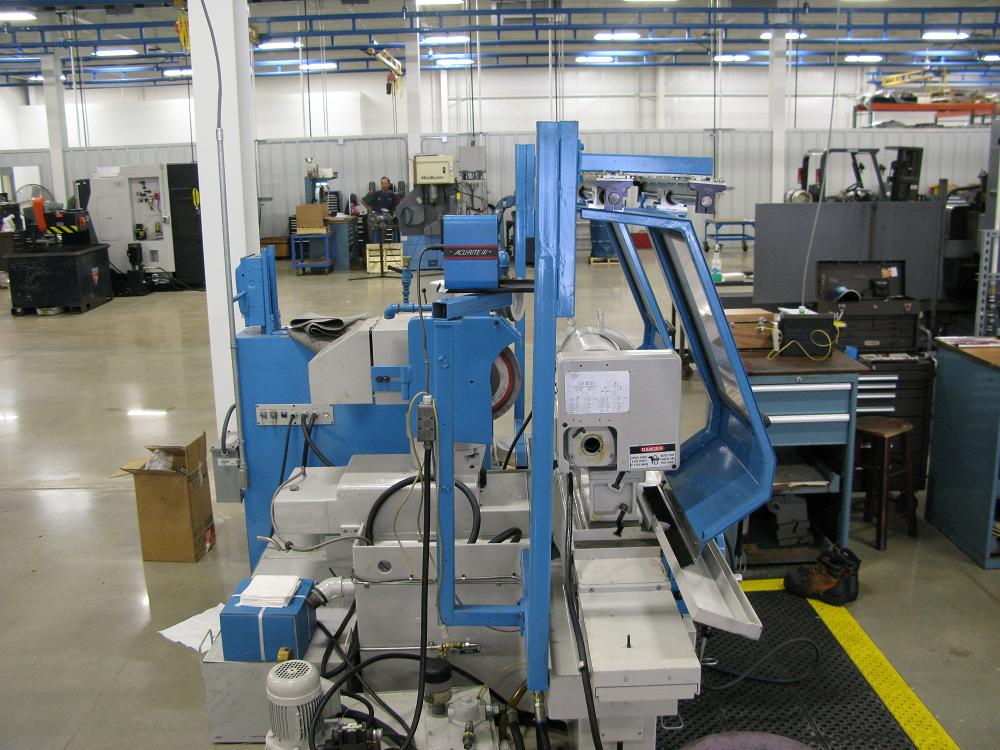

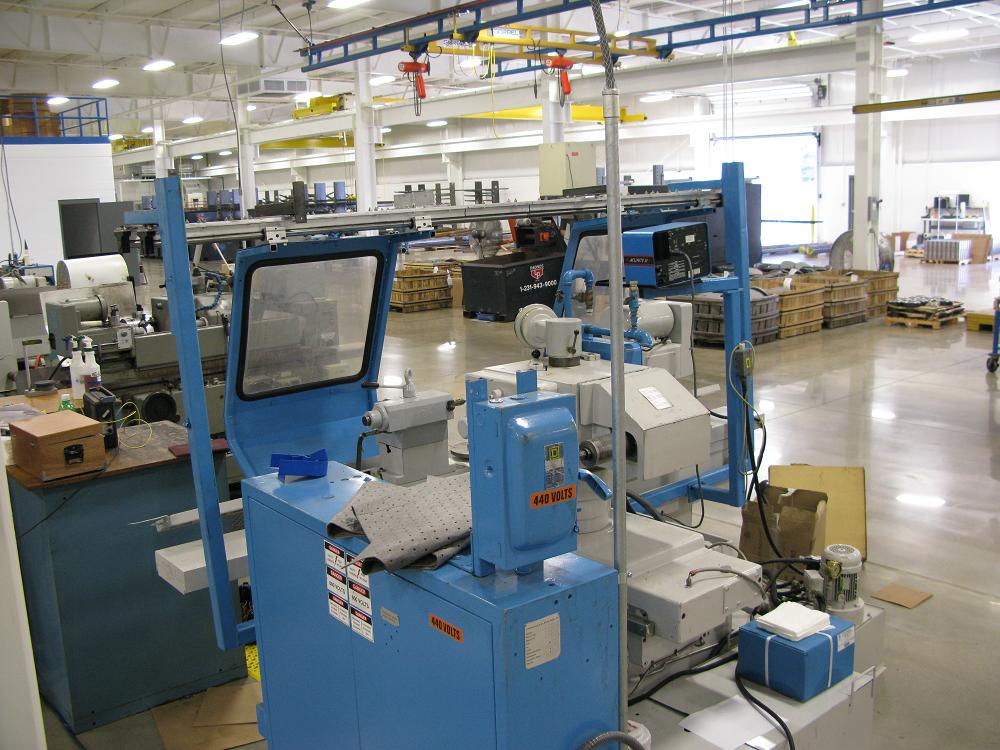

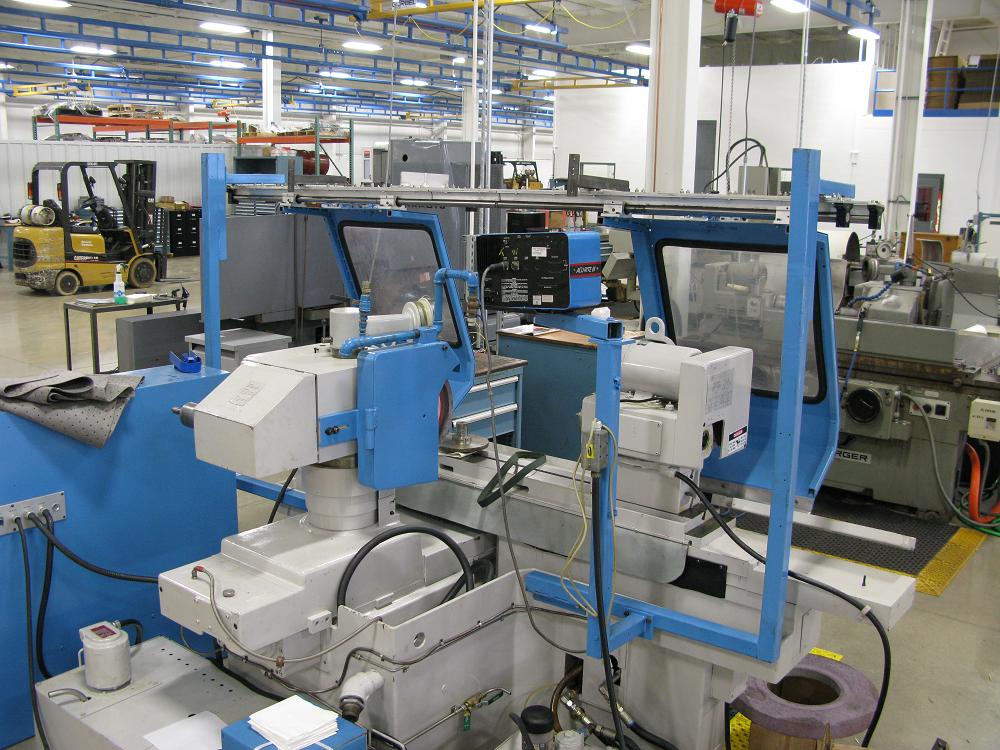

 KELLENBERGER "SWISS" SUPER-PRECISION
 UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

 ** MACHINE CAN BE EQUIPPED TO GRIND O.D., I.D & FACE
  GRINDING TASKS **

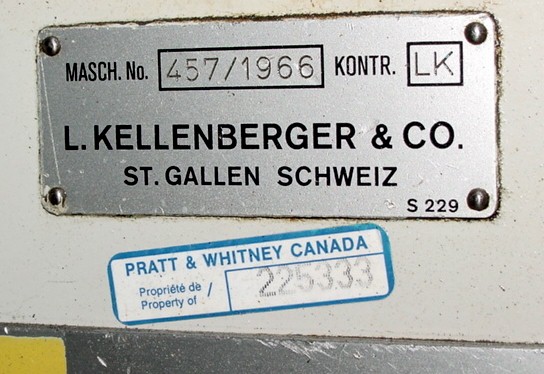

 MODEL: 1000U           NEW: 1978

 DISTANCE BETWEEN CENTERS ...................... 39- 3/8"
 DISTANCE BETWEEN CENTERS W/TAILSTOCK
  OVERHANGING .................................. 47- 1/4"
 HEIGHT OF CENTERS, WITH REMOVABLE RISERS ..... 9- 27/32"
 MAXIMUM SWING WITH FACTORY RISER BLOCKS .......... 19.8"

 TABLE:
 LONGITUDINAL TABLE TRAVEL ................... 51- 13/16"
 LONGITUDINAL TABLE TRAVEL PER TURN OF HANDWHEEL:
  COARSE ....................................... 25/32"
  FINE .......................................... 3/32"
 LONGITUDINAL TABLE SPEED (HYDRAULIC) ... 0.6 - 240" IPM
 TABLE SWIVELS ............................... 9 DEGREES
 REVERSING DWELL ........................ 0 TO 5 SECONDS
 GRINDING WHEEL INFEED:
  1 GRADUATION OF FEED SCALE .................. 0.0002"
  AUTOMATIC FEED, MAXIMUM ...................... 0.036"
  AUTO. INFEED PER TABLE REVERSAL .. 0.00005" TO .0012"
  INFEED FOR PLUNGE GRINDING ........ 0.00004" TO .002"
  MICROMETER STOP, 1 GRADUATION .............. 0.00005"

 UNIVERSAL GRINDING SPINDLE HEAD:
  TRANSVERSE MOVEMENT OF WHEEL SLIDE .......... 11-1/4"
  HYDRAULIC RAPID WHEEL SLIDE ADVANCE/RETRACTION
    STROKE ................................... 1-37/64"
  GRINDING WHEEL SPEEDS (4) 1500, 1700, 2200 & 3600 RPM
  GRINDING WHEEL FOR CYLINDRICAL
    GRINDING ............................ 16" X 2" X 5"
  GRINDING WHEEL (SURFACE GRINDING) ... 10" X 3/4" X 3"
  SWIVEL OF GRINDING HEAD W/LOCKING EVERY
    90 DEGREES ............................ 270 DEGREES
  VERTICAL MOTION OF GRINDING SPINDLE HEAD,
    HEIGHT OF CENTERS ........... 4-59/64" TO 13-25/32"

 WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS ........ 10 - 400 RPM
  WORKHEAD SWIVELS ........................ 360 DEGREES
  INSIDE TAPER OF WORK SPINDLE ................... #5MT

 APPROXIMATE FLOOR SPACE REQUIRED .... 106" X 64" X 66"H
 APPROXIMATE MACHINE WEIGHT .................. 6,500 LBS

 MACHINE FEATURES:
 HYDRAULIC OPERATION FEATURING:
 -SINGLE LEVER CONTROL
 -INFINITELY VARIABLE TABLE TRAVERSE
 -AUTOMATIC INFEED
 -PLUNGE INFEED
 -RAPID WHEEL ADVANCE & RETRACTION

 ADJUSTABLE CENTER HEIGHT FEATURE W/MAXIMUM SWING 19.8"
 DUAL LEFT-HAND & RIGHT-HAND WHEEL MOUNTING

 EQUIPPED WITH:
 FACTORY RISERS, NOMINAL SWING IS 9.8", MAX. SWING IS 19.8
 ACU-RITE III" 2-AXIS DIGITAL READOUT DISPLAY
 FRONT COOLANT ENCLOSURE
 WORKHEAD W/DUAL LIVE & DEAD WORKHEAD SPINDLE

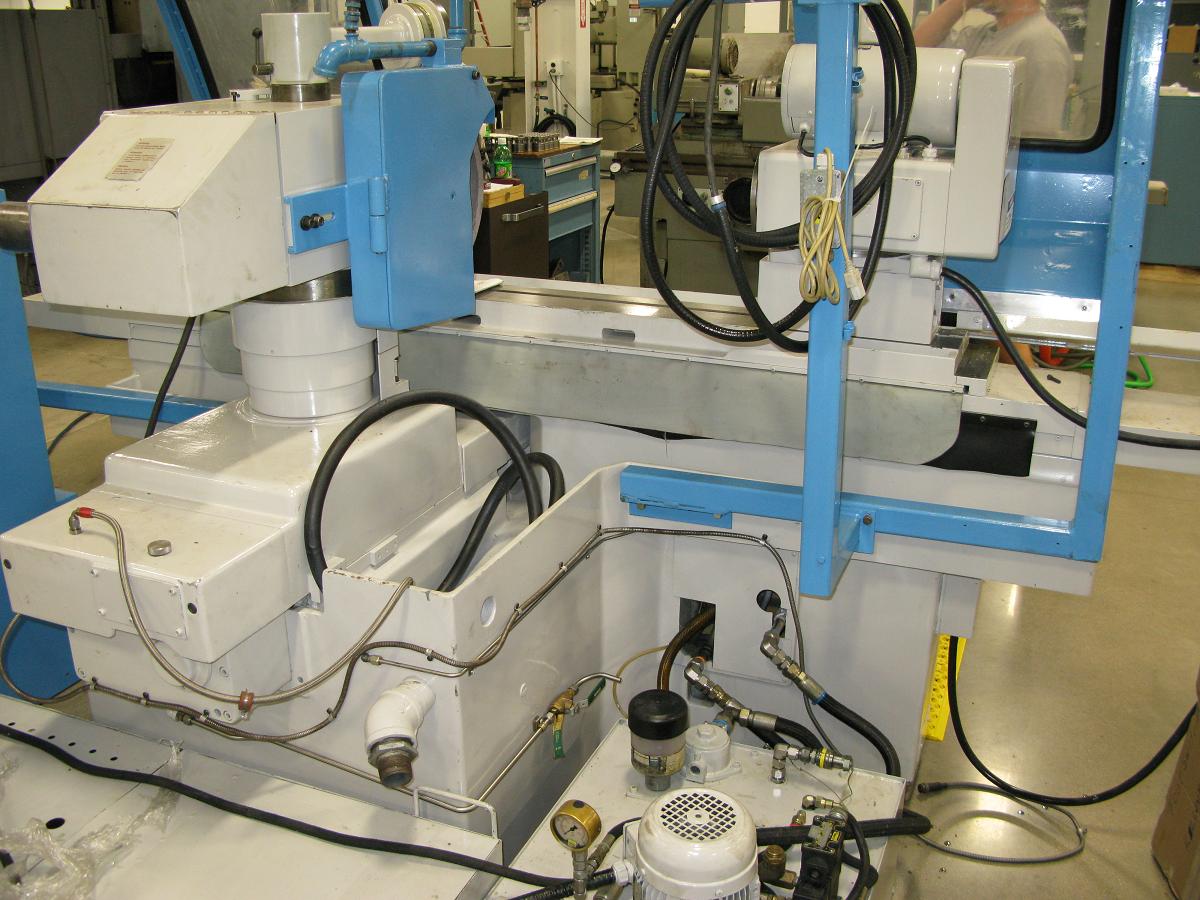

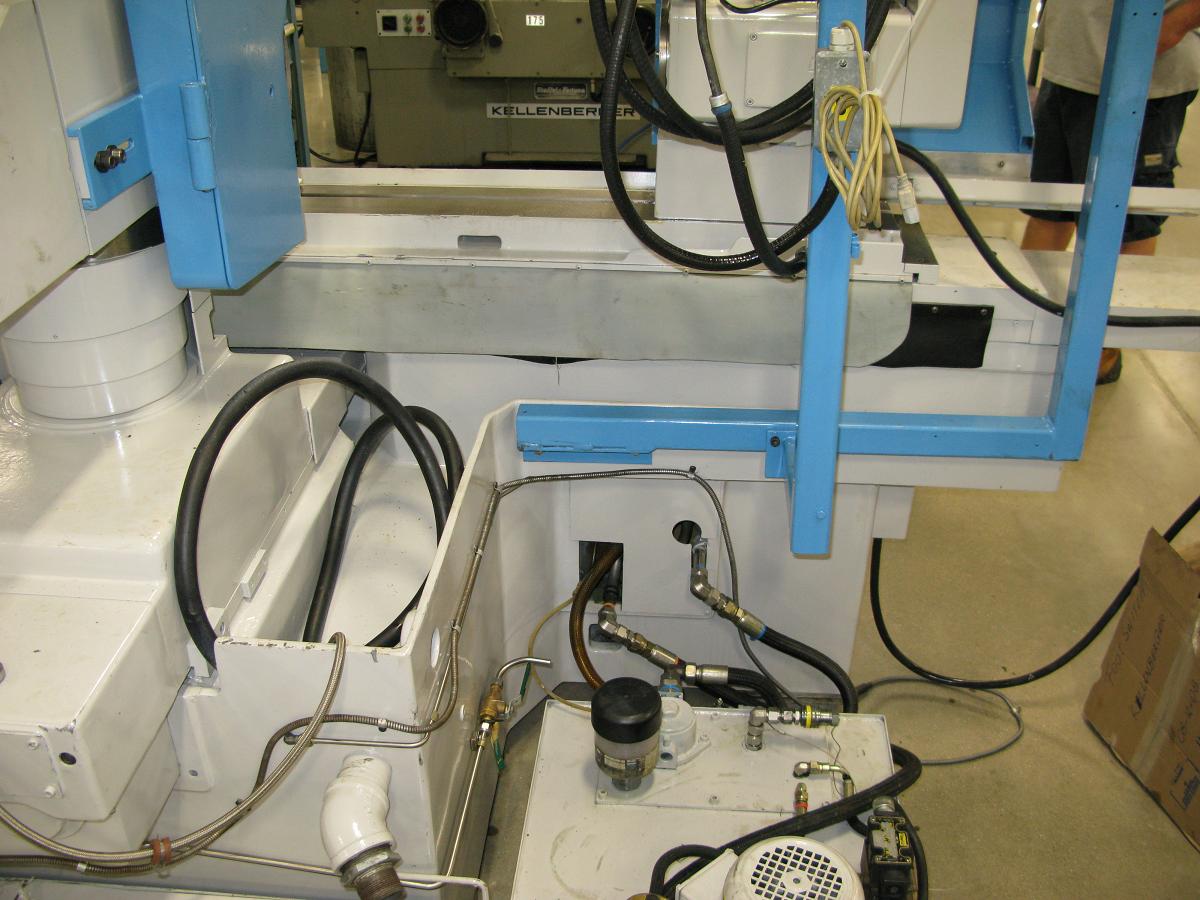

 COOLANT SYSTEM
 4 H.P. WHEELHEAD MOTOR
 SWING AROUND INTERNAL GRINDING ATTACHMENT, COMPLETE
  WITH I.D. MOUNTING BLOCK & I.D. SPINDLE
 MACHINE IS WIRED DIRECTLY FOR 3/60/575 VOLTS
 CUSTOMER HAS MACHINE WIRED INTO A TRANSFORMER FOR
  3/60/460 VOLTS


 **** EXCEPTIONAL CONDITION - FROM AEROSPACE CO. !!! ****
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
