Reference Number: 142607

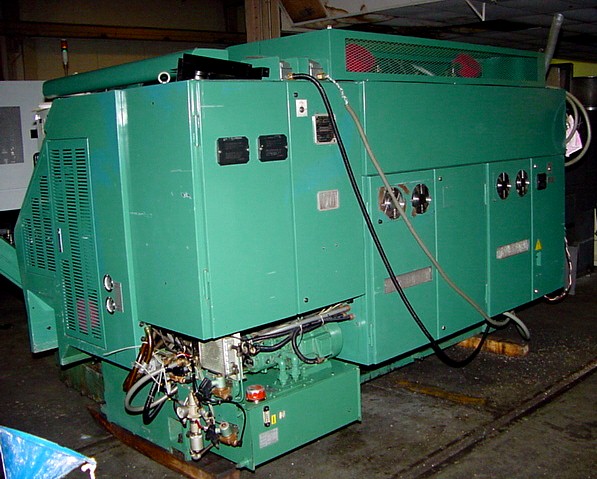

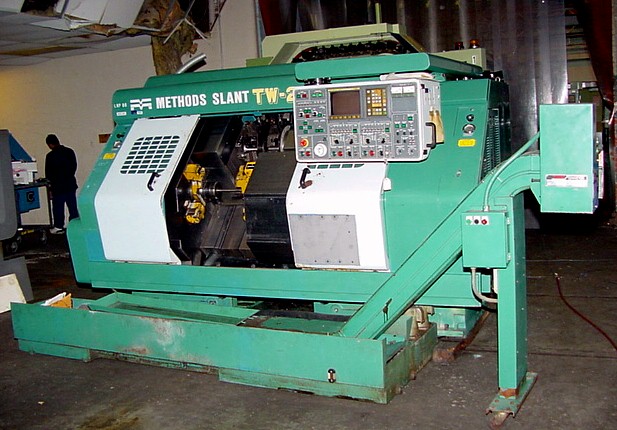

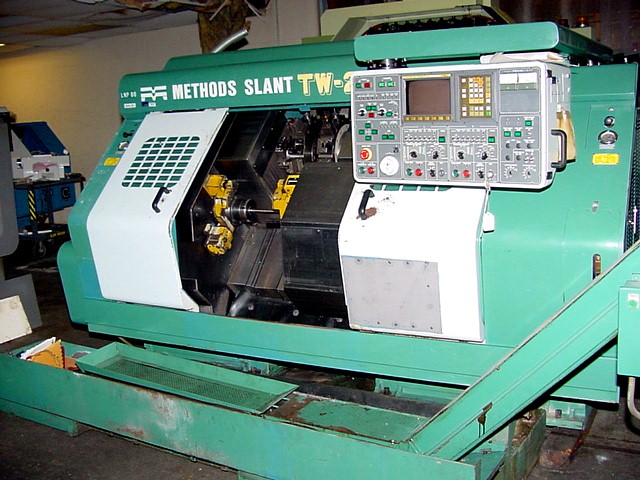

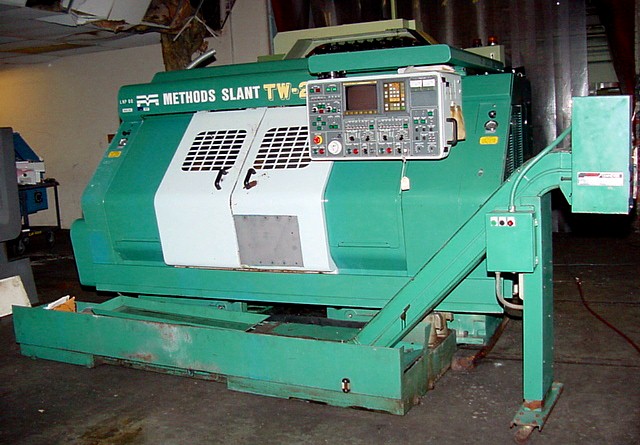

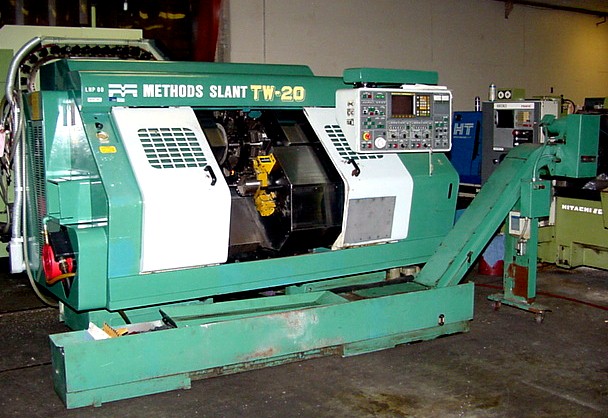

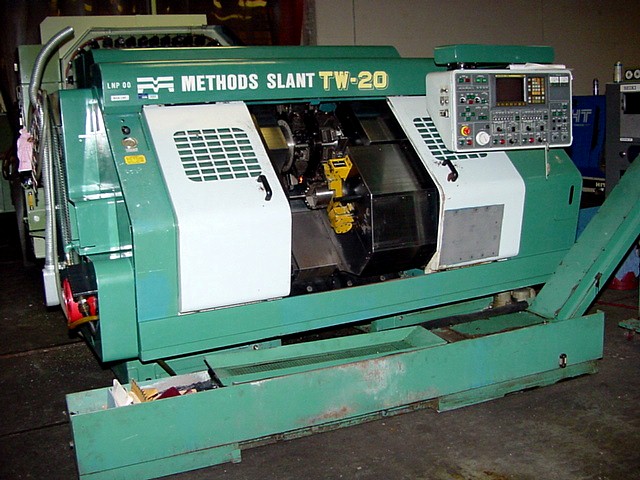

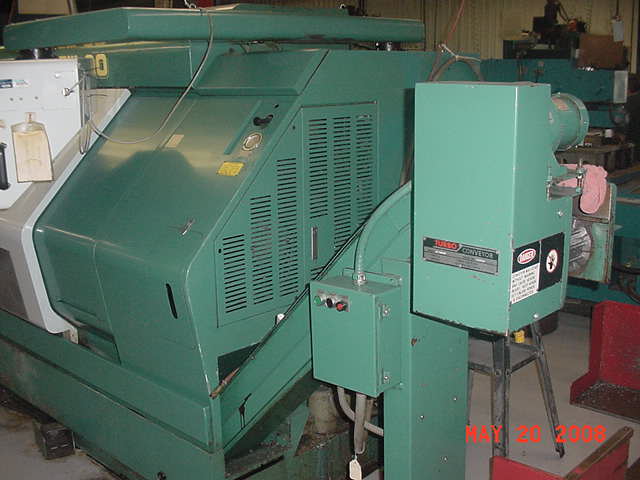

Nakamura Tome TW-20 6-Axis CNC Turning CenterPrice: On Request
Equipped with Twin Opposed Spindles & Live Milling

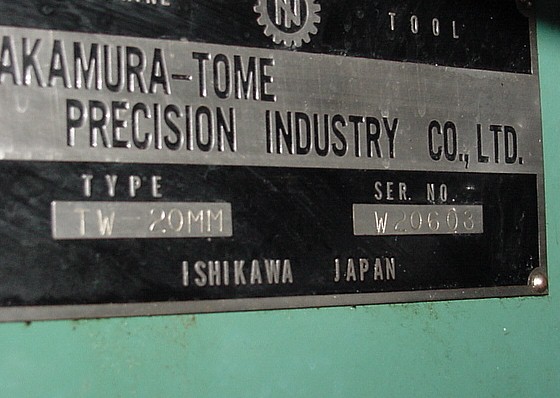

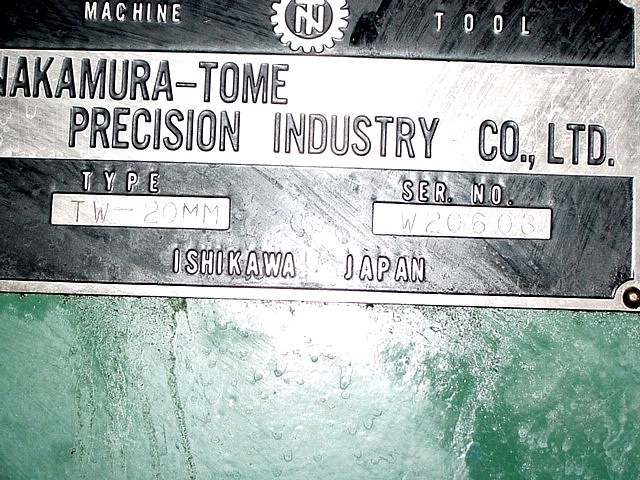

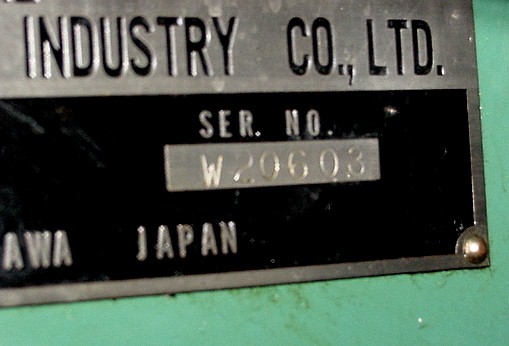

SERIAL NUMBER: W20603
Number of Spindles .................... 2 (Opposed)
Maximum Swing Over Saddle ............. 8.66"
Maximum Turning Diameter .............. 6.50"
Maximum Turning Length ................ 7.87"
Max Collet Capacity, Left / Right ..... 2" / 1.63"
Hole Through Spindle, Left Unit ....... 2.44"
Hole Through Spindle, Right Unit ...... 2.05"
Spindle Nose to Turret Face ........... 3.94"-13.39"
Spindle Speeds (Stepless) ............. 50-5000 RPM
Spindle Motor, Left Unit .............. 10 HP / 7.5 HP
Spindle Motor, Right Unit ............. 7.5 HP / 5 HP
Spindle Nose .......................... A2-5
X-Axis Travel ......................... 6.89"
Z-Axis Travel, Left / Right ........... 9.45" / 26.77"
Rapid Traverse, X-Axis ................ 472 IPM
Rapid Traverse, Z-Axis ................ 945 IPM
EQUIPPED WITH:

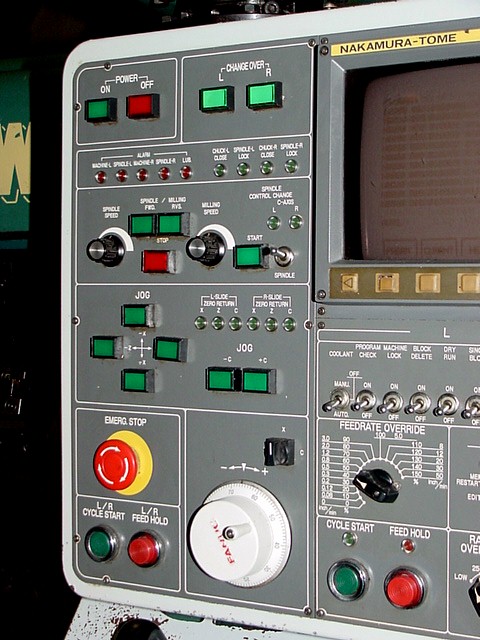

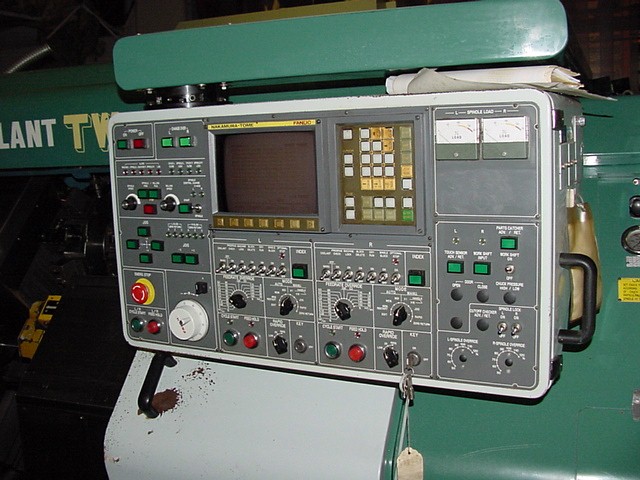

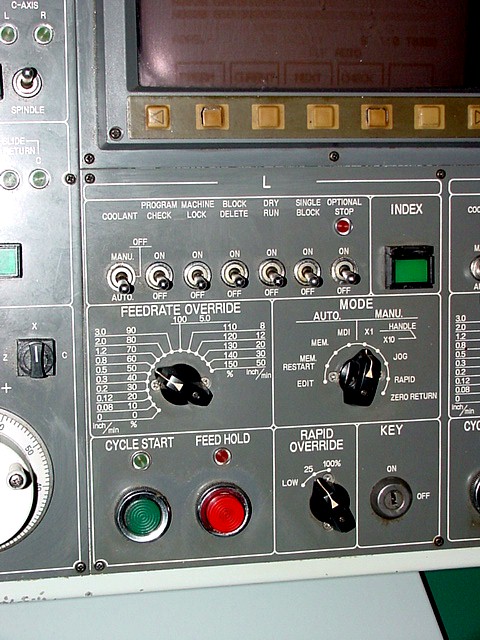

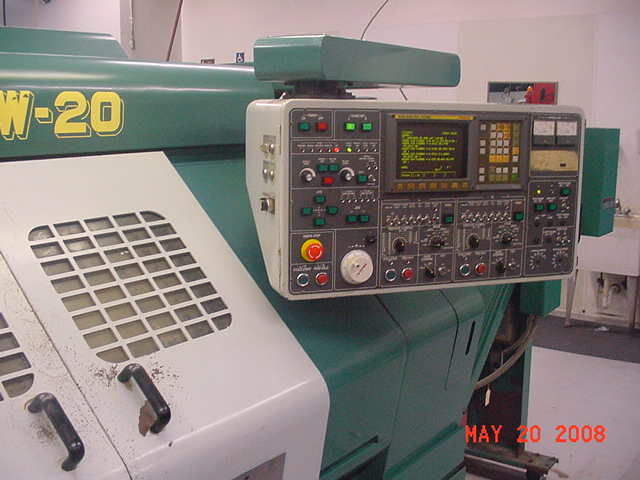

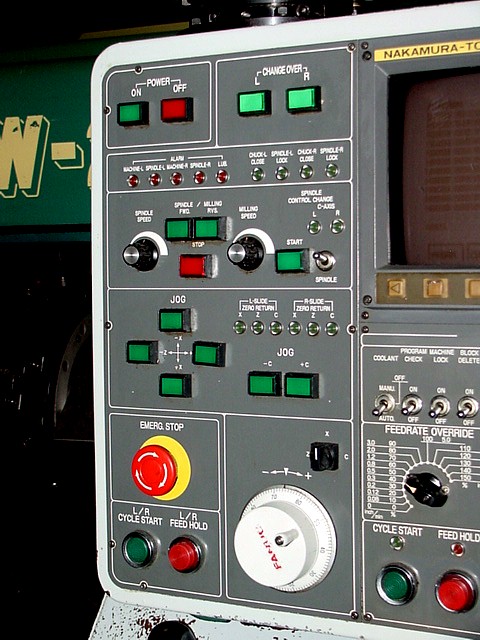

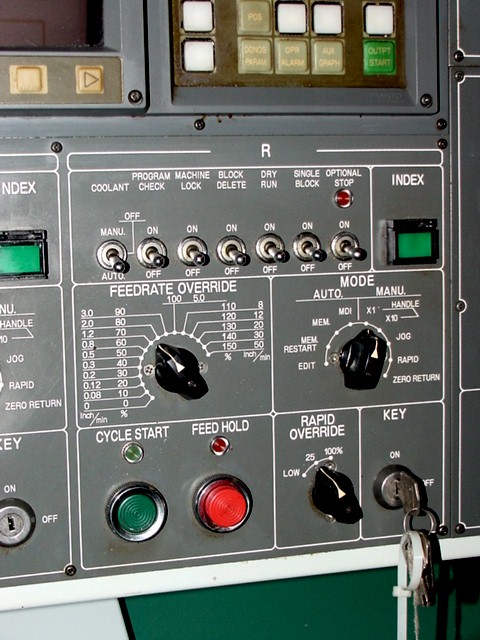

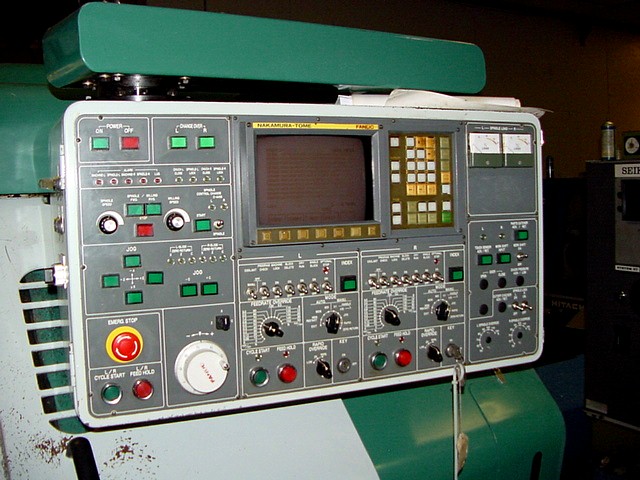

- Fanuc 0TTC CNC Control
- 6" 3-Jaw Hydraulic Chuck Rt. Spindle
- Collet Chuck Left Spindle

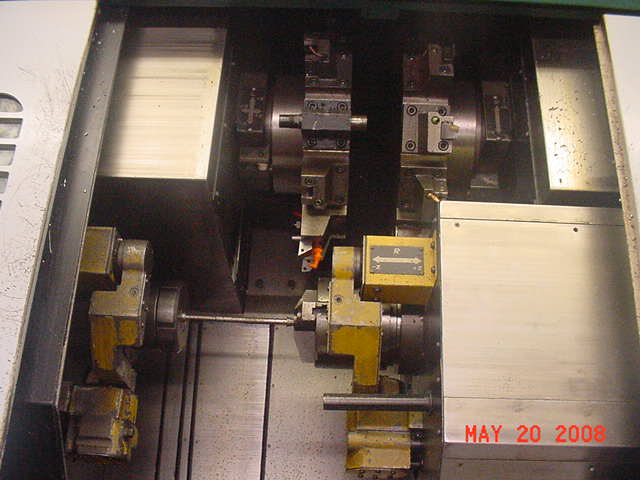

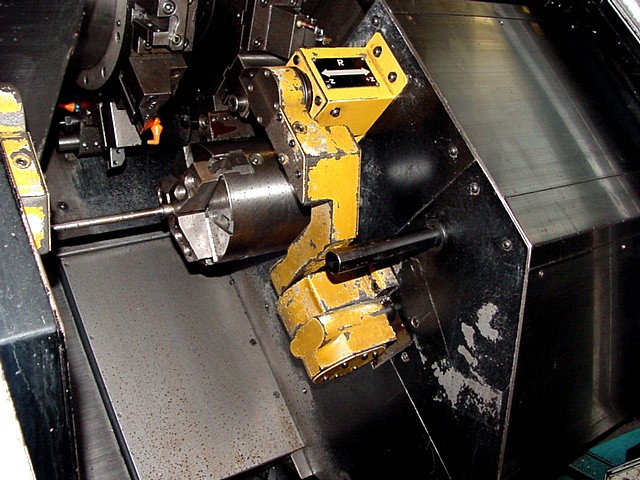

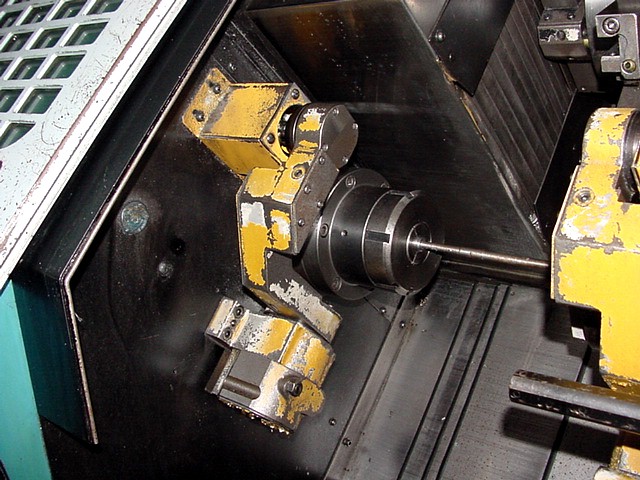

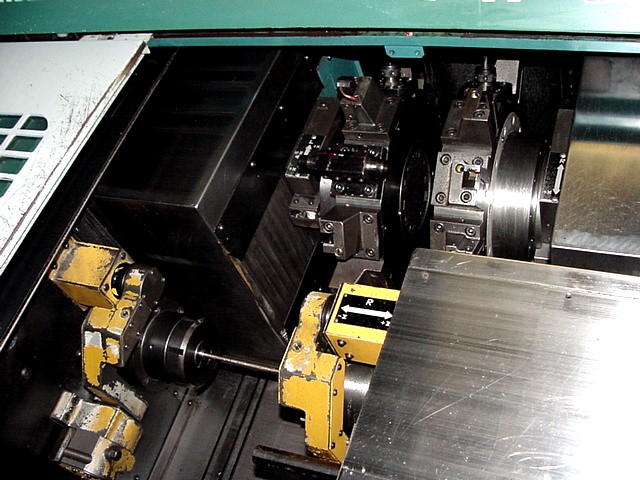

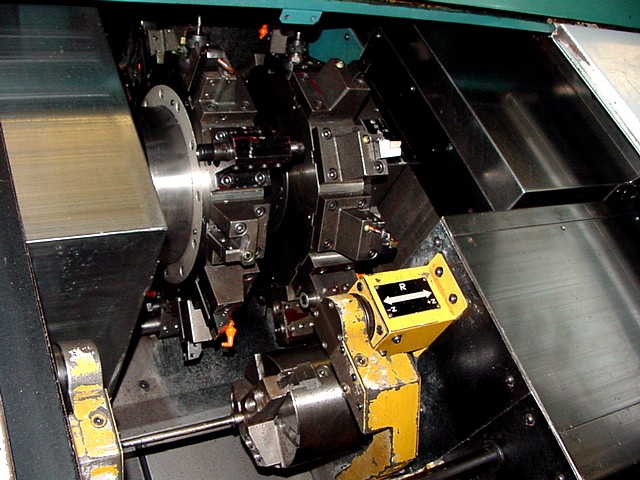

- (2) 12-Position Turrets with 6 Live Milling Stations
- C-Axis .001 Degree Spindle Indexing
- Parts Catcher
- (5) Pcs. Live Tooling

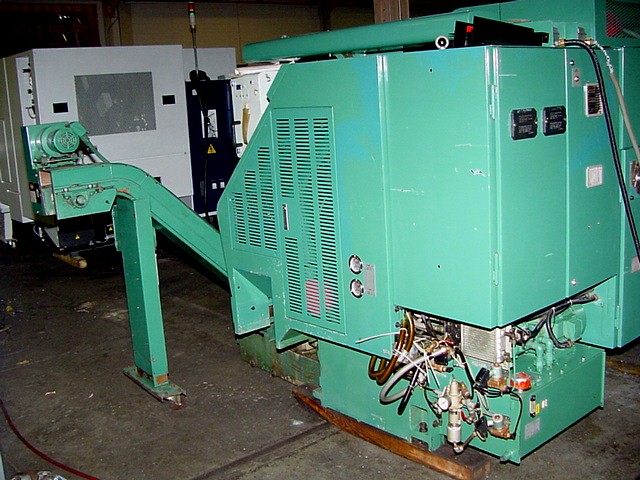

- Chip Conveyor
