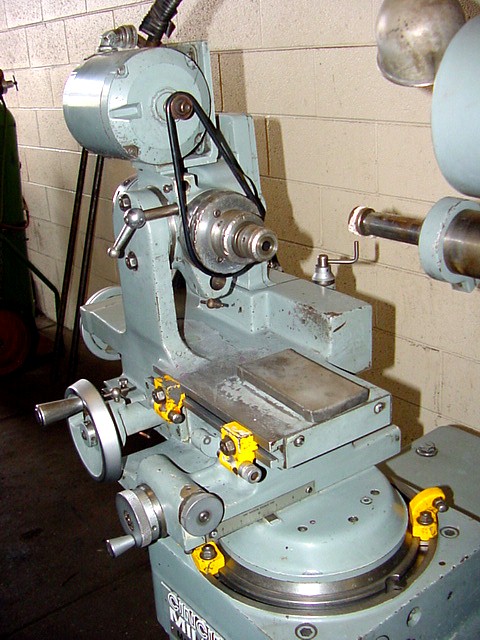

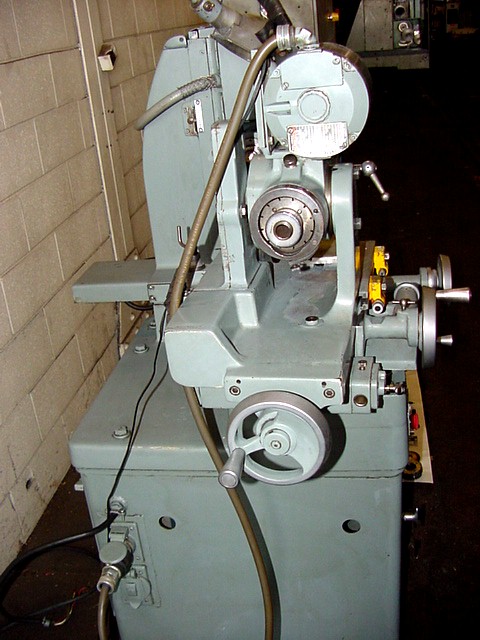

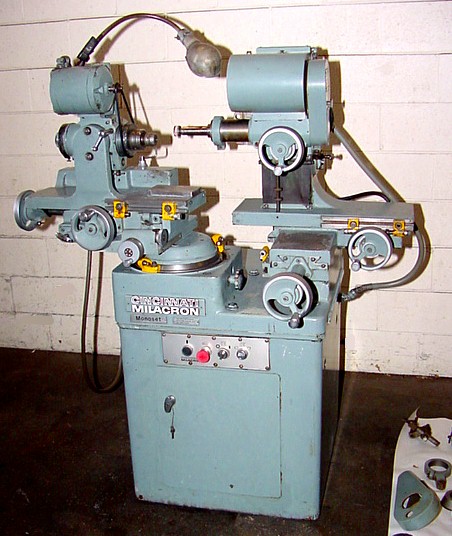

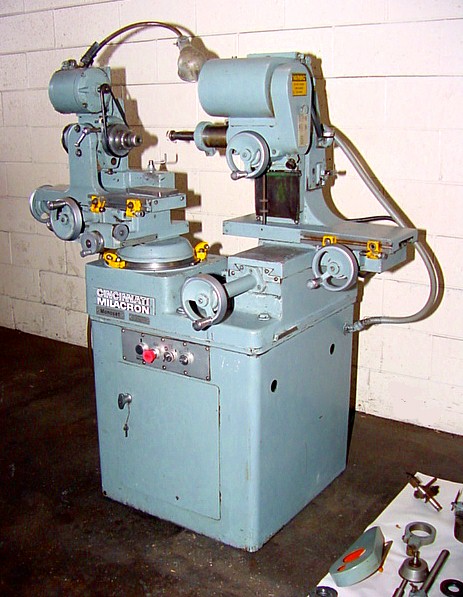

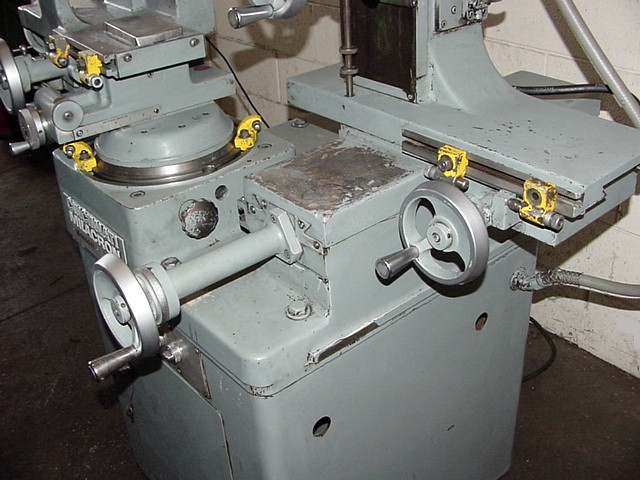

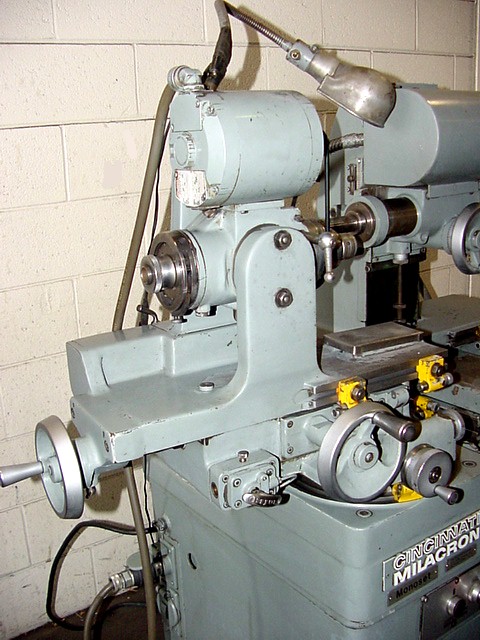

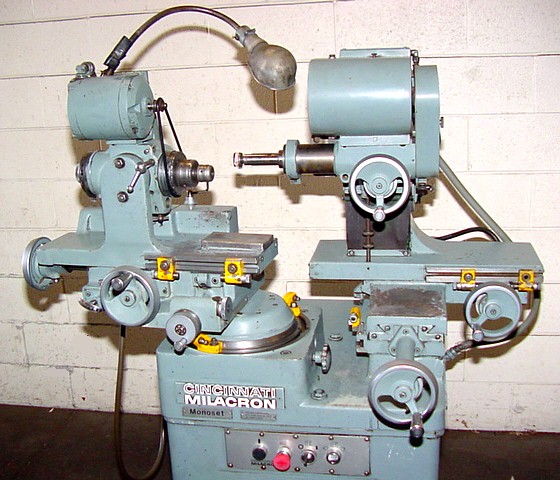

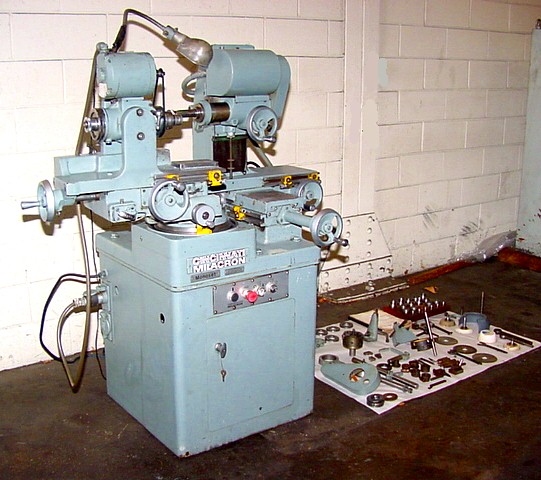

CINCINNATI-MILACRON "MONOSET" TOOL & CUTTER GRINDER
 W/" TOOLING " PACKAGE

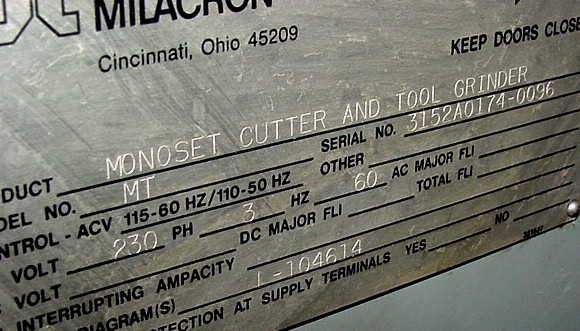

 MODEL: MT       S/N:   3152A0174-0096         NEW: 1974

 CAPACITY -
 WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
 MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
 MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
 MAX. GRINDING WHEEL DIA. .................... 4"
 MAX. LENGTH OF WORK BETWEEN SPINDLE &
 TAILSTOCK CENTER .......................... 6"
 RANGE -
 WORKHEAD SLIDE TRAVEL:
 LONGITUDINAL .............................. 5-3/4"
 CROSS ..................................... 5-3/4"
 WORKHEAD ANGULAR ADJUSTMENT:
 MAX. TURNTABLE SWIVEL ..................... 235 DEG.
 ABOVE AND BELOW CENTER .................... 40 DEG.
 WHEELHEAD SLIDE TRAVEL:
 LONGITUDINAL .............................. 6"
 CROSS ..................................... 7-1/2"
 WHEELHEAD, VERTICAL MOVEMENT:
 ABOVE CENTER .............................. 4.5"
 BELOW CENTER .............................. 5"
 SPEEDS -

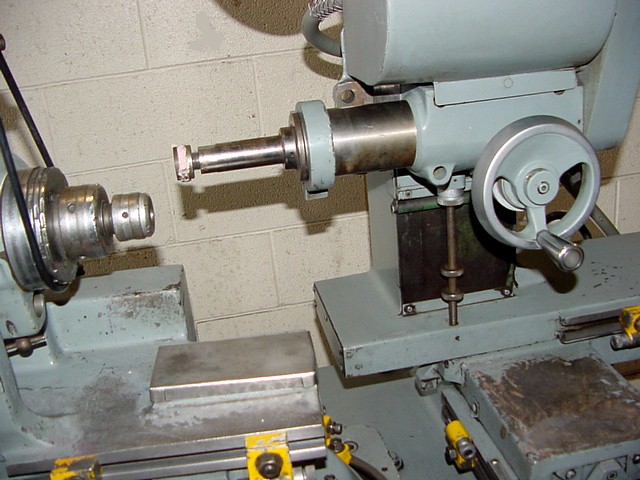

 (3) WHEELHEAD SPINDLE SPEEDS ................ 4,000,
                                         5,730, 8,000 RPM
 (1) WORKHEAD SPINDLE SPEED ................. 436 RPM
 APPROXIMATE WEIGHT ........................ 1,500 LBS.


 MACHINE FEATURES:

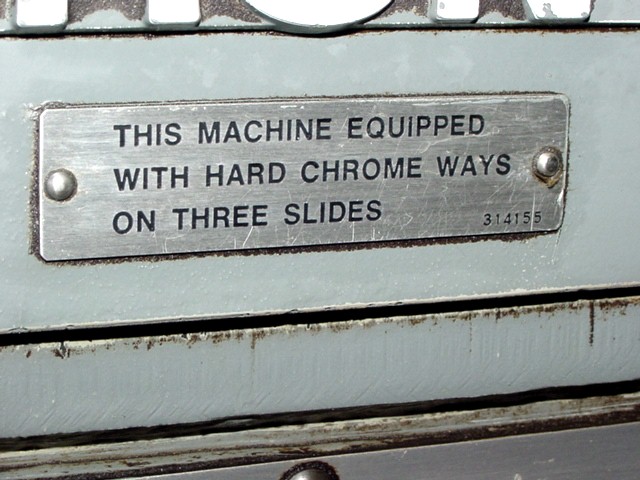

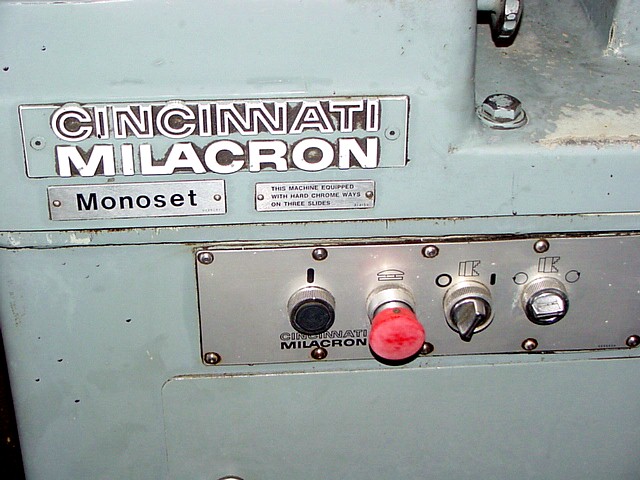

 HARD WAYS & SCREWS
 1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
 BIJUR ONE-SHOT LUBRICATION SYSTEM

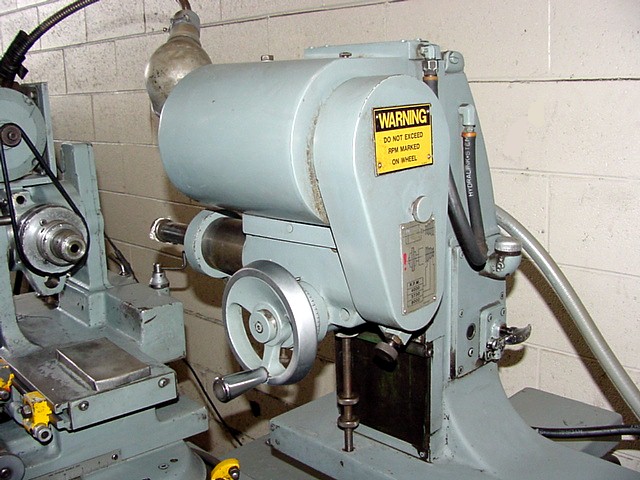

 1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR

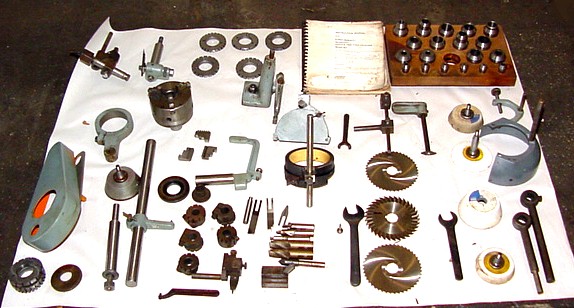

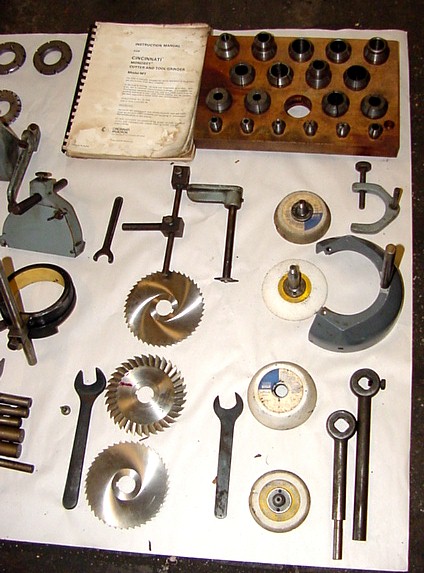

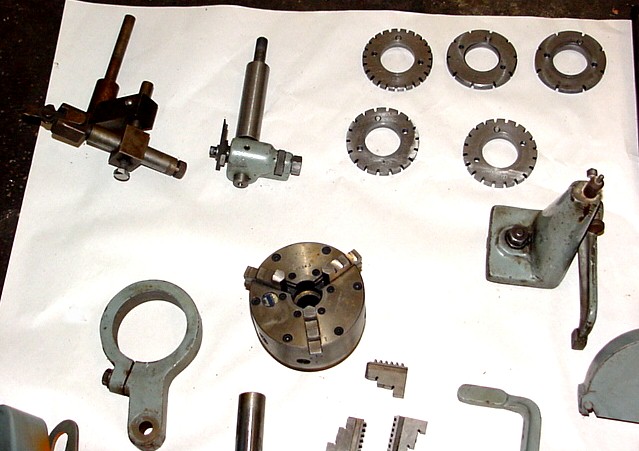

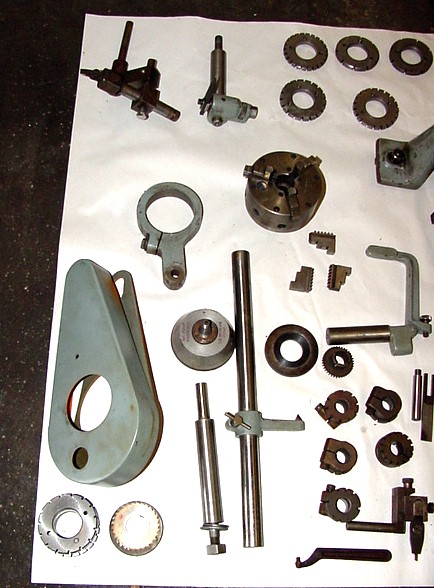

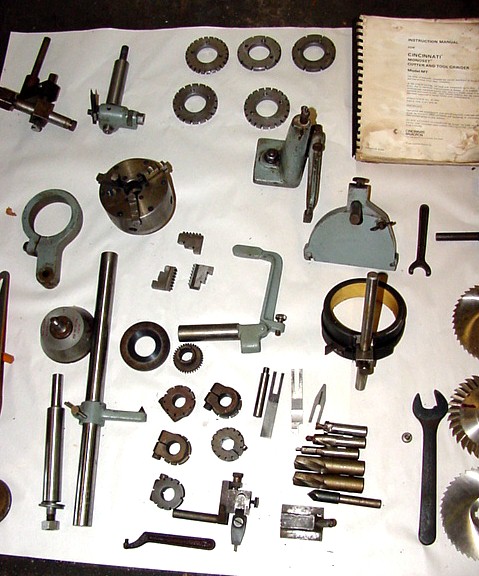

 Equipped with:

 5 Grinding wheels; with ¾" mounting hole
 3 Grinding wheel mandrels; one for each wheel supplied
 1 Grinding wheel extension mandrel; 1-1/2" extension
 2 Grinding wheel guards; one for types 1,5 and 12 wheels,
     And one for type 11 wheels
 1 Grinding wheelhead toothrest and extension bar for toothrest
 1 Toothrest centering gage
 1 Workhead spindle centering gage
 1 Workrest, lower
 1 Spring- loaded index pawl for workhead front index
 13 Straight cylindrical collets for the workhead spindle
     With hole diameters in inch sizes that accept straight
     Cylindrical diameter workpieces; and, including an adapter
    ("C" to "A") that accommodates the collets smaller than
    ½" size.  The collets are:
     7 Series "A" (Fits into the "C" to "A" collet adapter,
     Which mounts directly into the spindle nose)
     1/8", 3/16" ¼", 5/16", 3/8", 7/16" and ½"
     6 Series "C" (Mounts directly into spindle nose) 5/8",
    ¾", 7/8", 1", 1-1/8" and 1-1/4".
 6 Taper hole collets, "C" series, for the workhead to
 Accommodate taper shanks of #2, 3 and 4 Morse tapers, and #5, 7
 And 9 Brown & Sharpe tapers
 Wooden rack for holding 1 set of cylindrical collets and 1
 Set of taper collets
 3 Index plates for the lead mechanism indexing device
 Of 8, 10 and 12 divisions
 1 Adjustable tail - center support
 1 Diamond bracket, with workrest, including one mounted
 Diamond.

 Set of Wrenches




 ** EXCELLENT CONDITION & APPEARANCE  **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
