Reference Number: 142649

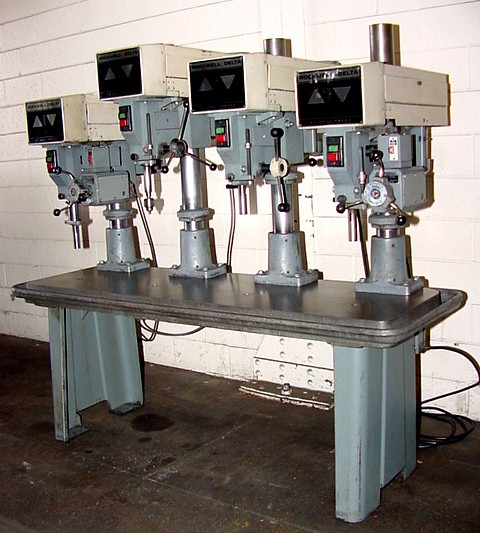

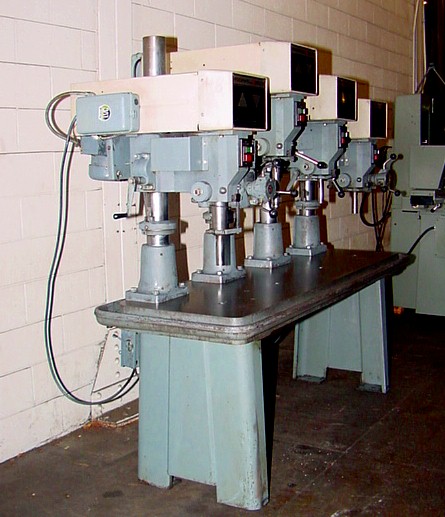

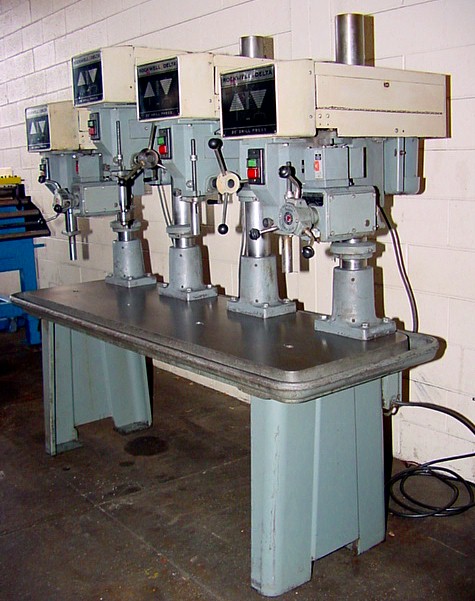

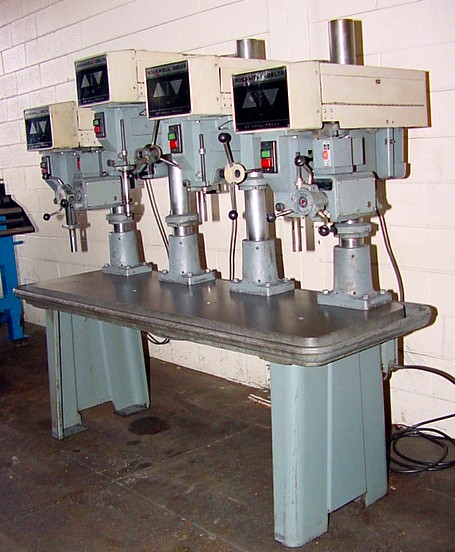

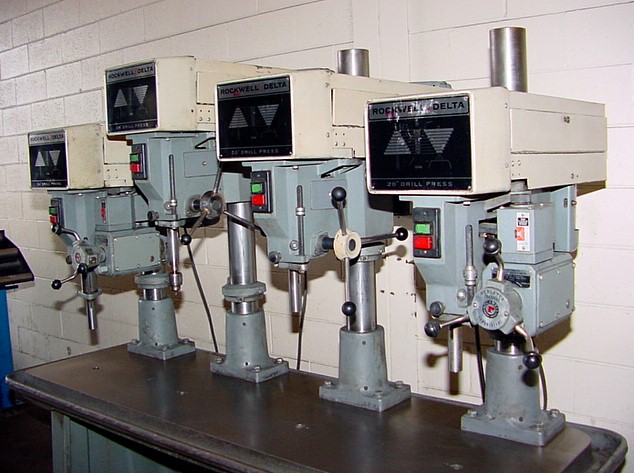

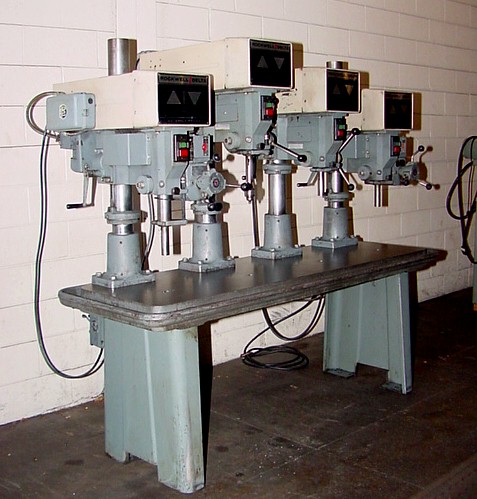

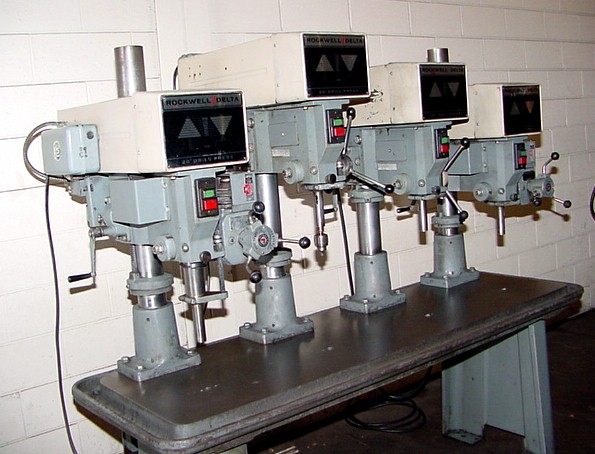

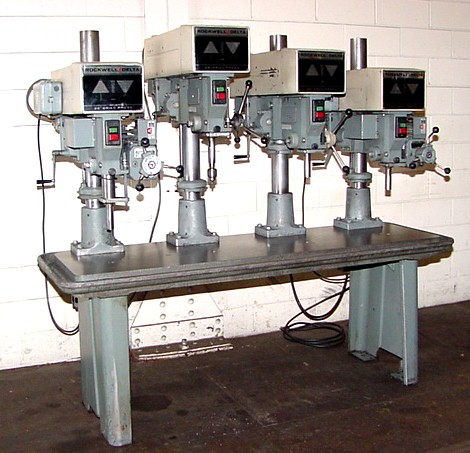

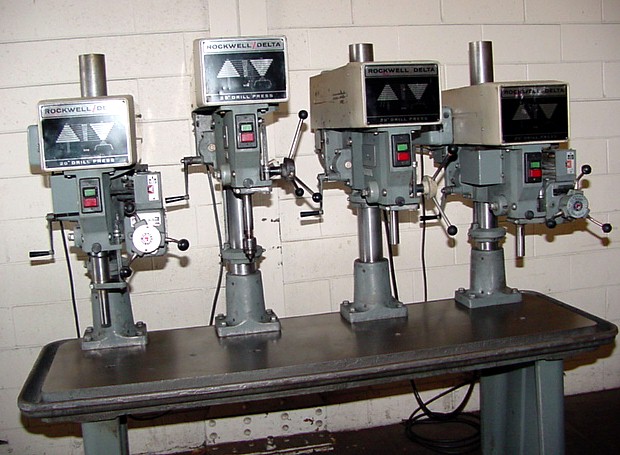

20" ROCKWELL/DELTA FOUR SPINDLE DRILL PRESS
MODEL: SERIES 2000, NEW: 1970'S
SPECIFICATIONS:
DRILLING CAPACITY STEEL ........... 1"
DRILLING CAPACITY CAST IRON ....... 1-1/8"
DRILLS TO CENTER OF CIRCLE ........ 20"

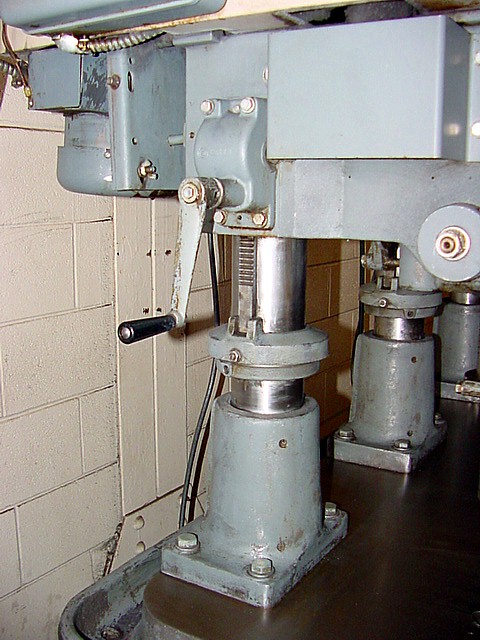

SPINDLES TRAVEL ................... 6"
QUILL DIAMETERS ................... 2-3/8"
SPINDLE TAPERS .................... #3MT

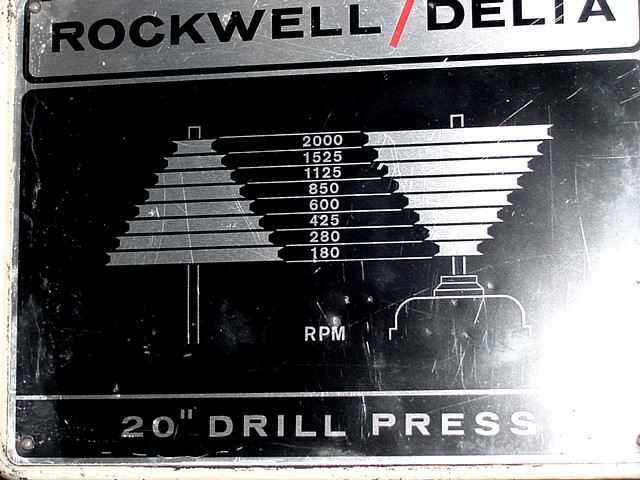

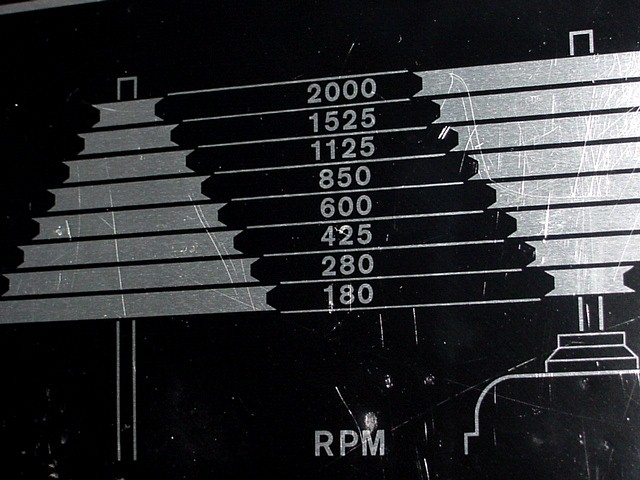

SPINDLE SPEEDS(8) ................. 180, 280, 425, 600, 800,
1,125, 1,525, 2,000 RPM
TABLE WORKING SURFACE ............. 23-1/2" X 77"
OVERALL SIZE OF TABLE ............. 29" X 83"
APPROXIMATE HEIGHT ................ 85"
APPROXIMATE WEIGHT ................ 2,800 LBS.
EQUIPPED WITH:

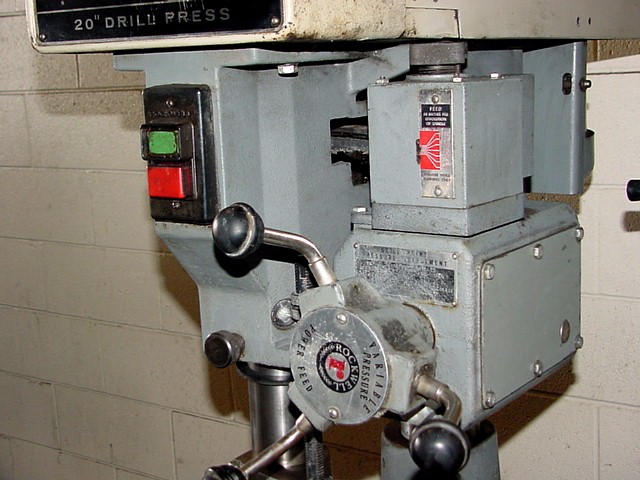

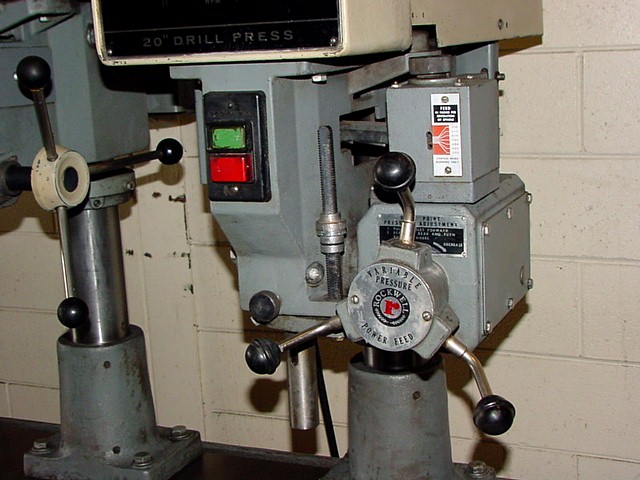

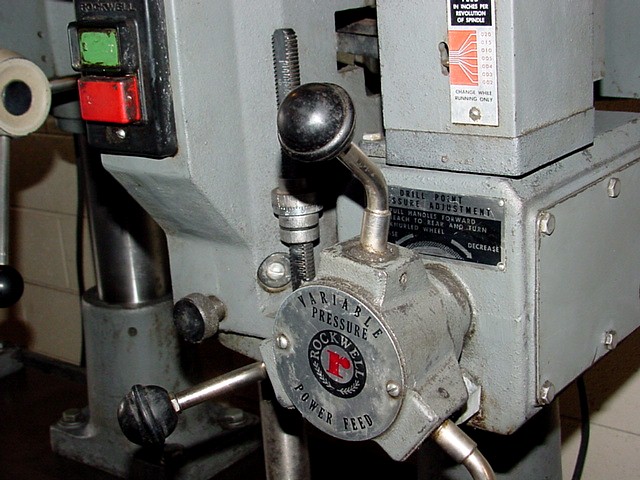

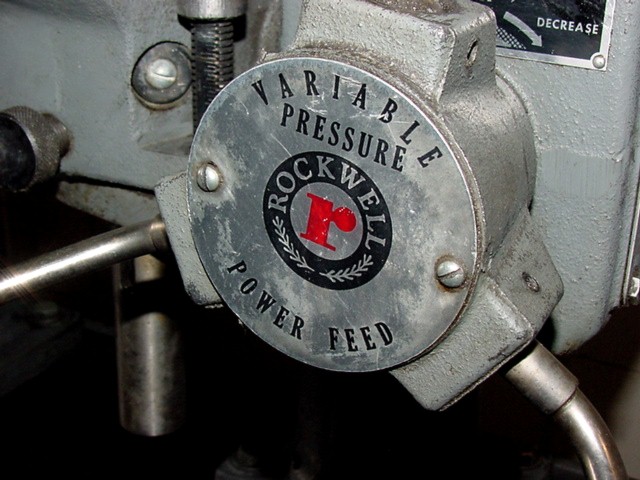

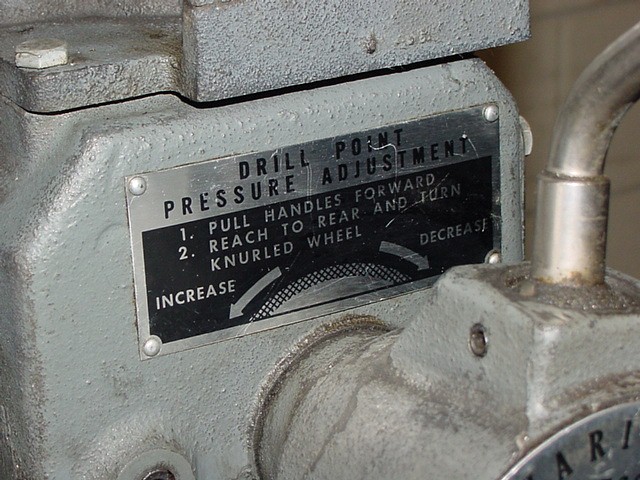

TWO ROCKWELL DELTA POWER FEED UNITS MODEL: 20-600

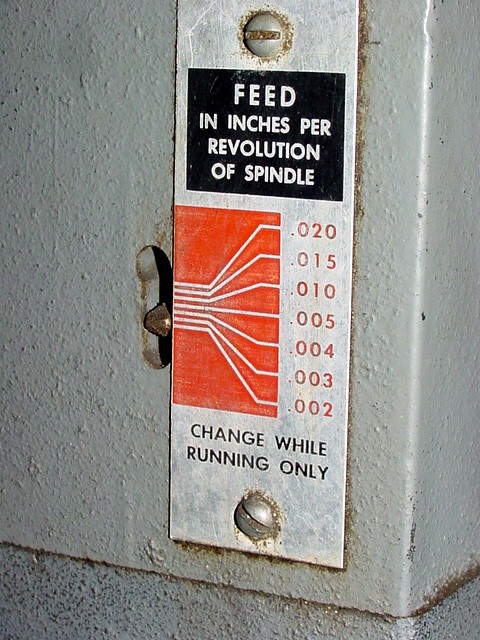

VARIABLE FEED RATE OF SPINDLES FROM .002 - .020 IPR
PRODUCTION TABLE WITH TROUGH

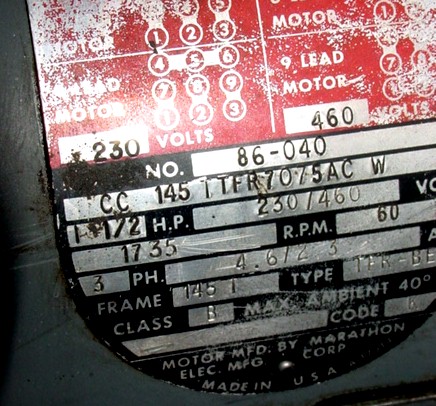

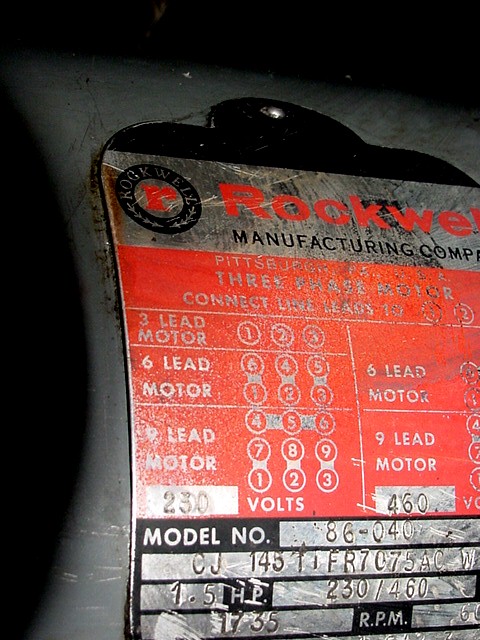

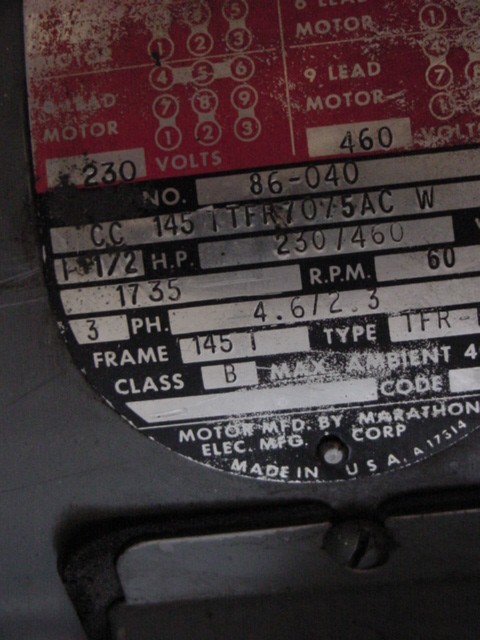

1/2 HORSEPOWER 3 PHASE MOTORS FOR SPINDLES
CONDITION: ****** EXCELLENT ******
