Reference Number: 142665

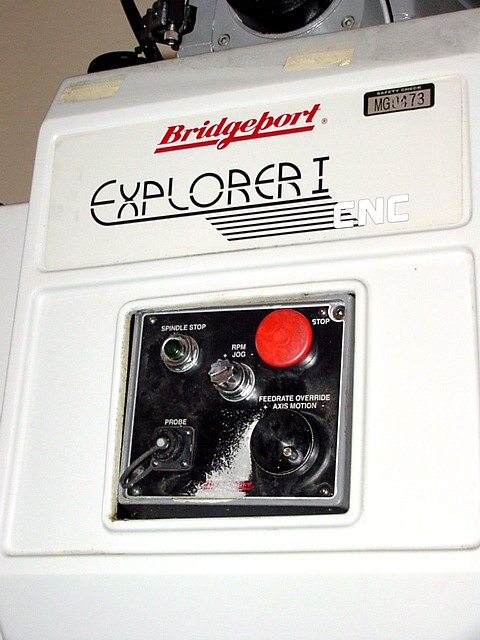

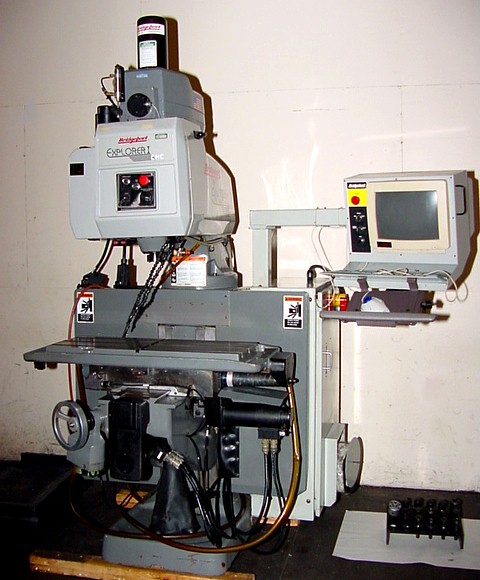

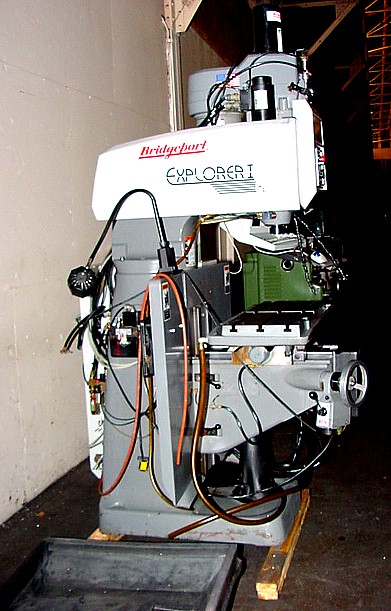

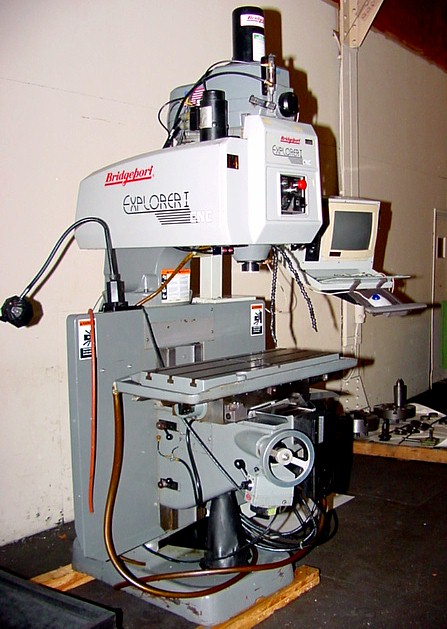

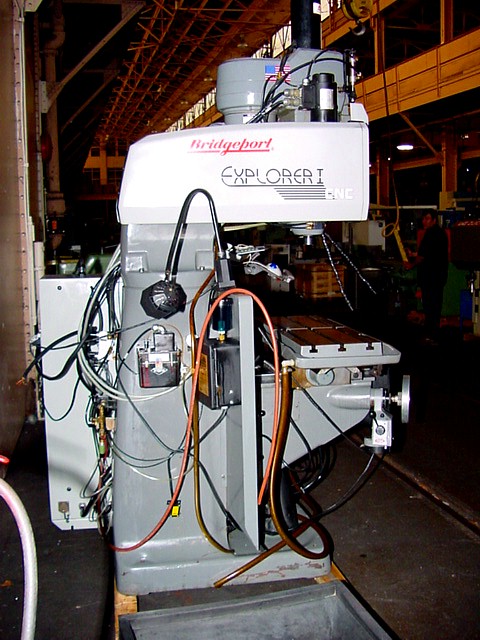

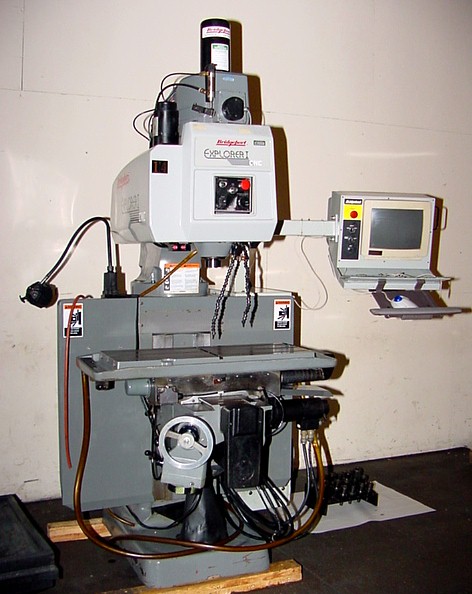

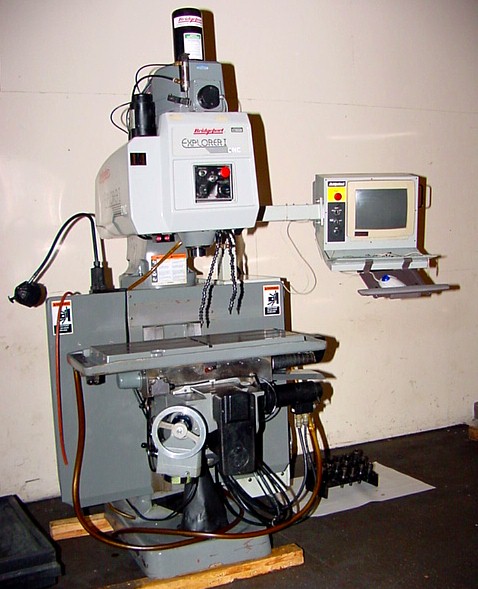

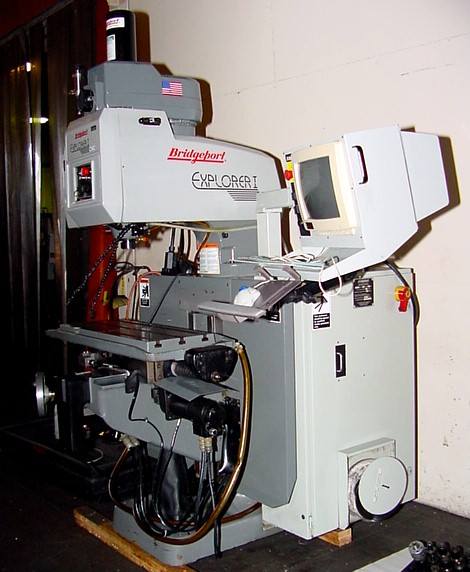

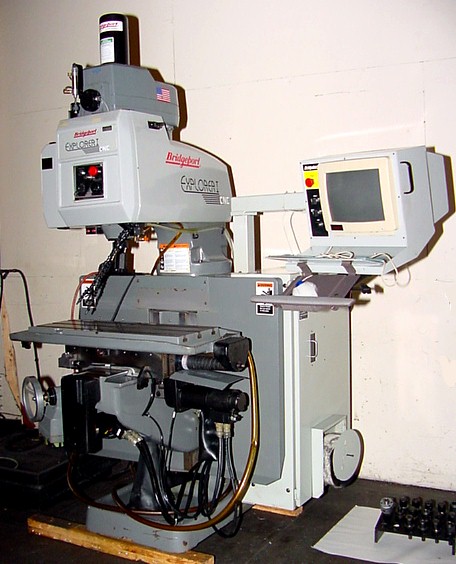

BRIDGEPORT THREE-AXIS CNC VERTICAL MILLING MACHINE

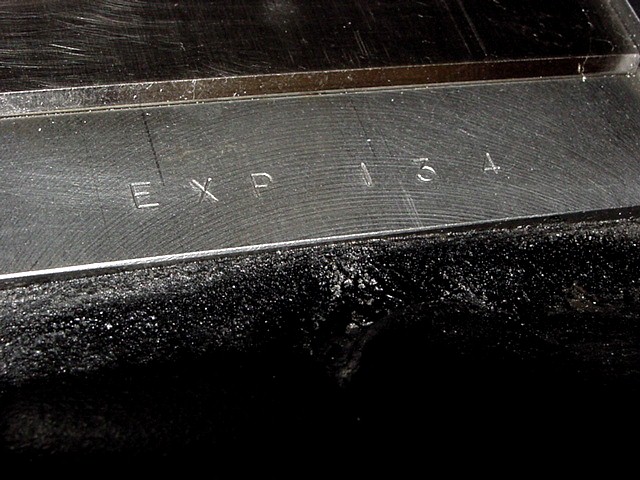

 MODEL: EXPLORER I, S/N EXP 134, NEW 1997


 SPECIFICATIONS:

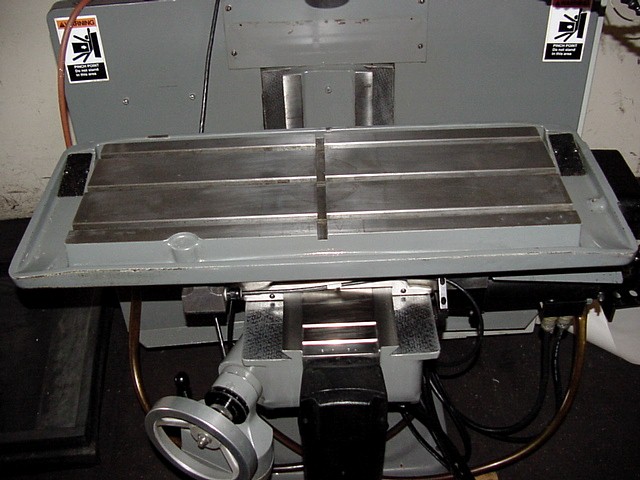

 OVERALL SIZE OF TABLE .................. 16-1/8" X 42"
 TABLE WORKING SURFACE .................. 12-1/2" X 34"
 NUMBER OF T-SLOTS ...................... 3 ON 4-3/8" CENTERS
 RANGE:
     LONGITUDINAL (X) ................. 18"
     CROSS (Y) ........................ 12"
     VERTICAL, KNEE (MANUAL) .......... 14-1/2"

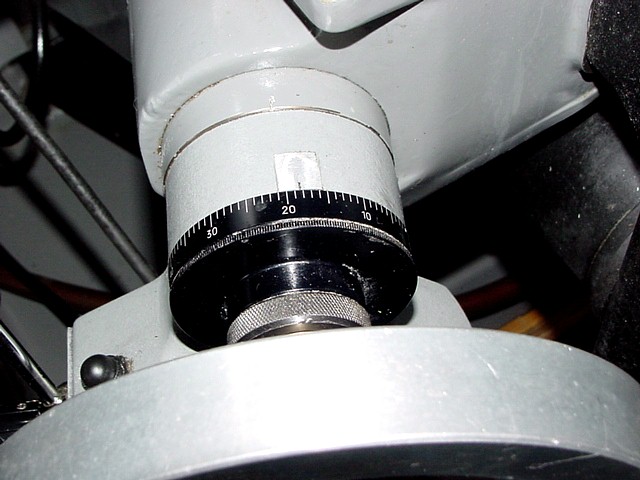

     QUILL (Z) ........................ 5"
 THROAT DISTANCE ........................ 14-1/2"
 DISTANCE, TABLE TO SPINDLE -
     UP AT GAGE LINE .................. 6.37"
 MAXIMUM UNIFORM TABLE LOAD ............. 300 LBS.
 INFINITELY VARIABLE SPINDLE SPEEDS,
     TWO RANGES ....................... 60-4,200 R.P.M.
 SPINDLE TAPER .......................... #30
 FEED RATE, ALL AXES .................... 0.1-250 I.P.M.
 FEED INCREMENTS ........................ 0.1 I.P.M.
 JOG RATE ............................... 150 I.P.M.
 RAPID TRAVERSE RATE, ALL AXES .......... 250 I.P.M.
 APPROXIMATE WEIGHT ..................... 3,150 LBS.
 APPROXIMATE DIMENSIONS:
     F-B .............................. 64"
     L-R .............................. 64"
     HIGH ............................. 87"


 EQUIPPED WITH:

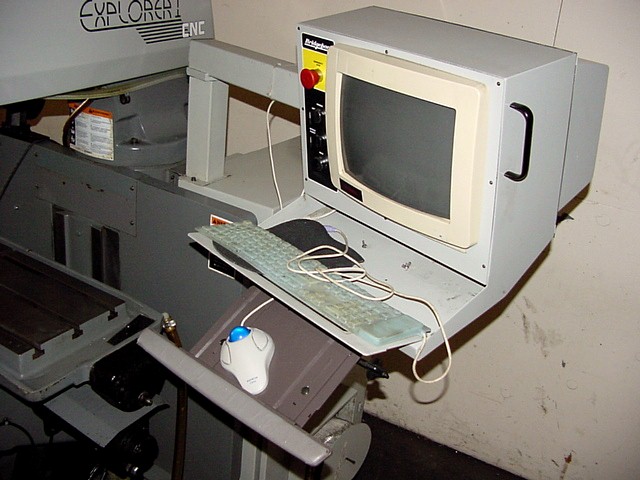

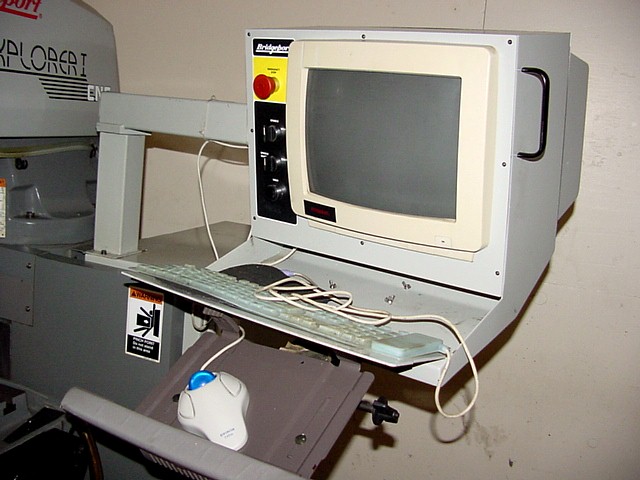

 BRIDGEPORT #DX-32, DOS BASED, 32 BIT PC CONTROL
     w/ NUMERIC KEYPAD AND FUNCTION KEYS WHICH ARE LINKED
     TO A COLOR-CODED ON SCREEN DISPLAY. FULL FEATURE
     CAPABILITY INCLUDES THE USE OF VGA COLOR GRAPHICS AND
     MULTIPLE WINDOWS TO PROMPT THE USER THROUGH ALL
     CONTROL FUNCTIONS. THE CONTROL ALSO INCLUDES A

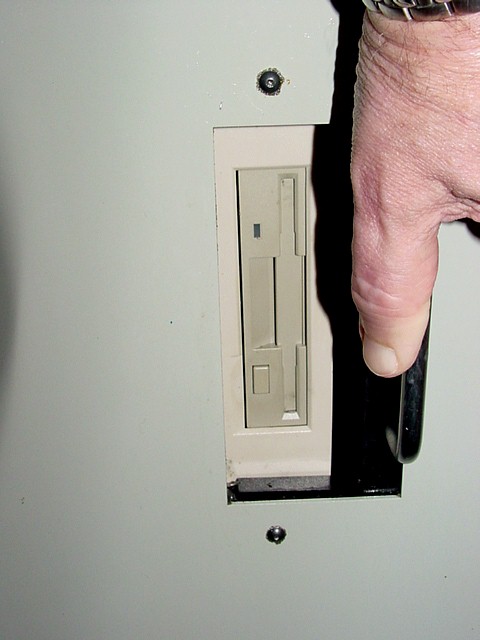

     BUILT-IN 3.5" DISKETTE DRIVE, A 80 MEGA-BYTE HARD
     DISK DRIVE AND A RS-232 INTERFACE.

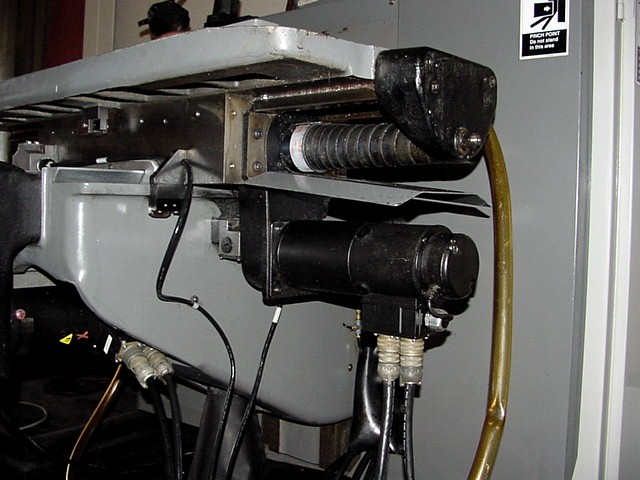

 BALL SCREWS AND DC SERVO MOTORS FOR ALL AXES

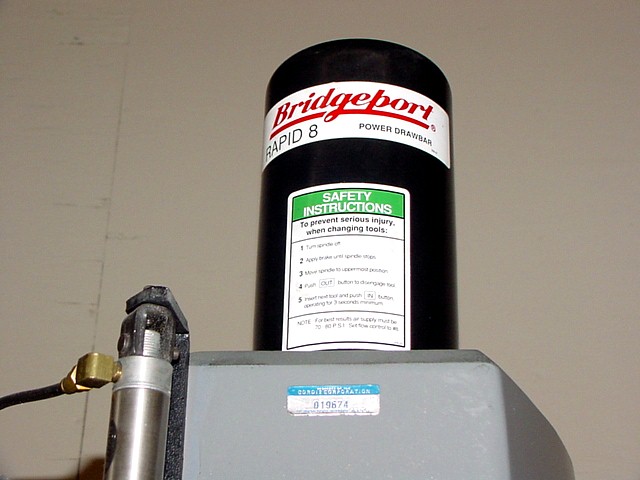

 POWER DRAW BAR

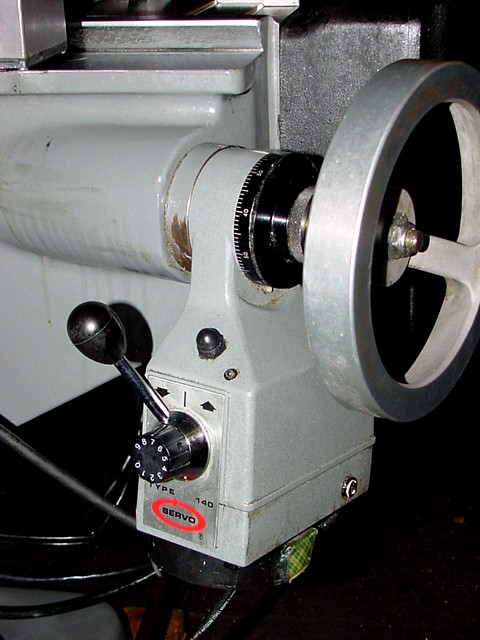

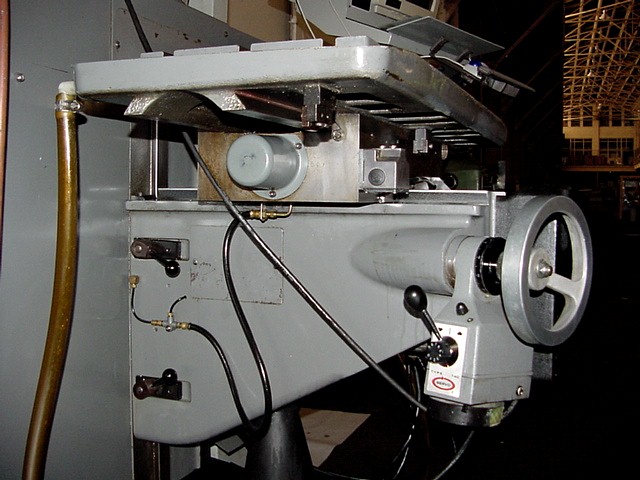

 SERVO POWER FEED ON KNEE UP & DOWN

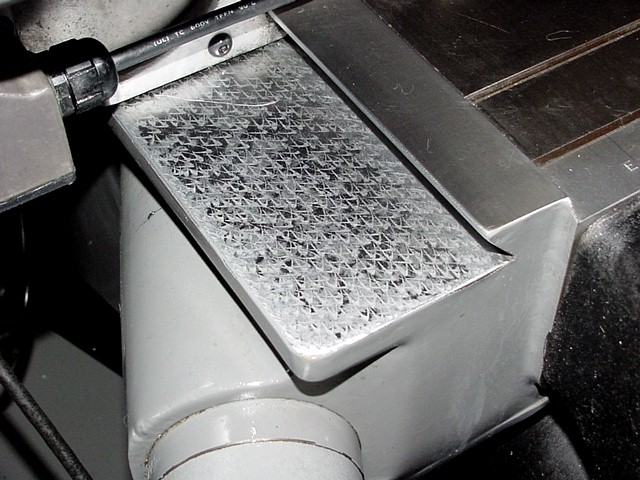

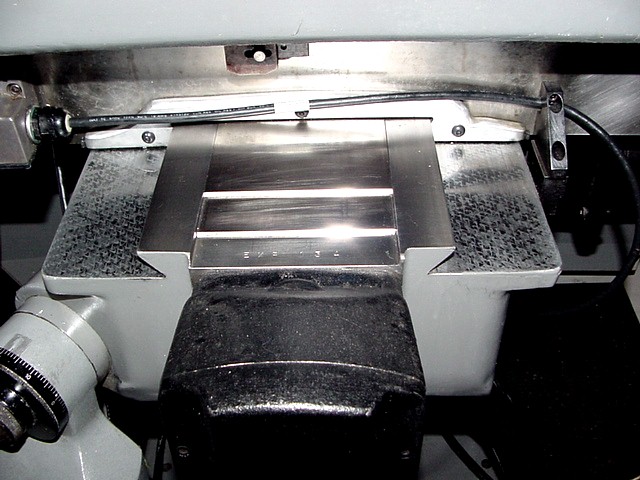

 CHROME PLATED DOVETAIL WAYS
 3 HORSE POWER SPINDLE
 RIGID RAM DESIGN


 INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE.

 CONDITION:       ****   EXCELLENT   ****
