Reference Number: 142670

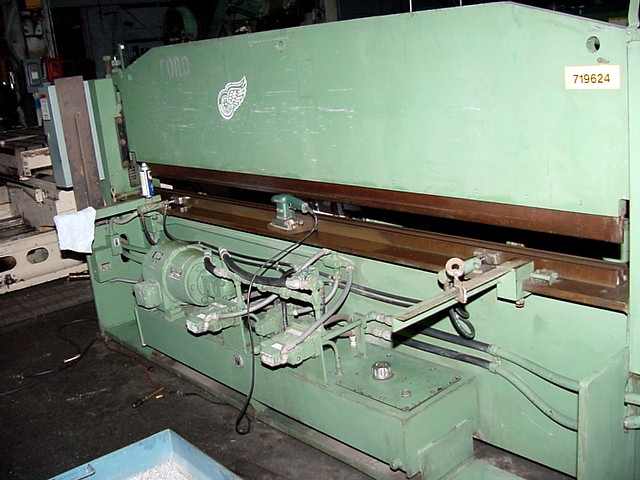

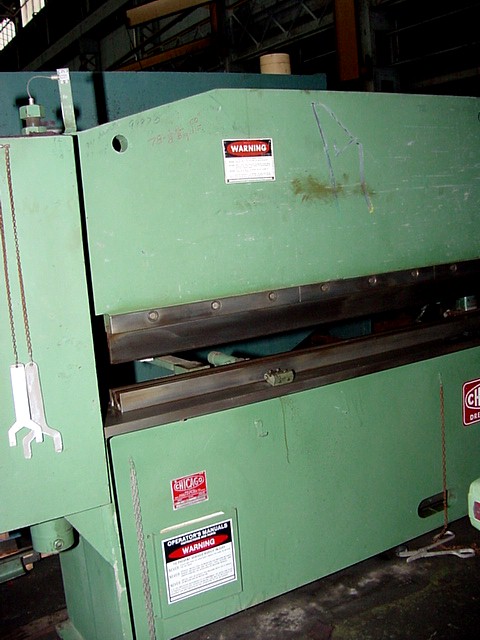

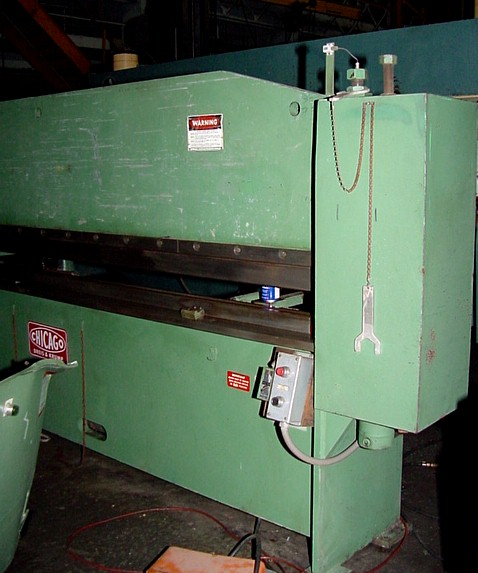

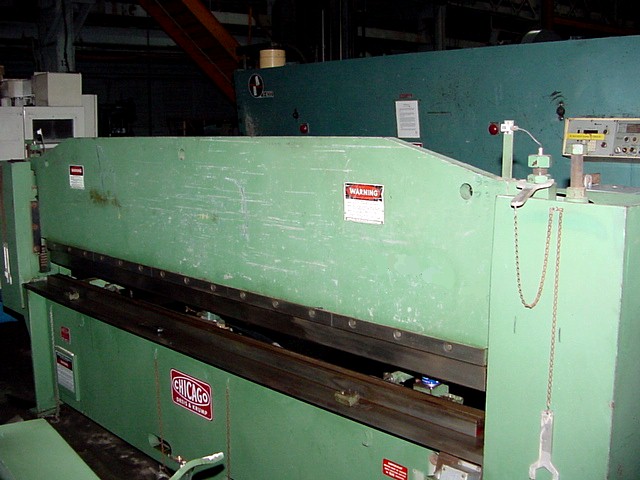

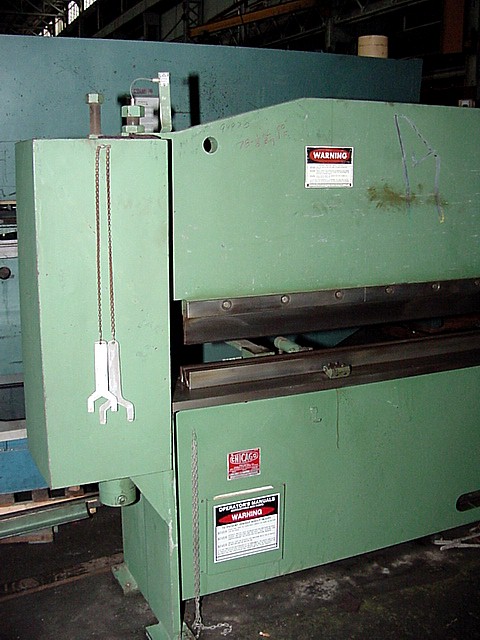

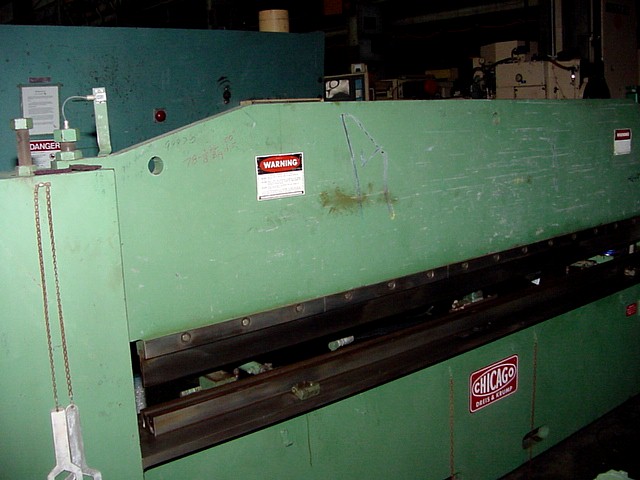

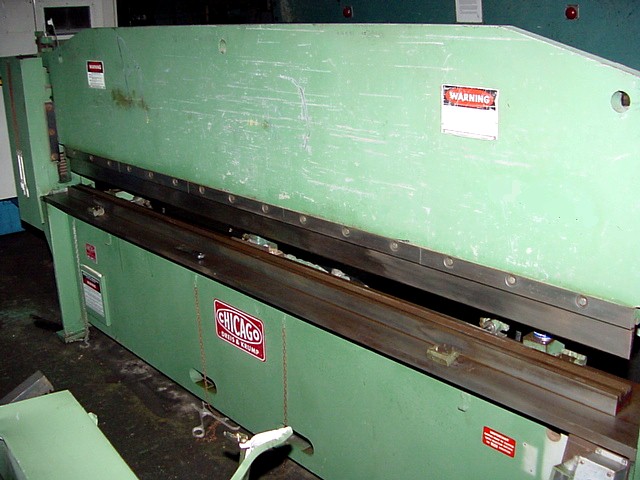

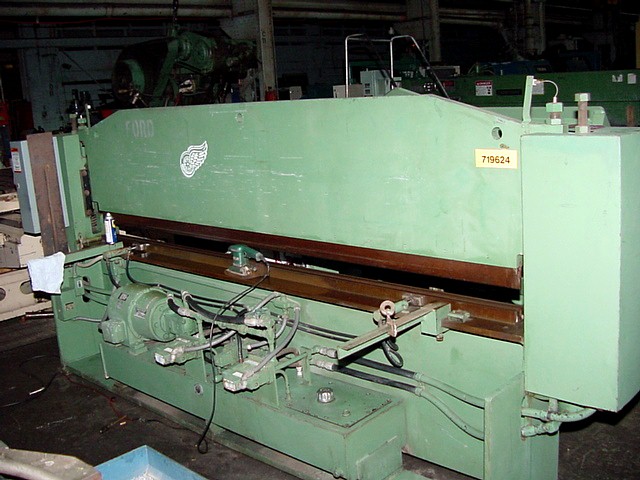

Chicago "D & K" Hydraulic SpeediBender BrakePrice: $12,500

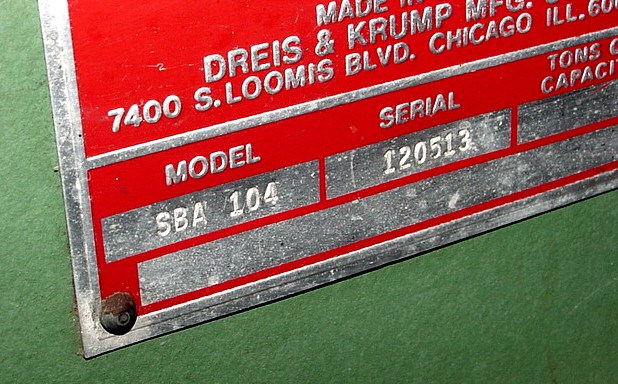

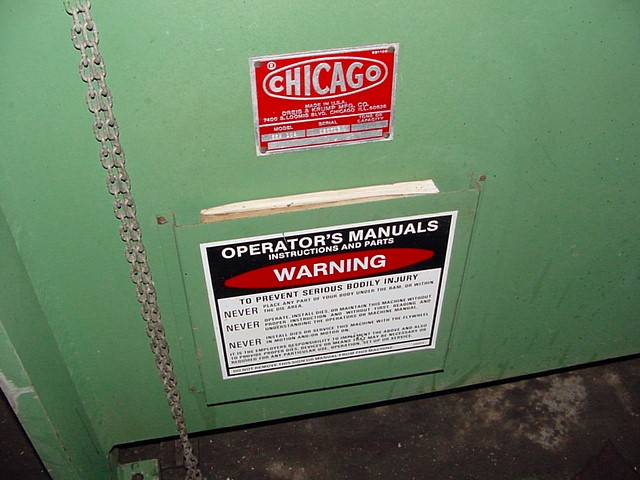

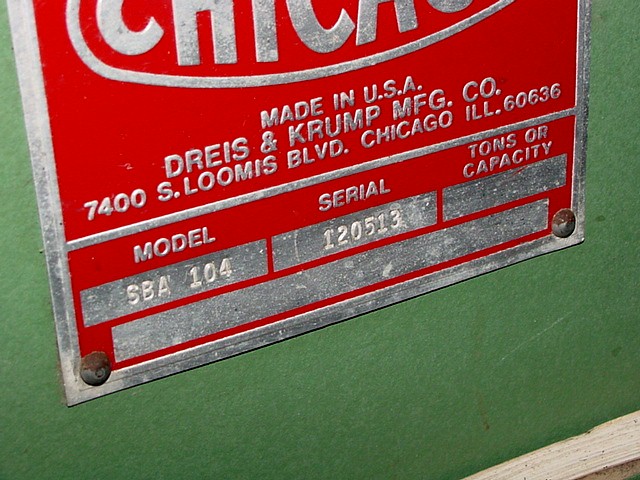

Model SBA-104 S/N 120513 New 1985
Tonnage................................................................................ 25
Capacity (Mild Steel)............................................................ 16 Ga.
Length Of Bed & Ram.......................................................... 120"
Ram Stroke (Variable).......................................................... 1/2" - 4"
Shut Height........................................................................... 9 1/2"
Strokes Per Minute............................................................... 20
Dimensions..................... Overall Length 157" - Depth 22¾" - Height 69"
Weight.................................................................................. 6800 Lbs.
Maximum 90° Bending Capacity:
- 10' x 20-Gauge 7/16" Die Opening
- 10' x 16-Gauge 7/8" Die Opening
- 6' x 14-Gauge 7/8" Die Opening
- 6' x 10-Gauge Using 1½" Angle InsertHemming & Flattening Capacity 10' x 20 Gauge
Equipped With:
3 Way Bottom Die (Power) & One Top Die
Adjustable Material Supports
Electric Foot Pedal
H.P. 7 1/2
