Reference Number: 142671

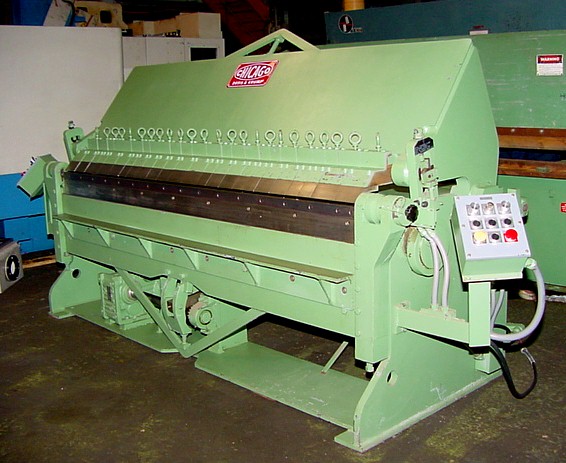

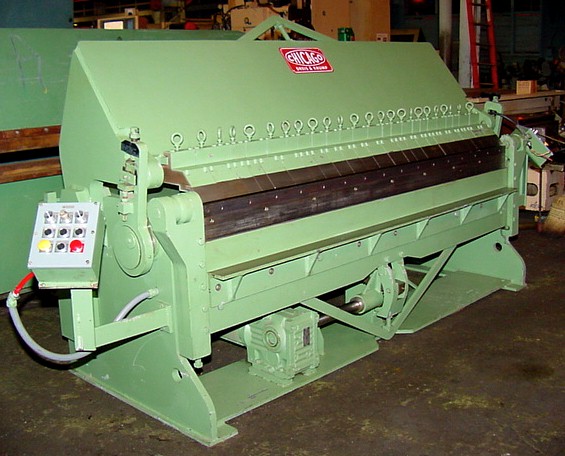

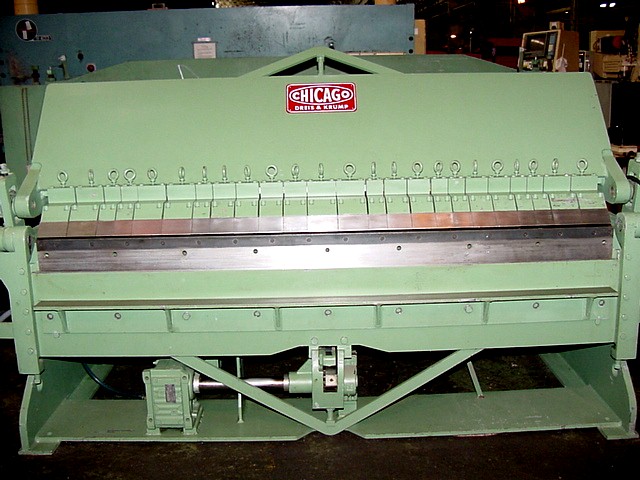

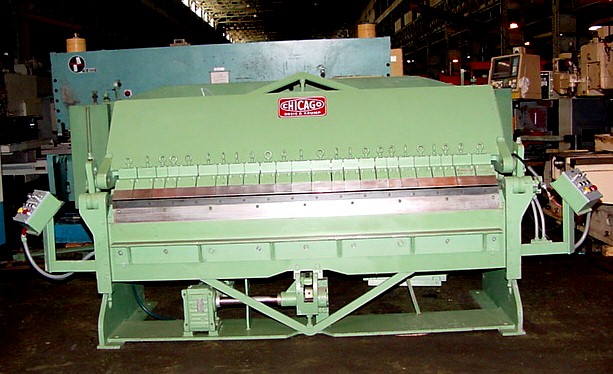

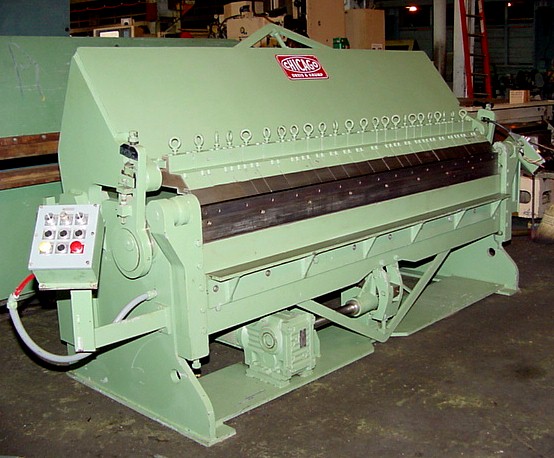

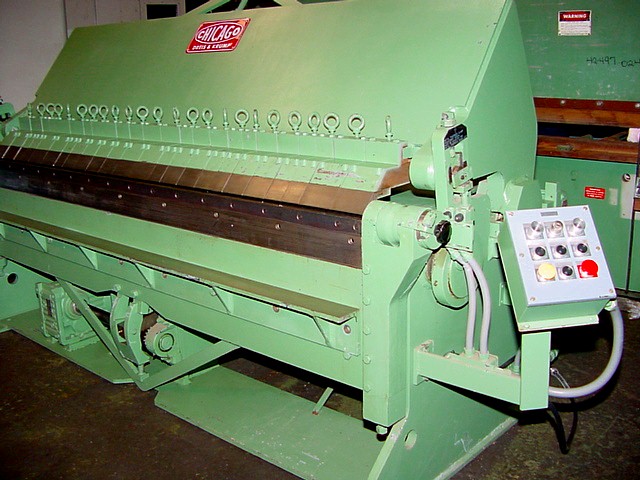

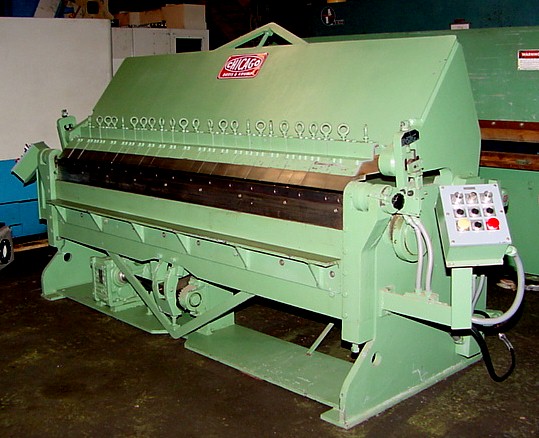

 8' x 10 Ga Chicago DREIS & KRUMP Powered Finger Brake

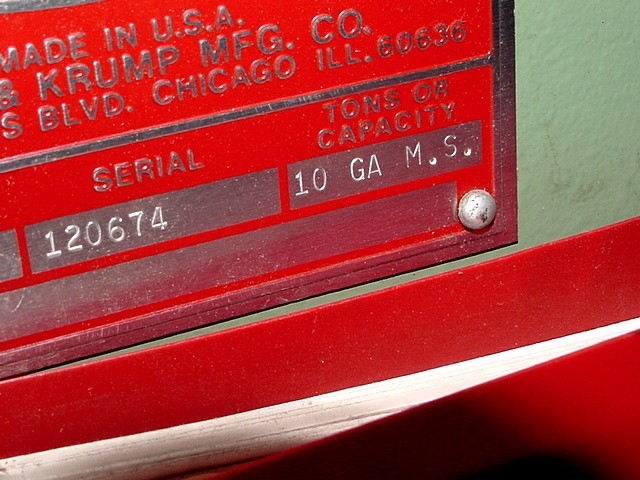

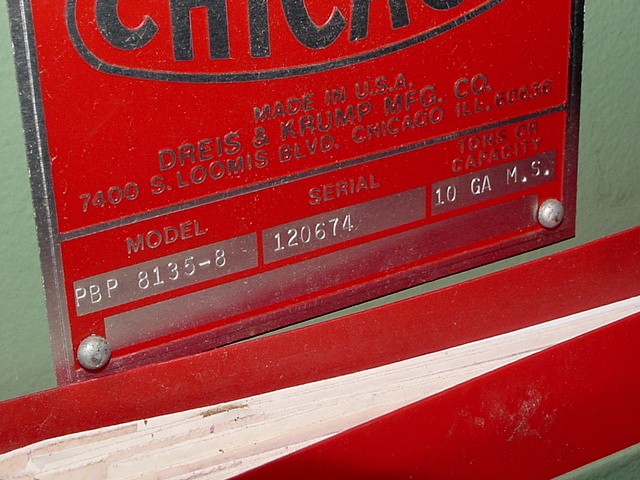

 Model PBP-8135-8          S/N  120674
 NEW 2003 - LIKE NEW CONDITION!!!


  Bending Length .............................. 96"
 Bending Capacity (Mild Steel) .... 10 Guage (.135")
 Min. Flange on Capacity Material ............. 1"
 Machine Dimensions ........ 9'8" L x 8' W x 6'4" H
 Base Length ................................... 9'
 Table Height ............................... 3'11"
 Base Width .................................. 3'7"
 Weight ................................ 7,000 Lbs.

 EQUIPPED WITH:
 - 3 HP Motor, 1800 RPM
 - 8" Long Fingers
 - (8) 3" Wide Fingers
 - (8) 4" Wide Fingers
 - (8) 5" Wide Fingers

 Features:

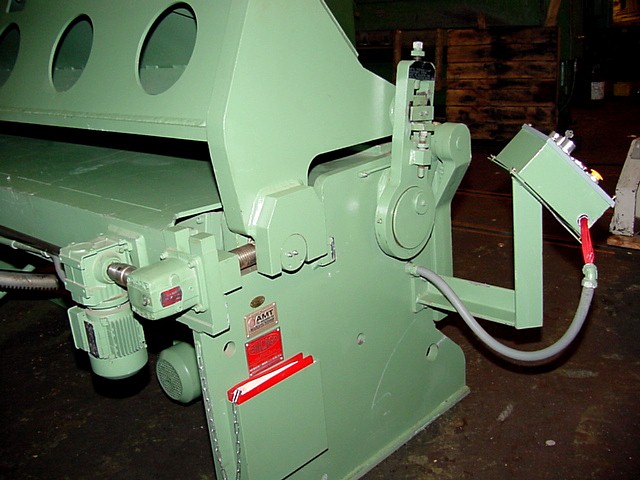

 - Power Unit - Powerful, cool running direct drive
 gear head motor is equipped with built in magnetic
 brake.
 - Drive System - Self aligning main shaft bearings
 assure smooth power transmission. Rack & pinion
 gear transfer power to bending leaf.
 - Powered Clamping - Dual air cylinders actuate
 eccentric clamping links to secure piece part
 for accurate bending.

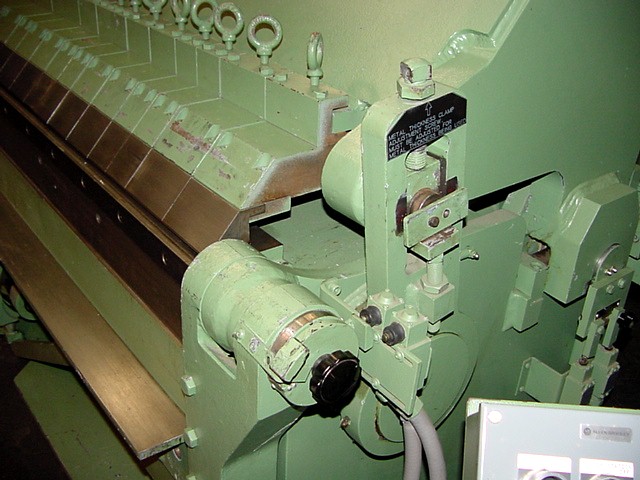

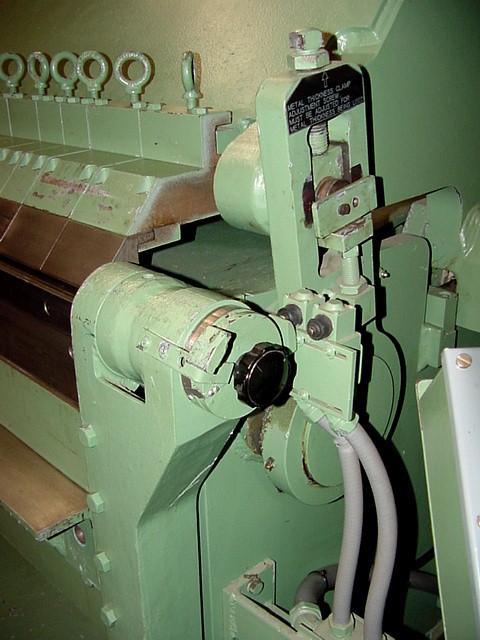

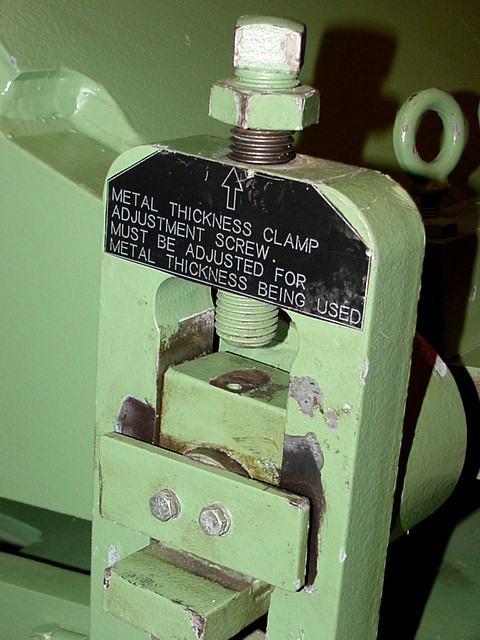

 - Power Top Adjustment - Motor adjusts top leaf
 accurately to thickness of workpiece for
 correct bending radius.
 - Bend Stops - Micro limit switch controls bending
 leaf travel for repeatable angle bends on the
 finished work.

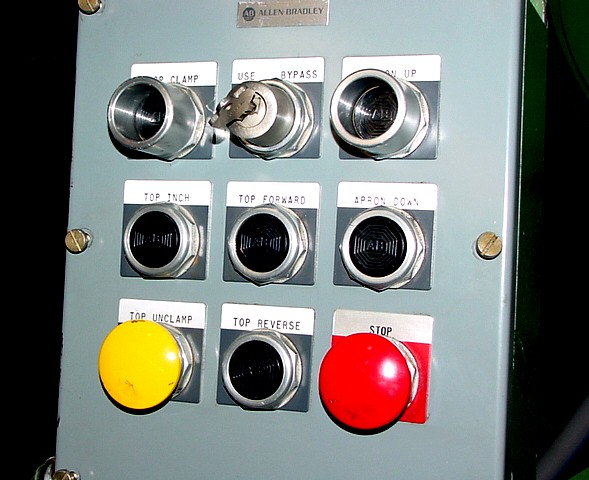

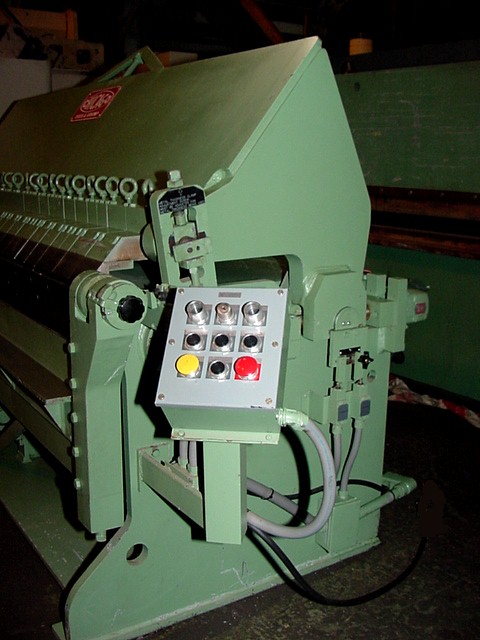

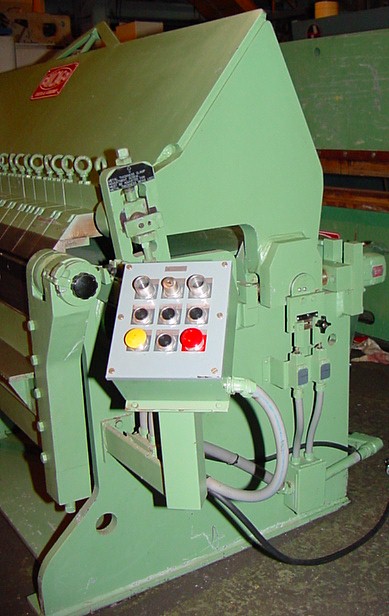

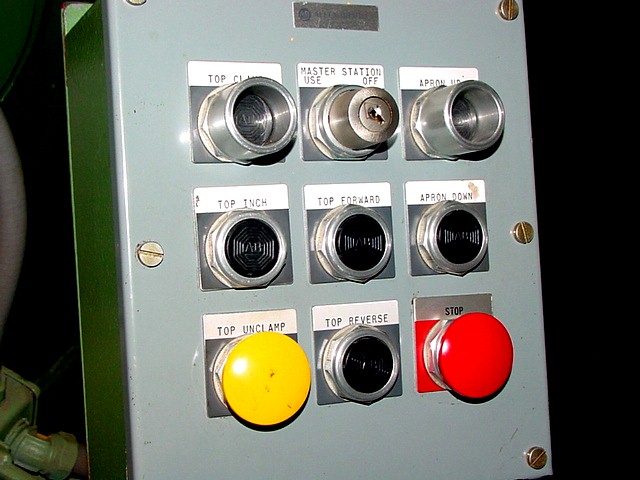

 - Operator Controls - Dual operator stations
 placed at sides of unit for clear view of the work area.

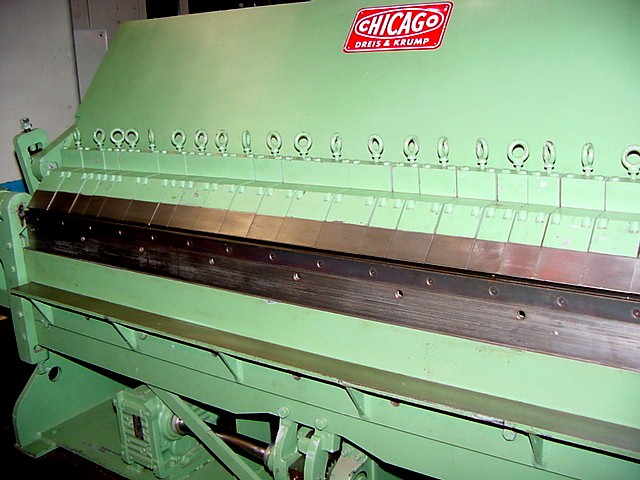

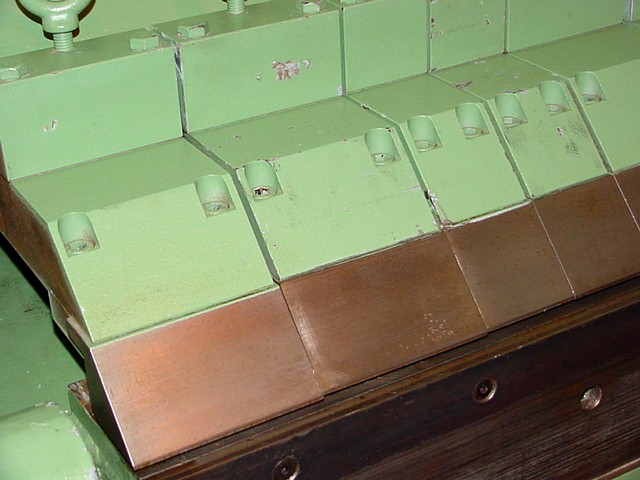

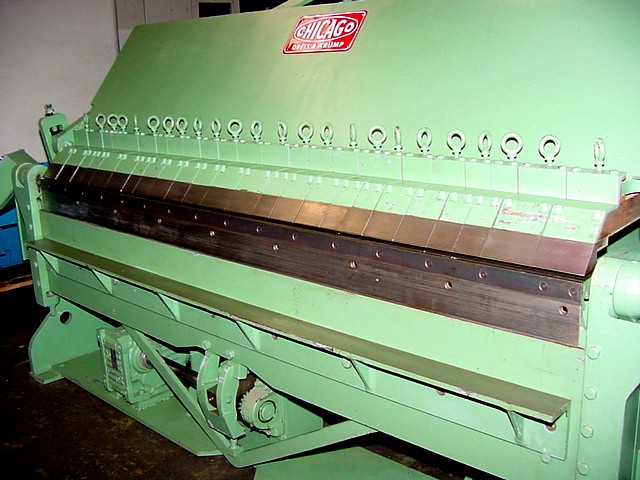

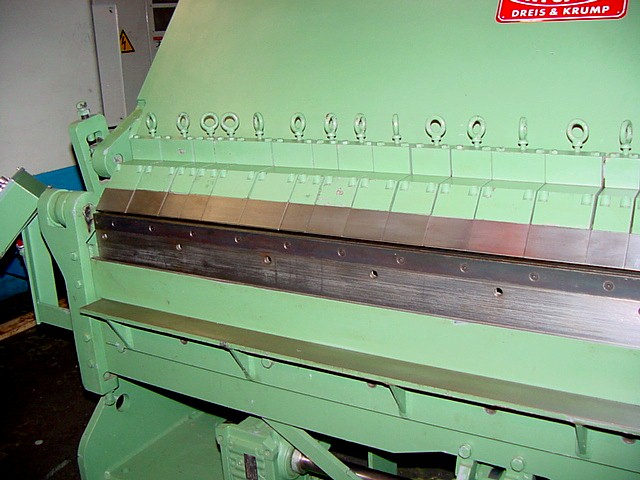

 - Sectional, adjustable, finger assemblies even
 let you easily bend five sided boxes up to 8" deep
 and shapes such as tubes

 - Made in the USA - Replaces for over $80,000
