Reference Number: 142678

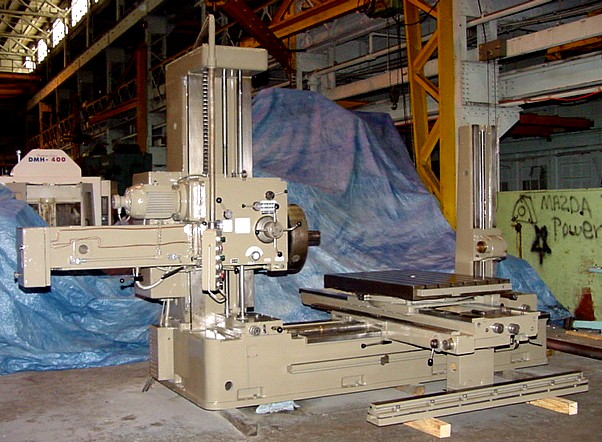

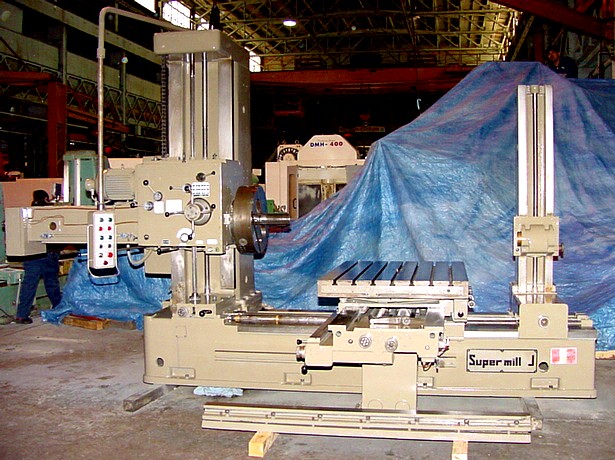

3.5" SUPERMILL TABLE TYPE
HORIZONTAL BORING MILL WITH TAILSTOCK
MODEL: J, S/N: 1521, NEW: 1980
SPECIFICATIONS:
SPINDLE DIAMETER...................... 3.54"
SPINDLE TRAVEL........................ 28"
SPINDLE TAPER......................... #40 ISO
VERTICAL TRAVEL OF SPINDLE............ 48"
SPINDLE SPEEDS.(18 SPEEDS)............ 16 TO 1,000 RPM
TABLE SIZE (POWER ROTARY TABLE)....... 40" X 56-1/2"
TABLE MAX. TABLE LOAD................ 5,500 LBS
TABLE CROSS TRAVEL.................... 78.74"
SADDLE TRAVEL WITH TAILSTOCK ON....... 51"
SADDLE TRAVEL WITH TAILSTOCK OFF...... 67"
MAX DISTANCE BETWEEN SPINDLE
AND OUTBOARD SUPPORT............ 96"
RANGE OF FEEDS........................ 0.002 TO .125 IPR
RANGE OF THREADS...................... 2 TO 120 TPI
SPINDLE MOTOR (208/220/440 VOLT)...... 10 HP
APPROXIMATE SHIPPING WEIGHT........... 20,500 LBS
EQUIPPED WITH:
* #40 TAPER POWER DRAW BAR
* FACING HEAD
* TAILSTOCK
* OUTRIGGER SADDLE SUPPORTS
* PUSH BUTTON PENDANT CONTROL
* BUILT IN POWER ROTARY TABLE
* COOLANT SYSTEM
* 10 HORSE POWER MAIN MOTOR
RUNS GREAT - INSPECT UNDER POWER
