Reference Number: 142690

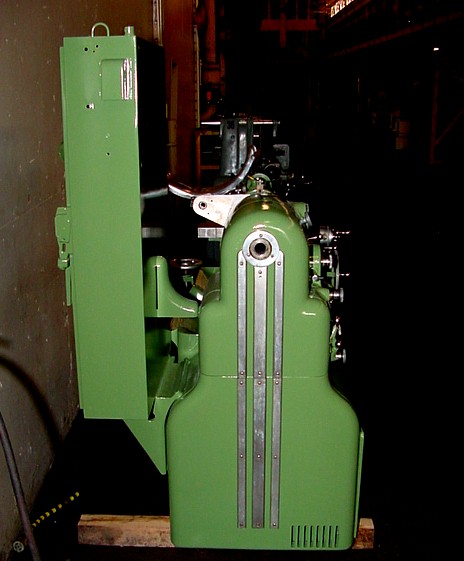

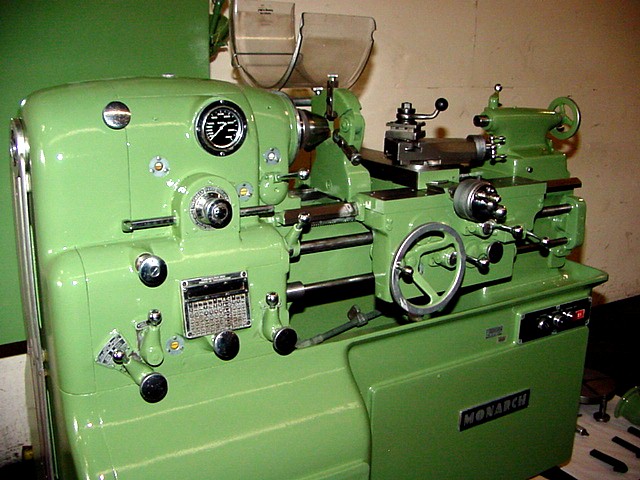

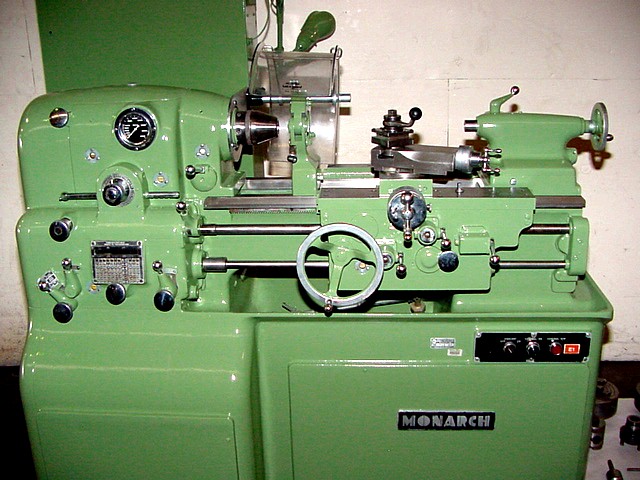

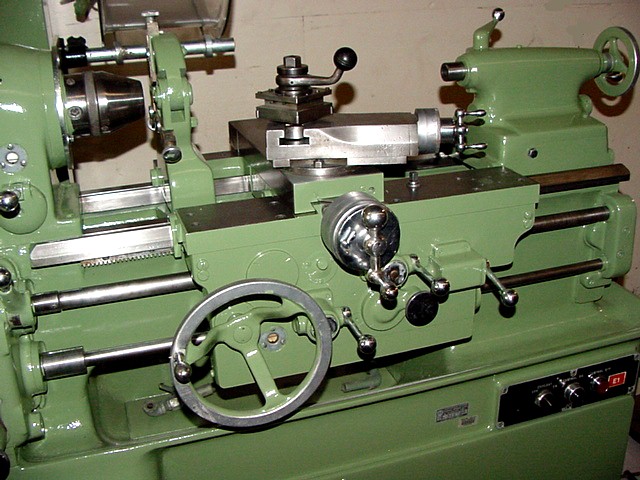

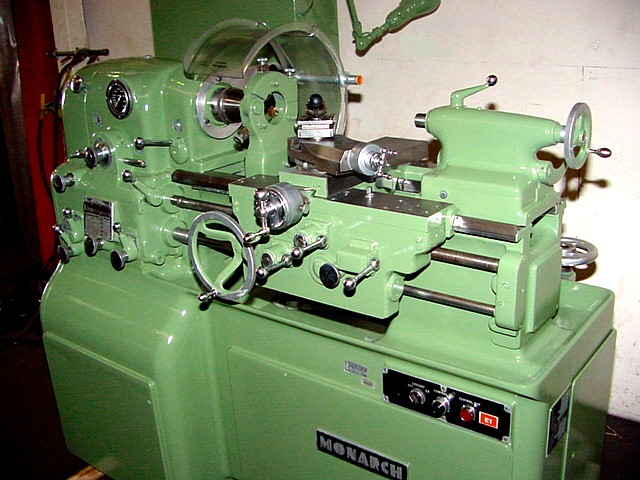

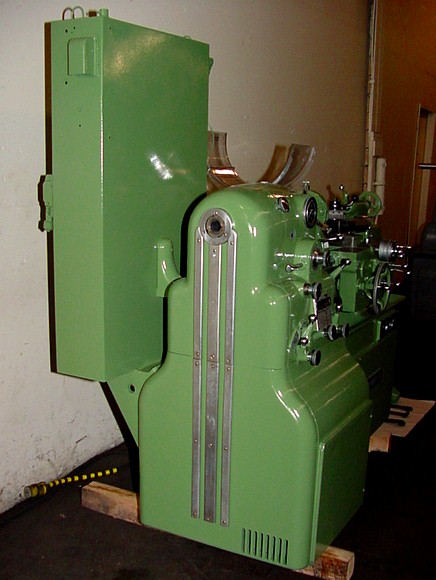

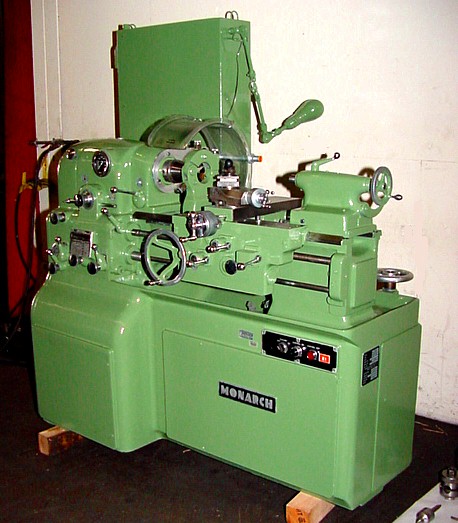

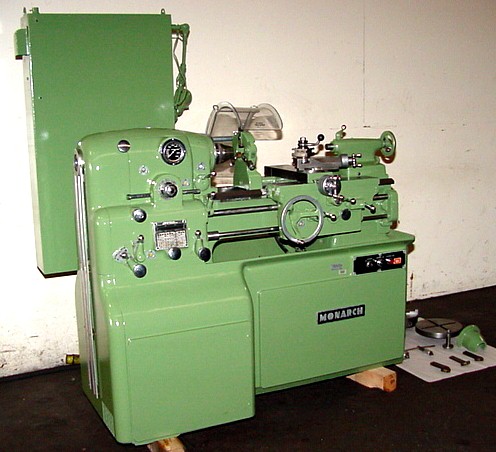

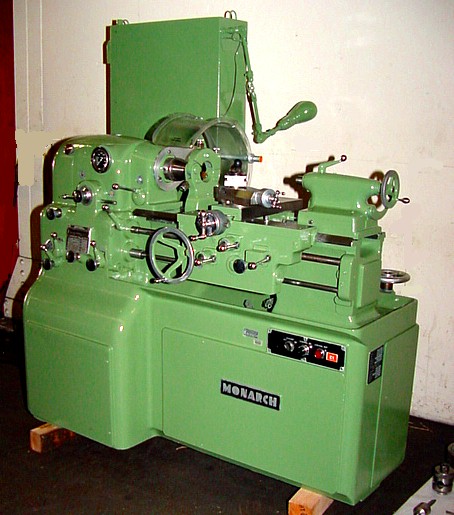

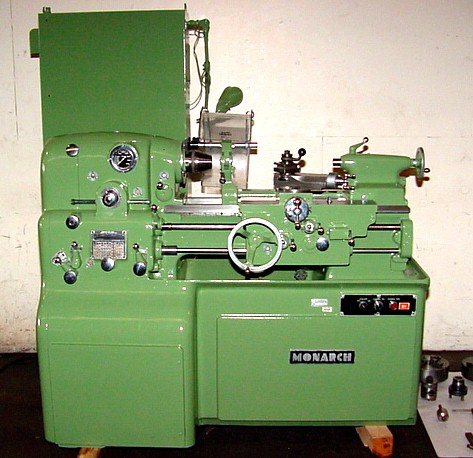

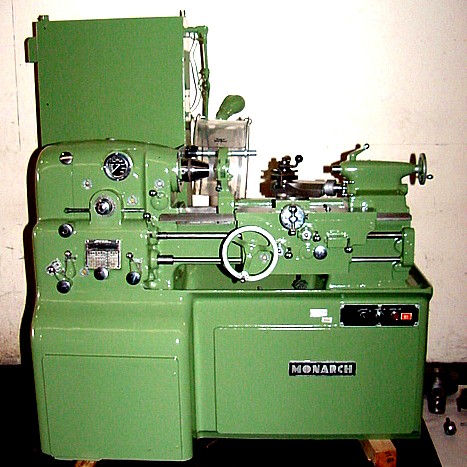

10" X 20" MONARCH PRECISION TOOLMAKER'S LATHE,

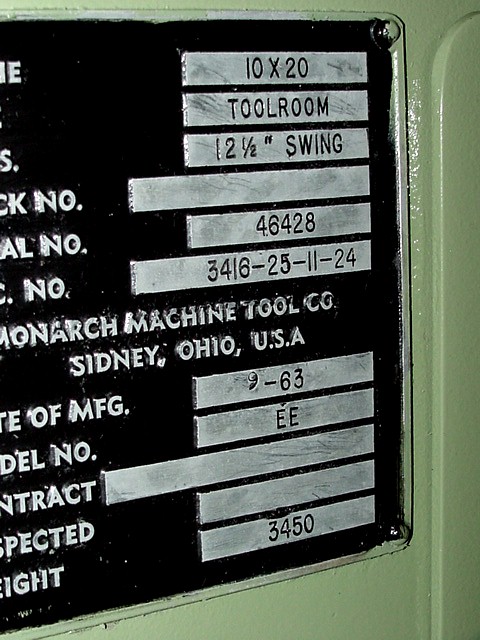

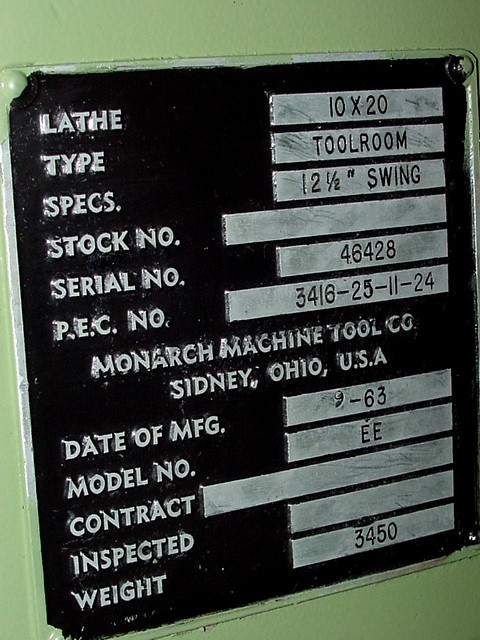

 MODEL: 10EE, S/N: EE 46428, NEW 1963
 WIDELY CONSIDERED TO BE THE BEST TOOLROOM
 ENGINE LATHE EVER MADE - COST $85,000 NEW
 IN THE 1990's WHEN LAST MADE
 MONARCH STILL PROVIDES PARTS AND SERVICE



 SPECIFICATIONS:
 SWING OVER BED ............................ 12-1/2"
 SWING OVER CROSS SLIDE .................... 7-1/4"
 DISTANCE BETWEEN CENTERS .................. 20"
 HOLE THROUGH SPINDLE ...................... 1-13/32"
 SPINDLE NOSE, CAMLOCK, TYPE ............... D1-3"

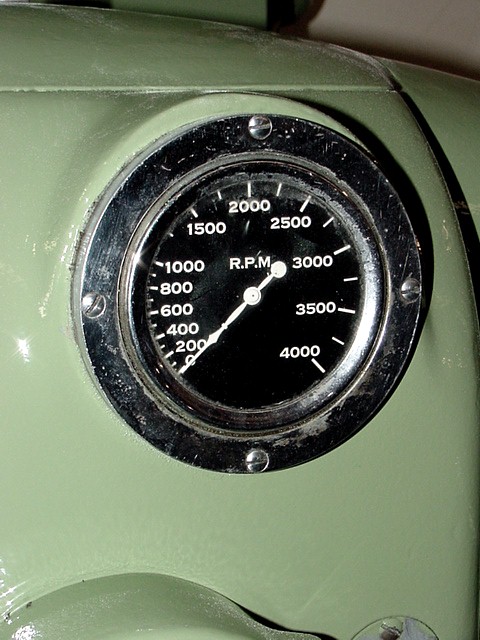

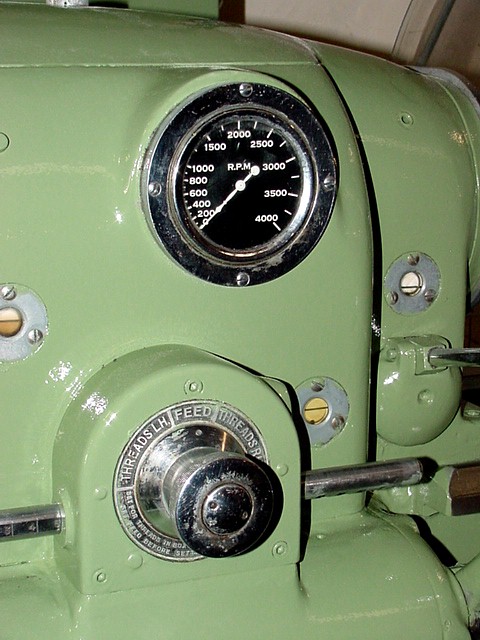

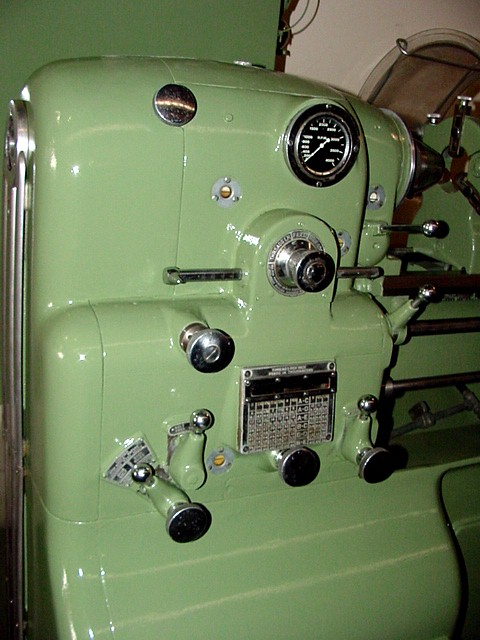

 INFINITELY VARIABLE SPINDLE SPEEDS ........ TO 4,000 RPM
 HEADSTOCK & TAILSTOCK SPINDLE CENTER TAPER  #2 MORSE

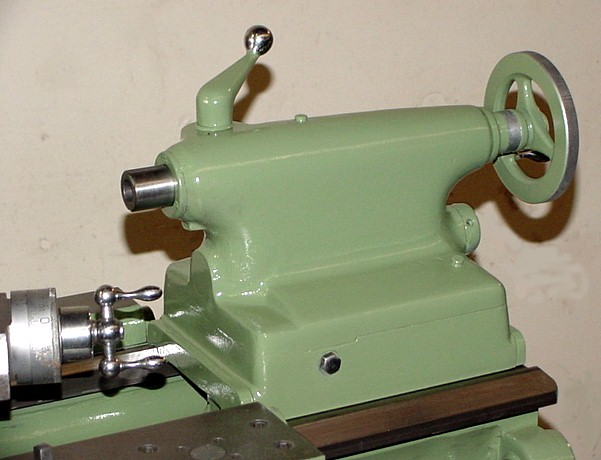

 TAILSTOCK SPINDLE DIAMETER ................ 1-1/4"
 TAILSTOCK SPINDLE TRAVEL .................. 3-1/2"

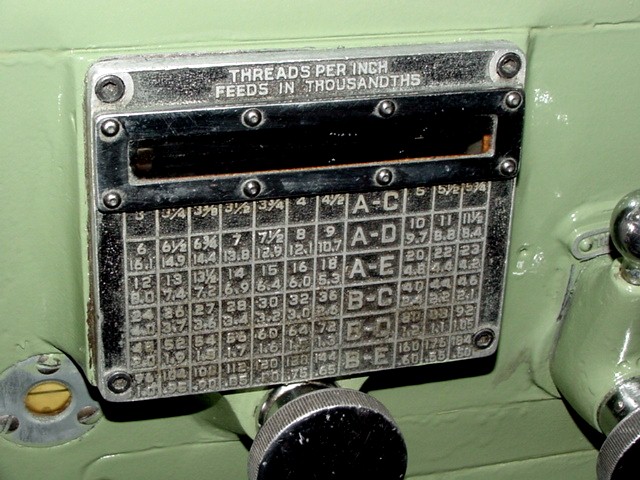

 THREADS, INCH (60) ........................ 3 - 184 T.P.I.
 FEEDS, LONGITUDINAL (50) .................. .0005-.0161 IPR
 APPROXIMATE WEIGHT ........................ 3,450 LBS.
 APPROXIMATE FLOOR SPACE ................... 61" x 30"

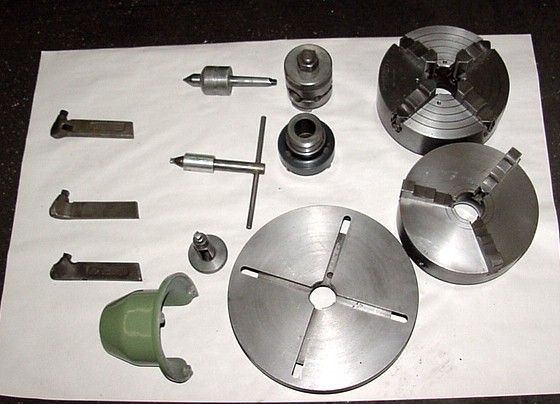

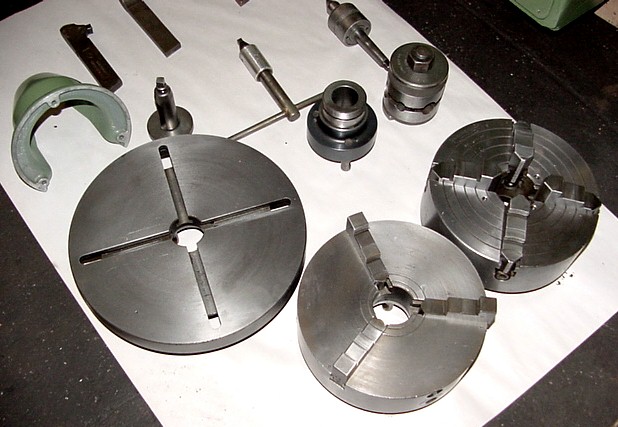

 EQUIPPED WITH:

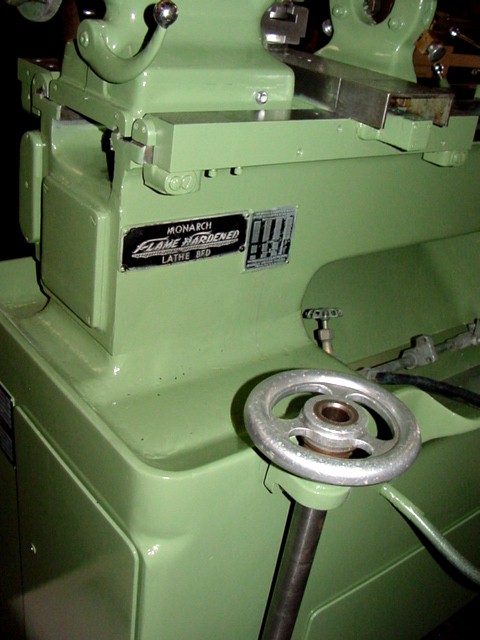

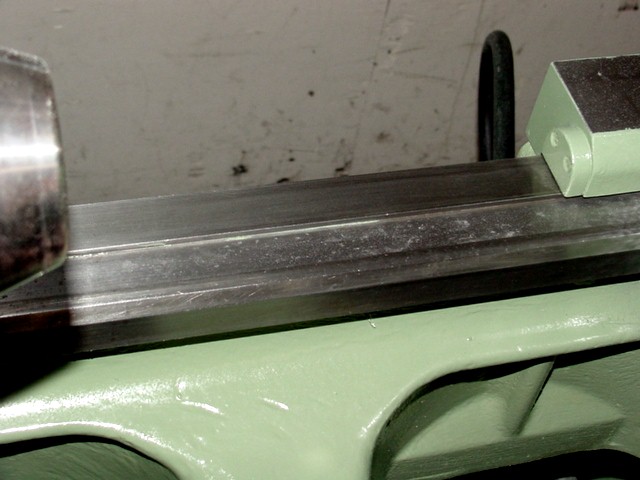

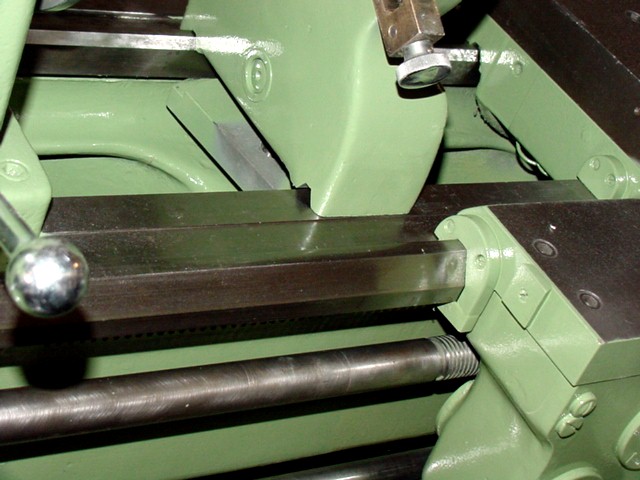

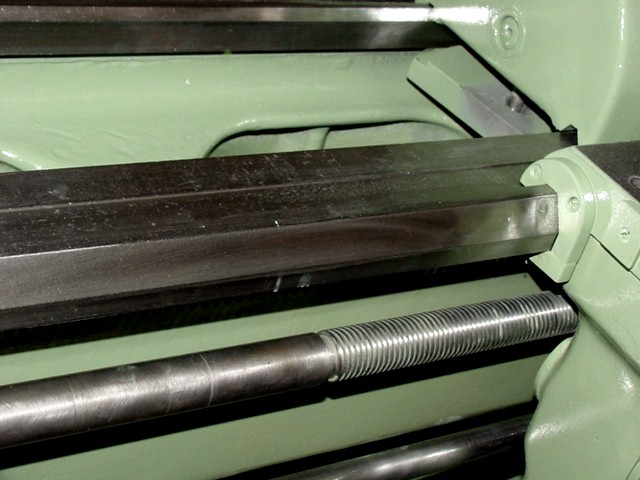

 * FLAME HARDENED BED WAYS

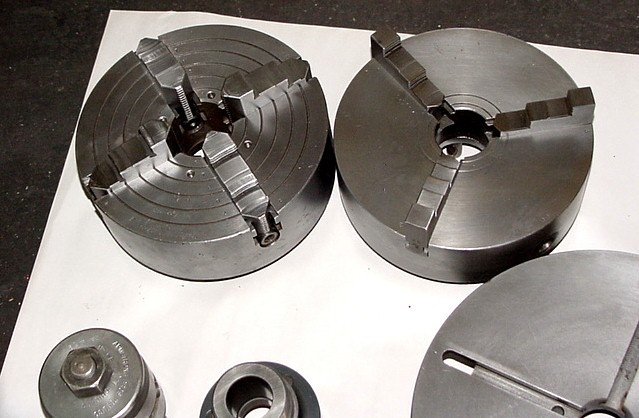

 * 8-1/4" 3-JAW CHUCK
 * 8-1/4" 4-JAW CHUCK

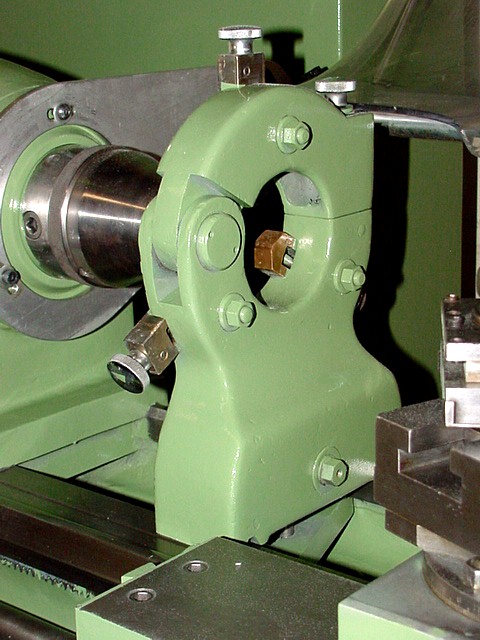

 * STEADY REST

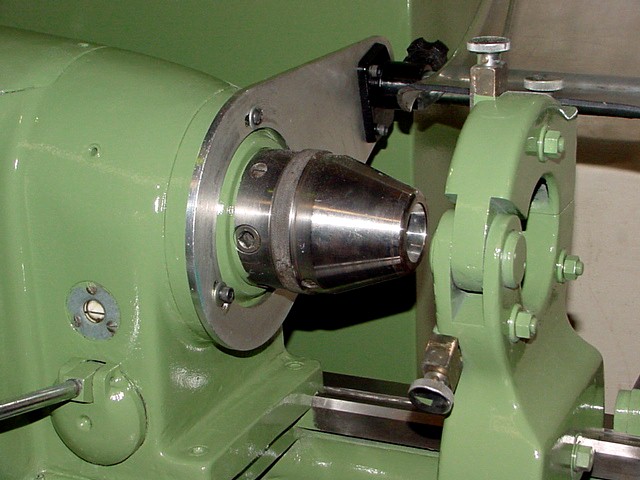

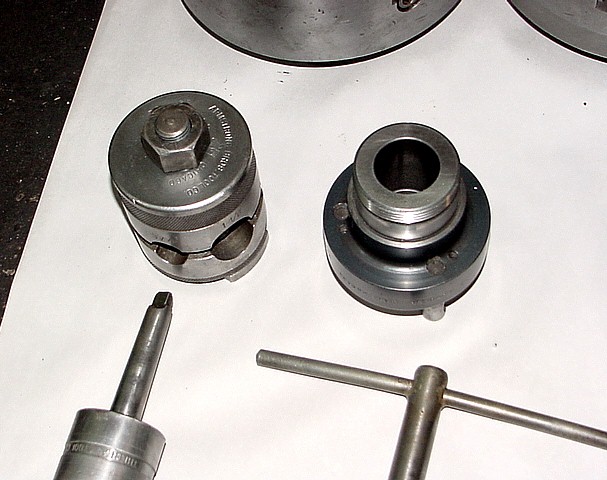

 * 5-C COLLET DRAW BAR & NOSE PIECE

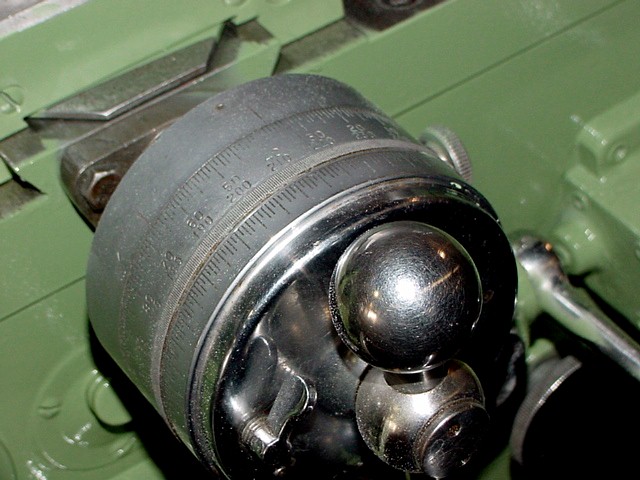

 * TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL

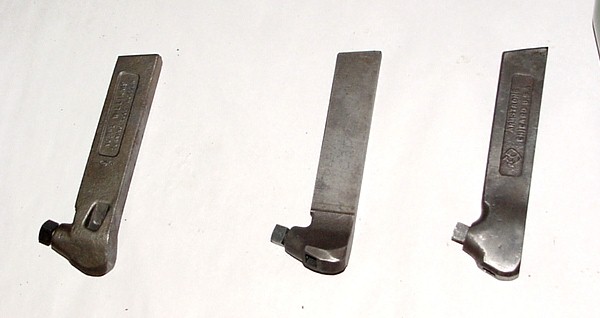

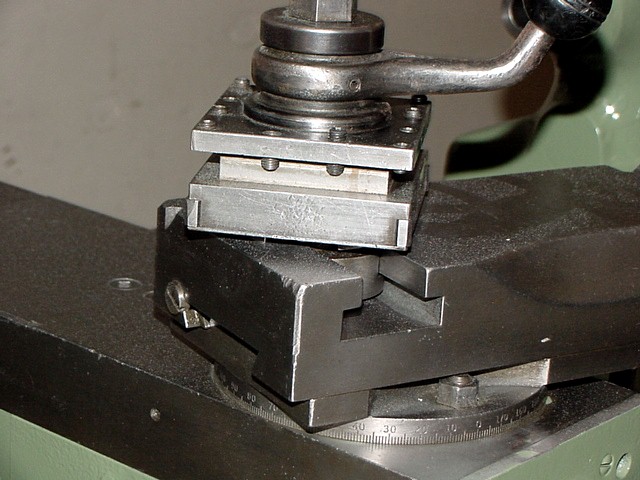

 * TOOLPOST

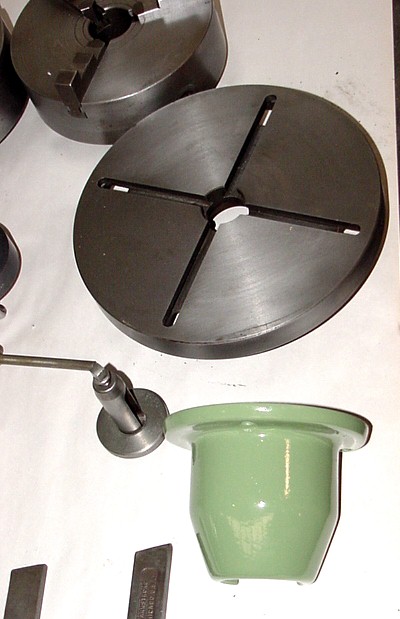

 * FACEPLATE
 * LIVE CENTER FOR TAILSTOCK
 * THREAD CHASING DIAL

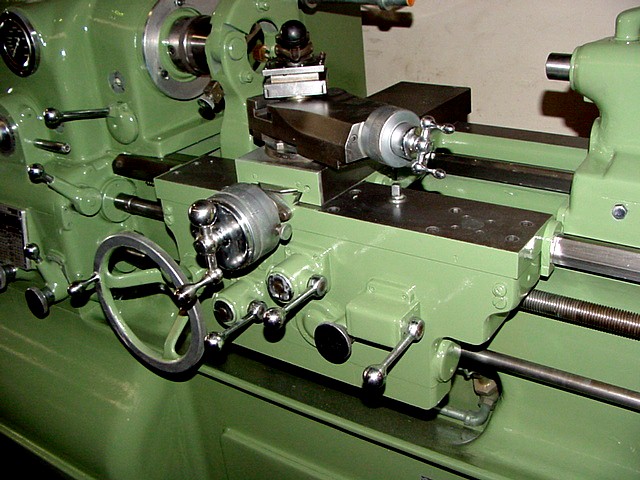

 * MICROMETER CARRIAGE STOP
 * 5 HORSE POWER DRIVE MOTOR
 * 440 Volt


 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

 CONDITION:   ***  EXCELLENT ***
