Reference Number: 142694

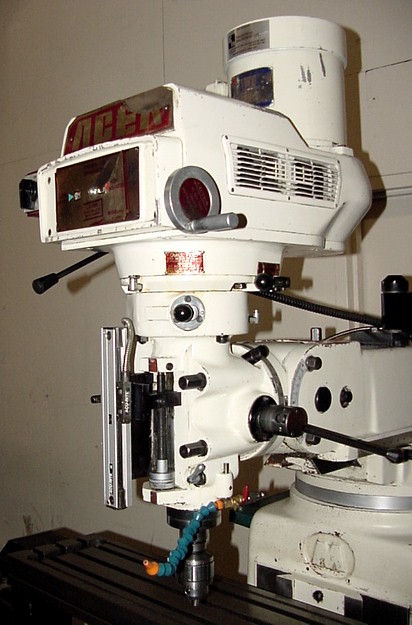

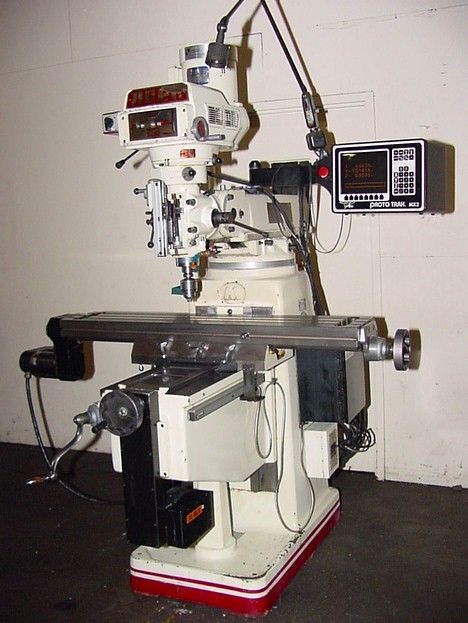

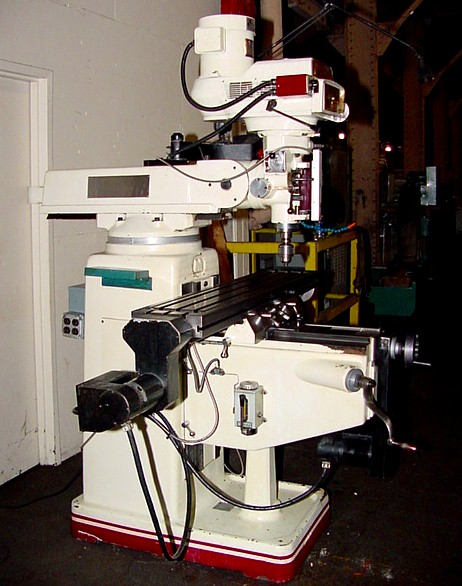

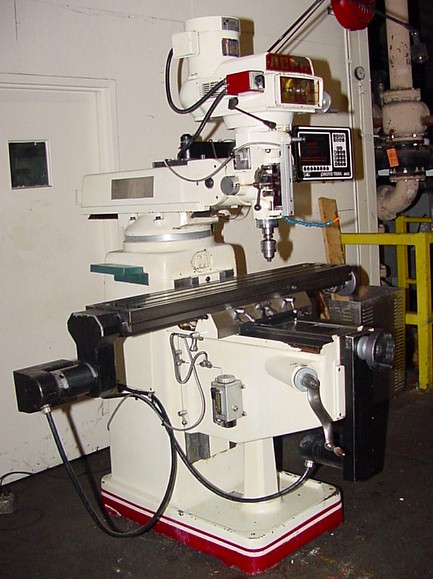

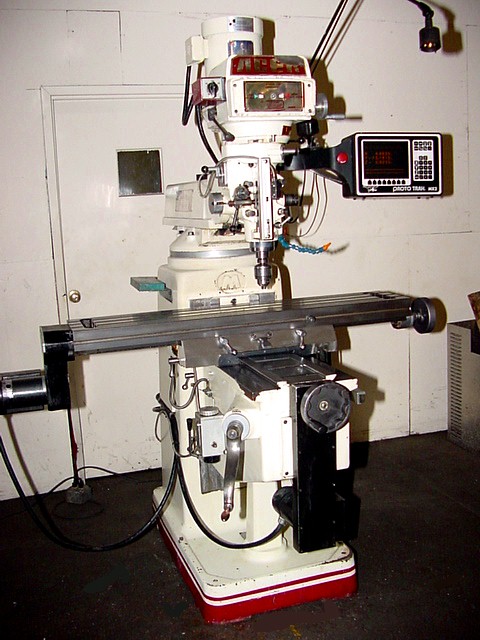

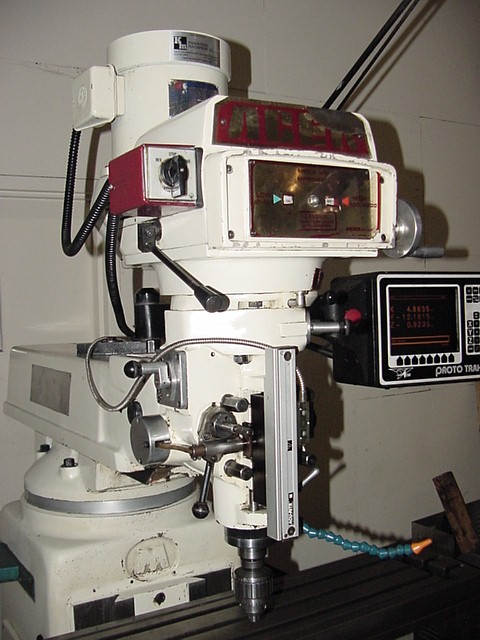

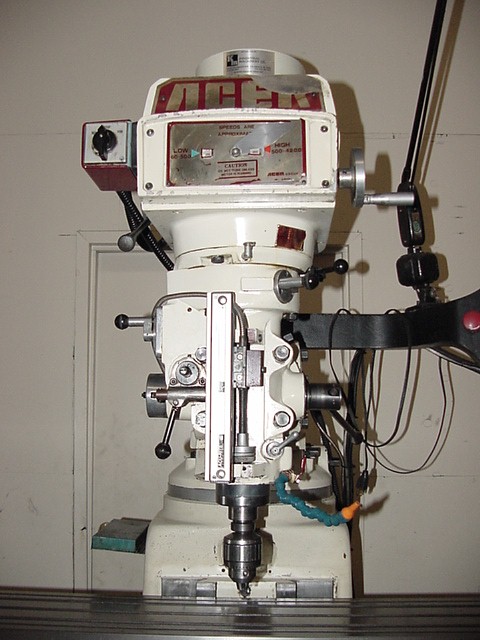

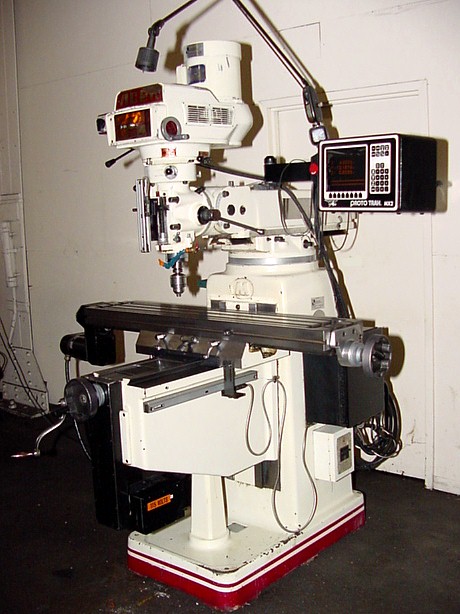

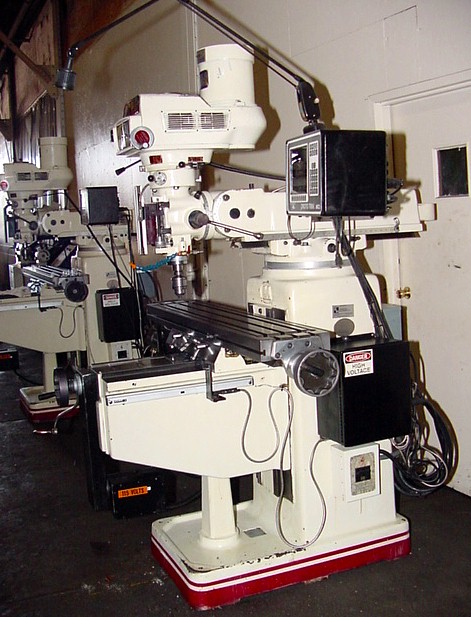

Price: $10,950ACER VERTICAL MILL
MODEL:ULTIMAX II 3VKH, MFG: 1990's
2-AXIS CNC PLUS MANUAL HANDWHEELS

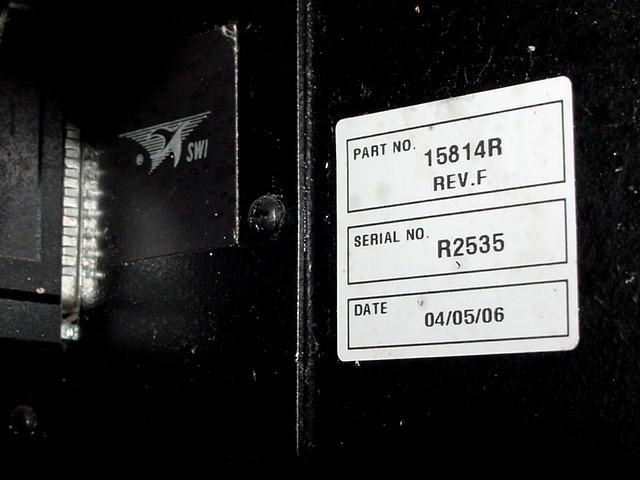

RETROFITTED 2006
SPECIFICATIONS:

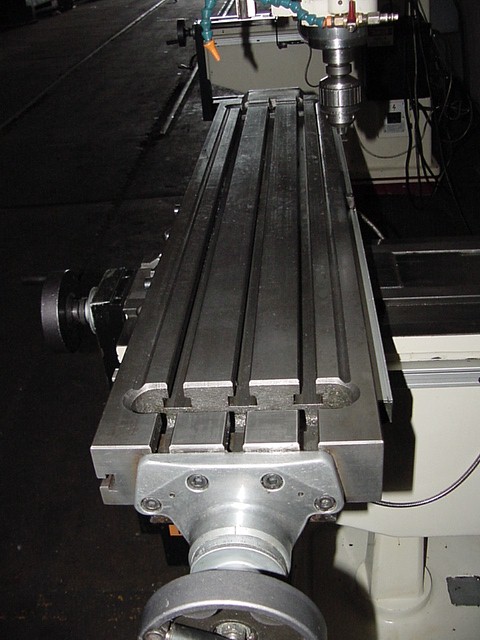

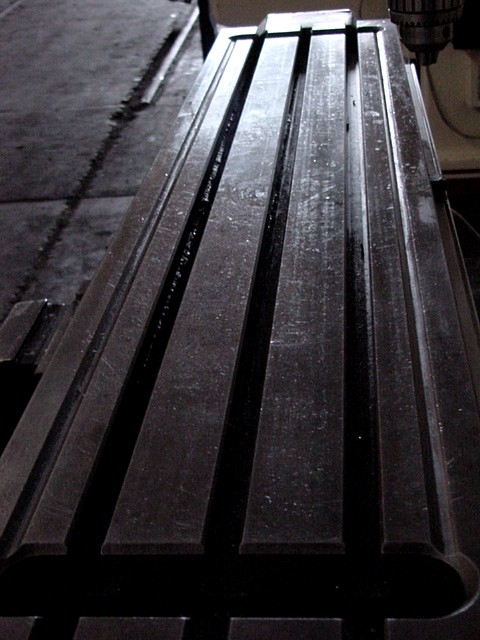

TABLE SIZE....................... 10" x 50"
TABLE TRAVEL (X-AXIS)............ 28.5"
SADDLE TRAVEL (Y-AXIS)........... 14"
QUILL TRAVEL (Z-AXIS)............ 4.5"
KNEE TRAVEL ..................... 16"
RAM TRAVEL ...................... 20"

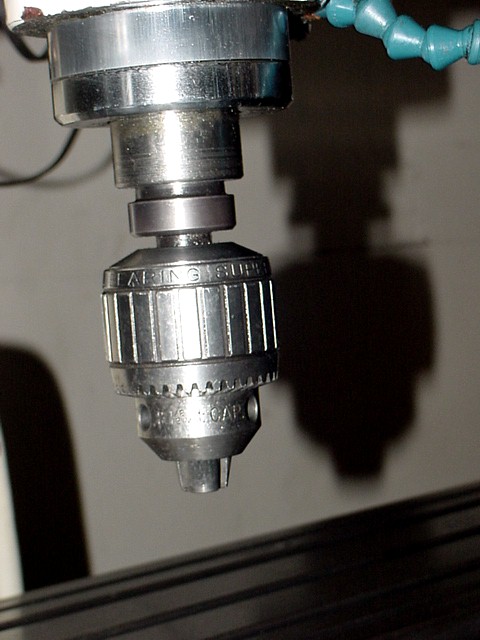

SPINDLE TAPER.................... R-8
SPINDLE SPEED RANGE.............. 60 - 4200 RPM
MAXIMUM LOAD DISTRIBUTED ........ 500 LBS.
FLOOR AREA (DOORS CLOSED)........ 8' x 7'3"
HEIGHT........................... 6'9"
WEIGHT (WITH CONTROL)............ 3,250 LBS.
EQUIPPED WITH:

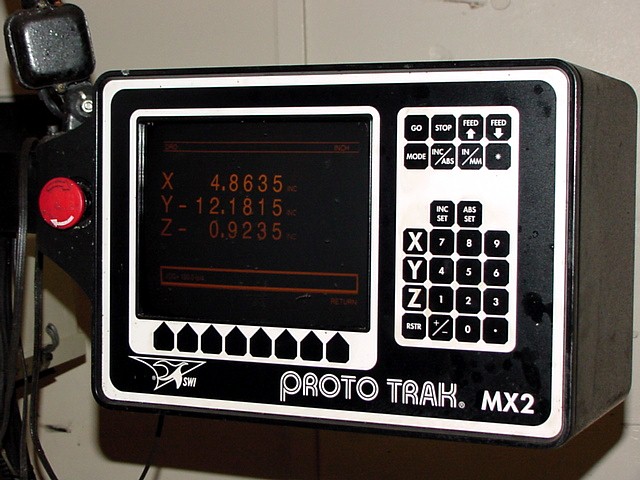

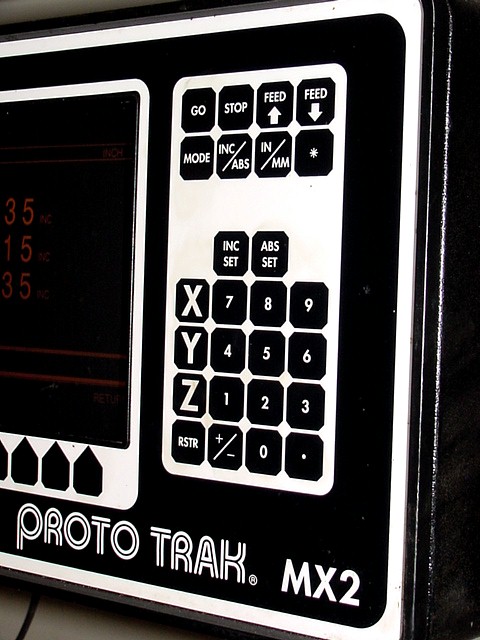

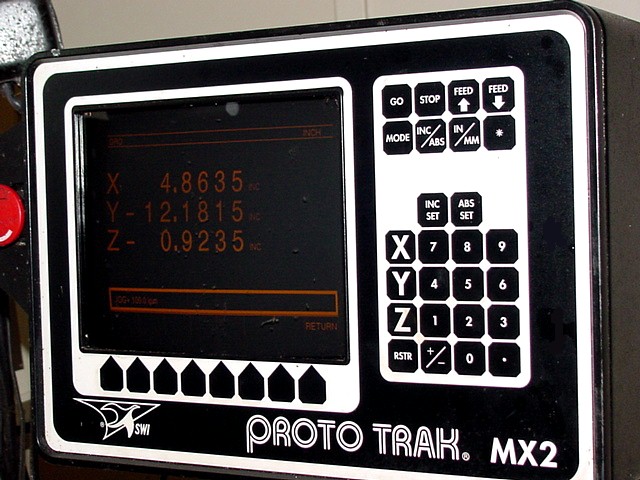

- SOUTHWESTERN INDUSTRIES: TRAK MX 2-AXIS CNC CONTROL SYSTEM
WITH SERVO MOTORS, MANUAL DATA INPUT 2-AXIS LINEAR &
CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD, BOLT HOLE
PATTERNS, PART GRAPHICS, DRILL, BORE, MIRROR & MUCH
MUCH MORE!

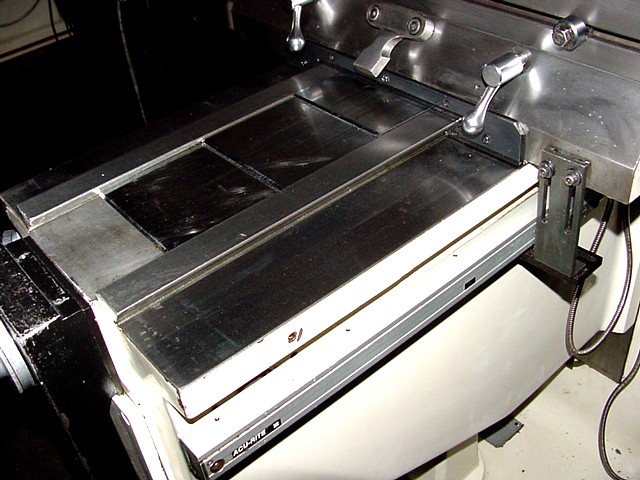

ACU-RITE GLASS SCALES
X & Y BALLSCREWS AND SERVO MOTORS

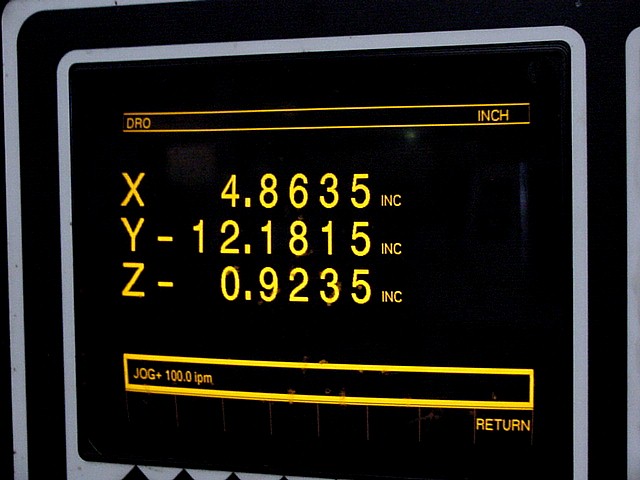

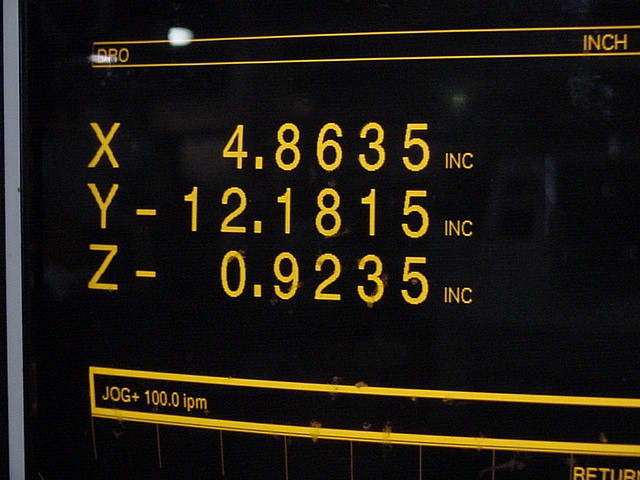

CONTROL ACTS AS 3-AXIS DRO IN MANUAL MODE
RS 232 PORT

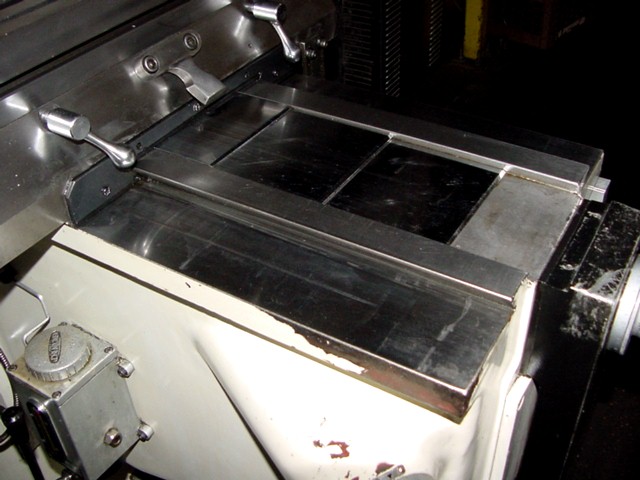

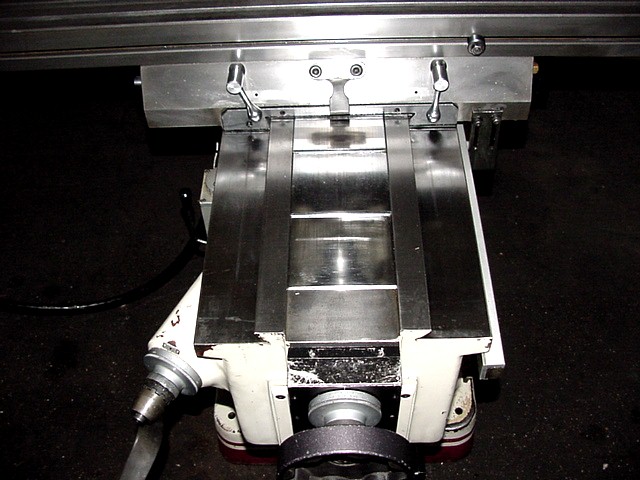

HARDENED & GROUND DOVETAIL WAYS

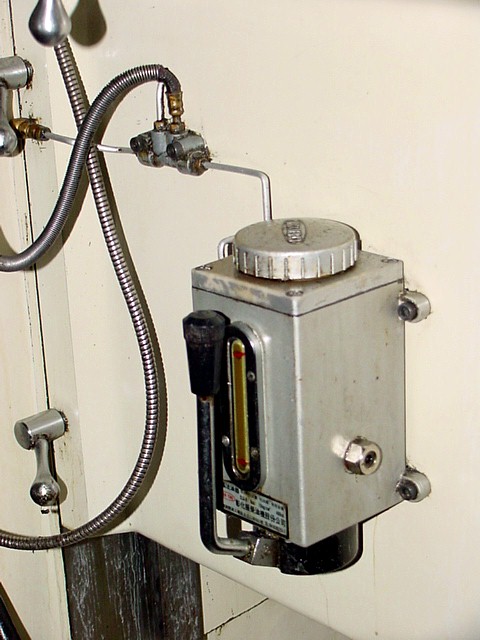

LUBRICATION SYSTEM
TRANSITION FROM TWO AXIS CNC TO MANUAL MACHINING
PERFECT FOR A TOOLROOM OR PROTO TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
CONDITION: **** EXCELLENT ****
