Reference Number: 142697

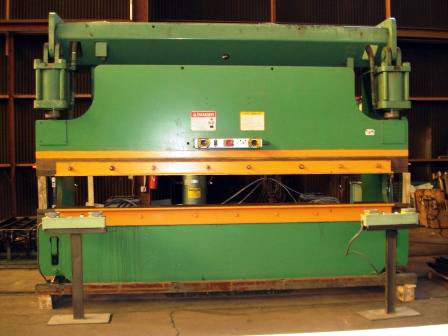

CINCINNATI HYDRAULIC PRESSBRAKEPrice: $57,500
MODEL: 175CB-12 NEW: 1990
SPECIFICATIONS:
CAPACITY..................... 175 TON
OVERALL LENGTH OF BED........ 14'
DISTANCE BETWEEN HOUSINGS.... 12' 6"
THROAT DEPTH................. 8"
OPEN HEIGHT.................. 17"
STROKE....................... 10"
CLOSED HEIGHT................ 7"
BENDING CAPACITY (MILD STEEL:
- 3/16" X 13'4"
- 1/4" X 10'
- 3/8" X 6'3"
- 1/2" X 6'1"
SPEEDS:
-HIGH: 132 IPM
-MED: 65 IPM
-LOW: 18 IPM
-RETURN: 127 IPM
EQUIPPED WITH:
-COMPLETE ELECTRICAL CONTROLS
-BED & RAM MACHINED FOR REMOVABLE ANGLE BRACKETS
-SECTIONAL RAM CLAMPS
-DUAL STATION PALM BUTTONS
-ELECTRIC FOOT PEDAL CONTROL
-FULL LENGTH DIE HOLDER
-MAIN DRIVE MOTOR
WEIGHT: APRROX: 28,000 LBS
DIMENSIONS: 14'4"L X 5'3"D X 10'3"H
