Reference Number: 142711

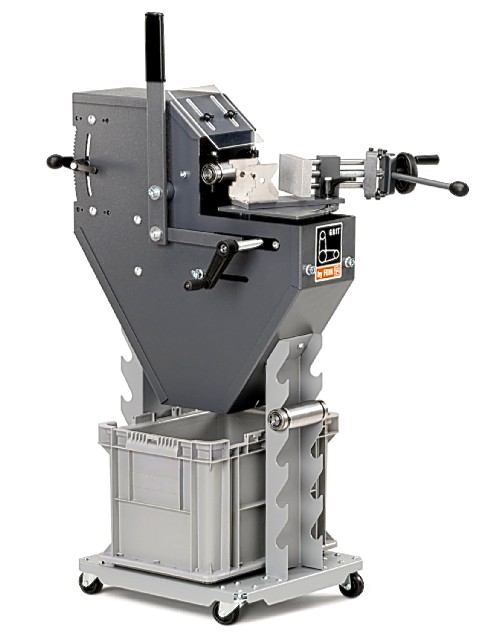

GRIT model GXR Pipe Notcher Attachment
 Designed to work with Model GX-75 Belt Grinder

 Grinding exact radii on pipes is a question of the right machine:
 By attaching the GXR module, a GX 75 2H basic unit belt grinder
 converts into a professional radii grinding machine in just a few
 steps - standard-equipped with depth stop, traverse carriage, and
 quick-clamping. Grinding down for precision fitting becomes so easy
  - and much more user-friendly.

 It makes no difference whether pipes, profiles, or solid material is
 being ground - the radii grinding module GXR is optimally suited for
 that. And that is a standard feature: for example with a traverse
 carriage that is precisely and quickly set to the required angle as
 well as a vice with stainless steel clamping jaws and unique fast
 clamping*. That guarantees precise and sure grinding.
 (* patent applied for)


 FEATURES:

 Custom fit contact rollers
 Pipes sized Ø 16 - 75 mm and an attack angle of 30° to 90° can be
 ground to a perfect fit with the pipe notching module. The extensive
 GRIT contact roller selection reliably covers all usual pipe diameters.


 With length stop for production in series
 The retrofitable length stop for the GXR pipe notching module ensures
 consistently precise results in series production. It can be attached
 later and can be set along a length of 1,000 mm.


 SPECIFICATIONS - TECHNICAL DATA:

 GXR
 For precise grinding of profiles and pipes from Ø 16-75 mm
 For angles of
 30° to 90°
 30° / max. Ø 37,5 mm
 45° / max. Ø 53,0 mm
 60° / max. Ø 64.5 mm
 90° / max. Ø 75,0 mm
 Precise and user-friendly working by integrated depth stop and vice
 with fast-clamping for round and square pipes as well as solid material.
 Contact rollers are available in all common sizes
 Vice with stainless steel clamping jaws
 In combination with GX 75 2H: Low speed (1,500 rpm) optimal for
 processing stainless steel. Less burrs and tarnish.
 Easy handling by four easy-to-steer transport casters
 Can also be combined with the GI programme (GI 75 / GI 75 2H). The
 adapter 6 99 02 186 00 0 is required for this.


 CAPACITIES AND WEIGHT:
  - Diameter pipes               Ø 16 - 75 mm
  - Dimension profiles / flat material max.        75 × 75 mm
  - Belt size                 75 × 2250 mm
  - Weight                 54 kg

 Order number:      9 90 01 001 00 0


 Equipped with:
 1 contact roller Ø 42.4 mm
 1 contact roller Ø 48.3 mm
 1 grinding belt 75 x 2,250 mm, grain 36 Z
 1 dust collector

 This notching device requires a model GX-75 Belt Grinder -
 as shown in the last two photos above.
 these come in two versions, a single speed model and a
 2-speed model.   They are our reference numbers 142708 and
 142709.   They can be seen on our web site,

 www.machineryvalues.com
 look there for additional information and pricing.
