Reference Number: 142714

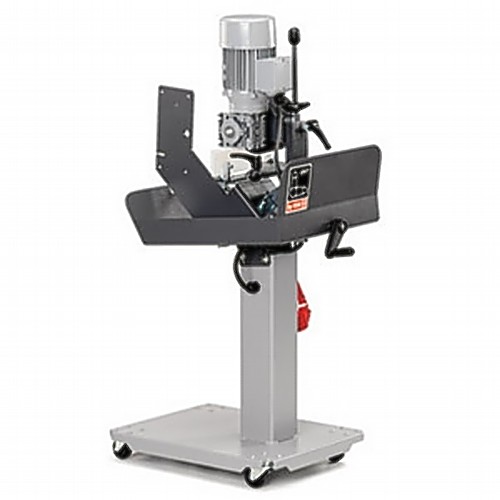

GRIT model GXC Centerless Grinding Attachment
 for Polishing and Grinding Pipe & Tubing
 Designed to work with Model GX-75 Belt Grinder


 DESCRIPTION:


 The GXC belt-type centerless grinding module produces perfect
 surfaces in the simplest manner. The conversion to a
 "Centerless" cylindrical grinding machine is done in just a
 few steps. Efficiency and flexibility are apparent in the
 design and construction.

 Perfect surface quality and high process speeds on pipes and
 shafts are easily accomplished with the GXC centreless
 grinding module.   Even commercially available fleece belts
 can be used in connection with the GX 75 2H basic unit. The
 advance speed can be infinitely variably adjusted for the
 material, up to 2 metres per minute.

 Various guide rails are included in the scope of delivery
 that are tuned to the surface quality of the workpiece. The
 guide rail made of brass is made for rough surfaces such as
 corrosion, scale, etc., or for dry grinding. The nylon rail
 is the perfect choice for surface polishing and sensitive
 materials.

 Can be used with the optional GXW Coolant System for wet grinding.

 There are several arguments for wet grinding using the GXW
 cooling lubricant module: The swarf is bonded immediately,
 cooling extends the service life of the grinding belts, the
 finishing results are noticeably improved and thanks to the
 reduced heat development during grinding the corrosion risk
 for stainless steel pipes is reduced. A closed circuit
 ensures sparing consumption of the coolant.


 GXC Capabilities and Capacities:
 For grinding of pipes and shafts from 10-100 mm diameter.
 High process speed at highest surface quality
 Also suitable for wet-grinding in connection with the
 cooling lubricant module GXW
 Easy handling by 4 easy-to-steer transport casters
 Can also be combined with the GI programme (GI 75 / GI 75
 2H). The adapter 6 99 02 187 00 0 is required for this.



 Specifications:


 Order number 7 901 03
 Pipes Ø 10-100 mm
 Belt size 75 × 2000 mm
 Weight 48 kg



 Standard Accessories:
 1 guide rail, nylon,
 1 guide rail, brass,
 1 connecting cable with CEE plug 16 A



 Optional GXW Cooling lubricant module

 Order number  7 901 04
 Weight  8,6 kg
 Comes with 1 litre cooling lubricant emulsion

 This Centerless Grinding Attachment requires a model
 GX-75-2H Belt Grinder -  It is our reference number
 142709.   It can be seen on our web site,

 www.machineryvalues.com
 look there for additional information and pricing.
