Reference Number: 142725

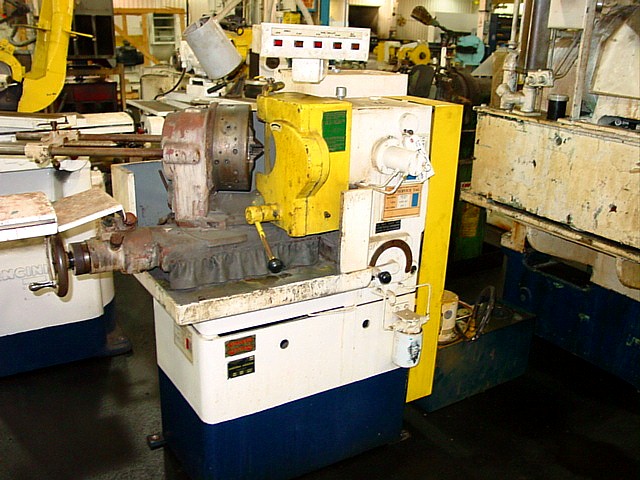

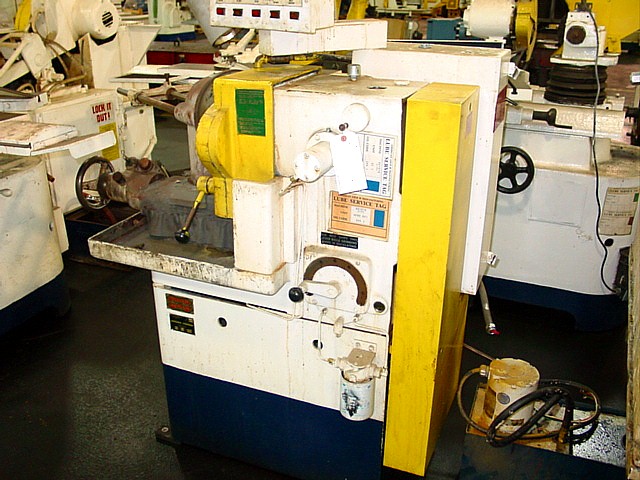

OLIVER DRILL GRINDER W/AUTOMATIC FEED

 MODEL: 700   S/N: G-8850    NEW: 1997

 ** TOTALLY AUTOMATIC & OPERATED BY PUSHBUTTON CONTROLS.
   THE MODEL #700 CAN PRODUCE THE DOUBLE ANGLE POINT
   & CORNER BEVEL POINT GRINDS.  SPADE DRILLS CAN BE
   GROUND IN THEIR OWN HOLDER WHICH GIVES MUCH CLOSER
   TOLERANCES COMPARED TO CONVENTIONAL METHODS.


 CAPACITY:                    1/2" TO 3-1/8" DIAMETER (CAN BE
                             INCREASED TO 4"
 RIGHT HAND SPIRAL:           2-4" FLUTE DRILLS
 INCLUDED POINT ANGLES:       80-160 DEGREES
 GRINDING WHEEL SIZE:         9" X 2" X 5" CUP TYPE

 EQUIPPED WITH:

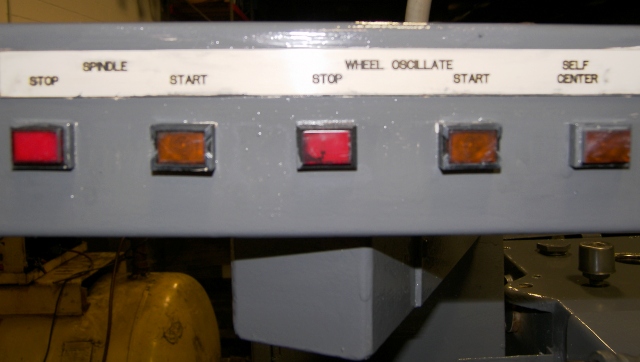

 FULLY AUTOMATIC OPERATION BY USE OF A PUSHBUTTON
  CONTROL PANEL

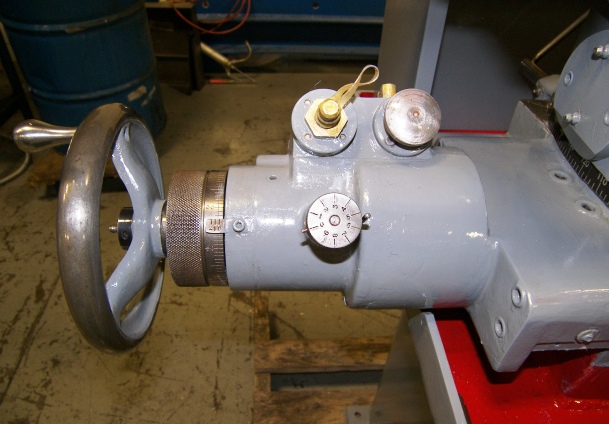

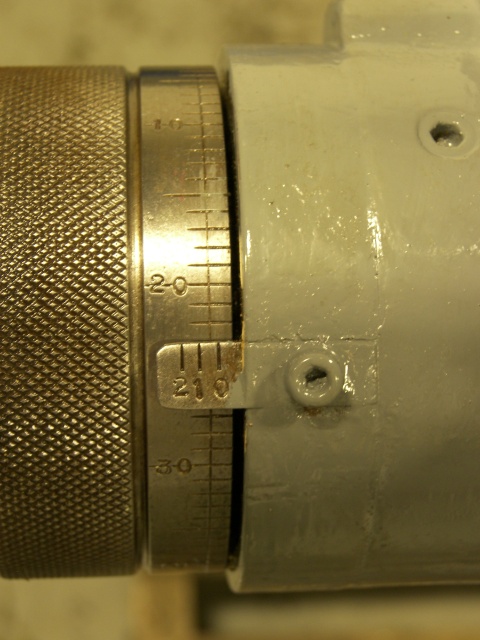

 AUTOMATIC INFEED FOR REGULATING THE AMOUNT OF STOCK TO BE
  GROUND FROM THE DRILL
 ABILITY TO PRODUCE THE DOUBLE ANGLE POINT WHICH CONSISTS OF
  SELF-CENTERING, GENERATED HELICAL AND CORNER BEVEL POINT
  GRINDS
 ABILITY TO GRIND SPADE DRILLS IN THEIR OWN HOLDER WHICH
  GIVES MUCH CLOSER TOLERANCES COMPARED TO CONVENTIONAL
  METHODS
 VARIABLE CLEARANCE CONTROL AND POINT ANGLES
 TWO-JAW SELF-CENTERING CHUCK WHICH REVOLVES WHILE THE DRILL
  IS BEING GROUND
 WORK LIGHT
 2 HP 3/60/230-460 VOLT DRIVE MOTOR

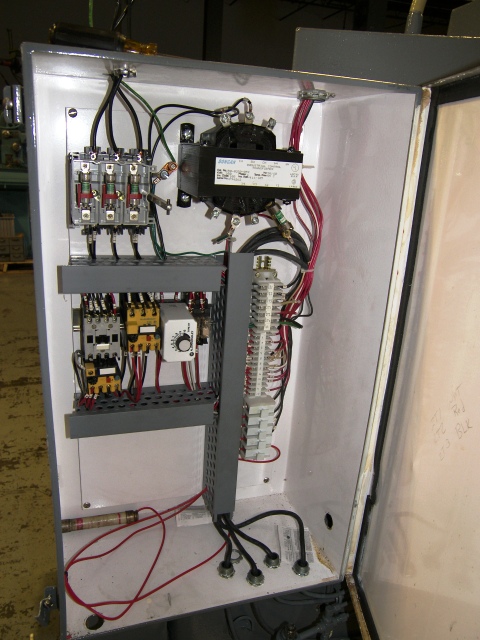

 MACHINE IS WIRED FOR 460 VOLT OPERATION





 *** MADE IN MICHIGAN BY OLIVER INSTRUMENT COMPANY
    517) 263-2132.   THIS MACHINE IS OVER $27,000
    NEW TODAY! ***

 ** INSPECT UNDER POWER IN OUR LONG ISLAND, N.Y. WAREHOUSE **
 **** EXCEPTIONAL CONDITION & APPEARANCE ****
