Reference Number: 142728

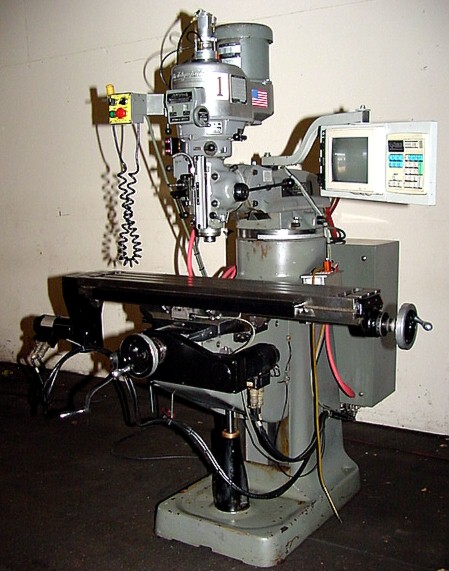

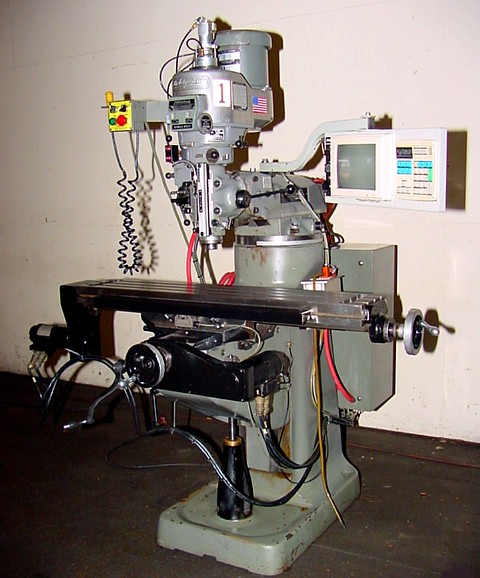

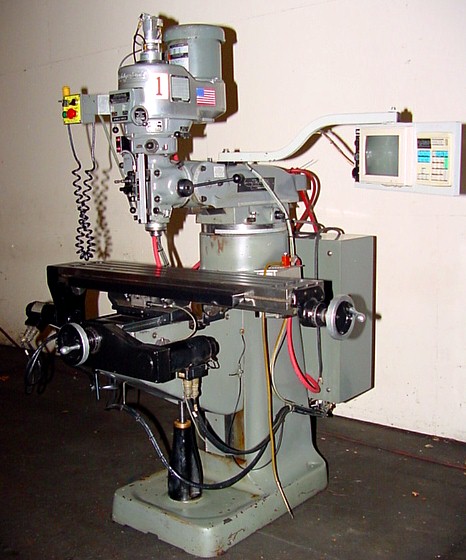

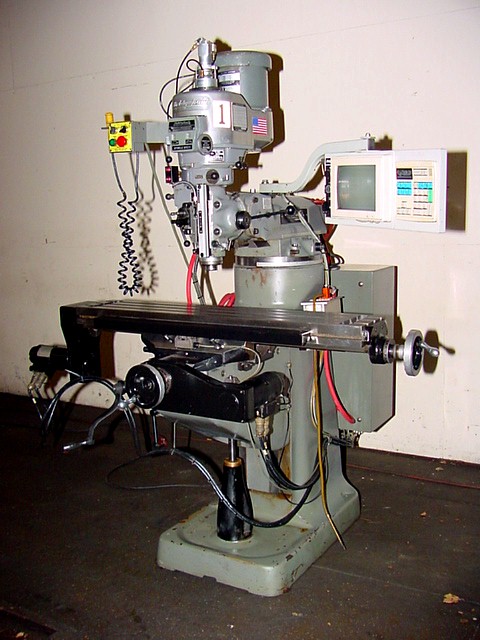

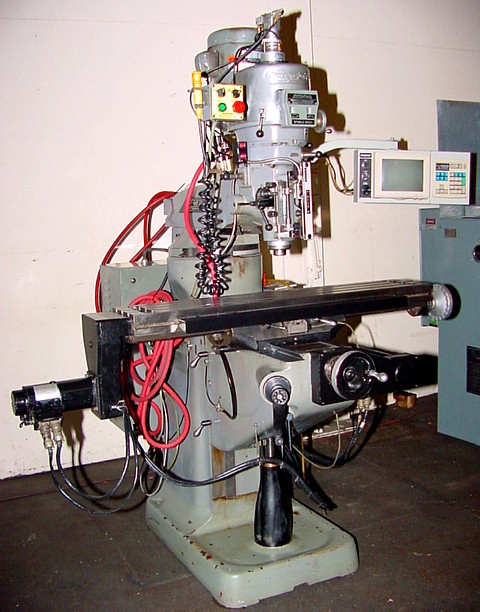

BRIDGEPORT 2-AXIS CNC SERIES I VERTICAL MILL

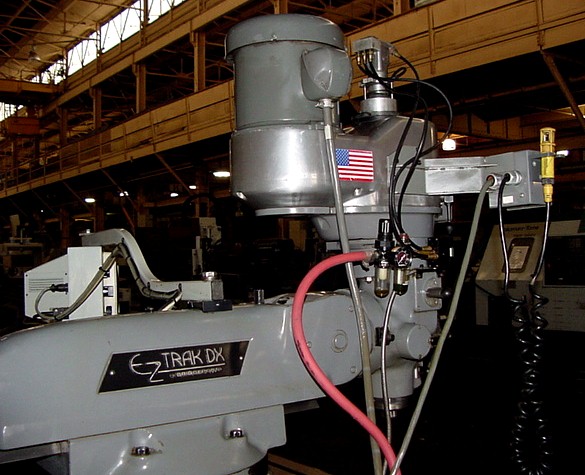

MODEL:E-Z TRAK w/ DX32 CNC CONTROL

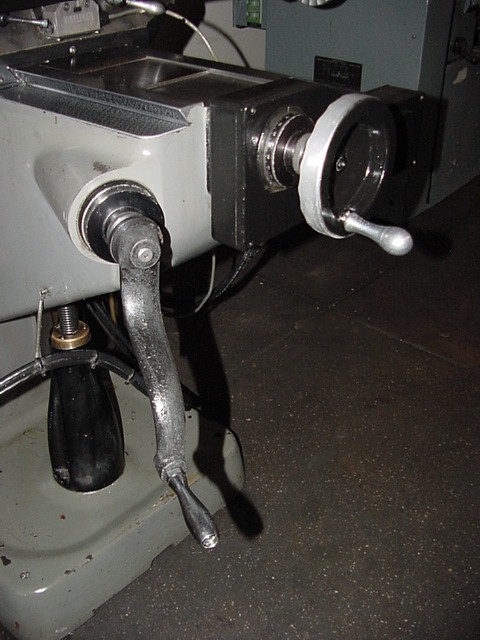

2-AXIS CNC PLUS MANUAL HANDWHEELS & 3 AXIS DRO

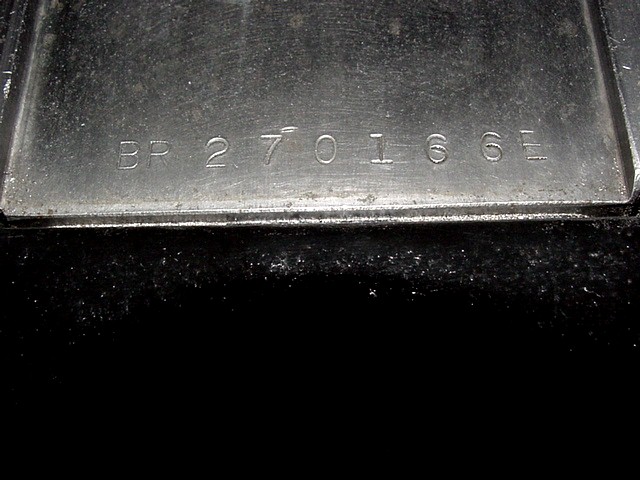

S/N: BR-270166E NEW: 1998
SPECIFICATIONS:

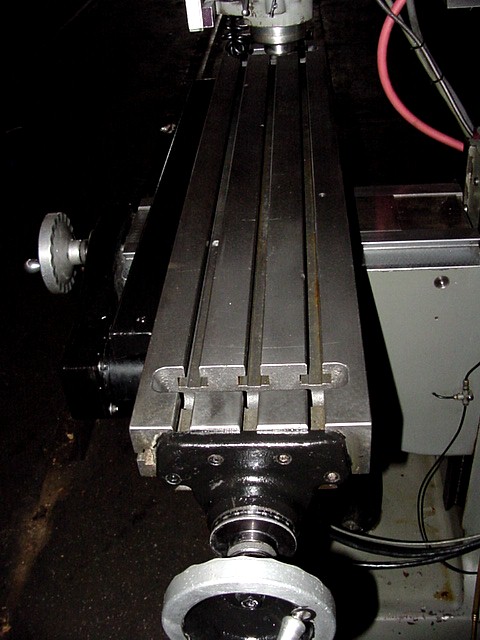

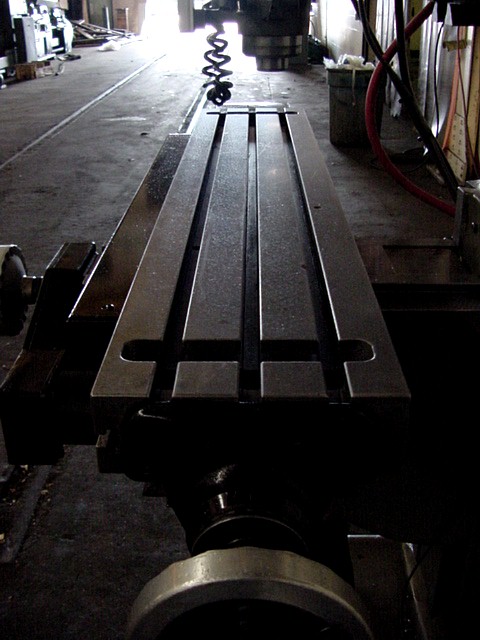

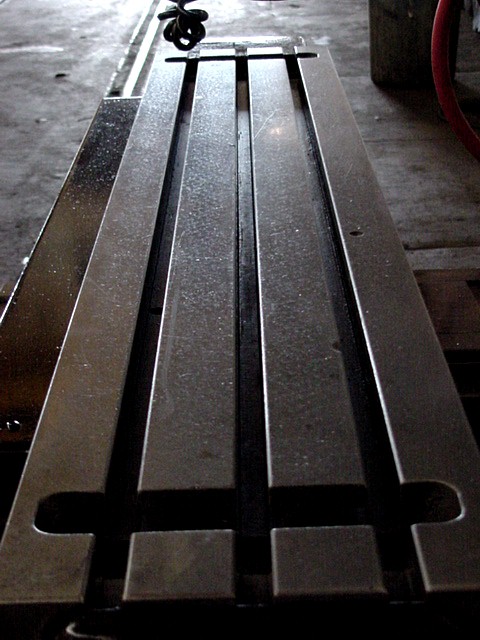

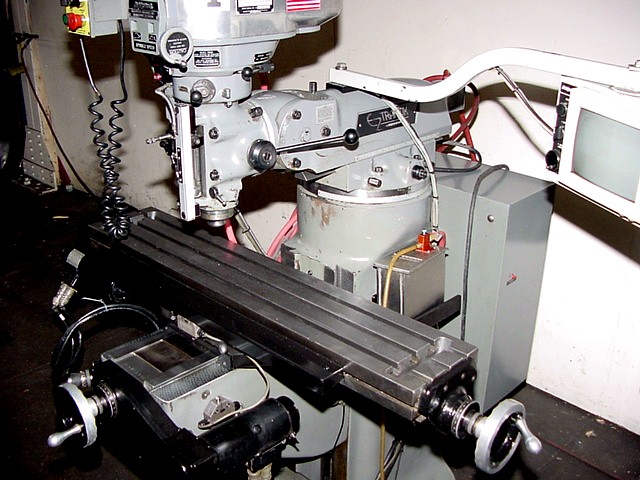

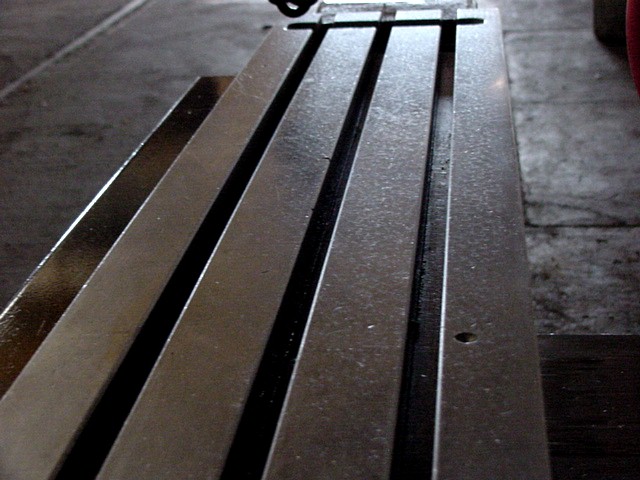

TABLE SIZE....................... 9" x 48"
TABLE TRAVEL (X-AXIS)............ 30"
SADDLE TRAVEL (Y-AXIS)........... 12"
QUILL TRAVEL (Z-AXIS)............ 5"
KNEE TRAVEL ..................... 16"
RAM TRAVEL ...................... 12"
MAXIMUM LOAD DISTRIBUTED......... 300 LBS.
SPINDLE TAPER.................... R-8
SPINDLE SPEED RANGE.............. 60-4200 RPM
SPINDLE DIAMETER................. 1-7/8"
QUILL DIAMETER .................. 3-3/8"
FLOOR AREA (DOORS CLOSED)........ 8'2" x 7'3"
HEIGHT........................... 6'8"
WEIGHT (WITH CONTROL)............ 2,900 LBS.
EQUIPPED WITH:

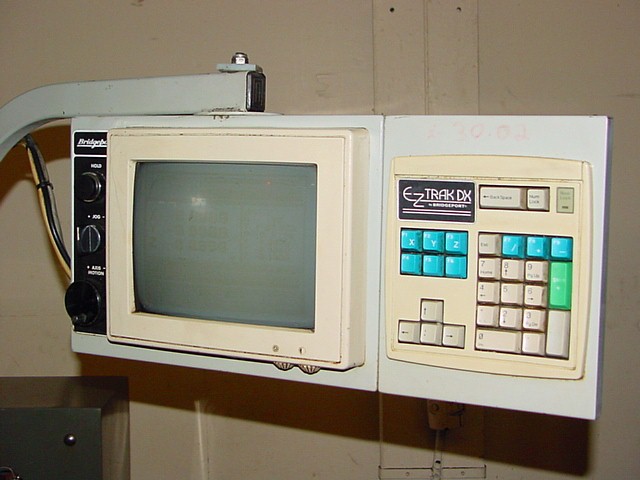

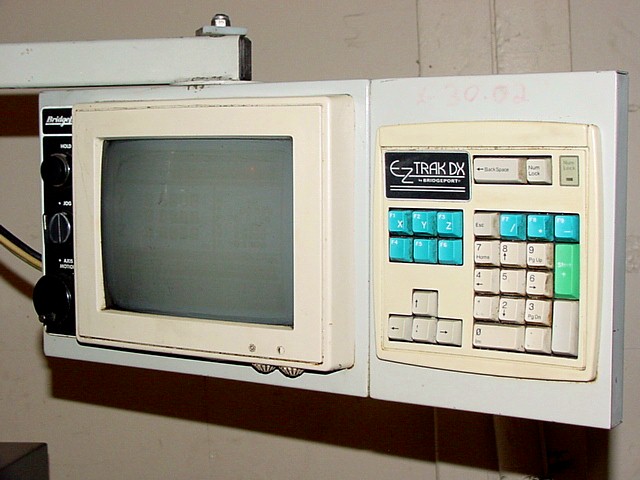

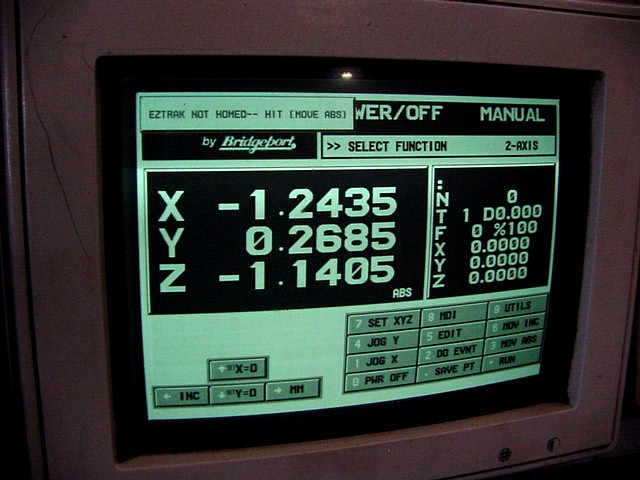

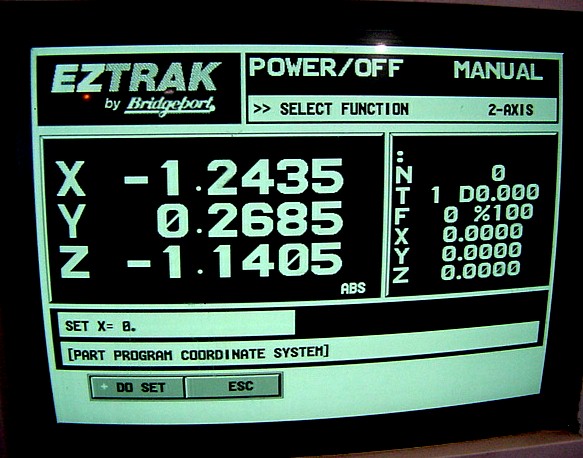

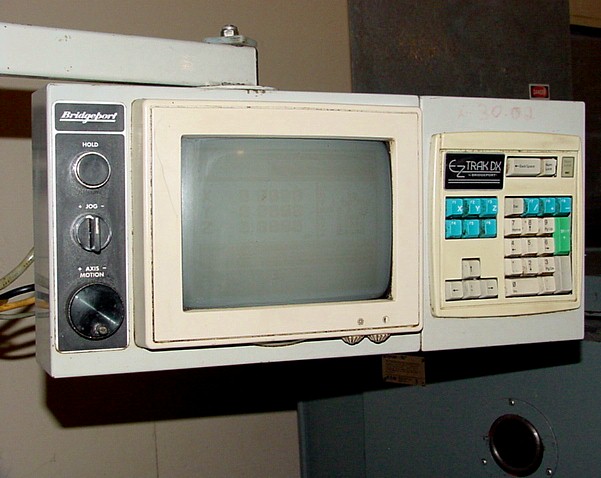

BRIDGEPORT DX32 CONTROL (2-AXIS)
PC BASED, 32 BIT, POWERFUL CANNED CYCLES
& USER DEFINABLE MACROS,
9" MONITOR

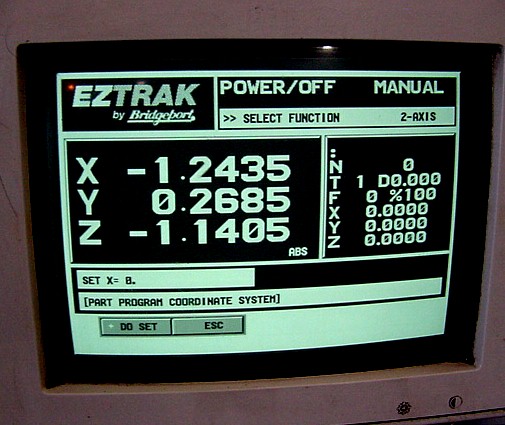

IN MANUAL MODE THREE AXIS DIGITAL READOUT

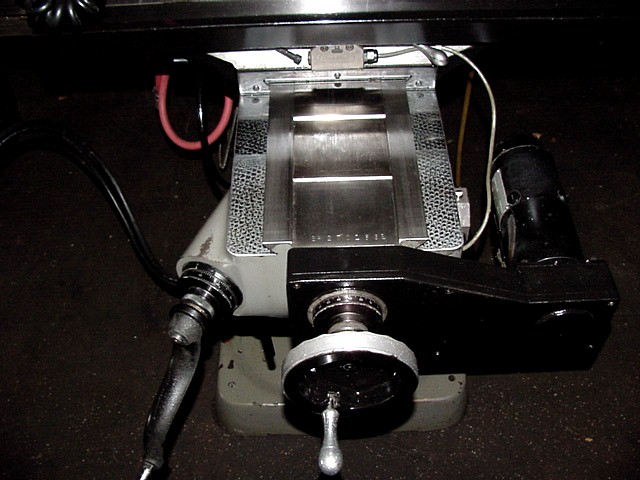

X, Y BALLSCREWS AND SERVO MOTORS

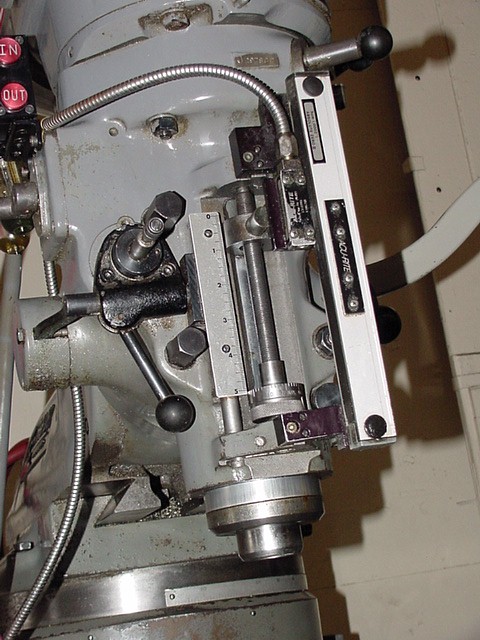

ACU-RITE GLASS SCALE FOR QUILL DIGITAL READOUT
ACU-RITE GLASS SCALES FOR TABLE LONGITUDIANL & CROSS AXES

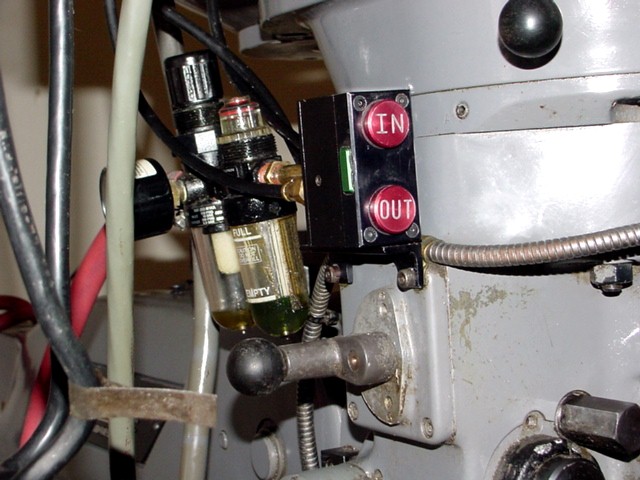

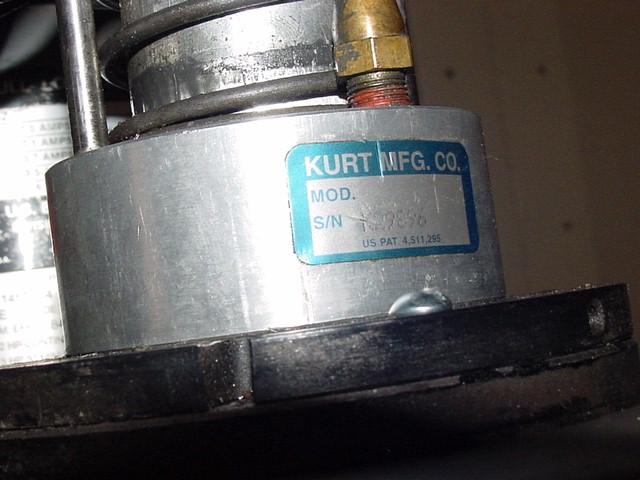

KURT POWER DRAW BAR

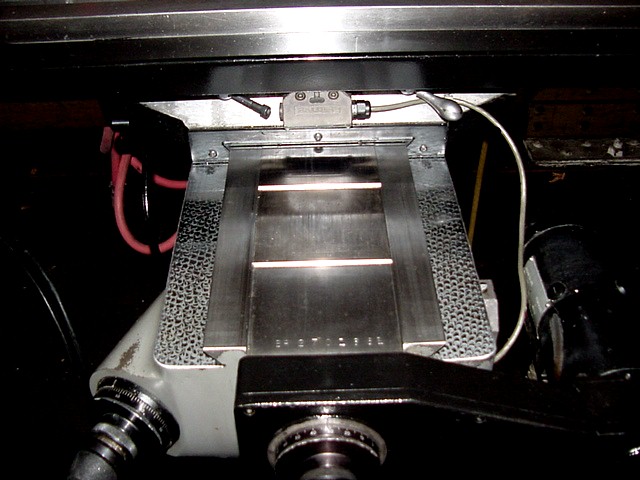

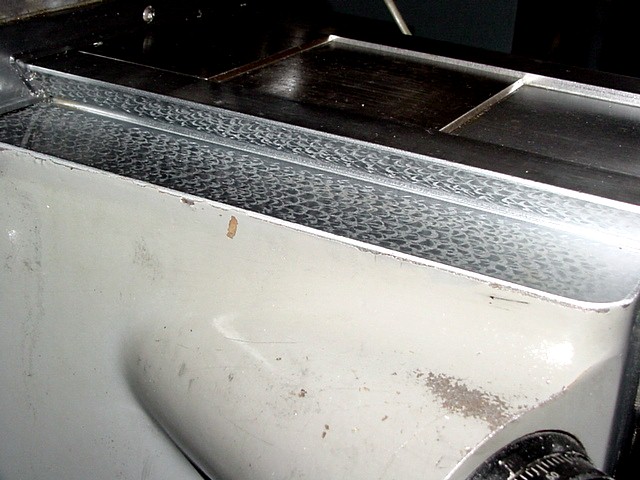

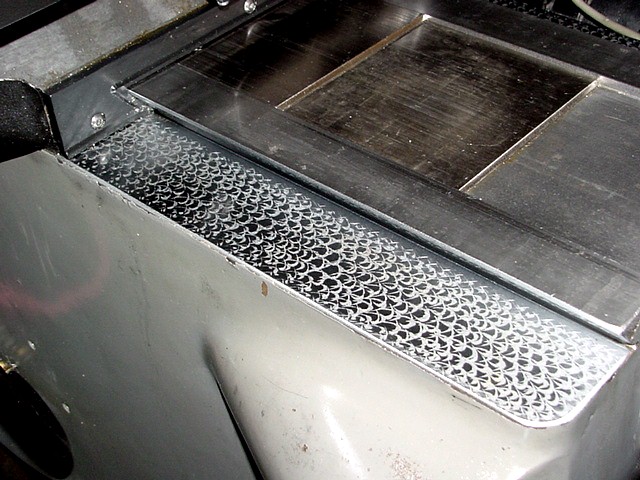

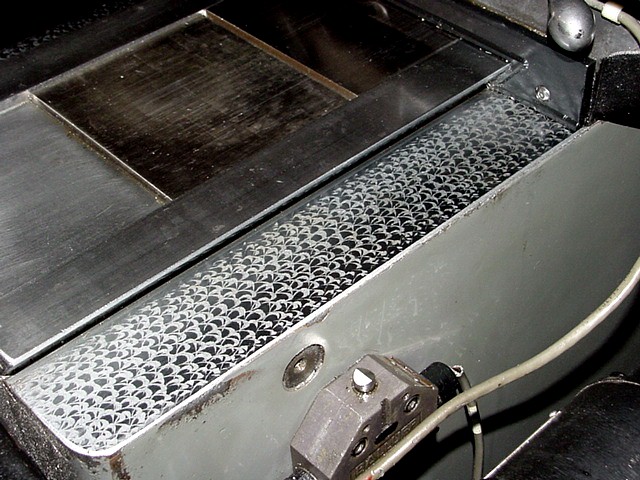

CHROME WAYS

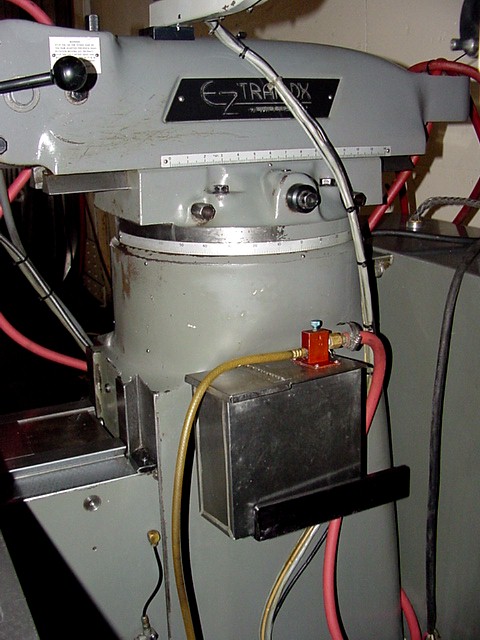

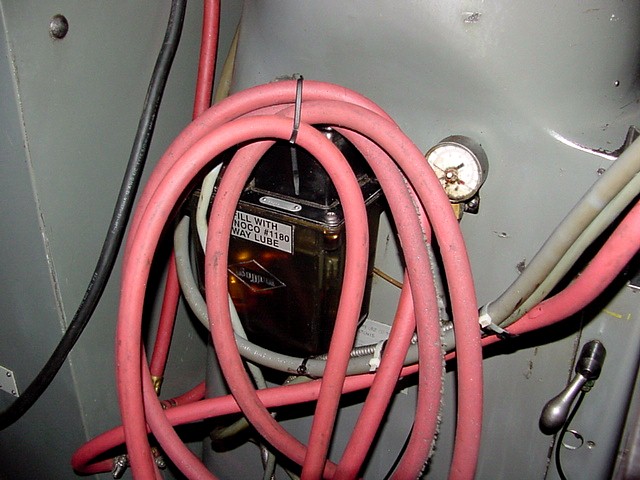

BIJUR AUTO-LUBRICATION SYSTEM
MISCELLENEOUS R8 COLLETS

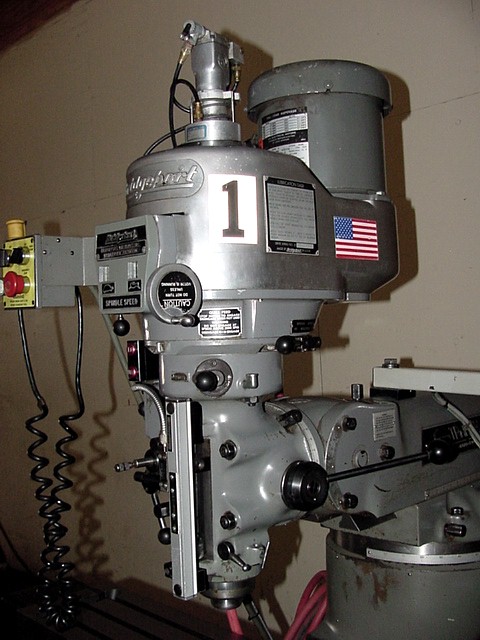

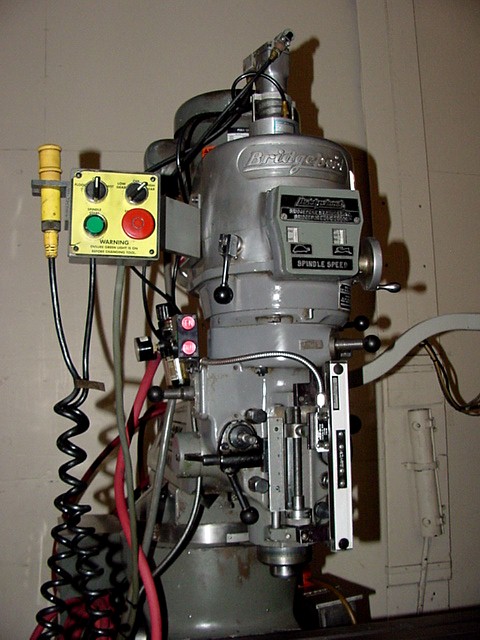

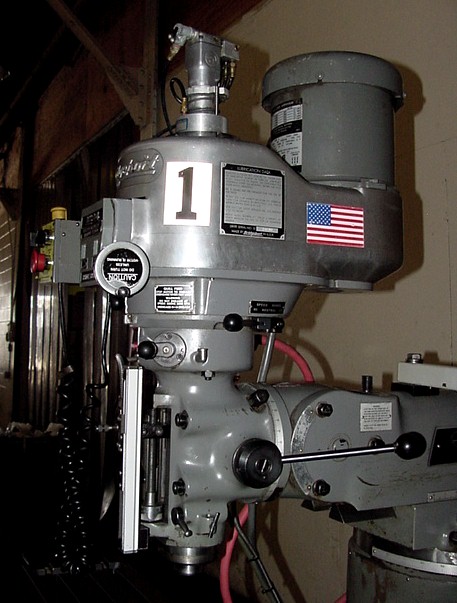

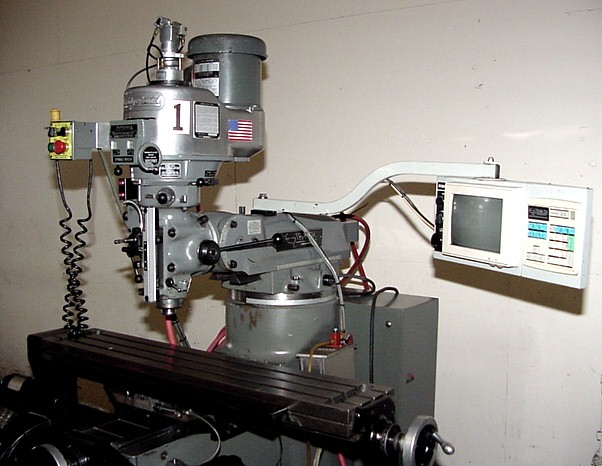

BRIDGEPORT SERIES I HEAD

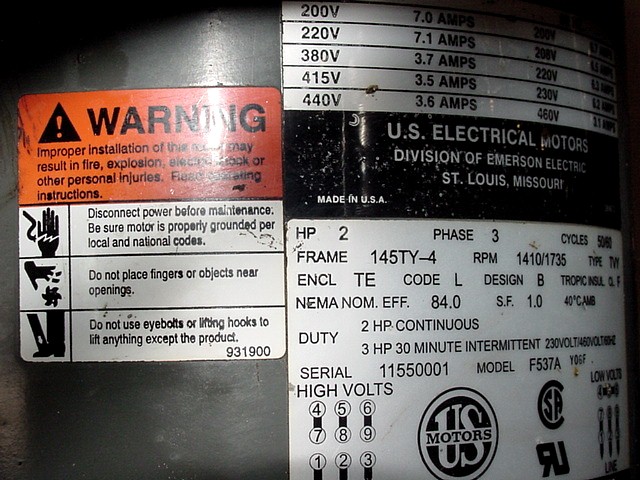

3 HORSE POWER SPINDLE MOTOR
CONDITION: **** SUPERB ****
Price: $14,500
