Reference Number: 142733

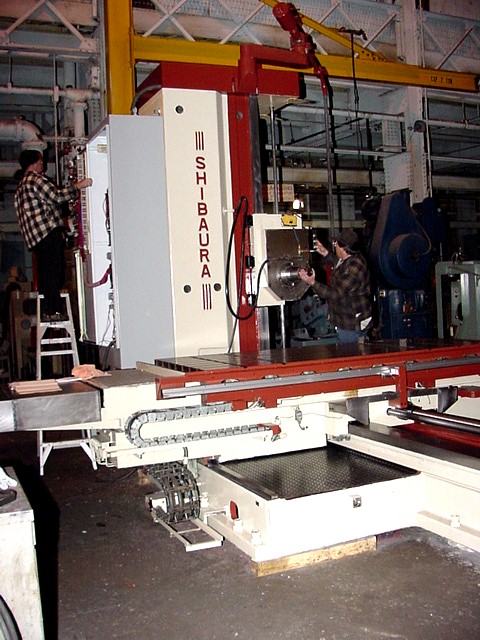

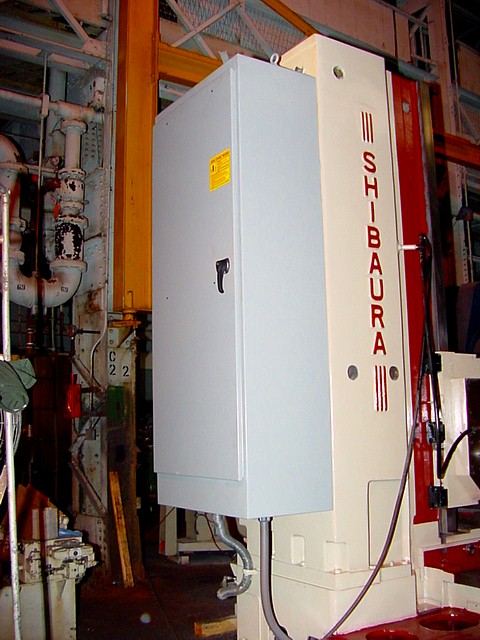

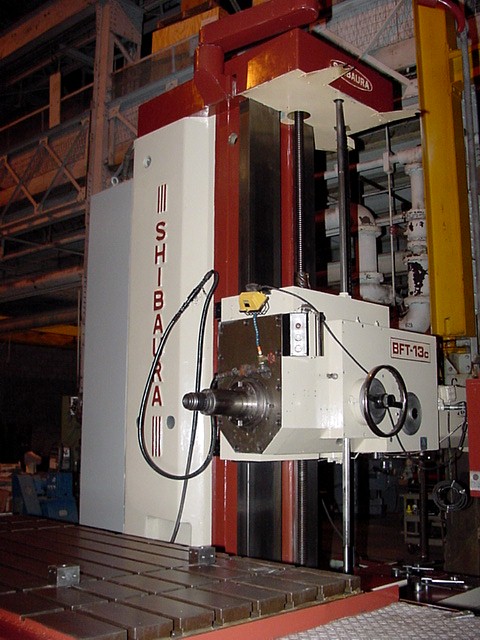

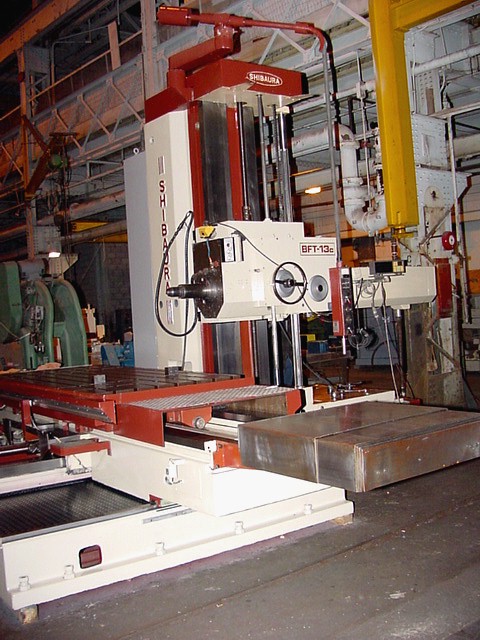

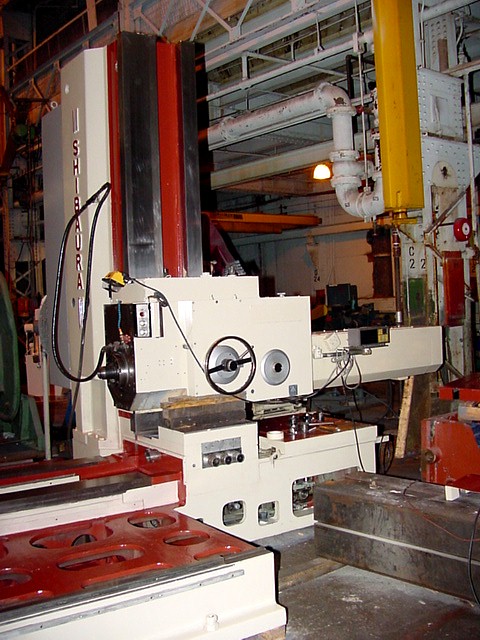

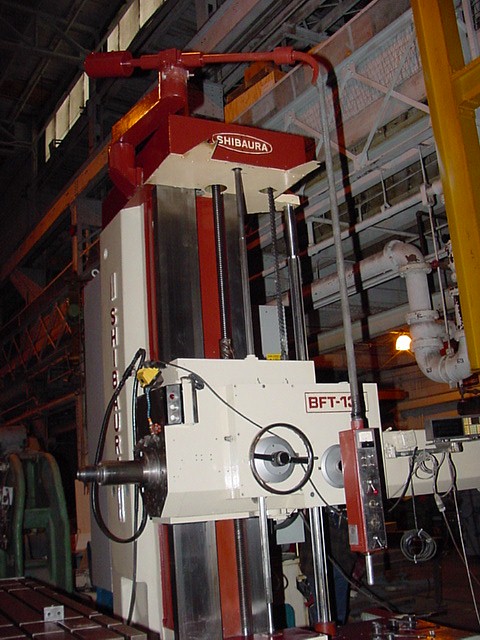

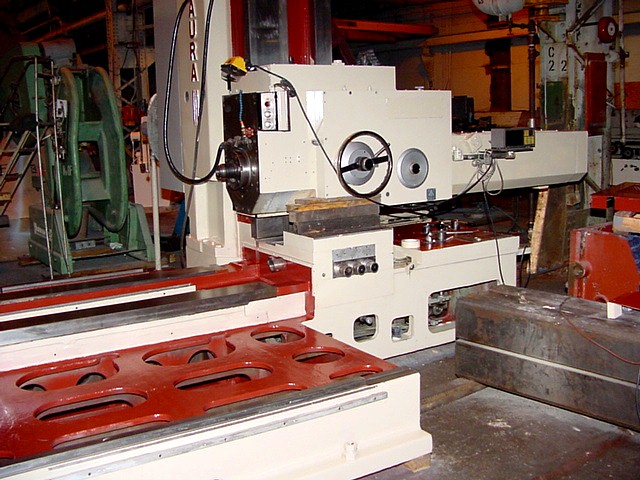

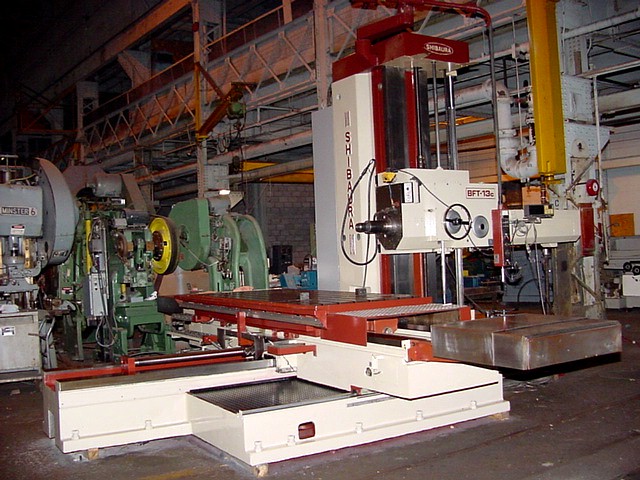

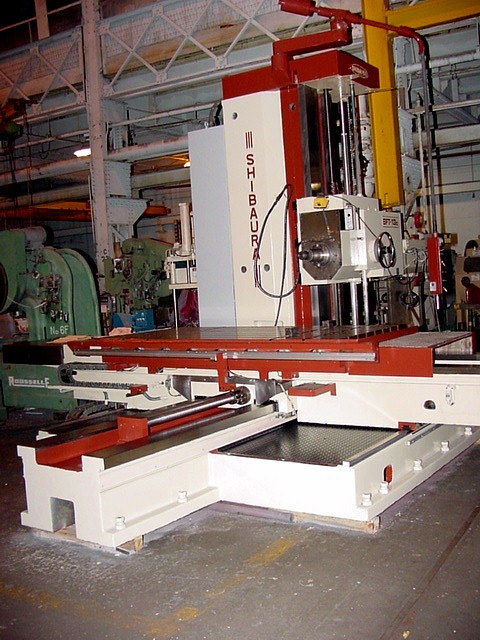

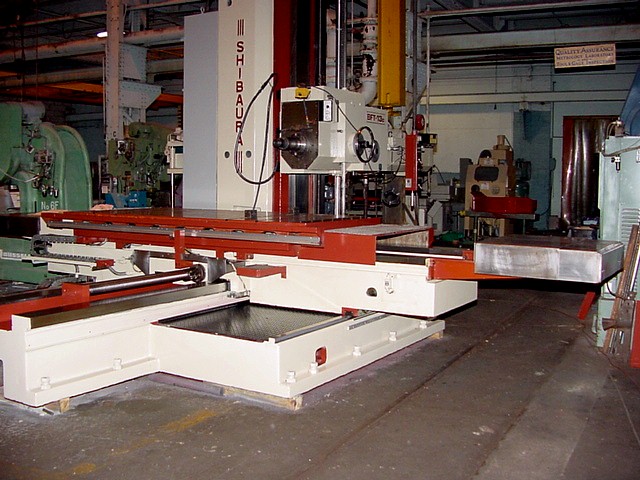

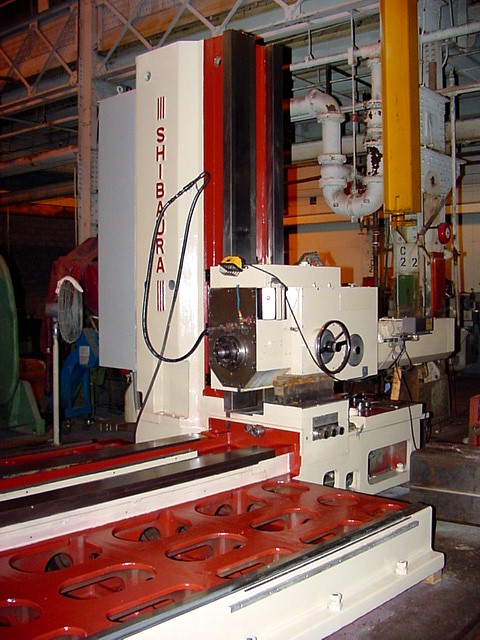

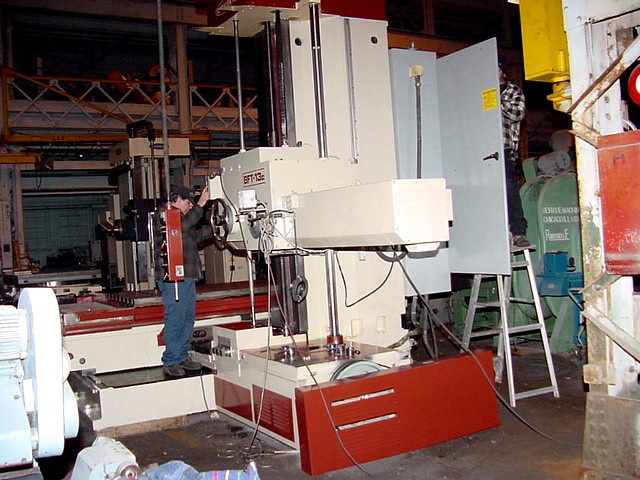

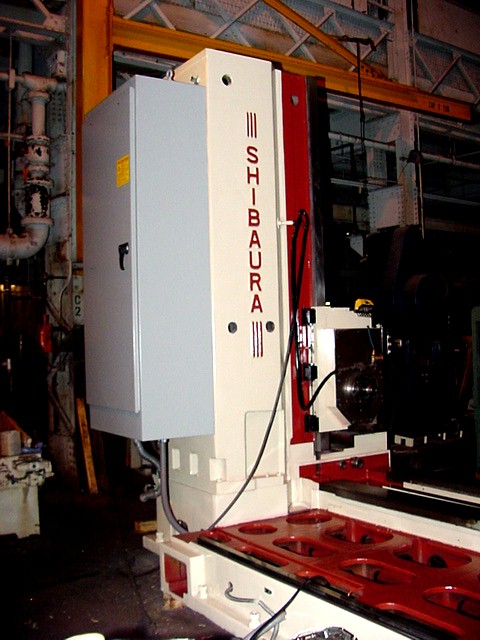

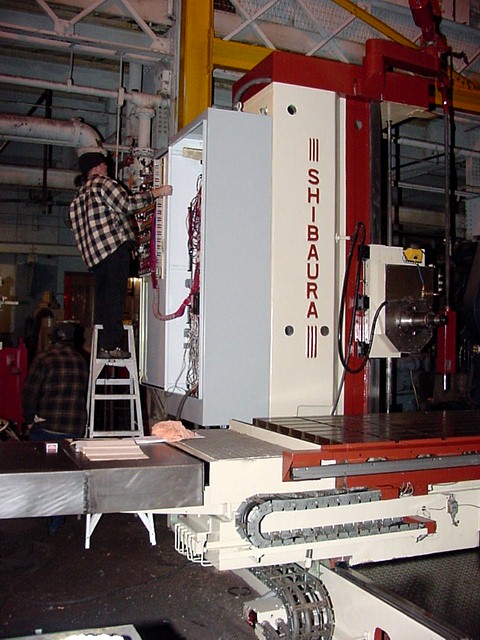

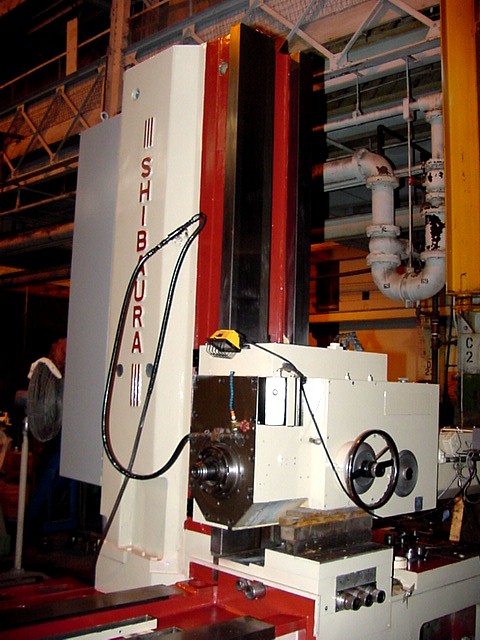

Price: $109,5005" TOSHIBA TABLE TYPE HORIZONTAL BORING MILL

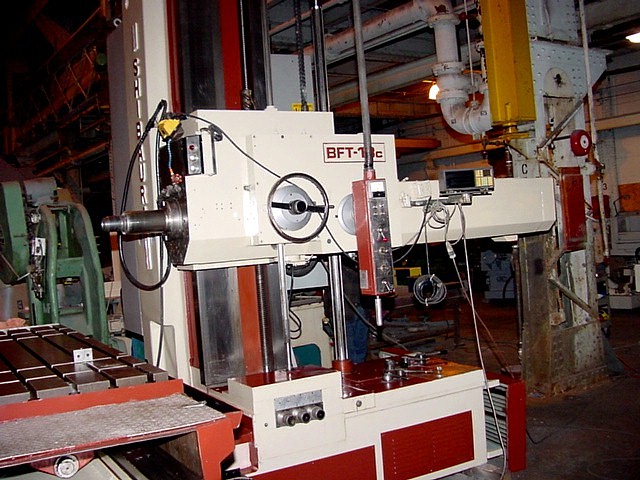

MODEL: BFT-13C-W2, S/N 2732, NEW 1977
SPECIFICATIONS:
DIAMETER OF SPINDLE .................. 5.12"
TAPER IN SPINDLE ..................... #50
DIAMETER OF MILLING QUILL ............ 8.86"
SPINDLE LONGITUDINAL TRAVEL .......... 35.4"

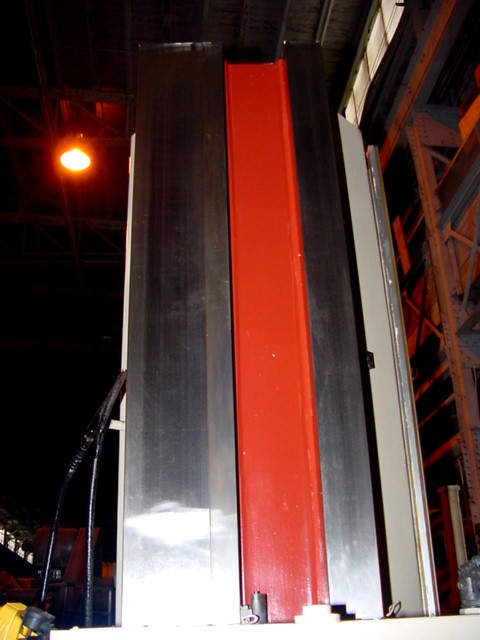

HEADSTOCK VERTICAL TRAVEL ............ 71.5"
TABLE WORKING SURFACE ................ 47" X 98.4"
TABLE CROSS TRAVEL ................... 98.4"
TABLE LOAD ........................... 22,000 LBS.
TABLE LONGITUDINAL TRAVEL ............ 75.1"
RAPID TRAVERSE RATE .................. 126 IPM
SPINDLE SPEEDS (27) .................. 9 TO 1200 RPM
FEEDS TWO RANGES:
HIGH SPINDLE SPEED RANGE .......... .0001 - .07 IPR
MEDIUM SPEED RANGE ................ .0006 - .315 IPR
LOW SPINDLE SPEED RANGE ........... .0003 - 1.73 IPR
APPROX. WEIGHT ....................... 60,280 LBS
DIMENSIONS ........................... 264"F-B x 218"W X 165"H
EQUIPPED WITH:
- T-SLOTTED TABLE

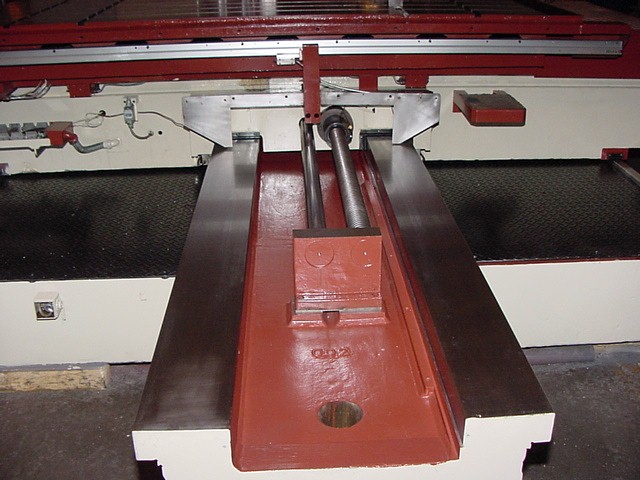

- BALL SCREW DESIGN
- #50 TAPER POWER DRAW BAR
- POWER RAPID TRAVERSE

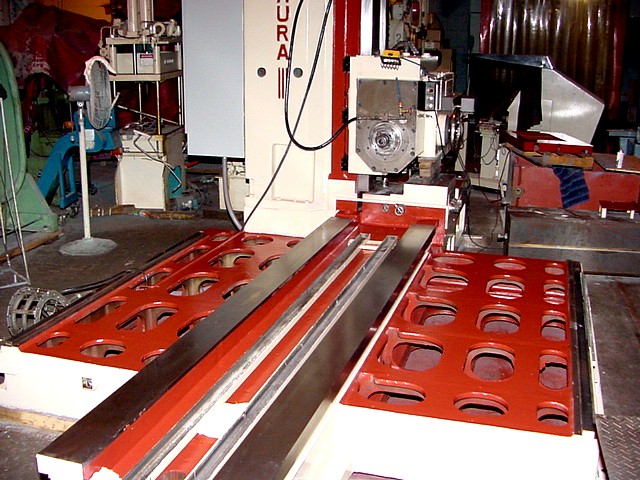

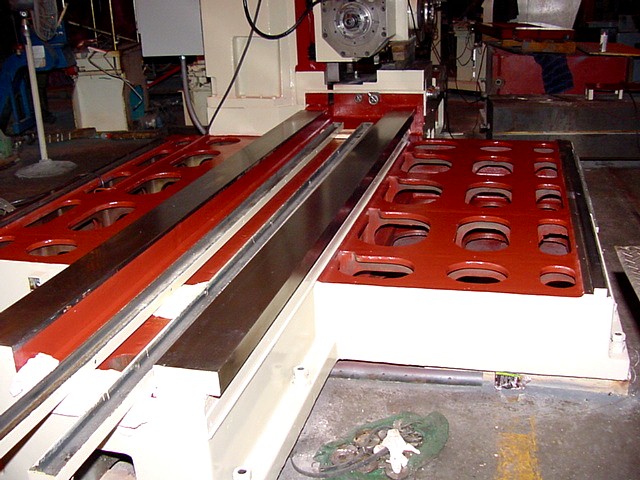

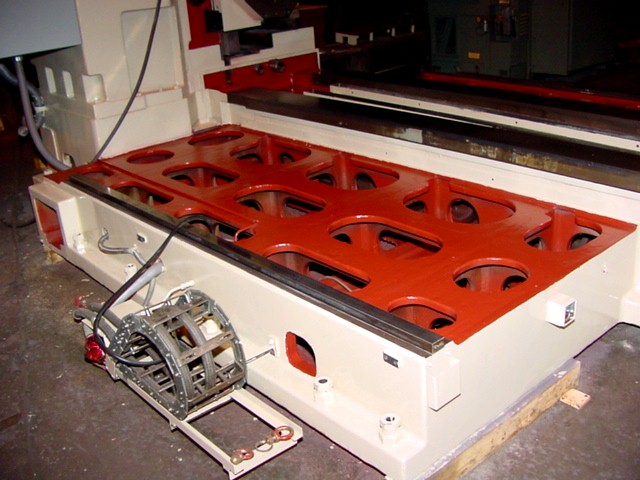

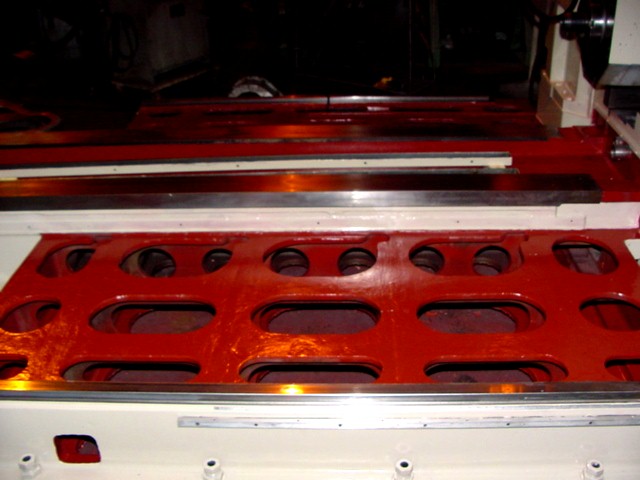

- FOURWAY BED CONSTRUCTION
- HARDENED WAYS ALL AXES
- SIMPLE PENDANT CONTROL
- FUTABA DIGITAL READOUTS

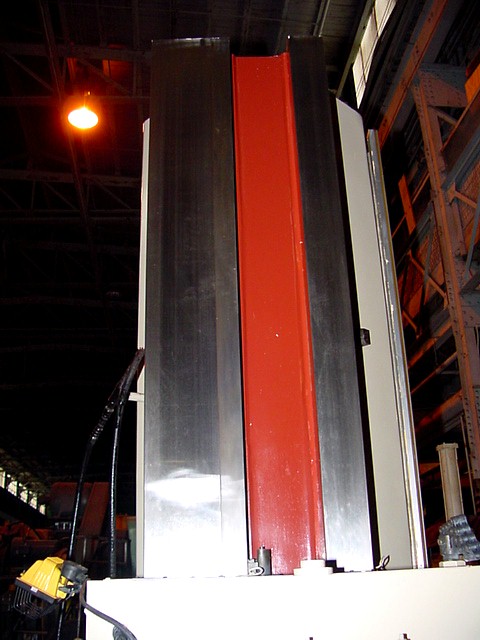

- TELSCOPIC WAY COVERS FOR CROSS & SADDLE TRAVELS
- 25 HORSE POWER SPINDLE MOTOR
CONDITION: **** SUPERB ****
