Reference Number: 142757

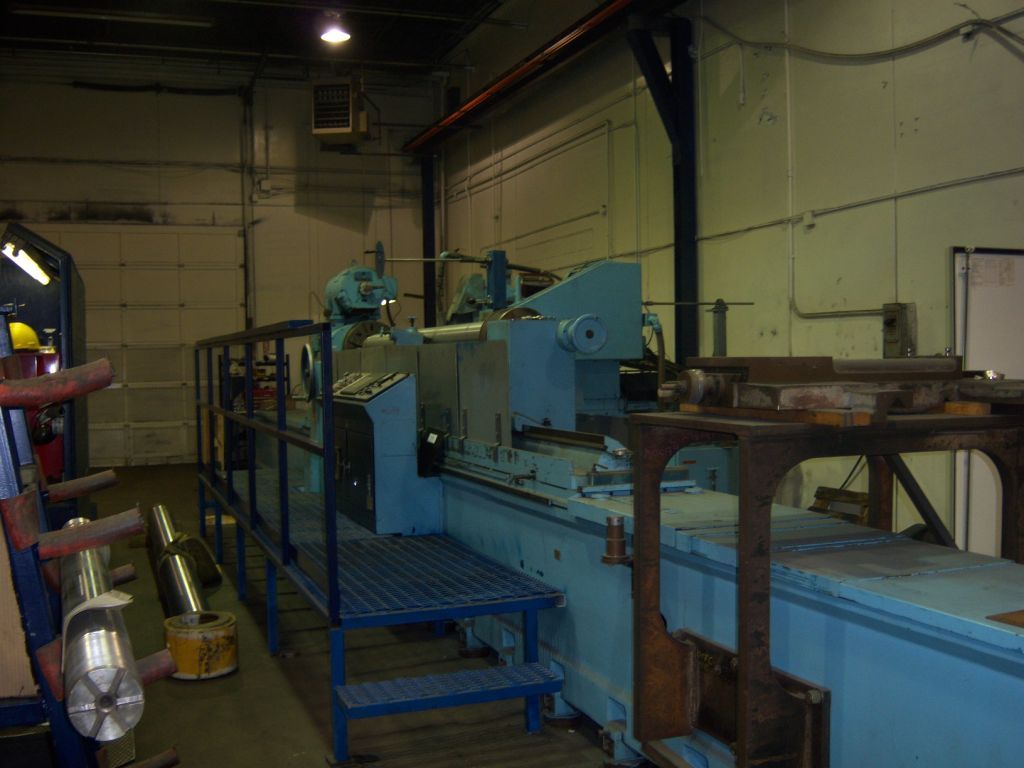

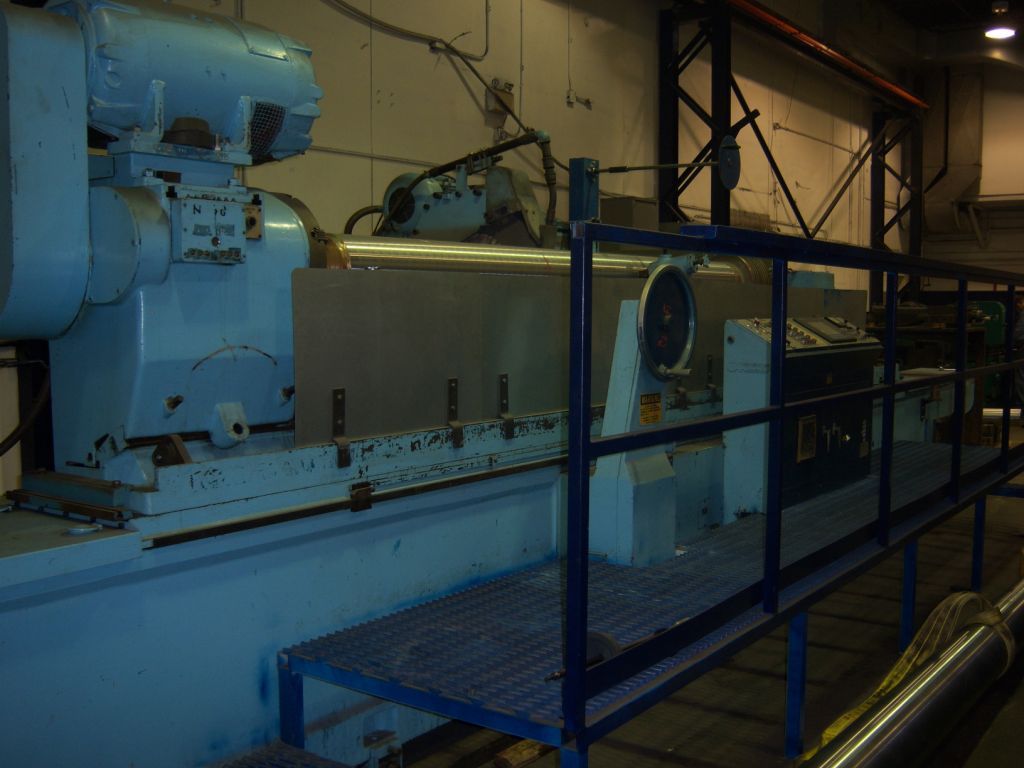

CINCI 36" X 192" CYLINDRICAL GRINDERPrice: On Request
36" swing
192" between centers
24" chuck

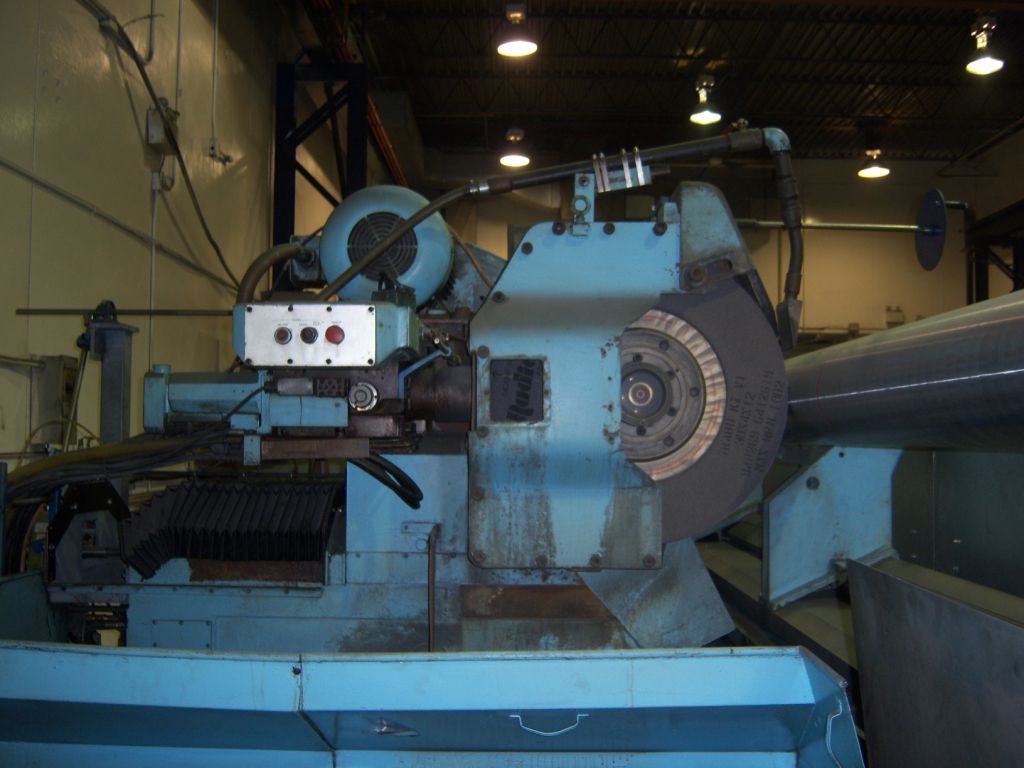

30"x4"x12" wheel (alum oxide on it right now)
4 – 2point steady rests
1 – 3point steady
1 – angle dresser
30' x 10' footprint
Coolant filter system
Auto dresser
Retro electronic controls disconnected for manual control
440 power (we run from 480v x 100amp)
25 – 30 years old is our best guess we now that the retro on the electronics was done in 1996
Used prior to us by the US Navy for grinding submarine propeller shafts
We have used it for large diameter short stroke work and only a few times as our need is for a long but stout machine.
10'000 lbs weight capacity between centers.
The frame on the end is a mount for a long tool post grinder. (done during a important job we had to increase I.D, grinding cap.)
