Reference Number: 142769

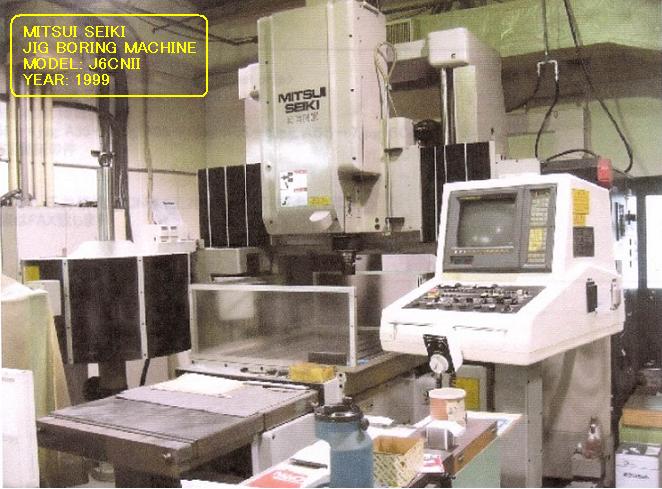

specificationsMITSUI SEIKI CNC JIG BORING MACHINE
MODEL: J6CN YEAR: 1999
CNC FAMUC 15M
ATC: 20R
Working Area
Table travelling (X) ======= 1020mm
Head(saddle)travelling (Y)=== 760mm
Cross unit up & down ===== 750mm
Quil stroke(Z axsi) ======= 300mm
Column distance ======== 1120mm
From the table to nose of spindle head = 950mm
Table size: 1280mm x 960mm
Spindle speed ranges ( 2 steps) 40 - 3200rpm
Spindle type: NT45
Machine weight: 9000 kgs
Working capacity
Drilling ====== 60mm
Boring ====== 300mm
Face milling cutter size: max. 150mm
Price: On Request
