Reference Number: 142791

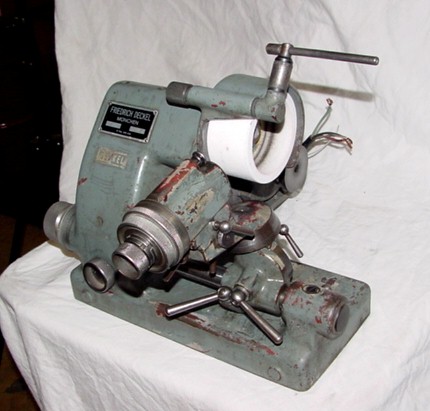

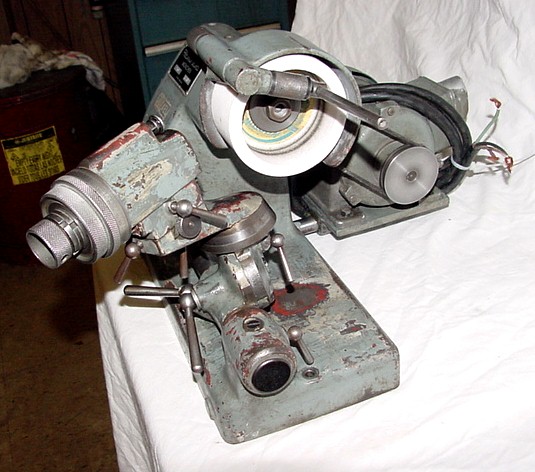

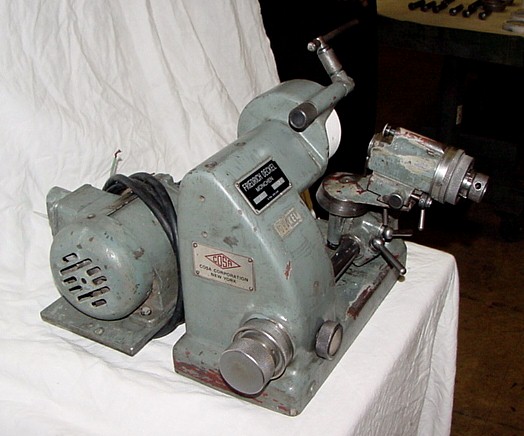

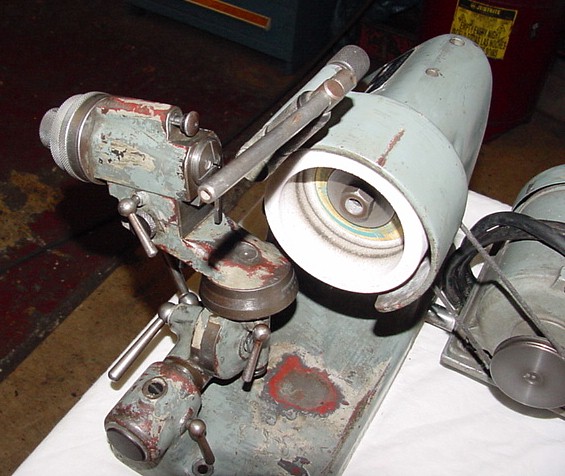

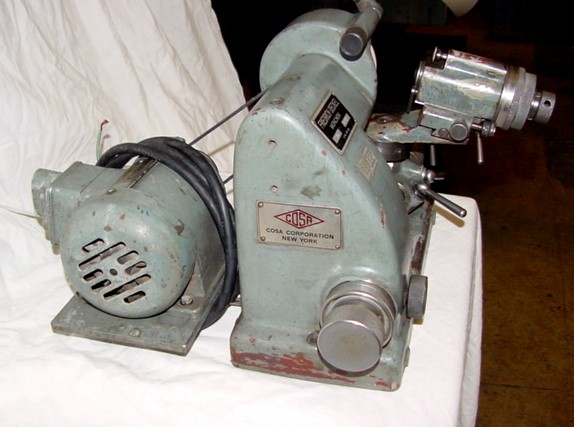

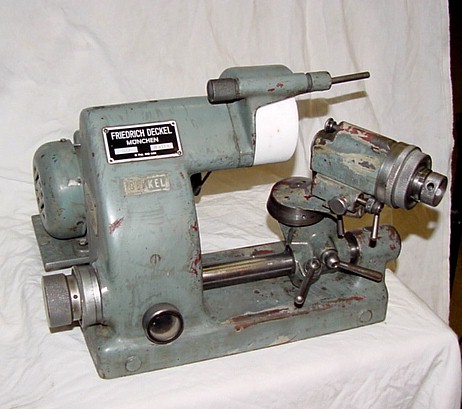

DECKEL SINGLE-LIP UNIVERSAL TOOL GRINDER (PANTOGRINDER)Price: On Request

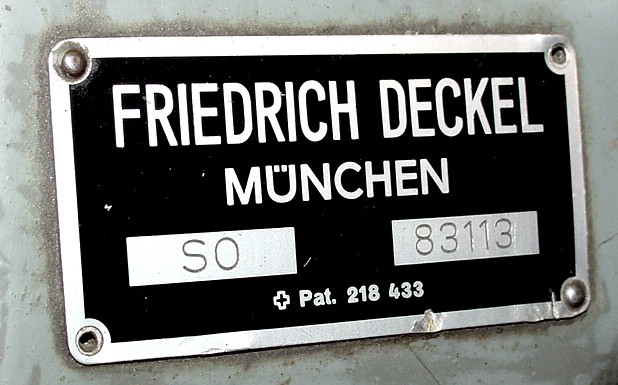

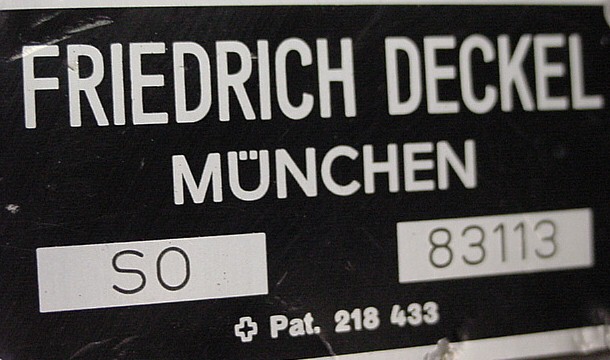

MODEL: SO S/N: 83113 NEW: 1983

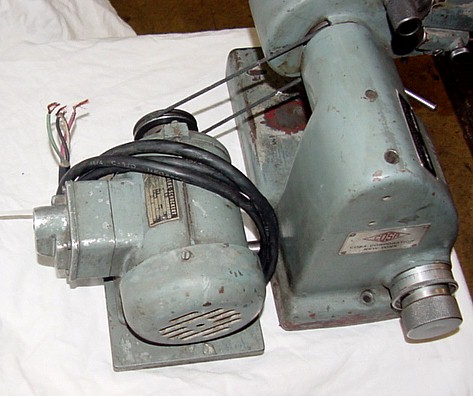

POWER RATING ................................. 0.34 H.P.
MOTOR SPEED .................................. 2800 RPM
GRINDING SPINDLE SPEED ....................... 4500 RPM
TOOL MOUNT - MAX. TOOL DIAMETER .................. 0.7"
- TAPER SHANKS ............................. #1 & #2 MT

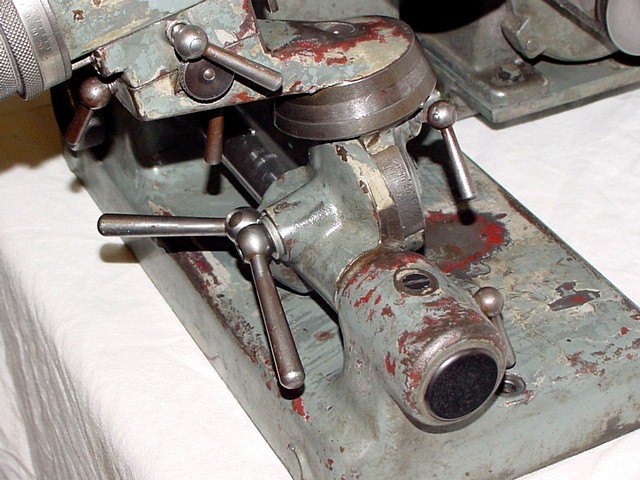

TOOL MOUNT ADJUSTMENTS:
LATERAL ........................................ 0.4"
LONGITUDINAL ................................... 1.6"
MAX. RELIEF ANGLE ........................... 45 DEG.
FINE ADJ. OF INDEX HEAD BRACKET ................ 0.6"
NUMBER OF INDEX POSITIONS ........................ 12
MACHINE WEIGHT (MACHINE ONLY) ................. 170 LBS
MACHINE SIZE (MACHINE ONLY) ........... 20" X 23" X 12"
EQUIPPED WITH:

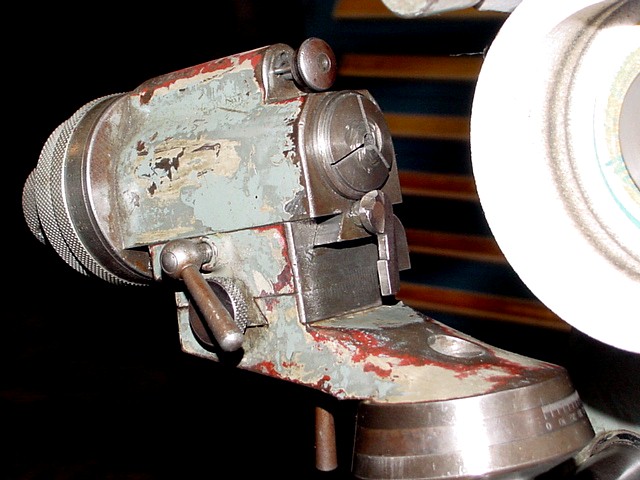

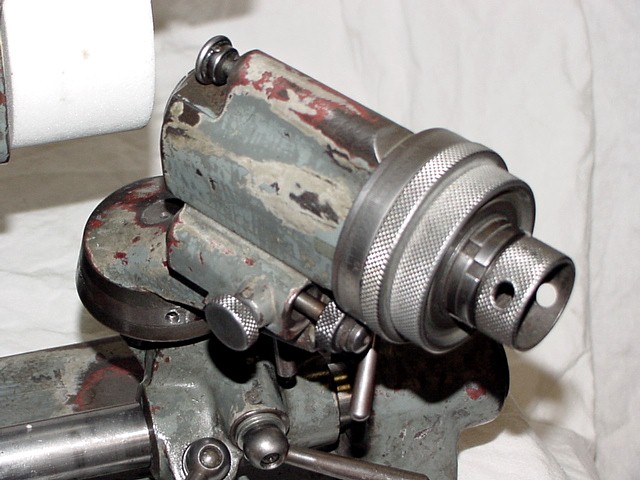

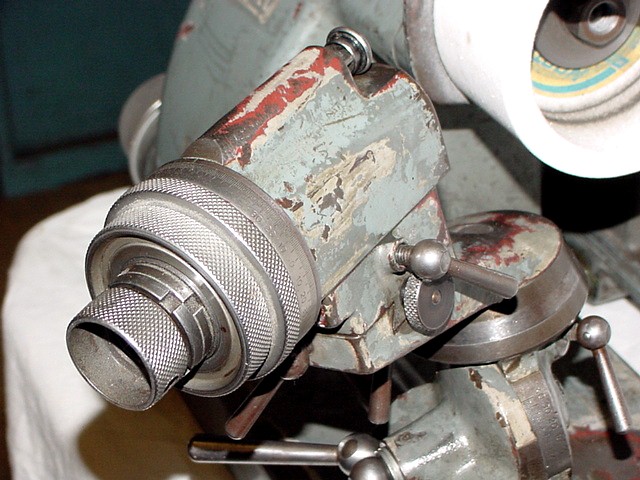

UNIVERSAL TOOL HEAD
BUILT-IN WHEEL DRESSER

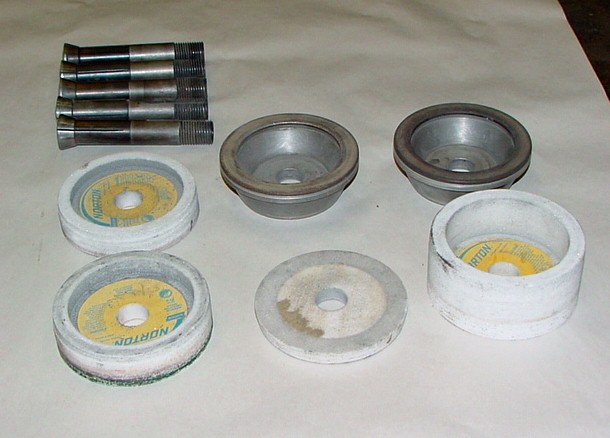

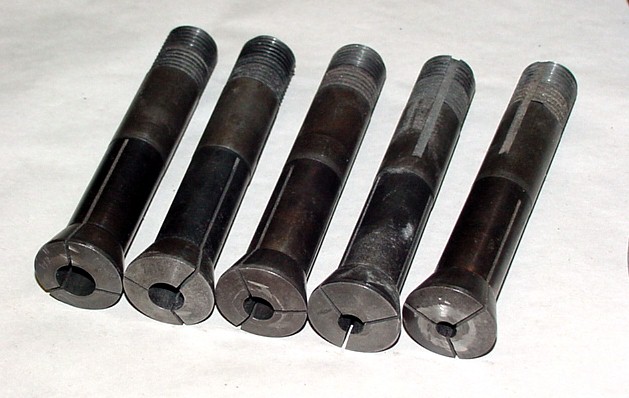

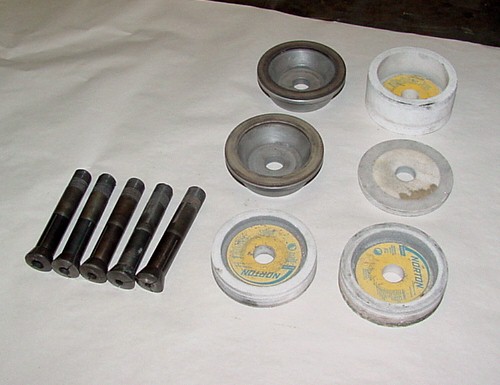

(5) COLLETS + (1) IN THE MACHINE
EXTRA WHEELS
3 PHASE ELECTRICS
** VERY GOOD CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
