Reference Number: 142795

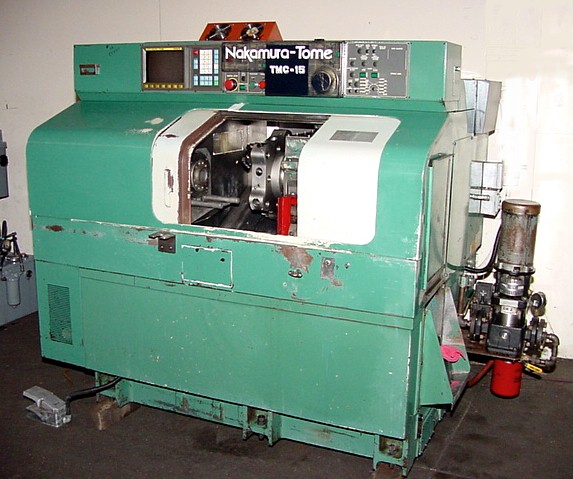

Price: $14,500NAKAMURA 2-AXIS CNC TURNING CENTER SPECIFICATIONS:
MODEL: TMC-15 MFG: 1994
ROUND COLLET CAPACITY...................... 1.34"
CHUCK DIAMETER............................. 6"
SWING OVER BED............................. 11.81"
SWING OVER SADDLE.......................... 6.69"
MAX. TURNING DIAMETER...................... 7.09"
MAX. TURNING LENGTH........................ 9.84"
DRIVE MOTOR................................ AC 7.5 KW/10 HP
SPEED RANGE................................ 135-4500 RPM
SPINDLE NOSE............................... A2-5
HOLE THRU SPINDLE.......................... 1.85"
HOLE THRU DRAW TUBE........................ 1.38"
SLIDE TRAVEL X-AXIS........................ 4.33"
SLIDE TRAVEL Z-AXIS........................ 10.63"
RAPID TRAVERSE X-AXIS...................... 472 IPM
RAPID TRAVERSE Z-AXIS...................... 945 IPM
APPROX. DIMENSIONS......................... 81"Lx50"Wx61"H
APPROX. WEIGHT............................. 5,060 LBS.
EQUIPPED WITH:
FANUC OT CNC CONTROL
6" 3-JAW HYD. CHUCK
10 POSITION TURRET
CHIP CONVEYOR
ALL AVAILABLE TOOLHOLDERS
ALL AVAILABLE MANUALS
