Reference Number: 142801

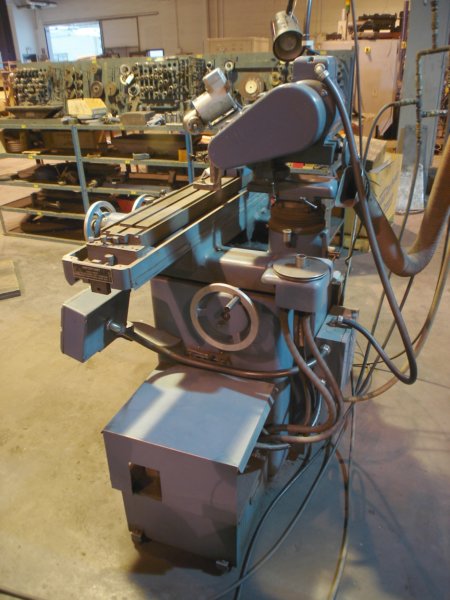

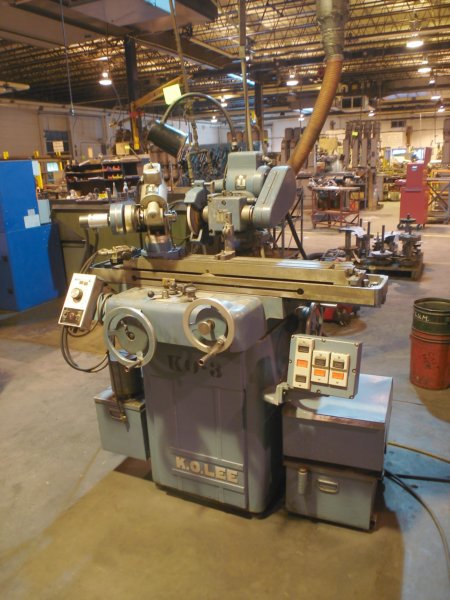

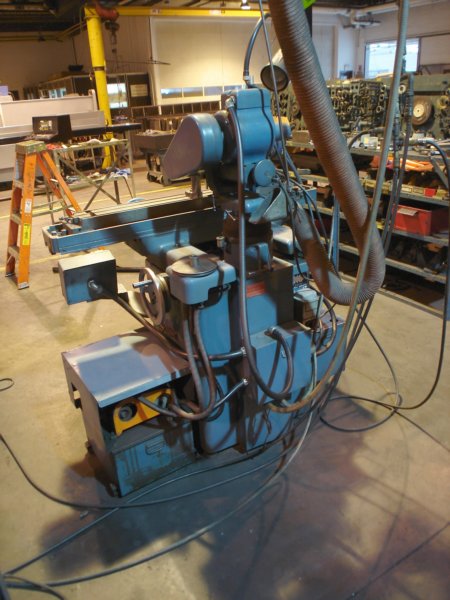

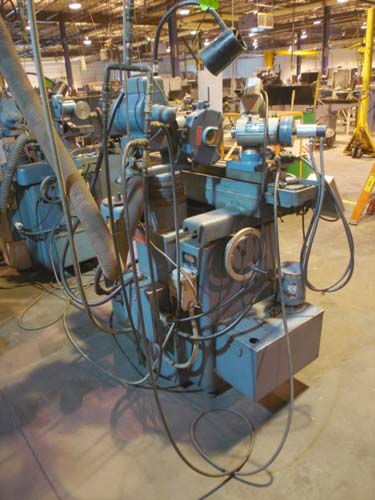

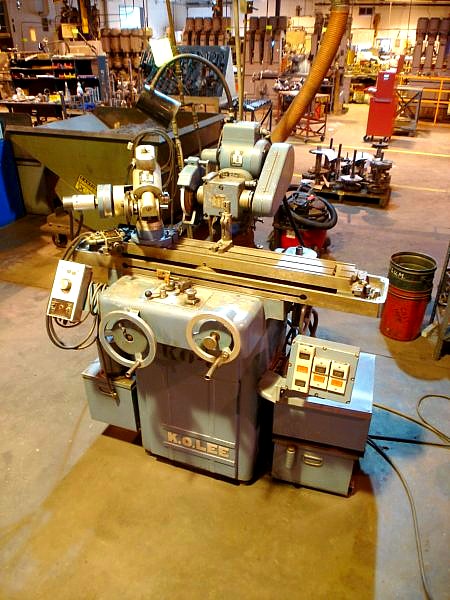

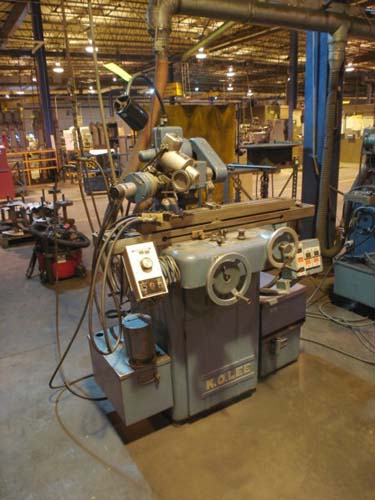

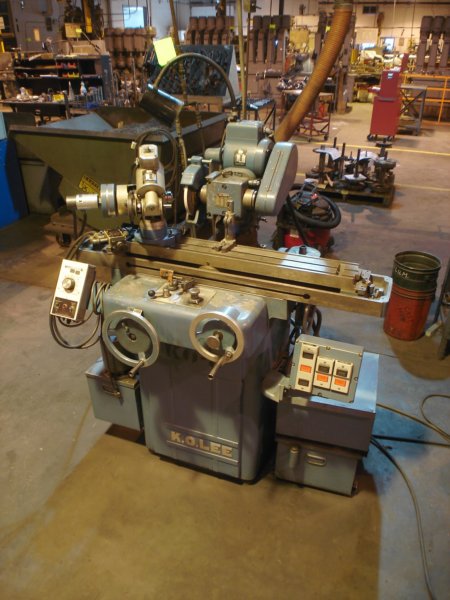

K.O. LEE "DAKOTA" SERIES (WHEELHEAD TILTS & SWIVELS)
 UNIVERSAL TOOL & CUTTER GRINDER WITH HYDRAULIC TABLE FEED

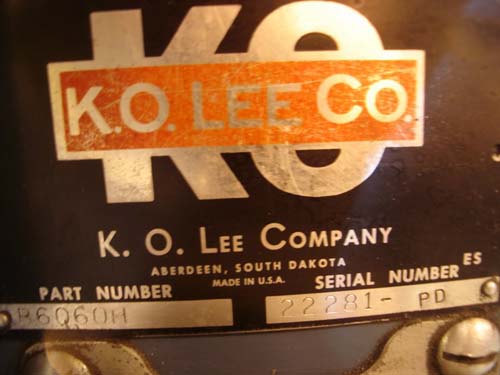

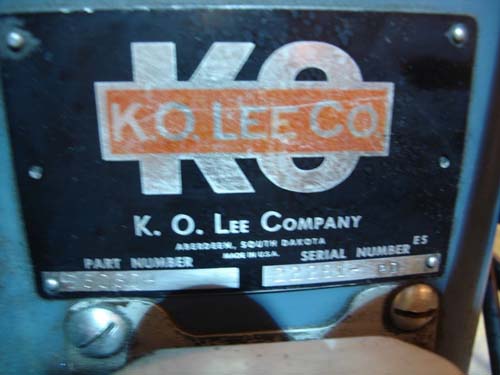

 MODEL: B6060H       S/N: 22281-PD        NEW: 1982

  SWING OVER TABLE ........................... 12-1/4"
 DISTANCE BETWEEN TAILSTOCKS ..................... 32"

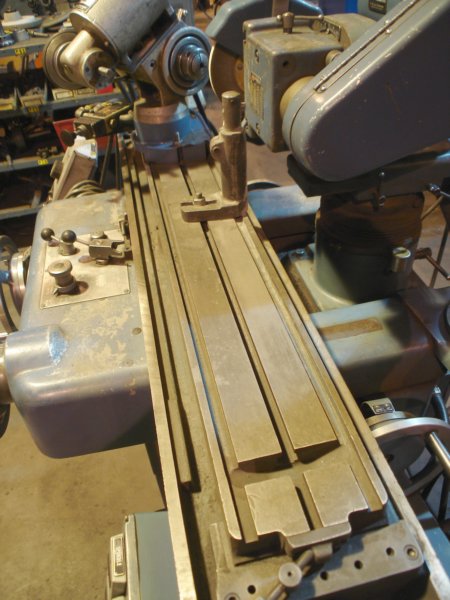

 TABLE WORKING SURFACE .............. 5-1/4" X 37-1/4"
 SUB TABLE .................................. 8" X 48"
 LONGITUDINAL TABLE TRAVERSE ..................... 20"

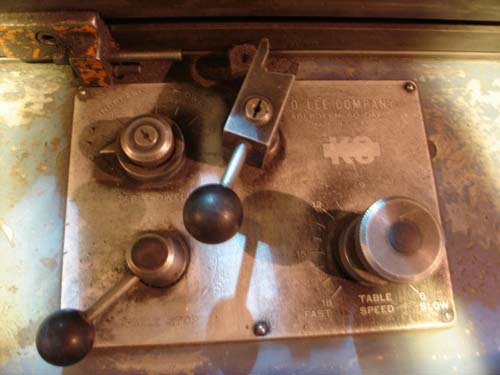

 TABLE FEED PER REV. OF HANDWHEEL:
 FAST ....................................... 2-13/16"
 SLOW .......................................... 9/16"
 CROSS FEED ....................................... 8"
 FEED PER REV. OF HANDWHEEL (.001" GRAD.) ,,... 0.100"
 VERTICAL MOVEMENT OF COLUMN ................. 10-1/2"
 FEED PER REV. OF HANDWHEEL (.001" GRAD.)...... 0.050"
 COLUMN DIAMETER .................................. 6"
 MINIMUM/MAXIMUM DISTANCE CENTERLINE OF WHEEL
 SHAFT TO TABLE ......................5-3/8" / 15-1/4"
 MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE
  OF STRAIGHT WHEEL; DOVETAIL SLIDE NOT EXTENDED,
  SPINDLE 90 DEG. TO TABLE .................... 4-5/8"
 MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE
  OF STRAIGHT WHEEL; DOVETAIL SLIDE EXTENDED,
  SPINDLE 90 DEGREES TO TABLE ................. 9-1/4"
 TABLE SWIVELS (CALIBRATION: 3" PER FT.,
  15 DEG. EITHER SIDE OF CENTER) .......... 225 DEGREES
 WHEEL HEAD SWIVEL ........................ 360 DEGREES
 MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" ..... 1-1/4"
 MAXIMUM CROSS FEED SURFACE GRINDING W/8" WHEEL..... 3"
 SPINDLE SPEED RANGE ................. 3450 TO 17250 RPM

 APPROXIMATE MACHINE WEIGHT ................. 1,300 LBS

  EQUIPPED WITH:
 HYDRAULIC TABLE

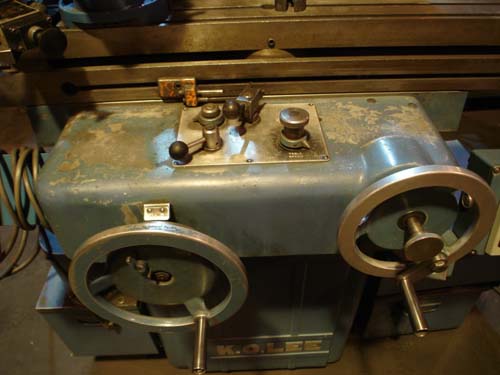

 FRONT & REAR HANDWHEELS FOR TABLE TRAVERSE

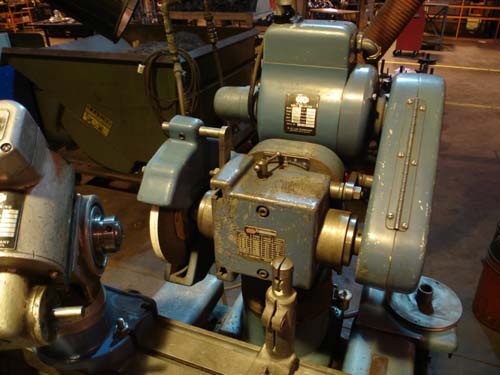

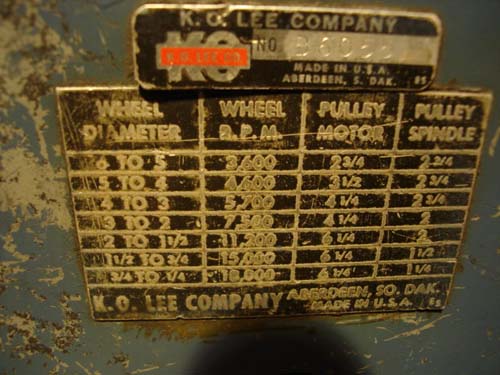

 "DAKOTA" SERIES #B6055 UNIVERSAL GRINDING WHEELHEAD
  FEATURES:
 - SWIVELLING & TILTING (22 DEG. EITHER SIDE
 OF VERTICAL)
 - 1 HP MOTOR WIRED FOR 3/60/460 VOLT OPERATION
 - 3/4" TO 6" DIAMETER WHEELS
 BIJUR LUBRICATOR (ONE-SHOT)
 COOLANT SYSTEM

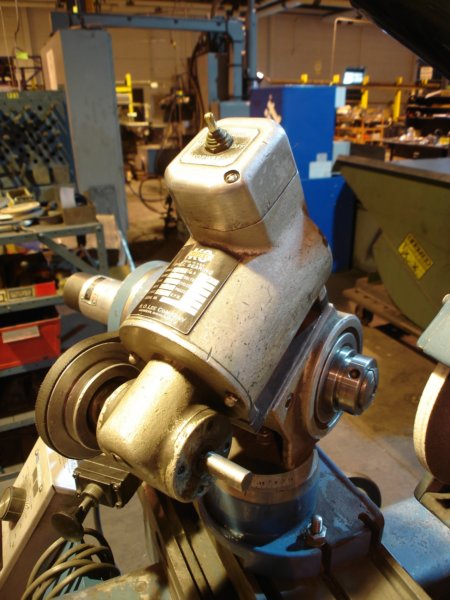

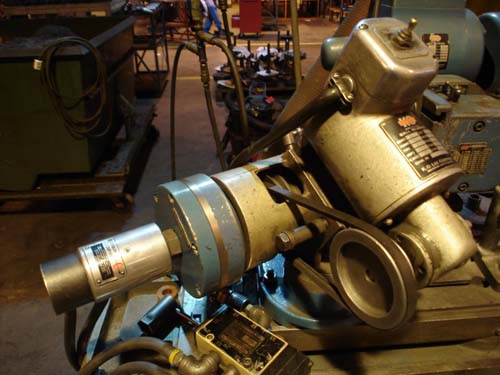

 K.O. LEE MOTORIZED WORKHEAD FOR THE "6000" SERIES

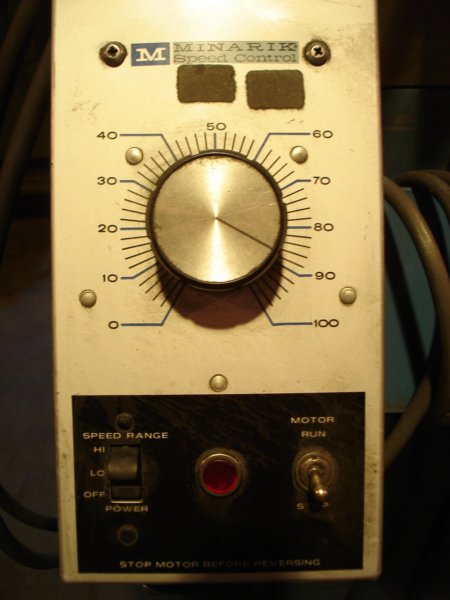

 - "MINARIK" ELECTRONIC VARIABLE SPEED CONTROL
 - WORKHEAD HAS A QUICK ACTING PNEUMATIC COLLET CLOSER
 - WORKHEAD USES 5C COLLETS

  ** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
