Reference Number: 142804

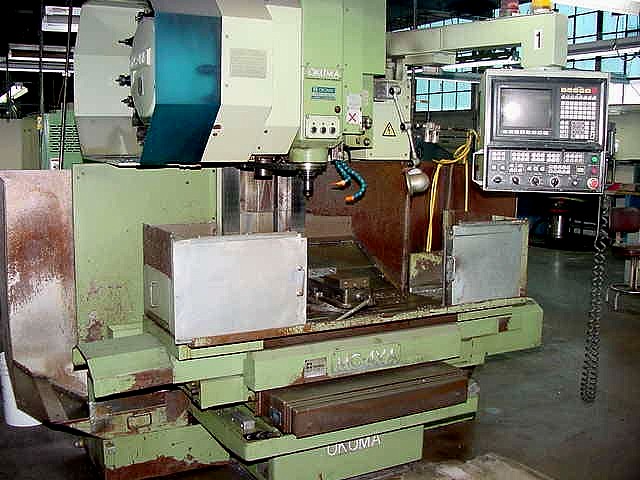

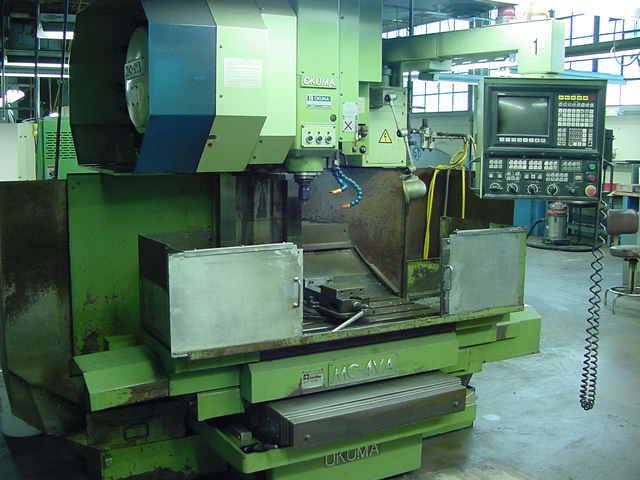

OKUMA MC-4VA CNC VERTICAL MACHINING CENTERPrice: $9,500
1986
SPECIFICATIONS:
X-AXIS TRAVEL (TABLE).................... 25.59"
Y-AXIS TRAVEL (SADDLE)................... 16.14"
Z-AXIS TRAVEL (SPINDLEHEAD).............. 17.72"
SPINDLE END TO TABLE SURFACE............. 7.87" TO 25.59"
SPINDLE CENTER TO COLUMN FRONT SURFACE... 18.11"
TABLE SIZE............................... 39.37 x 20.08"
EFFECTIVE TABLE SIZE..................... 39.37 x 16.14"
LOAD CAPACITY............................ 1,100 LB.
TABLE SURFACE TO FLOOR LEVEL............. 29.53"
TAPER OF SPINDLE HOLE.................... NT. NO. 40
SPINDLE DIAMETER AT FRONT BEARING........ 2.76"
SPINDLE SPEED RANGE...................... 50 TO 4000 RPM
NUMBER OF SPINDLE SPEEDS............ INFINITELY VARIABLE
(DIRECT RPM PROGRAMMING (S4))
RAPID TRAVERSE SPEED (X/Y-/Z-AXIS).. 512 IPM(Z:394 IPM)
CUTTING FEEDRATE (X-/Y-/Z-AXIS)..... 0.01 TO 160 IPM
MAIN SPINDLE DRIVE MOTOR............ VAC 7.5/10 HP
(CONT./30 MIN.)(VARIABLE SPEED AC DRIVE)
HYDRAULIC PUMP MOTOR..................... AC 3 HP
TOOL MAGAZINE CAPACITY................... 20 TOOLS
TOOL SELECTION........................... MEMORY RANDOM
TOOL SHANK TYPE.......................... CATERPILLAR STD
PULL STUD................................ MAS TYPE 2
(SPECIAL)
MAX. TOOL DIA. W/ ADJACENT TOOLS......... 4.02"
MAX. TOOL DIA. W/O ADJACENT TOOLS........ 5.98"
MAX. TOOL LENGTH/WEIGHT.................. 11.81"/17.6 lb
MACHINE HEIGHT........................... 107"
FLOOR SPACE REQUIRED..................... 114" x 119"
MACHINE WEIGHT........................... 12500 LB
EQUIPPED WITH:
OSP 5000M CONTROL
