Reference Number: 142827

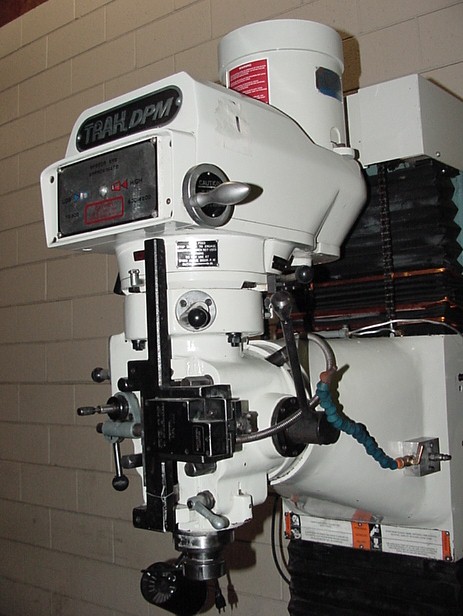

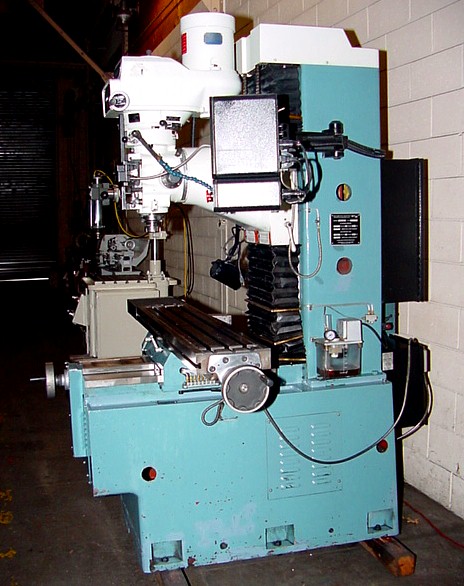

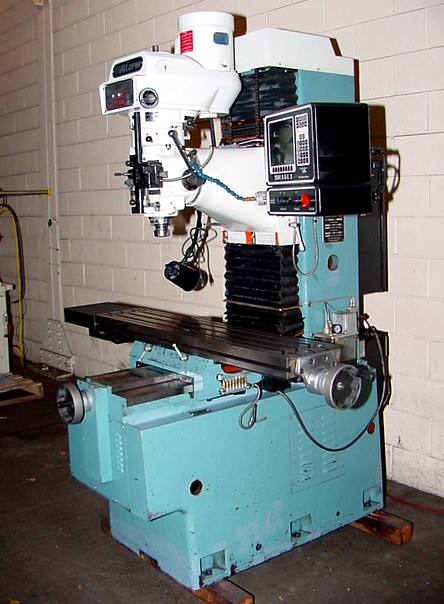

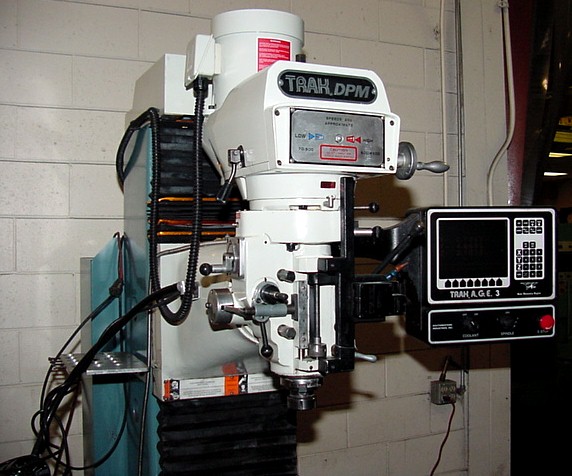

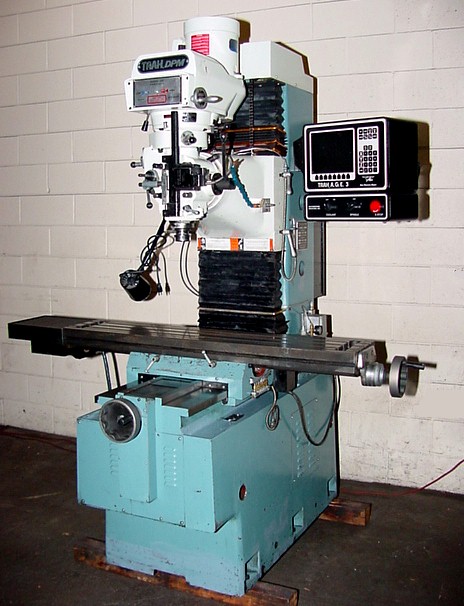

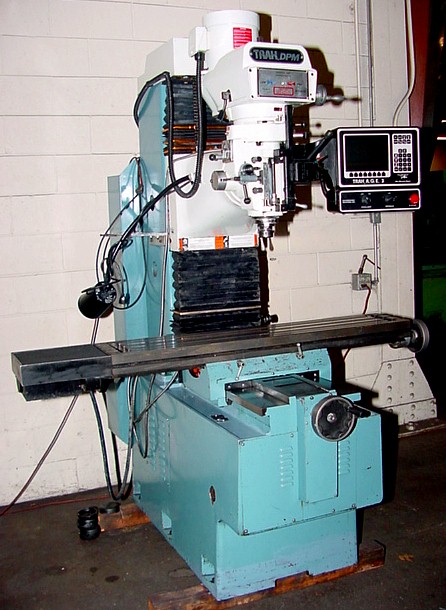

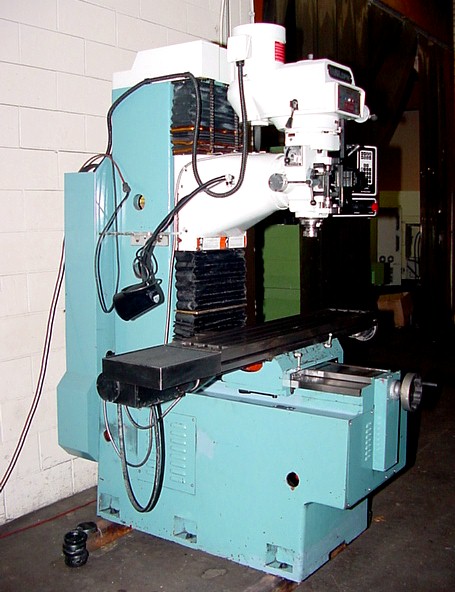

Price: $17,500TRAK 3-AXIS CNC BED MILL w/HAND WHEELS

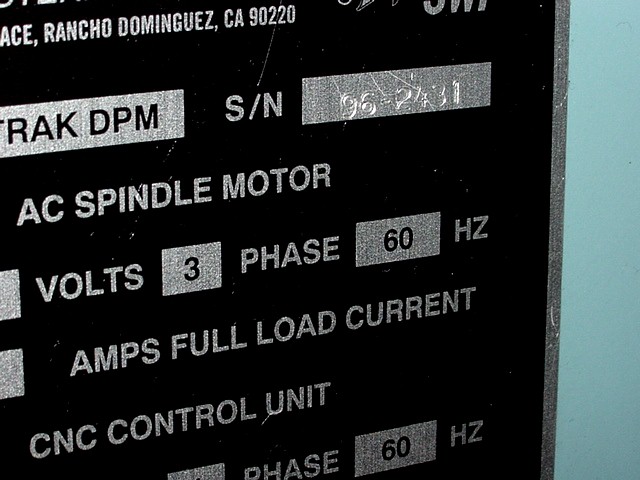

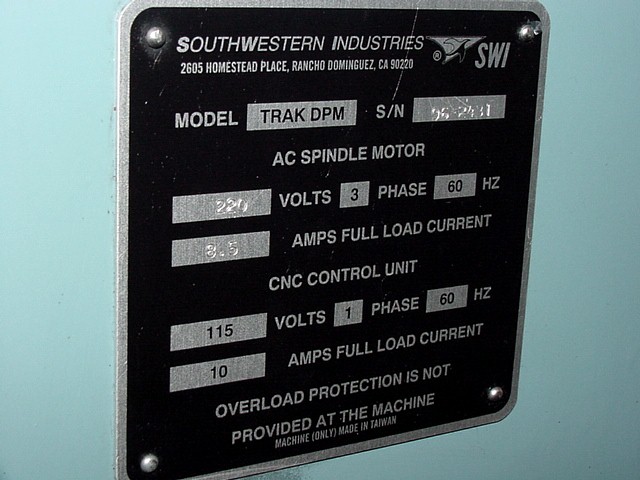

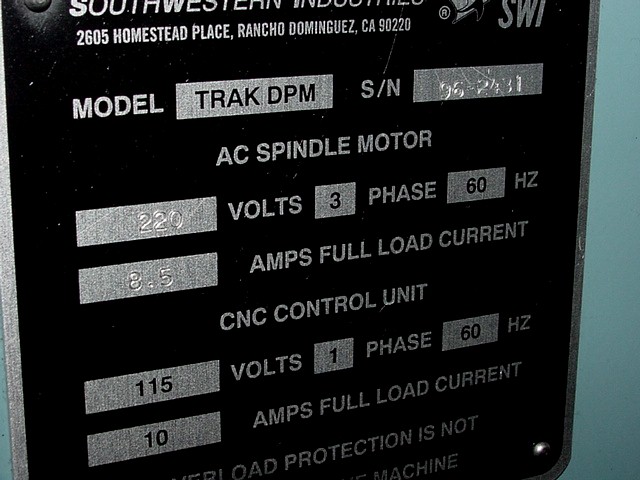

MODEL: DPM, S/N: 96-2431, NEW: 1996
SPECIFICATIONS:

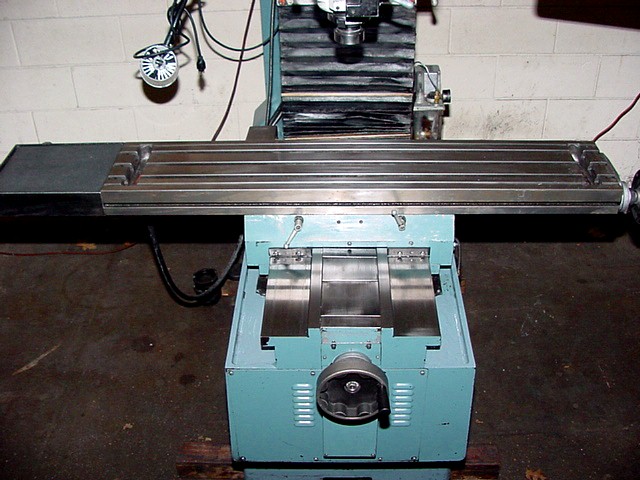

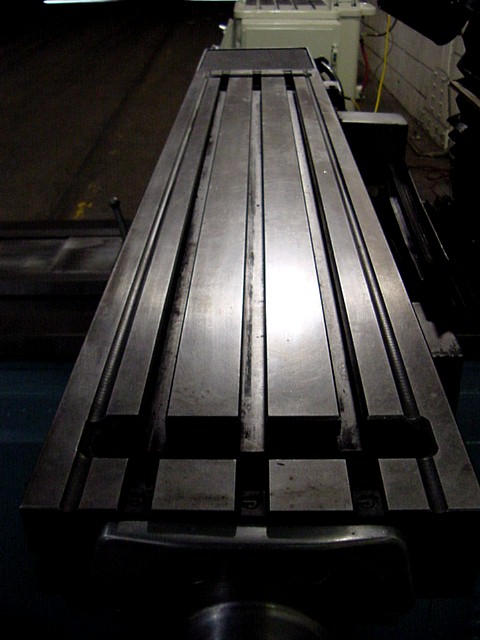

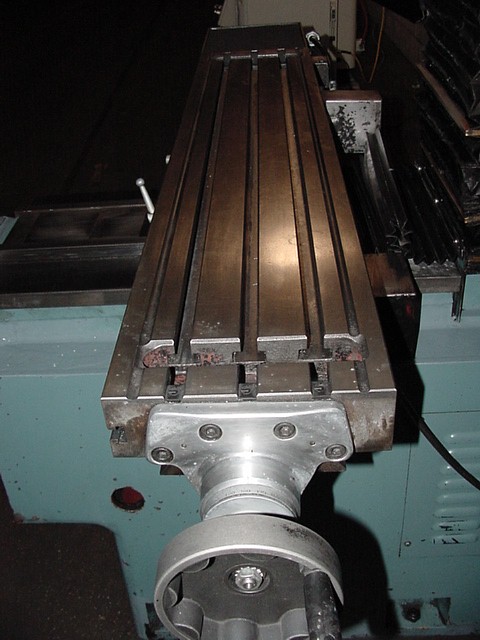

TABLE SIZE ........................ 10" x 50"
TABLE TRAVEL (X) .................. 31"
SADDLE TRAVEL (Y) ................. 17"
VERTICAL HEAD TRAVEL (Z) .......... 23.5"
QUILL TRAVEL ...................... 5"
SPINDLE TAPER ..................... #40 NST
SPINDLE NOSE TO TABLE ............. 0-24"
SPINDLE CENTER TO COLUMN FACE ..... 17.3"
HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES

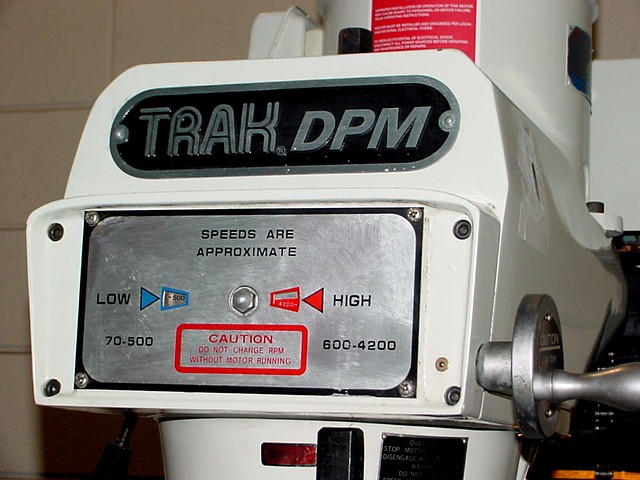

SPINDLE SPEED RANGE ............... 70 - 4,200 RPM
QUILL FEEDS (3) ................... .002, .004, .006 IPR
MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS
APPROX DIMENSIONS ................. 68"W x 64"D x 95"H
MACHINE WEIGHT .................... 4,100 LBS
EQUIPPED WITH:

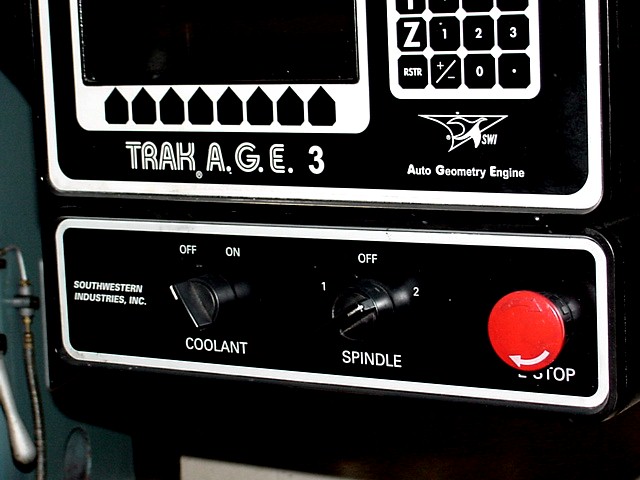

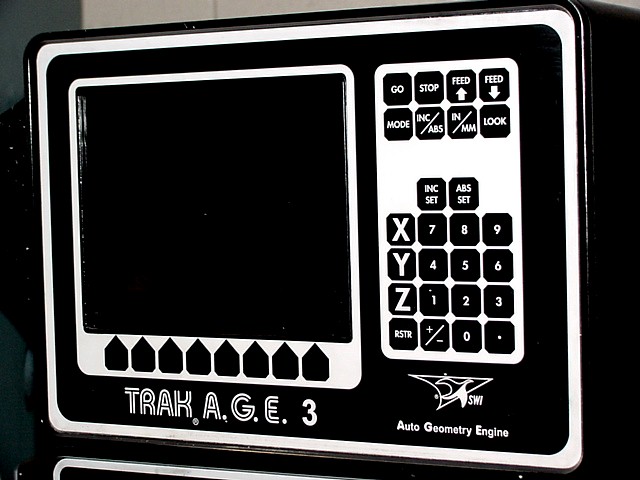

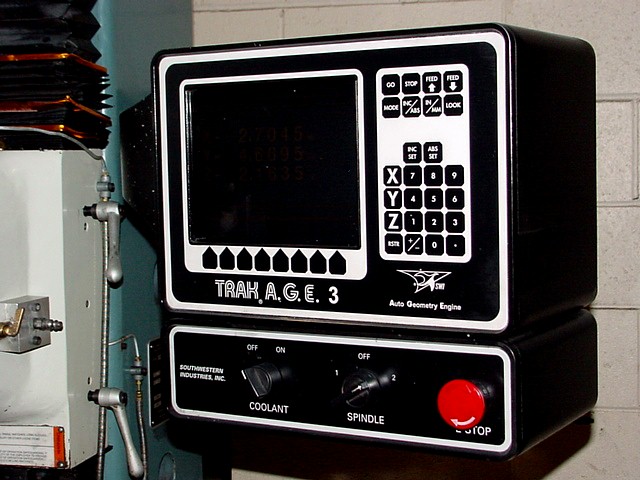

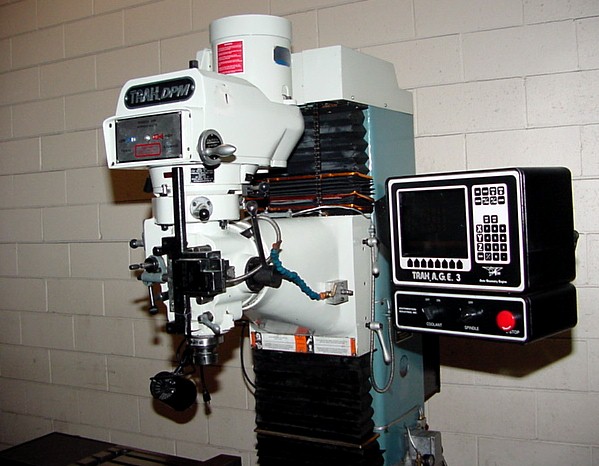

TRAK AGE-3 CONTROL, X,Y & Z CNC CONTROL
THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING
HELICAL CANNED CYCLES

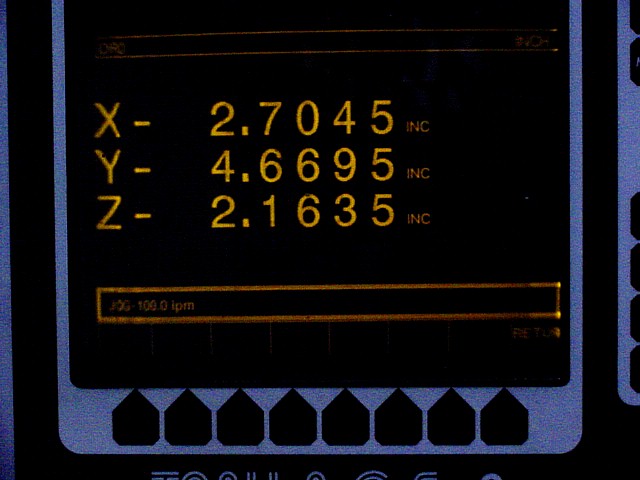

IN MANUAL MODE 3-AXIS DRO
RS232 PORT & FLOPPY DISK DRIVE

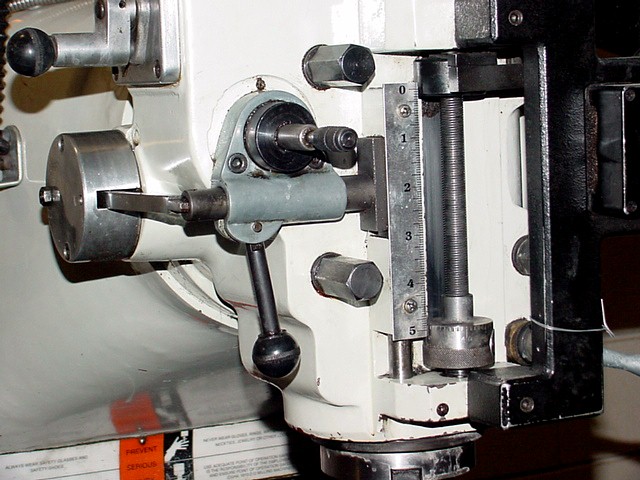

QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)

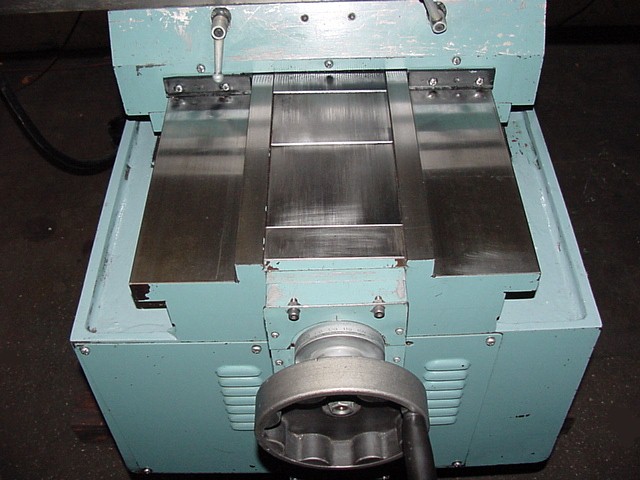

SQUARE BOX WAYS - HARDENED & GROUND
PRECISION BALL SCREWS

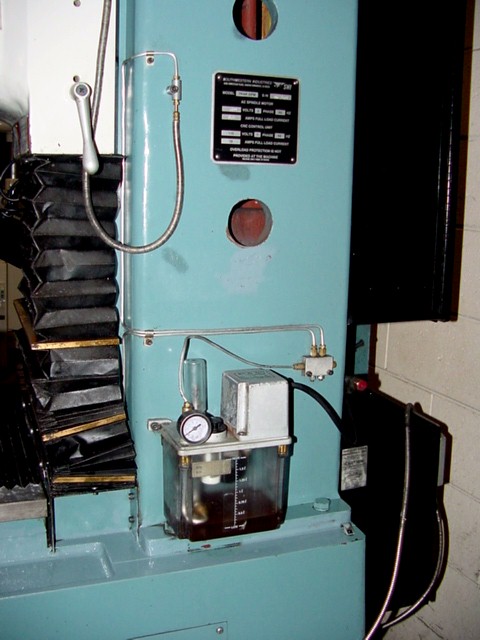

AUTOMATIC LUBRICATION SYSTEM

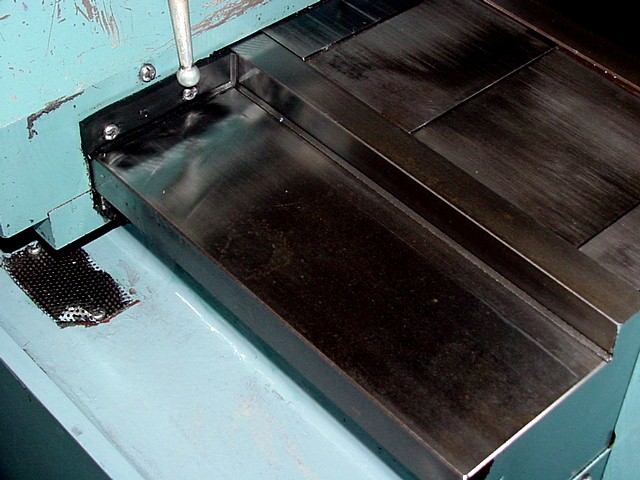

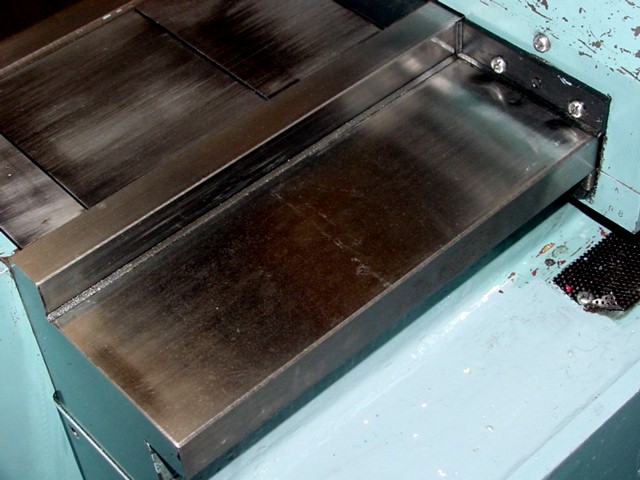

WAY COVERS
TORQUE-RITE POWER DRAW BAR

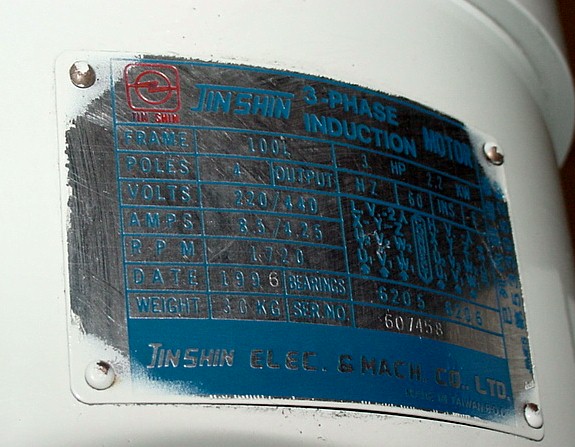

3 HORSE POWER SPINDLE MOTOR
MANUALS
TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL.
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
CONDITION: **** SUPERB ****
