Reference Number: 142926
MANDELLI CNC HORIZONTAL BORING MILL
FOR 5-AXIS MACHINING
YEAR: 1983, RETROFITTED: 1993
SPECIFICATIONS:
WORKING SURFACE OF TABLE ........ 39" X 80"
CROSS TABLE TRAVEL (X) .......... 78"
VERTICAL HEADSTOCK TRAVEL (Y) ... 79"
COLUMN TRAVEL (W) ............... 64"
SPINDLE SPEED RANGE ............. 0-3000 RPM
SPINDLE TAPER ................... #50 TAPER
MAGAZINE CAPACITY ............... 60 TOOL
EQUIPPED WITH:

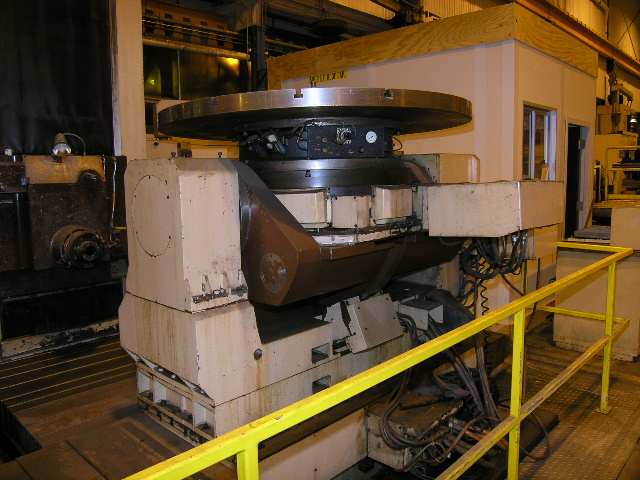

- AUXILIARY 43" DIAMETER ROTARY TABLE w/ 6,000 lbs LOAD CAPACITY
A ROTARY CONTOURING AXIS
B TILTING CONTOURING AXIS +10 -100 DEGREES

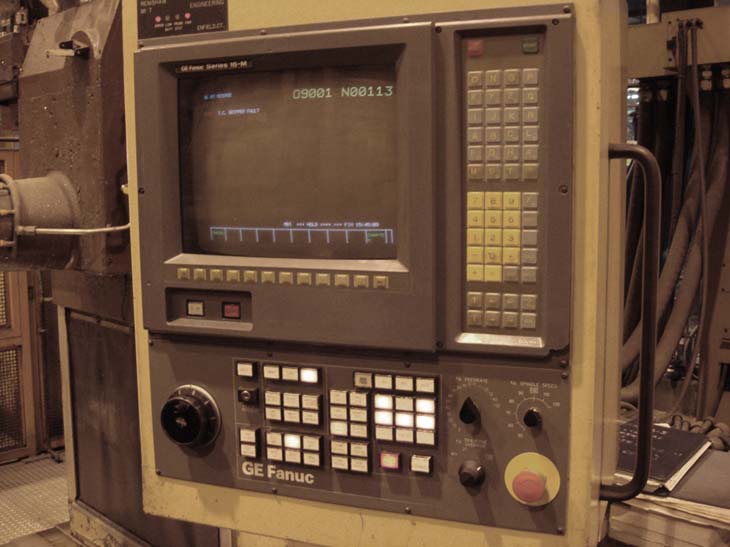

- GE FANUC 15M 5 AXIS CONTROL W/ FERRAND SCALES
- 60 POSITION AUTOMATIC TOOL CHANGER
- BOX WAY CONSTRUCTION
- TOOLING AND PART PROBING

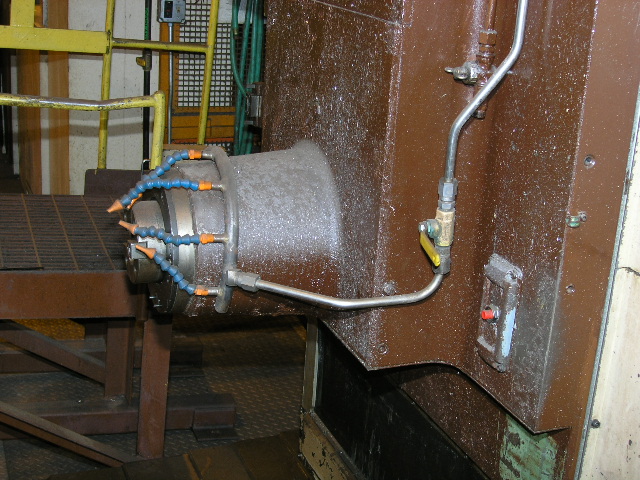

- FLOOD COOLANT, CHIP CONVEYOR, WAY COVERS
- MAIN SPINDLE DRIVE 30/35 HORSE POWER
PHOENIX AND CNC ENGINEERING
FOR A FORTUNE 500 COMPANY IN 1993
WITH A GE FANUC 15M 5 AXIS CONTROL

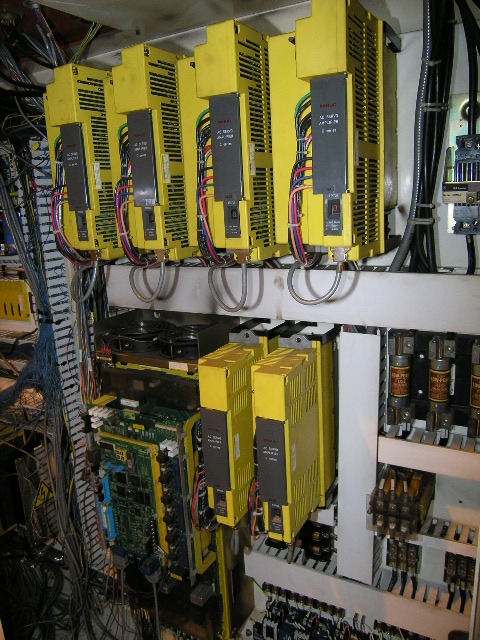

AS WELL AS NEW FANUC SPINDLE AND AXIS DRIVES

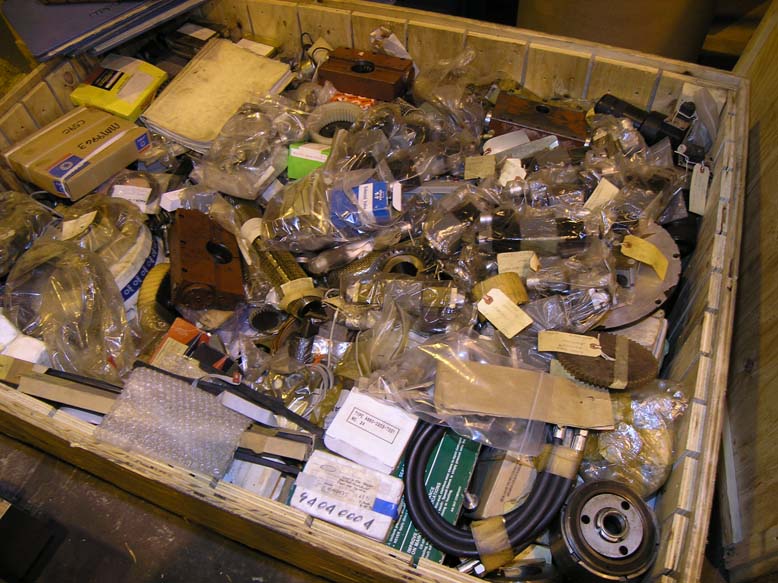

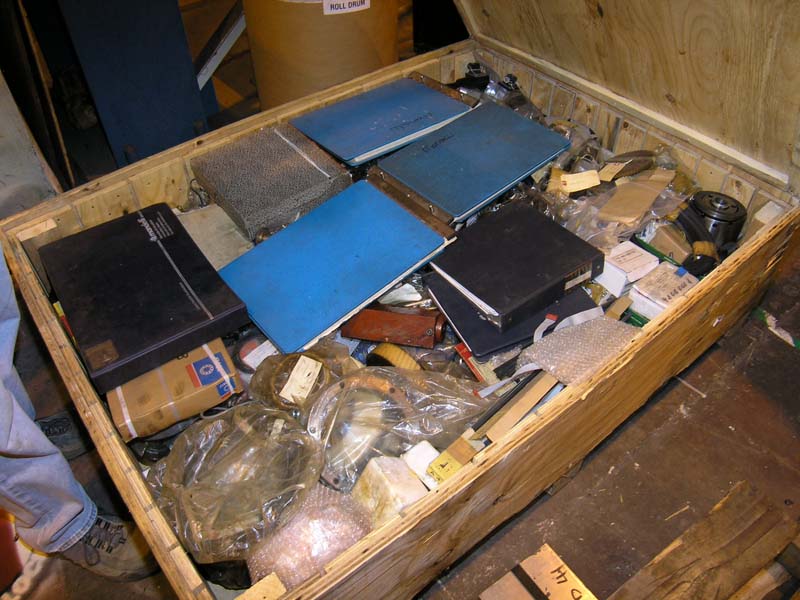

LARGE QUANTITY OF SPARE PARTS.
INSPECT IN OUR NEW JERSEY WAREHOUSE
Price: On Request
