Reference Number: 142965

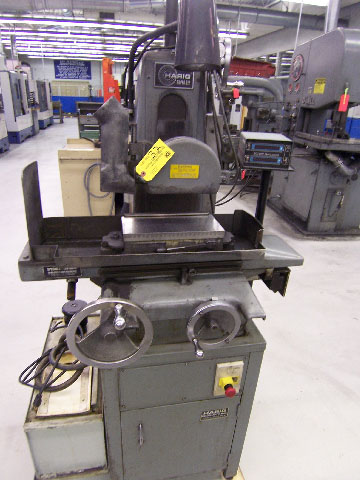

6" X 12" HARIG (MADE IN USA) "PRECISION"Price: On Request
HAND FEED SURFACE GRINDER
MODEL: 612 NEW: 1982
WIDTH AND LENGTH GROUND ...................... 6" X 12"
LONGITUDINAL TRAVEL ........................... 12-3/4"
CROSS FEED TRAVEL .............................. 6-3/4"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL ............ 12"
MAXIMUM GRINDING WHEEL DIAMETER .................... 8"
ELEVATING HANDWHEEL GRAD. ..................... 0.0005"
CROSS FEED HANDWHEEL GRAD. ..................... 0.001"
FINE FEED HANDWHEEL FOR CROSS, GRAD. ........... 0.0001"
SPINDLE SPEED .............................. 3,450 RPM
FLOOR AREA CABINET .......................... 21" X 25"
FLOOR AREA OPERATING SPACE .................. 48" X 45"
APPROXIMATE MACHINE WEIGHT .................... 900 LBS
EQUIPPED WITH:

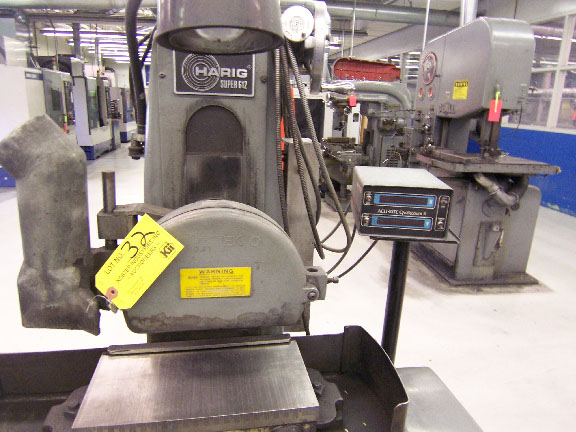

"ACU-RITE" "QWIKCOUNT II" 2-AXIS DIGITAL READOUT
DISPLAY (CROSS & VERTICAL AXES) (.0001" RESOLUTION)
OPTIONAL FINE DOWNFEED ATTACHMENT, WITH .0001" GRADUATION
COMPLETE COOLANT SYSTEM w/TANK, PUMP, HOSES, GUARDS, ETC.
HARIG 1 HP DIRECT DRIVE "CARTRIDGE TYPE" SPINDLE,
3/60/208-220-440 VOLTS
V AND FLAT WAY CONSTRUCTION
HARIG "FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM
6" X 12" "O.S. WALKER" FINE-DIVISION PERMANENT MAGNETIC
CHUCK
CABLE DRIVE FOR LONGITUDINAL TABLE MOVEMENT
MACHINE IS PRESENTLY WIRED FOR 3/60/208 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
** SUPERB CONDITION & APPEARANCE **
