Reference Number: 142985

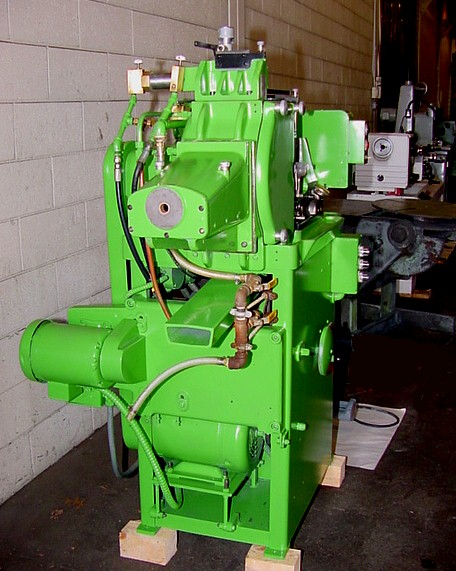

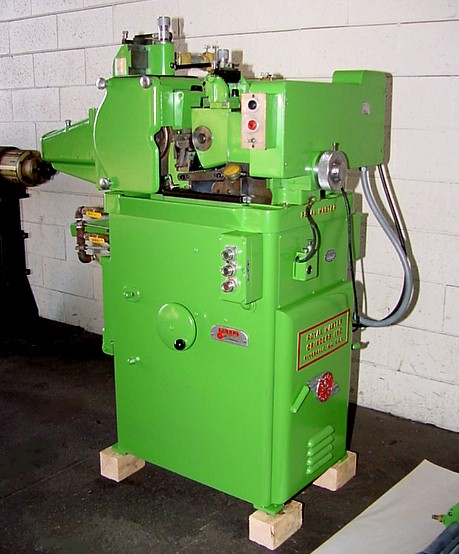

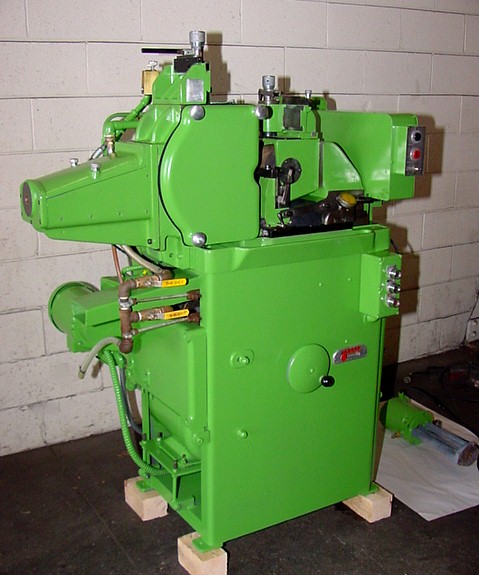

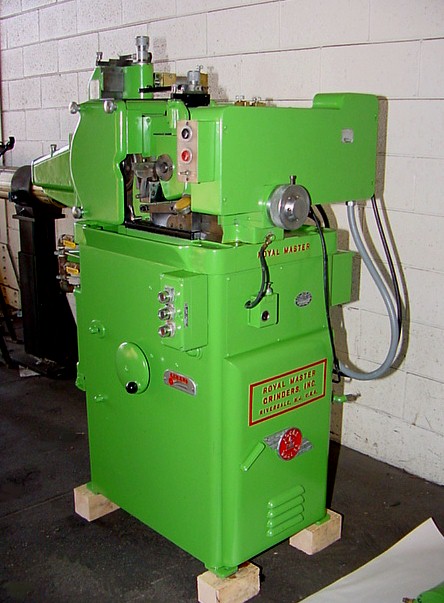

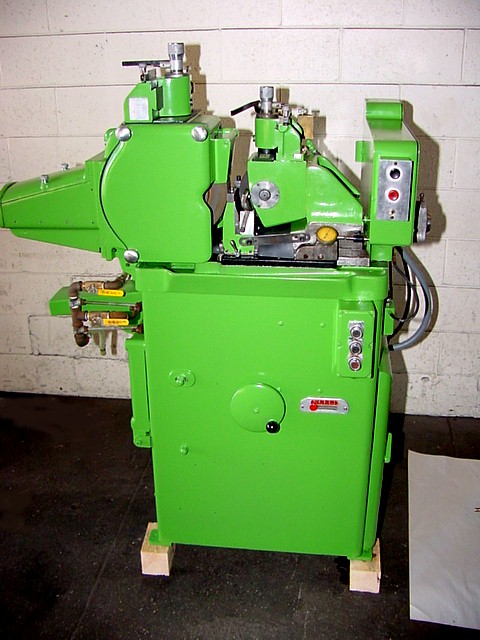

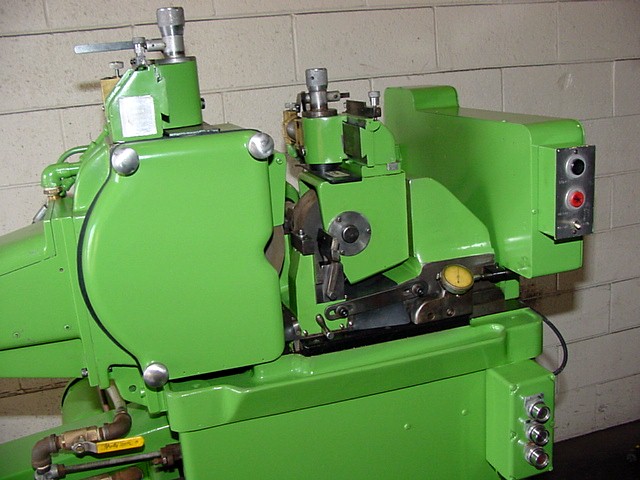

        ROYAL MASTER CRUSH FORM CENTERLESS GRINDER
               ** AUTOMATIC CYCLE OPTION **

    MODEL: CG12X3       S/N: 486       NEW: 1970

  CAPACITY:
 INFEED AND THRUFEED ............. 0.004" TO 1.5" DIA.
 LENGTH ............................. 12' ON 0.5" DIA.
 WHEELS:
 MAXIMUM GRINDING WHEEL ........... 12" DIA. X 3" WIDE
 MINIMUM GRINDING WHEEL ......... 10" DIA. X 1/4" WIDE
 MAXIMUM REGULATING WHEEL .......... 6" DIA. X 3" WIDE
 MINIMUM REGULATING WHEEL .......... 1/4" WIDE W/SPOOL
 SPINDLE SPEEDS:
 GRINDING WHEEL ............. CONSTANT SPEED 2,040 RPM
 REGULATING WHEEL ........ INF. VARIABLE 25 TO 480 RPM
 CRUSHER:
 ROLLER SIZE ......................... 3.75" MAX. DIA.
 2" BORE
 3.25" MAX. WIDTH
 REGULATING WHEELHEAD:
 MAX. ANGLE OF TILT FOR THRUFEED
 GRINDING ............................. 6 DEGREES
 MAX. SWIVEL FOR TAPER GRINDING ....... 5 DEGREES

  APPROXIMATE FLOOR SPACE ................ 32" X 57" X 60"H
 APPROXIMATE WEIGHT ...................... 2,800 LBS

  EQUIPPED WITH:
 AUTOMATIC CYCLE OPTION - AUTOMATIC INFEED UNIT
 PARTS EJECTOR
 COMPLETE CRUSH DRESSING UNIT WITH 1/3 H.P. CRUSH
  REDUCTOR DRIVE
 HYDRAULIC DRESSERS FOR GRINDING WHEEL & REGULATING WHEEL
 3" WIDE WHEELS
 WORK REST W/BLADES
 SELF CONTAINED HYDRAULIC SYSTEM
 SET-UP FOR COOLANT WITH COMPLETE PIPING & PUMP, BUT DOES
  NOT COME WITH THE COOLANT TANK
 7.5 H.P. MAIN DRIVE MOTOR
 3/60/220-440 VOLT ELECTRICS
 PRESENTLY WIRED FOR 208 VOLTS

 PURCHASED FROM:
 AMETEK AEROSPACE PRODUCTS
 WILMINGTON, MA

  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
      **** EXCELLENT CONDITION & APPEARANCE ****
