Reference Number: 143005

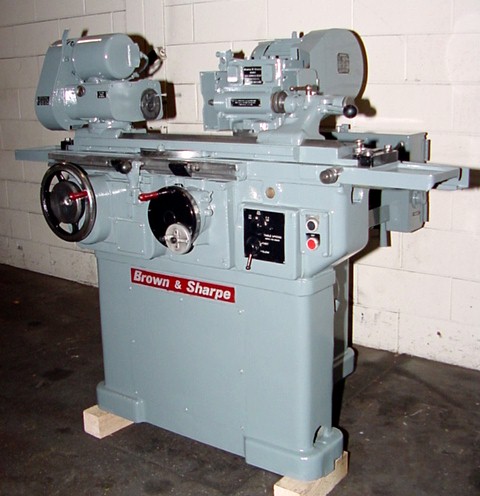

  8" x 14" BROWN & SHARPE "PRECISION" UNIVERSAL
             CYLINDRICAL GRINDER



 MODEL:  814U VALUEMASTER   S/N: 525-8144-    NEW: 1976


  CAPACITY:
 - GRINDS WORK UP TO ..................... 8" DIAMETER
 - GRINDS LENGTH ................................. 14"
 - DISTANCE BETWEEN CENTERS ...................... 24"

  WHEELHEAD:
 - GRINDING WHEEL SIZE ........ 5", 7" OR 10" DIAMETER
 - GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
 - WHEELHEAD TRAVEL ........................... 8-3/8"
 - WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES

  SWIVEL TABLE:
 - ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
 - FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
 - TABLE TRAVEL .................................. 22"
 - TRAVEL PER REV. OF HANDWHEEL ............ 1/4" SLOW
                                            6-1/4" FAST

  HEADSTOCK:
 - SWIVELS LEFT & RIGHT .................. 100 DEGREES
 - SPINDLE SPEEDS (4) ................. 128 TO 540 RPM

  EQUIPPED WITH:
 POWER TABLE TRAVERSE (OPTION)
 POSITIVE STOP FOR CROSSFEED (OPTION)
 DOUBLE ENDED WHEEL SPINDLE
 MACHINE CAN USED WITH 5", 7" OR 10" DIAMETER GRINDING WHEELS
 DUAL LIVE/DEAD HEADSTOCK SPINDLE
 WORKHEAD SET-UP WITH A CENTER
 FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
 VERTICAL HANDWHEEL GRADUATED TO READ .0005"
 ANTI-FRICTION BEARING WHEELHEAD SPINDLE
 COOLANT PUMP & PIPING
 1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
 1/6 H.P. WORKHEAD MOTOR
 MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

  ** EXCELLENT CONDITION & APPEARANCE **
 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
