Reference Number: 143028

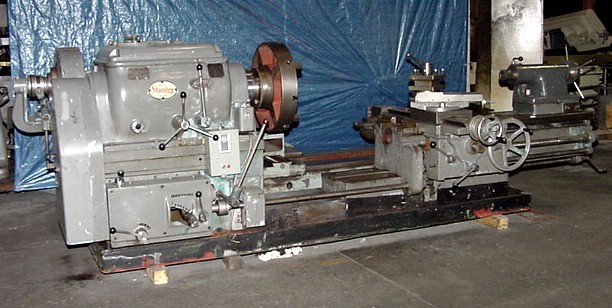

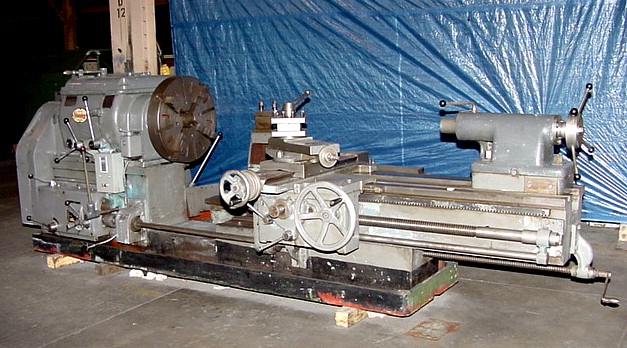

25"/52" x 48"/84" STANLEY SLIDING BED GAP LATHE
NEW: 1956 & FULLY RECONDITIONED IN 1976
SPECIFICATIONS:
CAPACITY:
SWING OVER BED ............................ 26"
SWING OVER COMPOUND REST .................. 18"
SWING IN GAP .............................. 52"
MAXIMUM SIZE OF GAP ....................... 36"
DISTANCE BETWEEN CENTERS,
BASE LENGTH, BED CLOSED ............. 48"
DISTANCE BETWEEN CENTERS,
BASE LENGTH, BED EXTENDED ........... 84"
SPINDLE SPEEDS (18) ....................... 7 - 330 RPM
HOLE THRU SPINDLE ......................... 3-5/8"
THREAD RANGE ENGLISH ...................... 2 - 28 TPI
THREAD RANGE METRIC ....................... 1 -20 MM
TAILSTOCK:
SPINDLE CENTER ............................ #5 MT
SPINDLE TRAVEL & SET OVER, RIGHT OF LEFT .. 12"
DIMENSTIONS:
APPROX WEIGHT ............................. 10,500 LBS
FLOOR SPACE, BASE LENGTH CLOSED ........... 144"L x 72"W
FLOOR SPACE, BASE LENGTH EXTENDED ......... 180"L x 72"W

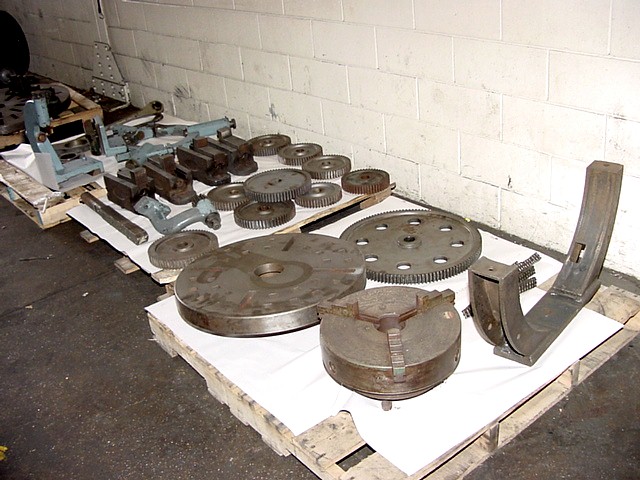

EQUIPPED WITH:
MANUAL OPERATED SLIDING BED FOR INCREASED
SWING & CENTER DISTANCE
SPECIAL BACKREST FOR TURNING FULL DIAMETER IN GAP
TAPER TURNING ATTATCHMENT
24" 4-JAW CHUCK
15" 3-JAW CHUCK
42" FACEPLATE WITH FOUR JAWS
FOUR WAY TURRET TOOLPOST
STEADY REST
FOLLOW REST
INCH / METRIC THREADING CAPABLITY THRU CHANGE GEARS
COOLANT SYSTEM
10 HORSE POWER MAIN MOTOR
CONDITION: ***** EXCELLENT *****
