Reference Number: 143061

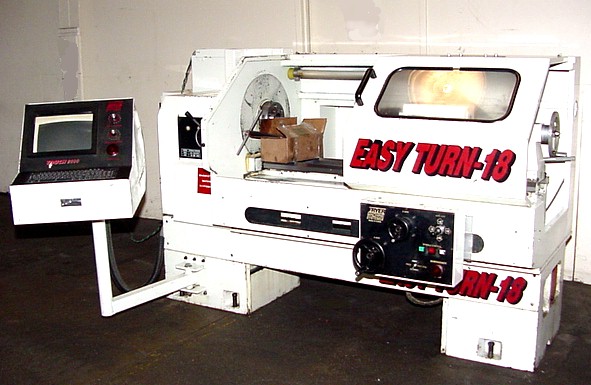

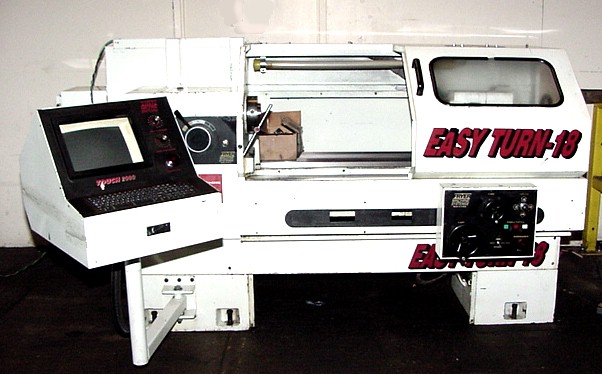

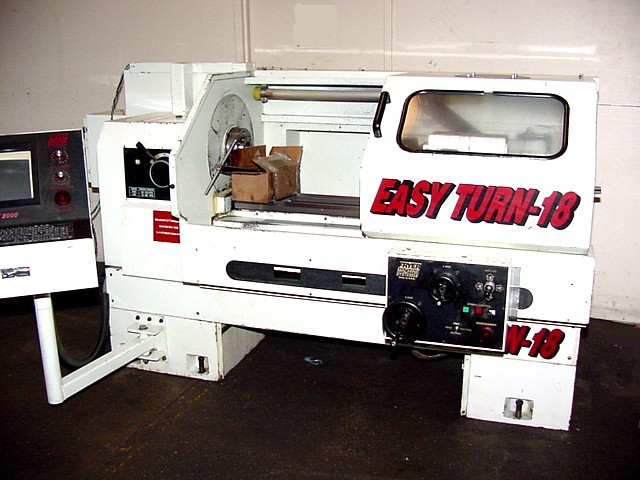

Price: $14,50018" x 40" FRYER CNC/MANUAL LATHE SPECIFICATIONS:

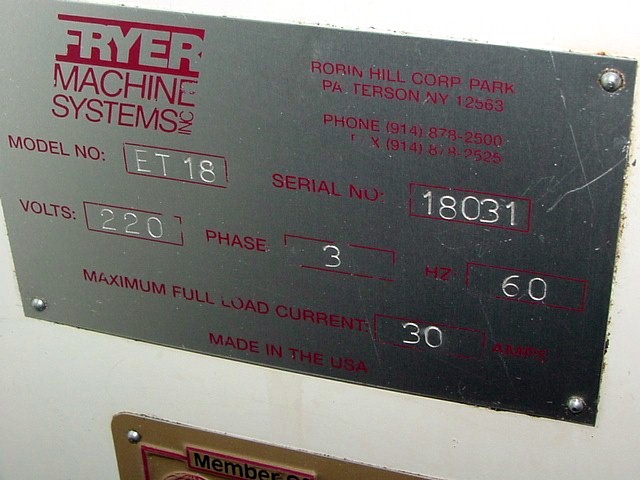

MODEL: ET-18 S/N: 18031 MFG: 1999
SWING OVER BED........................... 18"
SWING IN REMOVEABLE GAP.................. 24"
DISTANCE BETWEEN CENTERS................. 40"
SWING OVER CROSS SLIDE................... 10"

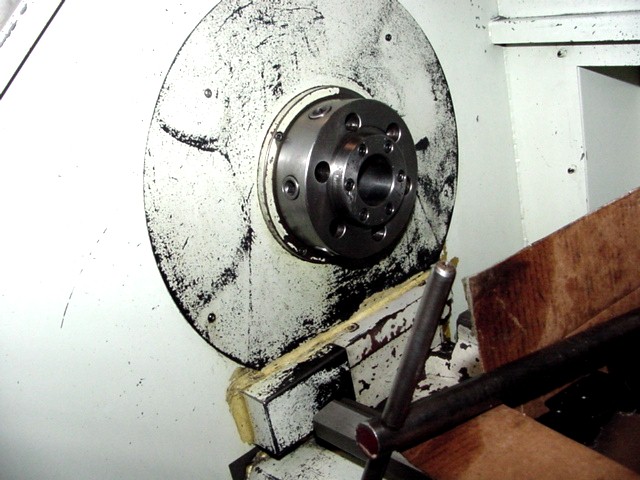

SPINDLE NOSE............................. D1-6"
SPINDLE BORE............................. 2.05"

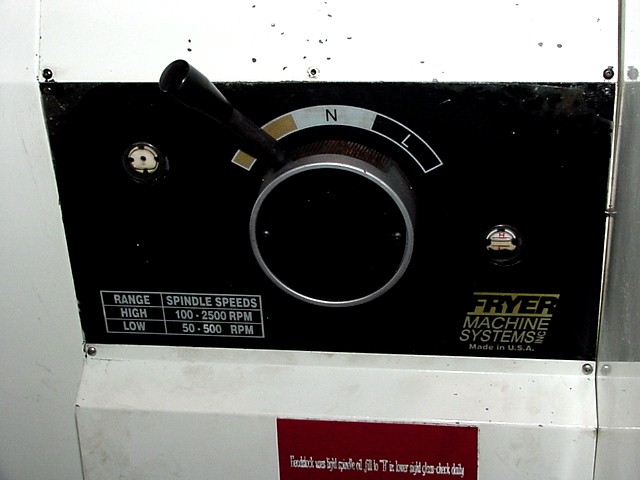

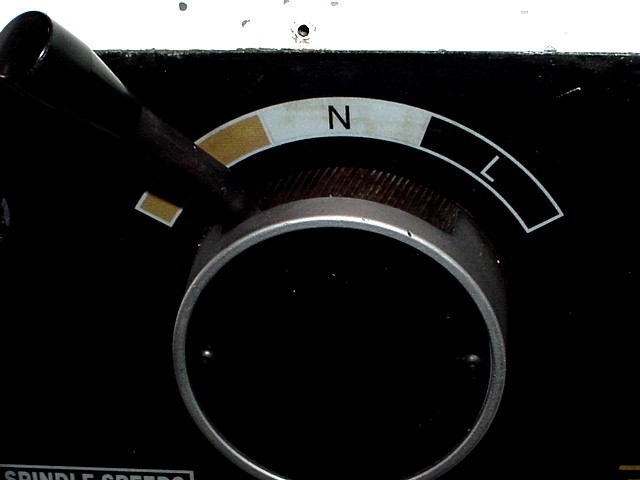

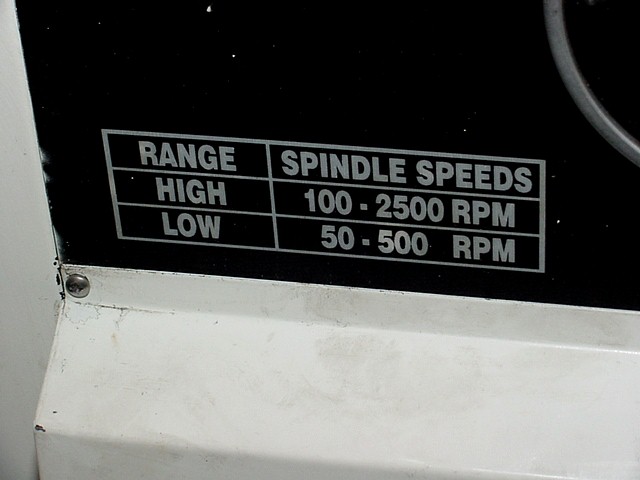

SPINDLE SPEEDS TWO RANGES:
LOW RANGE.............................. 20 - 600 RPM
HIGH RANGE............................. 20 - 2500 RPM
CARRIAGE TRAVEL.......................... 36"
CROSS SLIDE TRAVEL....................... 9.5"
TAILSTOCK SPINDLE TRAVEL................. 5"
TAILSTOCK SPINDLE TAPER.................. #4MT
APPROXIMATE WEIGHT....................... 5,100 LBS
APPROXIMATE DIMENSIONS................... 110"L x 56"W x 58"H
EQUIPPED WITH:

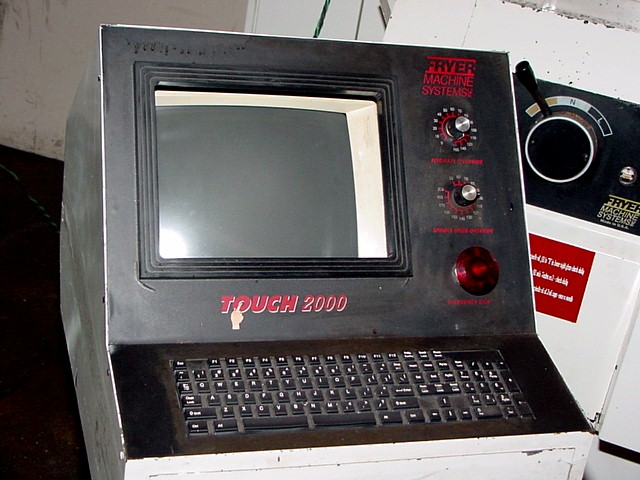

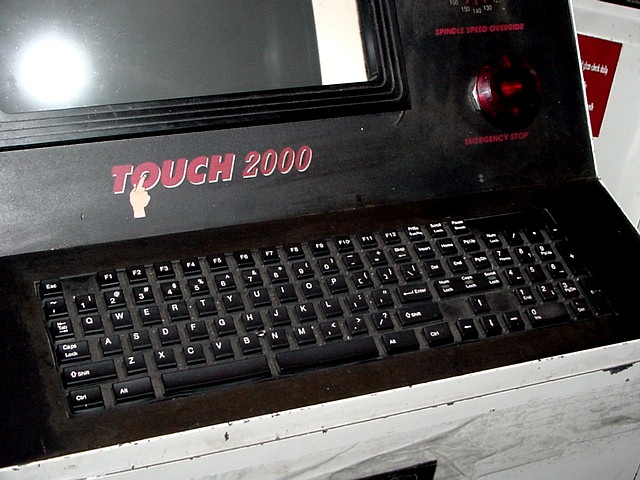

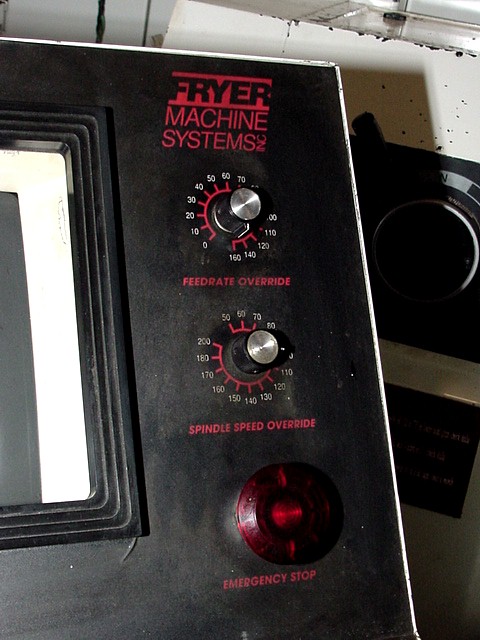

- TOUCH 2000 CNC CONTROL - A PC BASED CONTROL USING WINDOWS 95

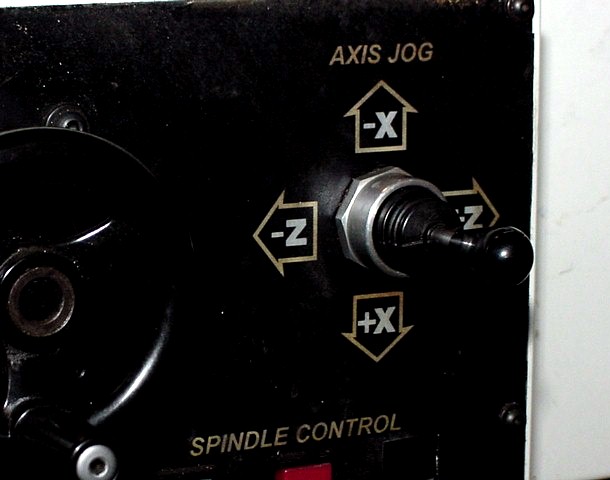

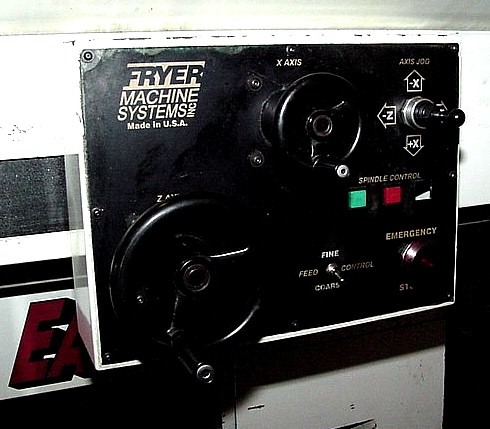

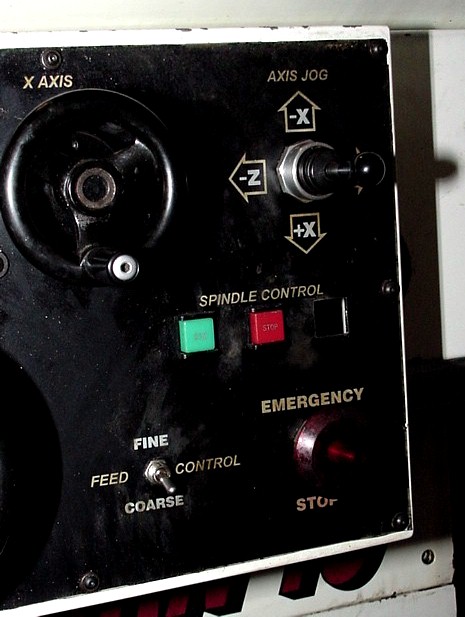

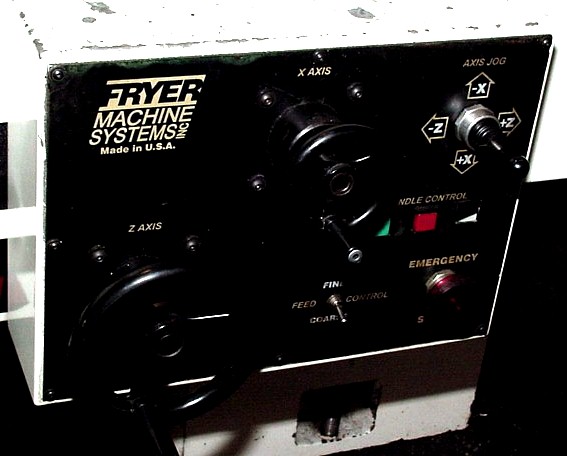

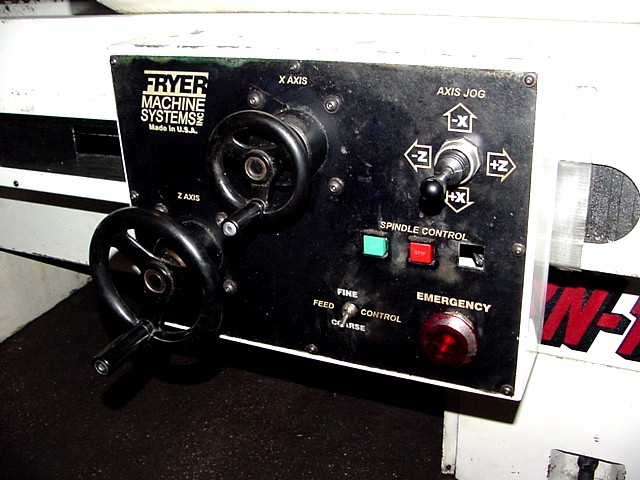

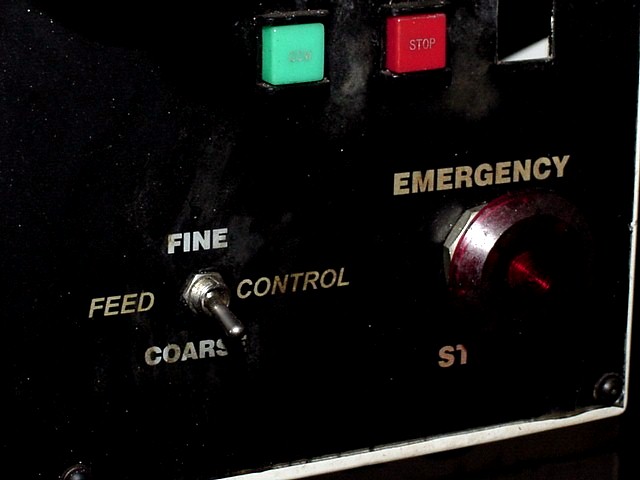

- DUAL HANDWHEELS FOR EASY MANUAL OPERATION:
Provide simple manual operation while the
TouchPrompt System offers quick conversational programming
designed for skilled and semi-skilled users alike.
- DO-ONE FUNCTIONS FOR CHAMFER, RADIUS, THREADING & TAPER
- TOUCH-PROMPT MACHINEST LANGUAGE CONVERSATIONAL PROGRAMMING
- TOUCH EDIT FANUC G & M CODE PROGRAMMING
- TOUCH CAD EASY TO USE CAD/CAM PROGRAMMING

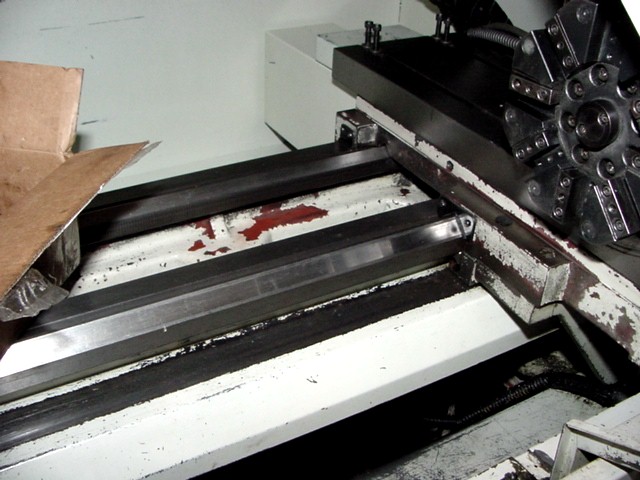

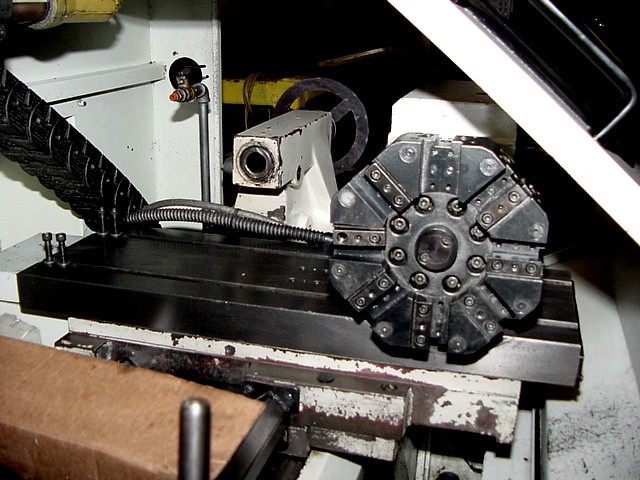

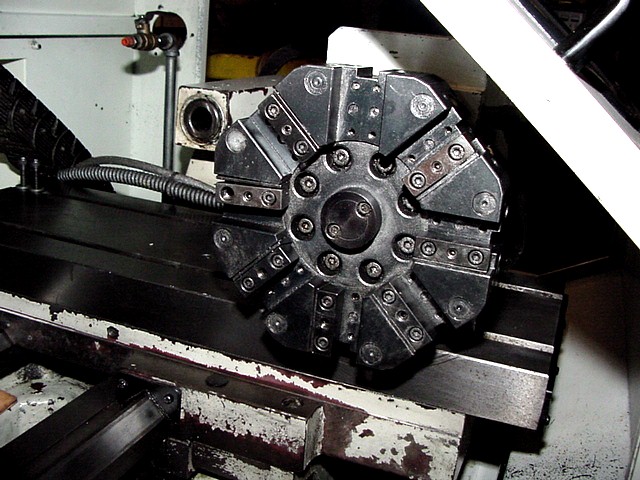

- EIGHT POSITION PROGRAMMABLE TURRET
- 7.5 HORSEPOWER SPINDLE
- SPLASH GUARD AND COOLANT SYSTEM

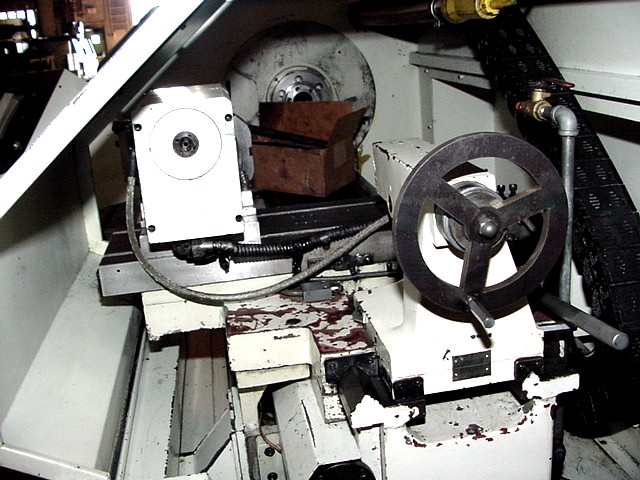

- MANUAL TAILSTOCK
- MANUALS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: EXCELLENT
