Reference Number: 143078
Price: On Request

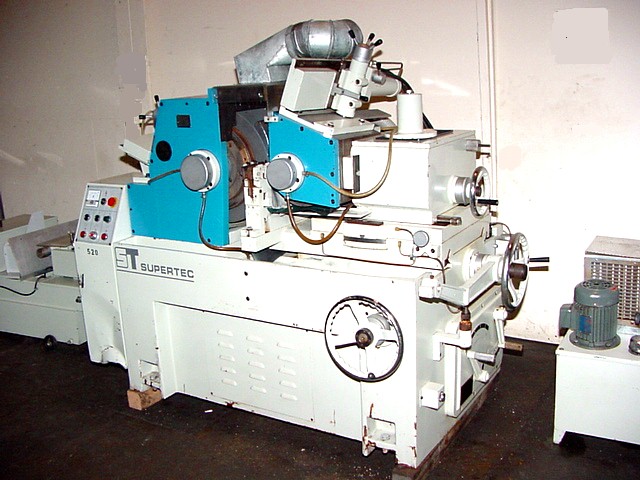

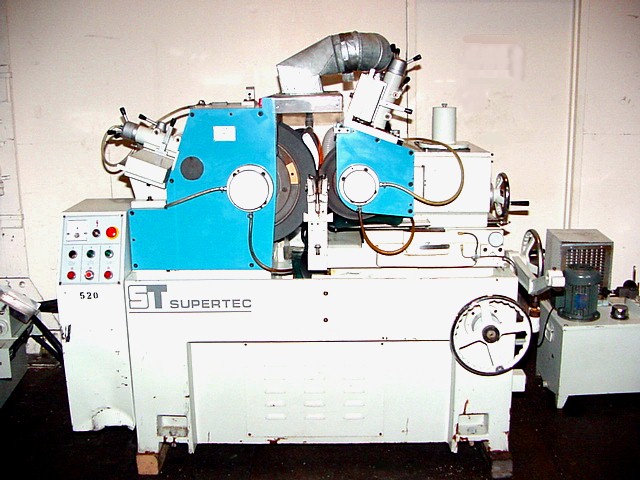

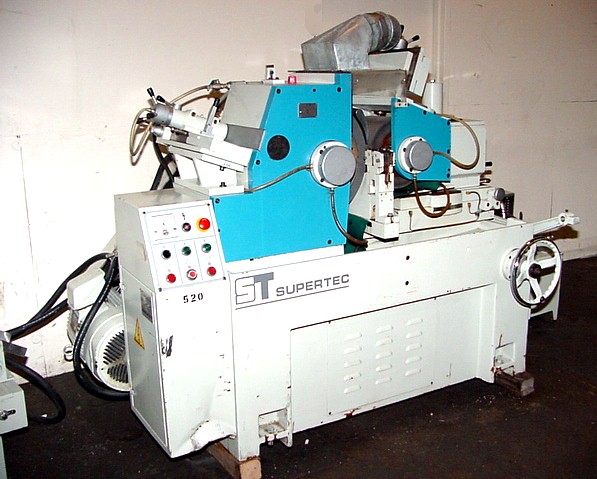

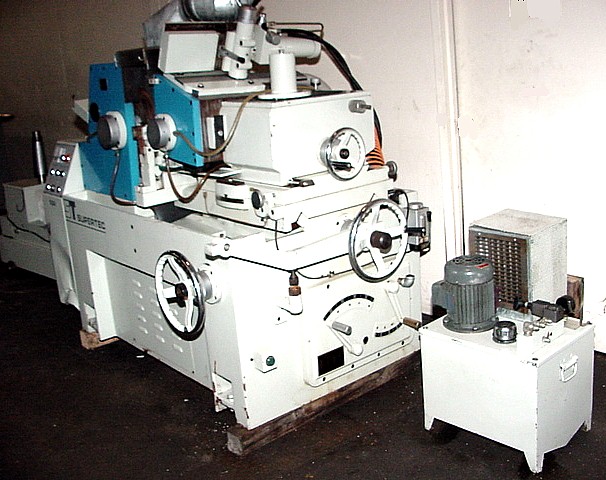

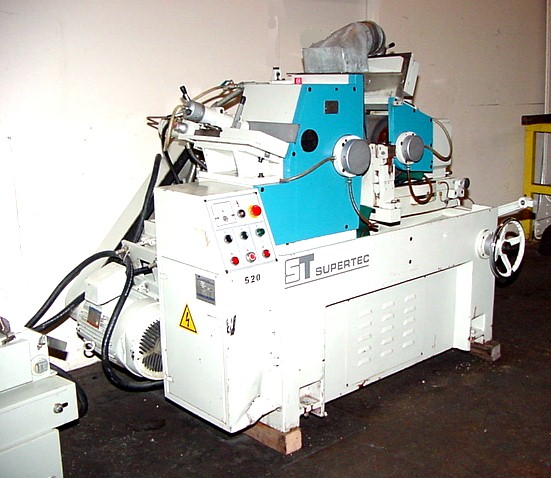

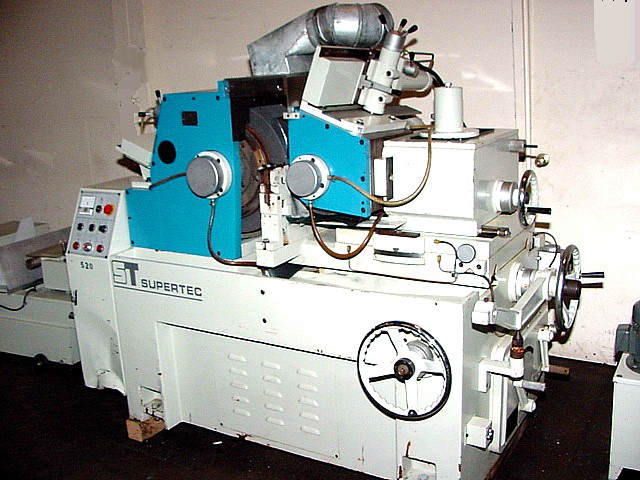

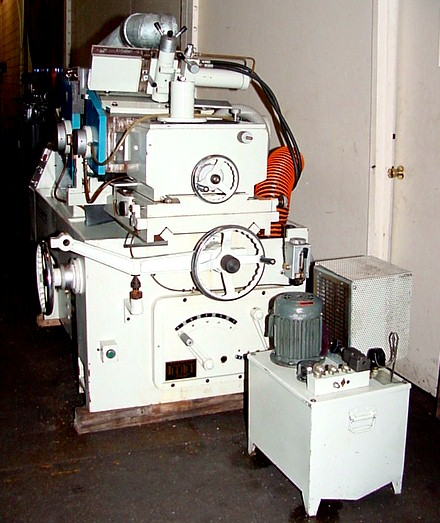

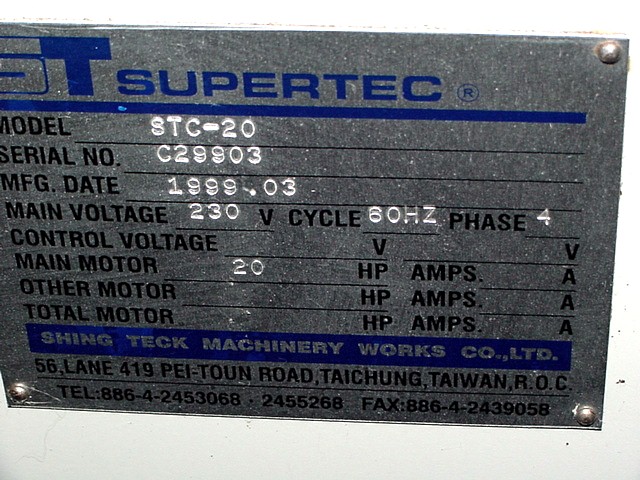

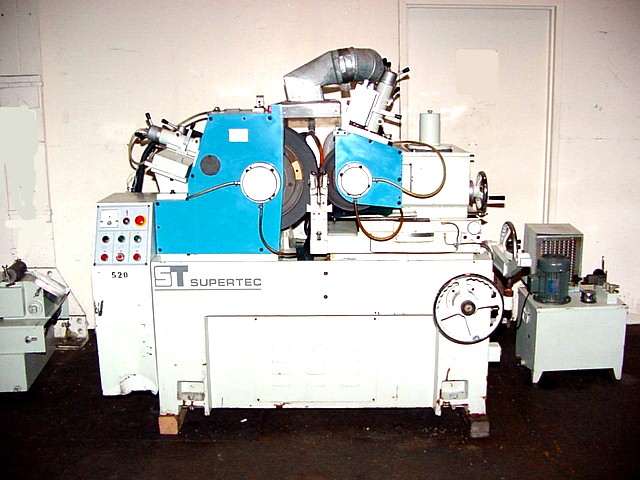

SUPERTEC CENTERLESS GRINDER
MODEL: STC-20 S/N: C-29903 NEW: 1999
GRINDING DIAMETER (STANDARD WORKREST)...... 0.04-2"
GRINDING DIAMETER (SPECIAL WORKREST)....... 2" TO 4"
GRINDING WHEEL
DIAMETER X WIDTH X BORE.................... 20 X 8 X 12"
SPINDLE SPEED.............................. 1070 RPM
DRESSING INCREMENT, PER GRADUATION......... 0.0005"
DRESSING INCREMENT, PER REVOLUTION......... 0.0625"

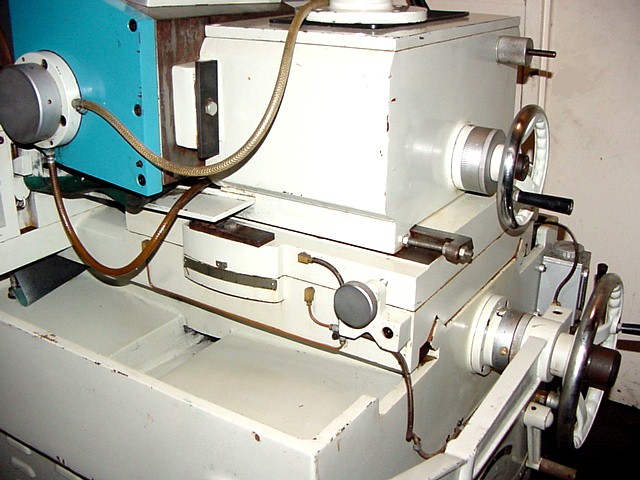

REGULATING WHEEL
DIAMETER X WIDTH X BORE.................... 12 X 8 X 5"

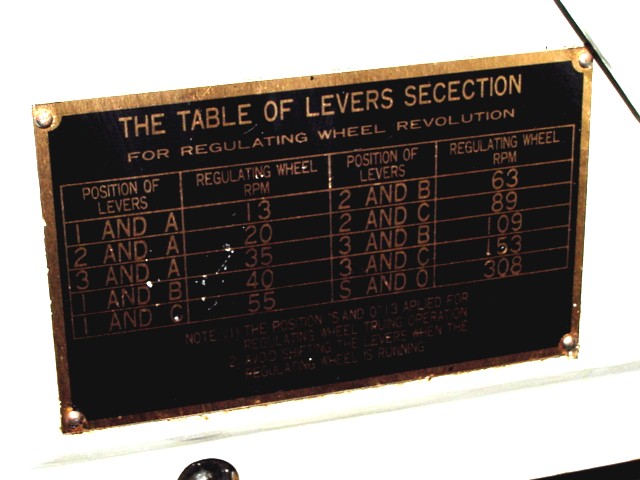

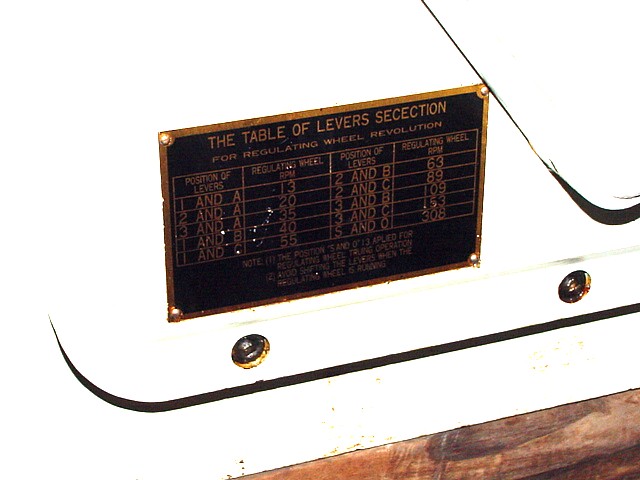

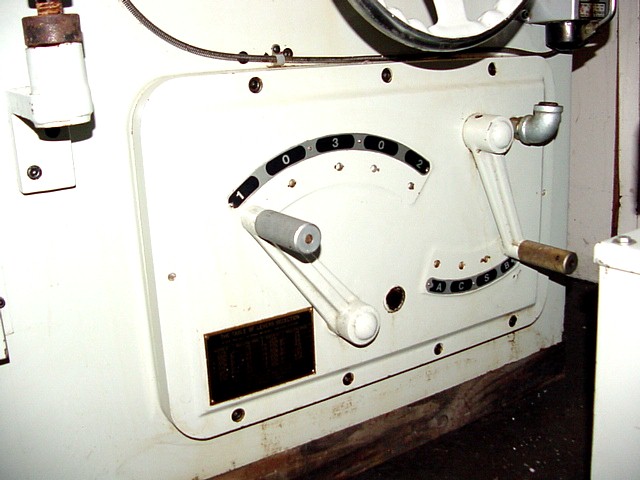

SPINDLE SPEEDS (10 STEPS).................. 13 - 308 RPM

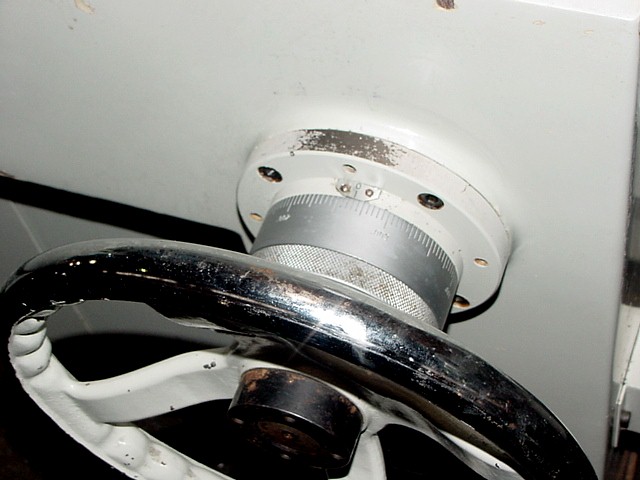

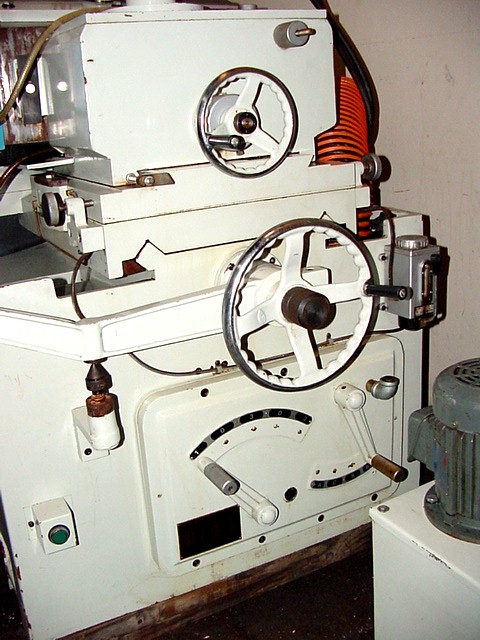

FEED OF HANDWHEEL PER GRADUATION........... 0.002"
FEED OF HANDWHEEL, PER REVOLUTION.......... 0.2"

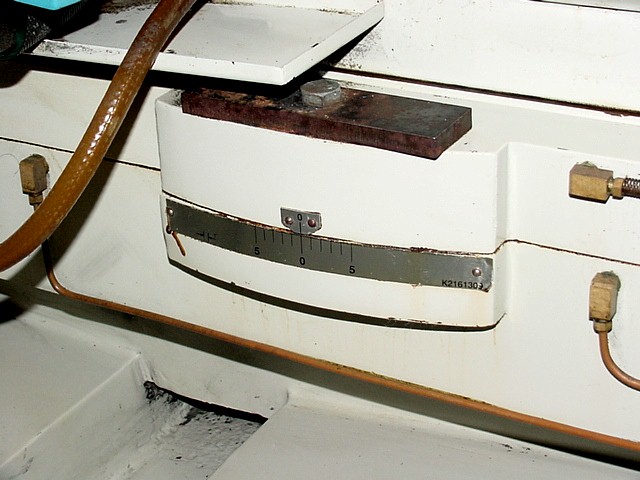

SWIVELLING ANGLE........................... +/- 5 DEG.
INCLINING ANGLE............................ +/- 5 DEG.
DRESSING INCREMENT PER GRADUATION ......... 0.00005"
DRESSING INCREMENT PER REVOLUTION.......... 0.0625

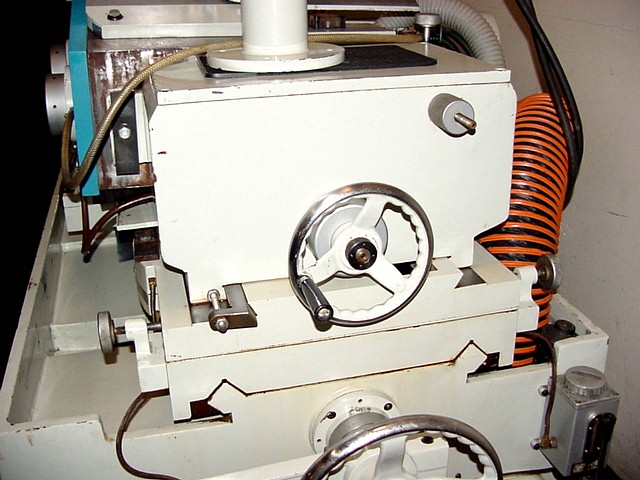

RAPID FEED OF SADDLE HANDWHEEL,
PER GRADUATION............................ 0.0002"
PER REVOLUTION............................ 0.25"
MICRO FEED OF SADDLE HANDWHEEL,
PER GRADUATION............................ 0.00005"
MICRO FEED OF SADDLE HANDWHEEL,
PER REVOLUTION............................ 0.00625"

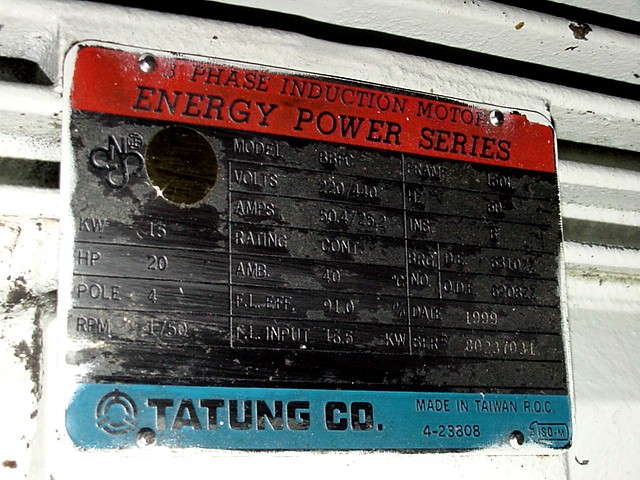

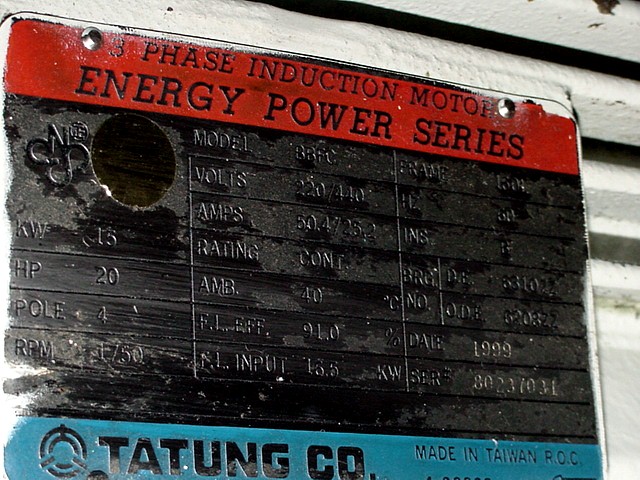

GRINDING WHEEL MOTOR....................... 20 HP

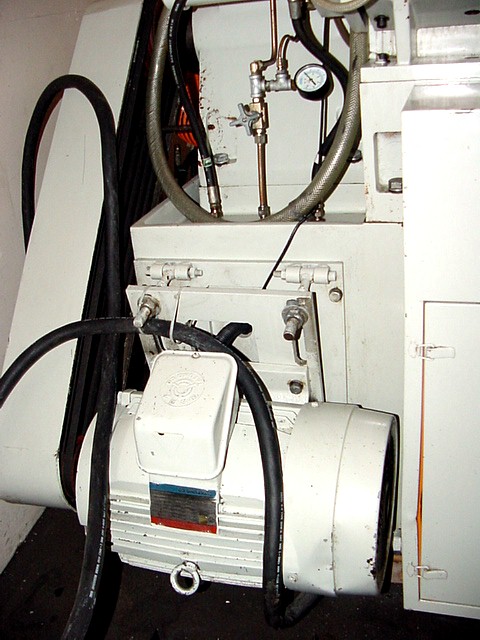

HYDRAULIC MOTOR............................ 2 HP
FLOOR SPACE................................ 77" X 71" X 59"
WEIGHT..................................... 7000 LBS
EQUIPPED WITH:

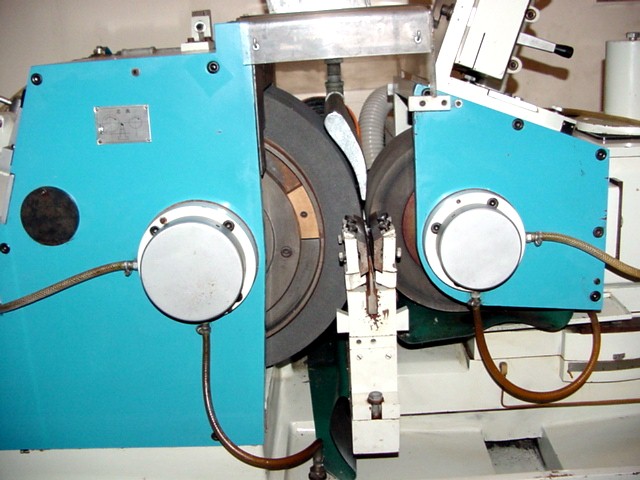

HYDROSTATIC BEARINGS FOR BOTH GRINDING WHEEL & REGULATING
WHEELS
REGULATING WHEEL CAN BE SWIVELLED & INCLINED +/- 5 DEGREES
TURCITE ON REGULATING WHEEL WAYS

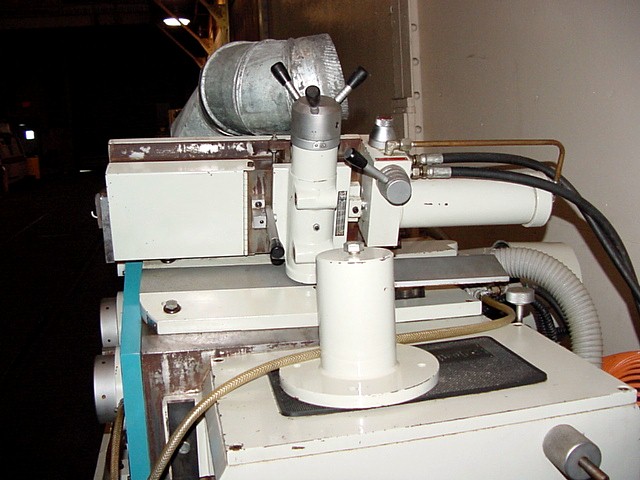

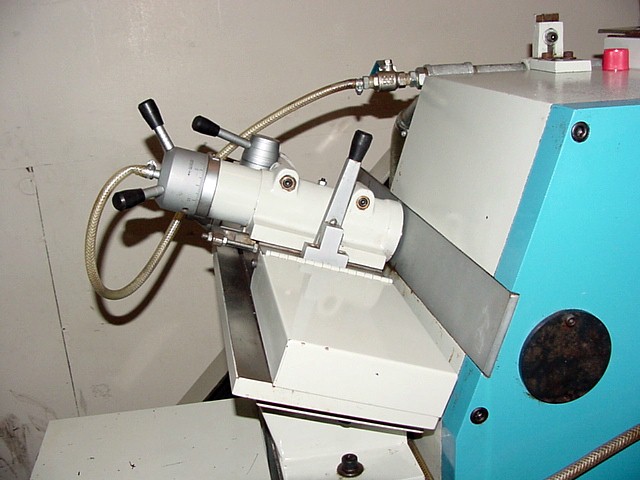

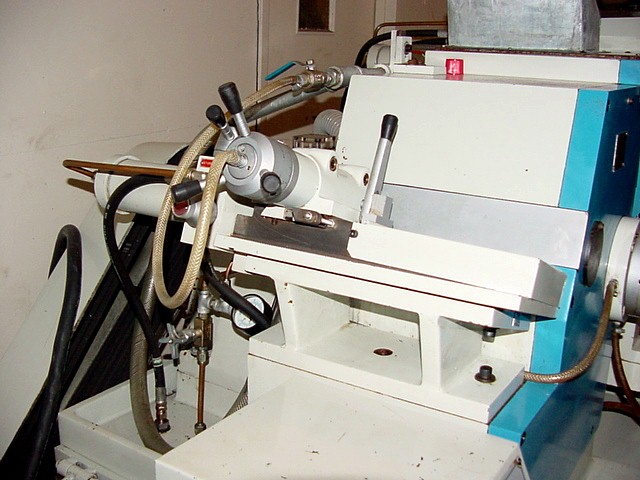

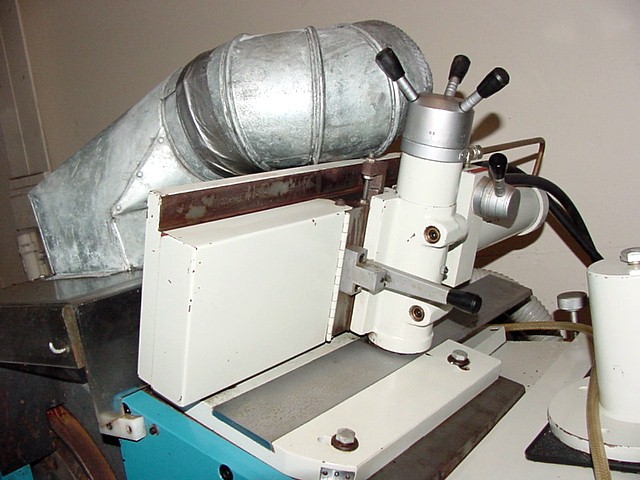

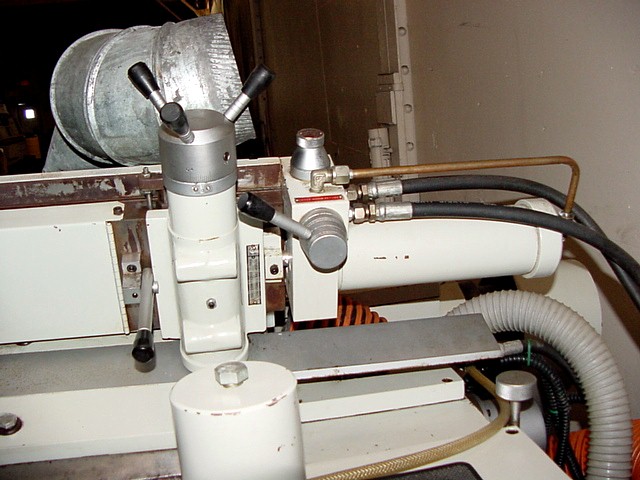

HYDRAULIC DRESSERS WITH +/- 3 DEGREES SWIVEL ADJUSTMENT

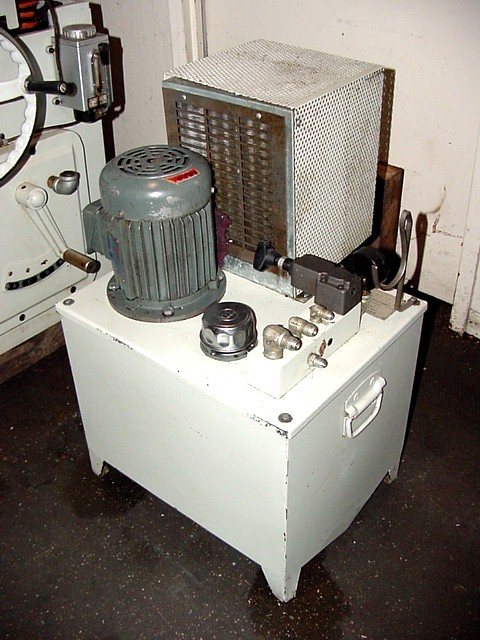

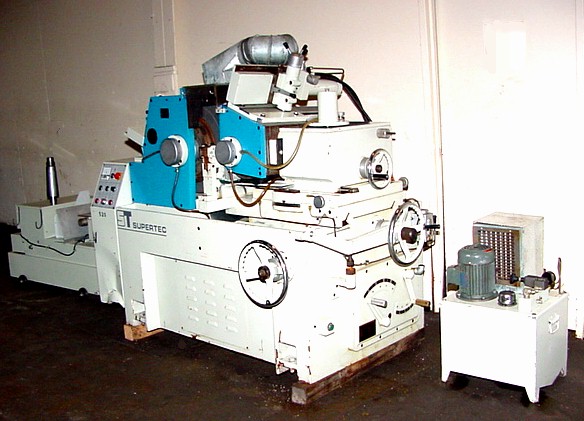

EXTERNAL HYDRAULIC SYSTEM

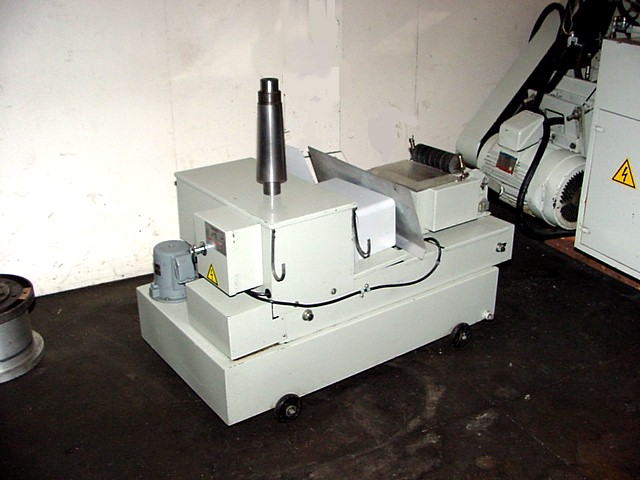

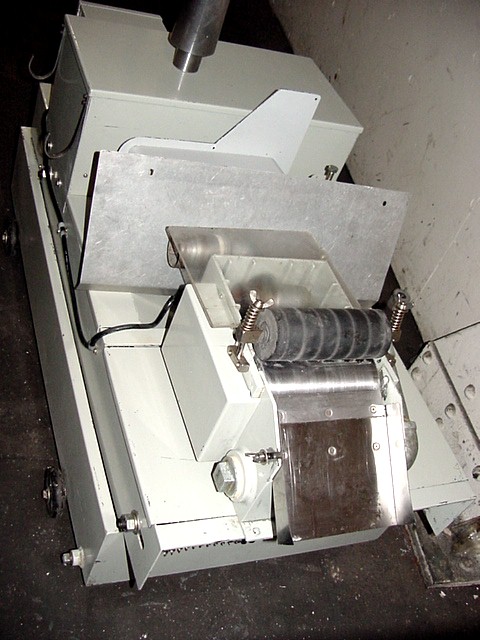

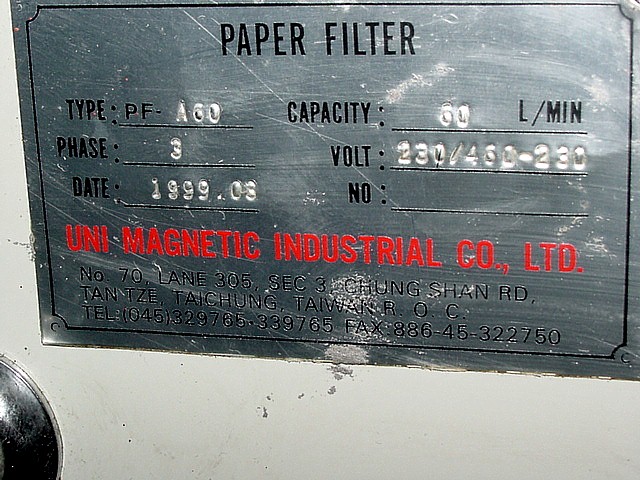

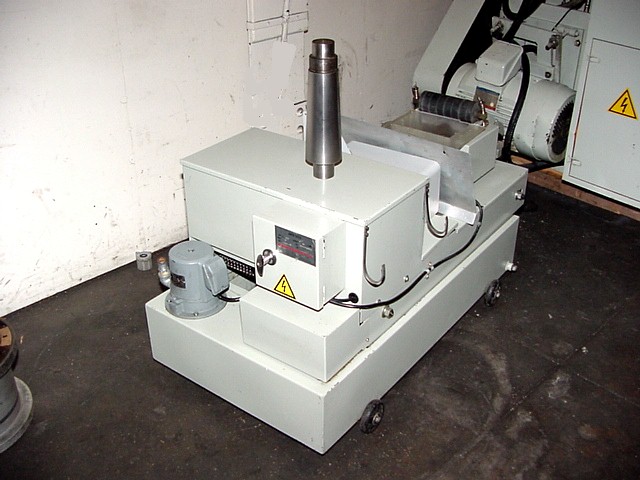

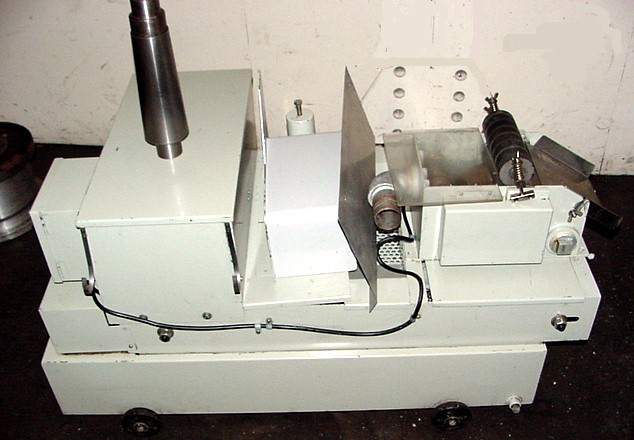

COOLANT SYSTEM w/PAPER FILTRATION

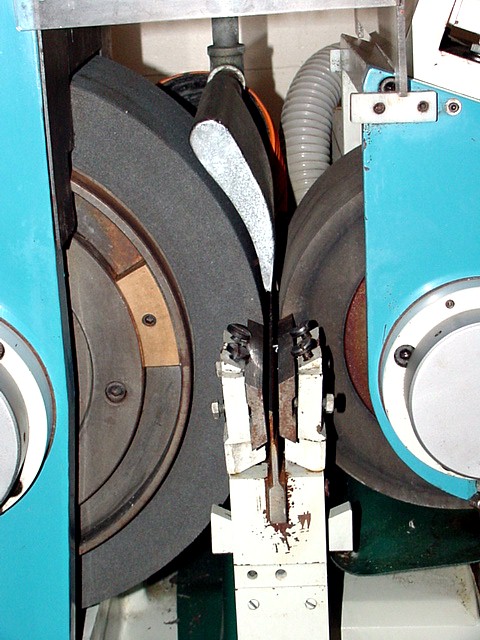

WORK REST w/BLADES
3/60/230-460 VOLT MOTORS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERB CONDITION & APPEARANCE **
