Reference Number: 143092

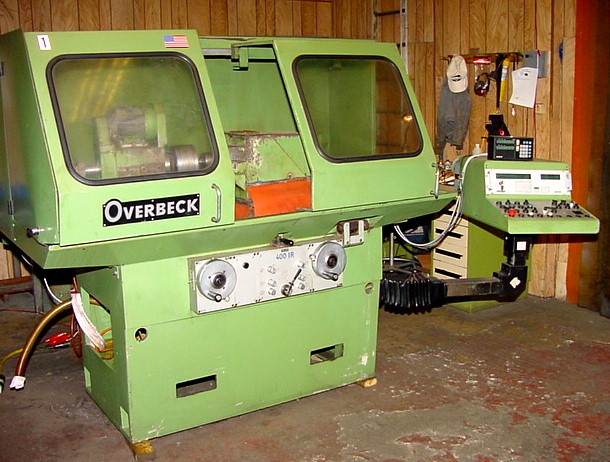

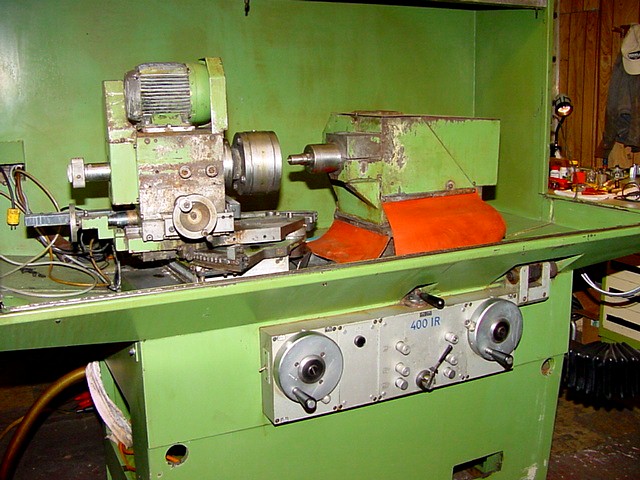

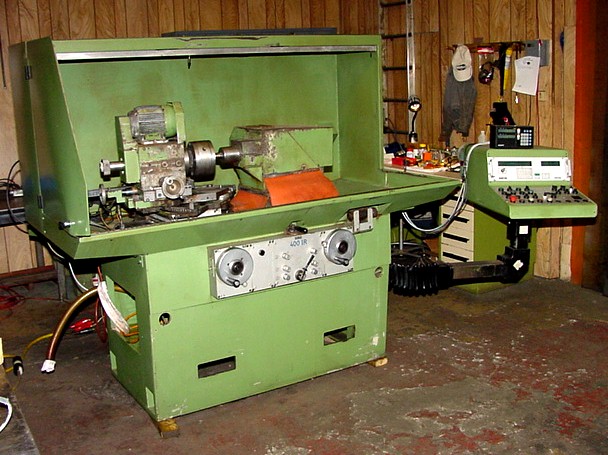

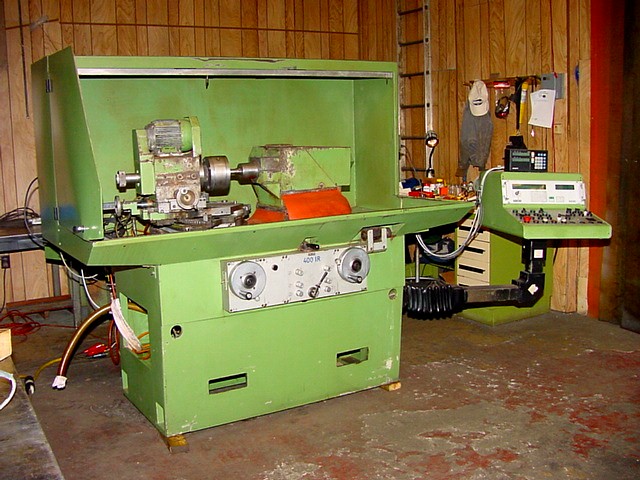

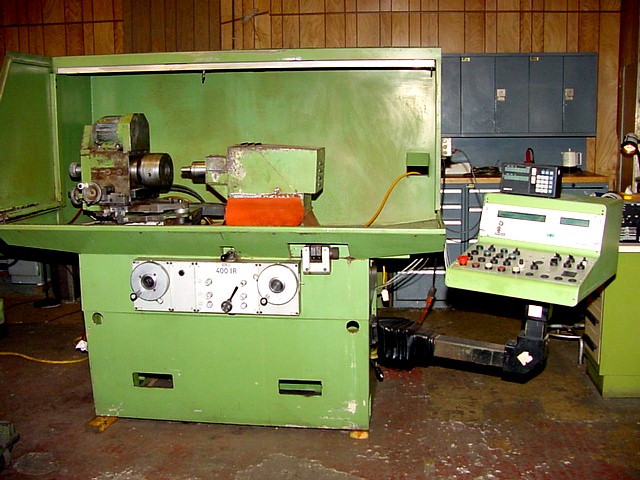

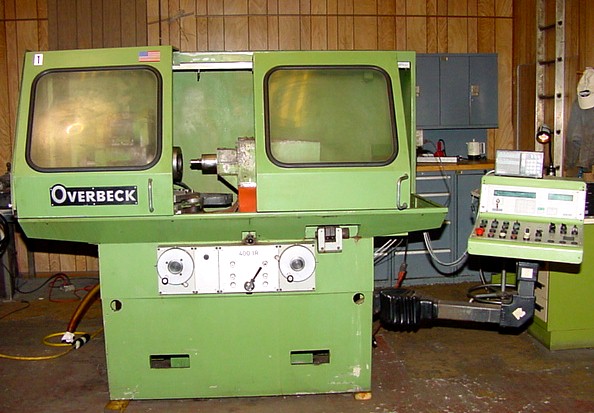

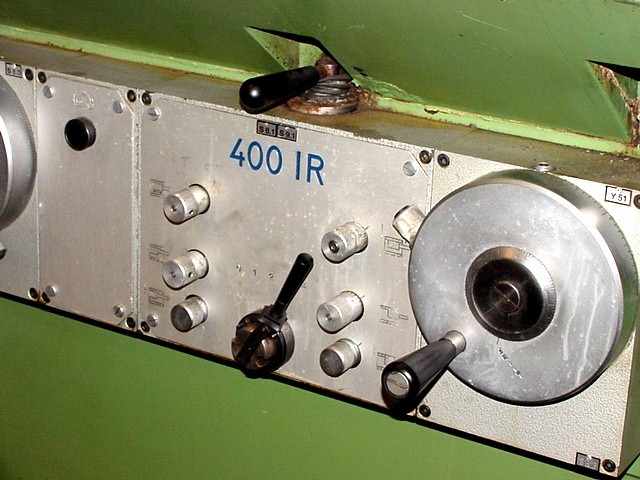

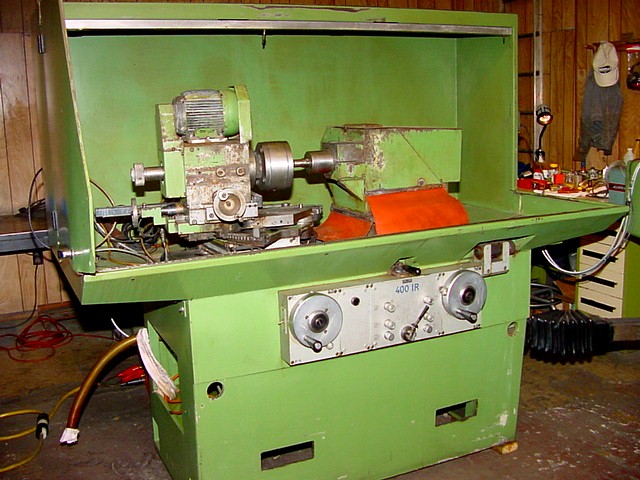

Price: On RequestOVERBECK MODEL 400 IR CNC
I.D. PRECISION GRINDER (NEW 1991)
GENERAL SPECIFICATIONS:
MAX. CLAMPING DIAM. OF WORK:....................... 7.87"
MAX. CLAMPING LENGTH OF WORK:................. 9.84"
GRINDABLE BORE LENGTH:................................ 6.30"
MAX. GRINDABLE BORE DIAMETER:................. 5.51"
HEIGHT OF CENTERS:............................................ 5.51"
MAX. WEIGHT OF WORK:...................................... 44 LBS
GRINDING SPINDLE SPEED RANGE:................. 6,000 - 30,000 RPM
WORK SPINDLE SPEED RANGE
(INF. VARIABLE):....................................................... 28 - 250 RPM
WORKHEAD SWIVELLING RANGE:.................... -10º to +90º
WORK SPINDLE FLANGE:...................................... 3.15"
WORK SPINDLE OUTLET:...................................... 1.38"
TABLE MOTION, HYDRAULIC:............................... 0 - 6 m/min
STEP BY STEP FEED OF SPINDLE:..................... 0,001 - 0,02 mm
MAIN MOTOR:............................................................. 7 HP
DIMENSIONS, APPROX.:........................... 97"L x 60"W x 70"H
EQUIPPED WITH:

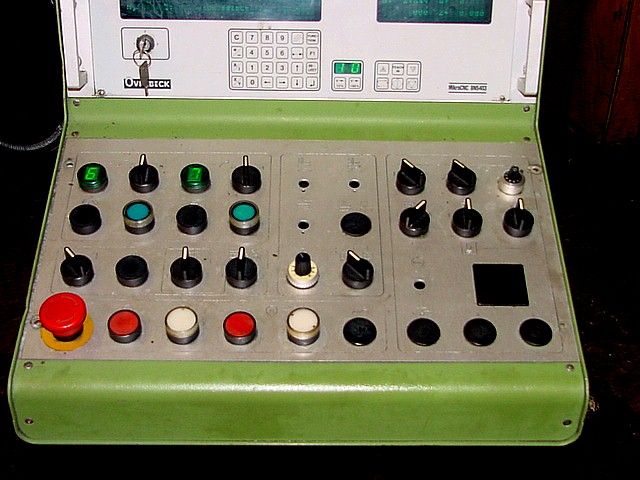

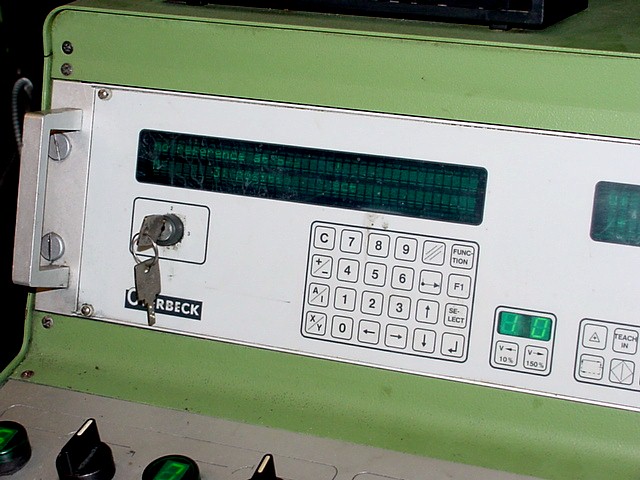

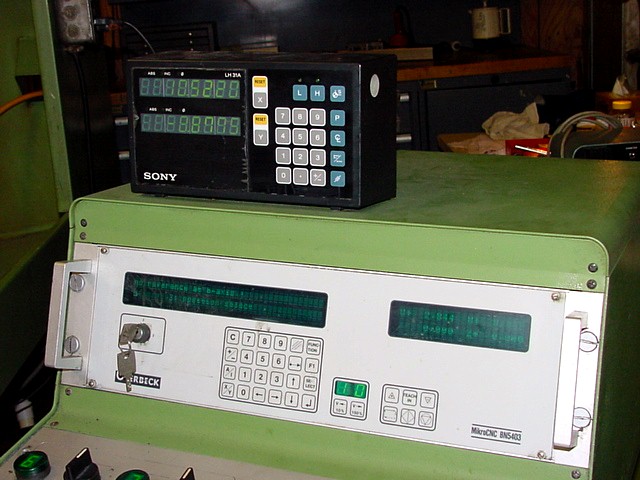

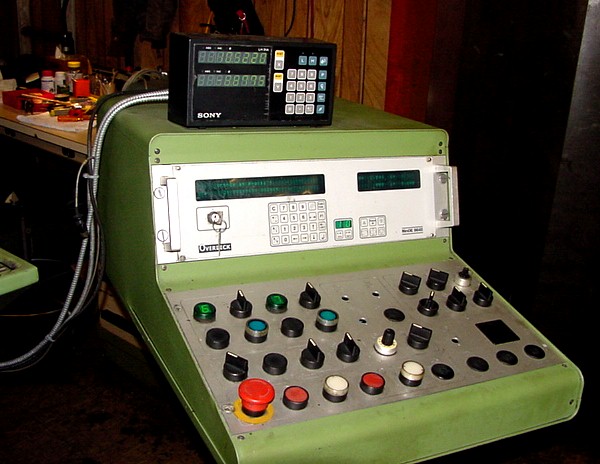

OVERBECK MICRO CNC CONTROL
PROGRAMMABLE RADIUS & I.D. & O.D. OF PART

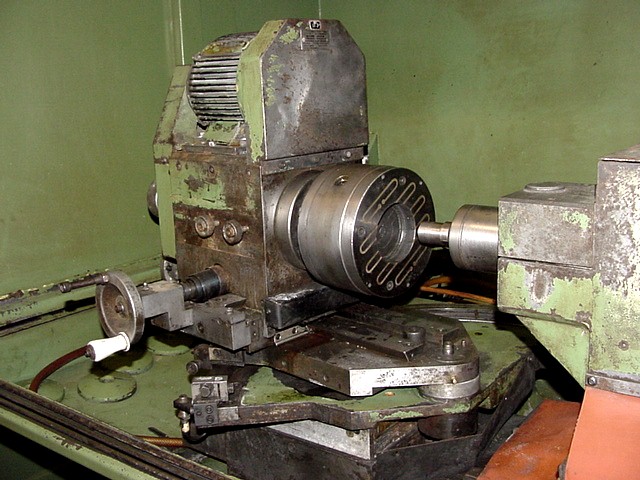

6.5" MAGNETIC CHUCK
COOLANT SYSTEM
HYDRAULIC SYSTEM
FULL ENCLOSURE W/WORK LAMP
ALL AVAILABLE MANUALS

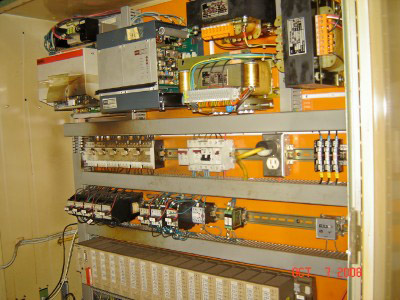

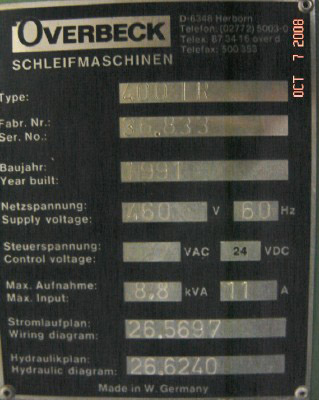

3/60/460V ELECTRICS, 8.8 KVA, 11 AMPS
** EXCELLENT CONDITION & APPEARANCE **
** OUR HARRISON, NJ WAREHOUSE **
