Chevalier FSG-1640ADIII, 2015, AUTO IDF, 3X AUTO FEEDS, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-1640ADIII, 2015, AUTO IDF, 3X AUTO FEEDS,

Year:: 2013

Ref #:: 179308

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

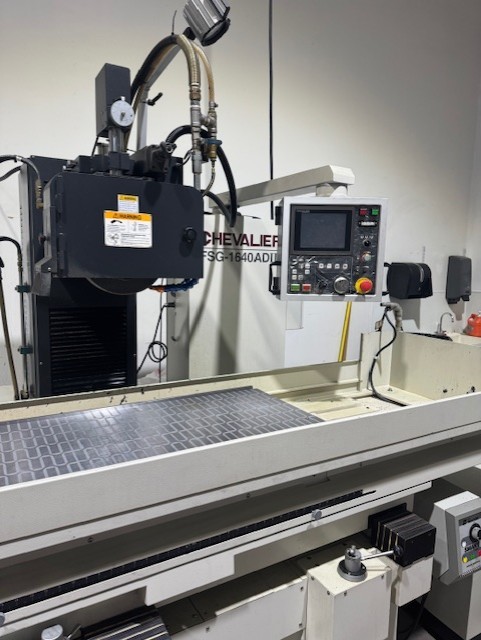

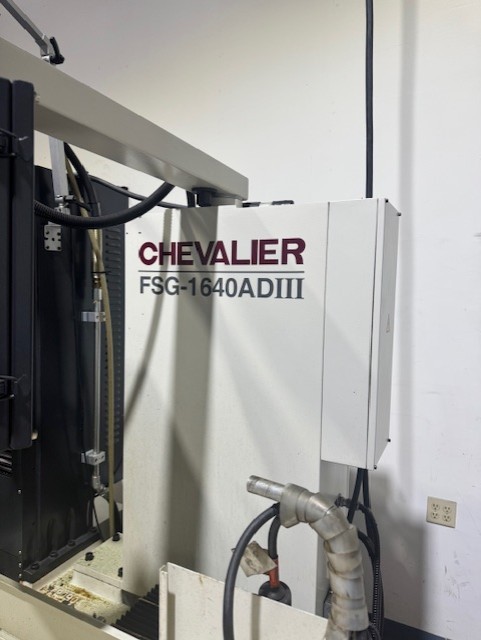

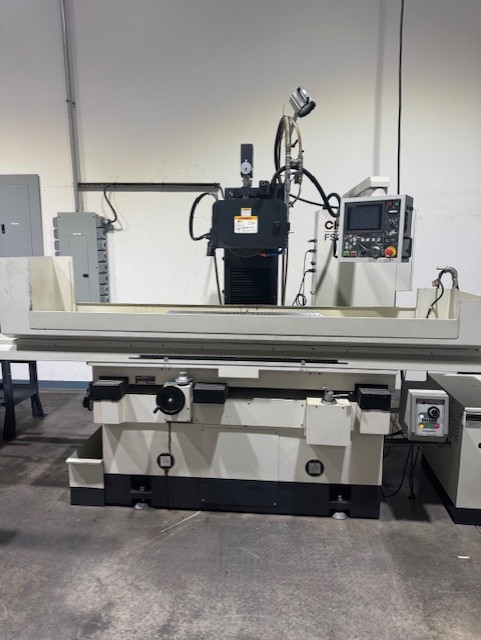

   16" X 40" CHEVALIER PRECISION 3-AXIS
     AUTOMATIC FEEDS SURFACE GRINDER
 WITH PROGRAMMABLE AUTO INCREMENTAL DOWNFEED,
 AC SERVO CONTROL FOR ELEVATING & CROSS AXES,
         PENDANT MOUNTED CONTROL

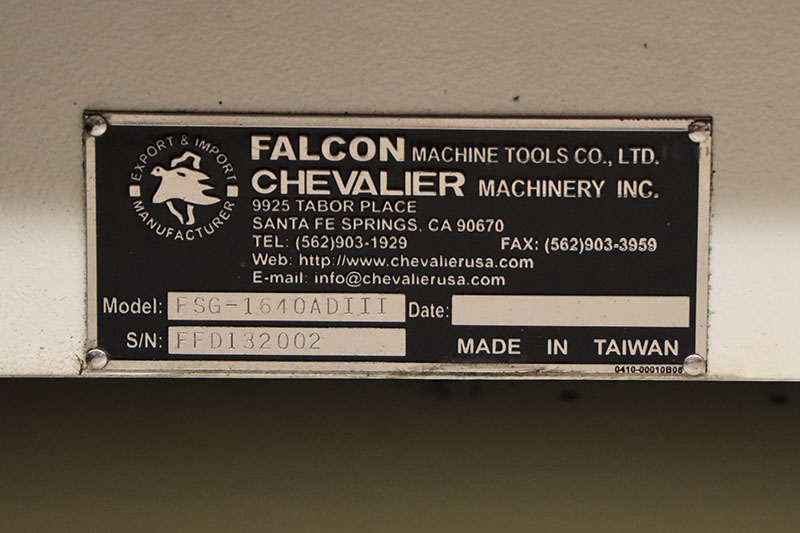

MODEL: FSG-1640ADIII    S/N: FFD183002

               NEW: 2013

TABLE SIZE........................... 15- 3/4" x 39- 3/8"
MAX. GRINDING CAPACITY .............. 16" x 40"
MAX. LONGITUDINAL TABLE TRAVEL,
 HYDRAULIC .......................... 41- 5/16"
MAX. LONGITUDINAL TABLE TRAVEL,
 MANUAL ............................. 43 -1/4"

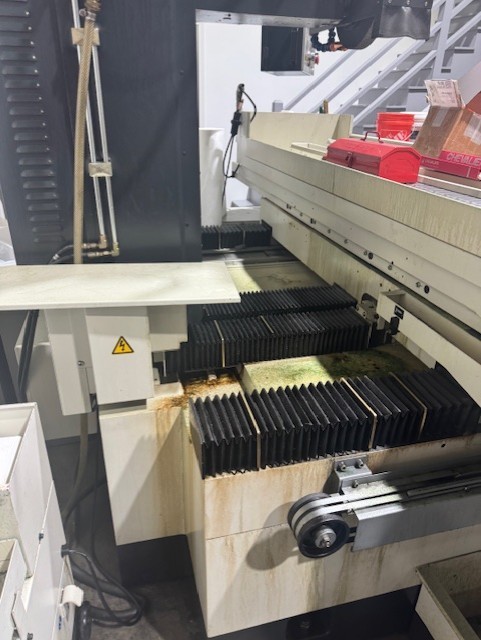

MAX. CROSSFEED TRAVEL, AUTOM......... 16"
MAX. CROSSFEED TRAVEL, MANUAL ....... 18"
DIST. FROM SPINDLE CENTER TO T....... 24"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT........ 1/8" TO 2"
RAPID CROSSFEED SPEED ............... 12" IPM
CROSSFEED HANDWHEEL, PER GRADUAT..... 0.0025"
PER REVOLUTION ...................... 0.25"
MICROFEED, PER REVOLUTION ........... 0.0005"
           PER GRADUATION ........... 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.00005" TO 0.002"
RAPID TRAVERSE RATE ................. 25" IPM
SPINDLE MOTOR ....................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B

APPROX. WEIGHT ...................... 7,920 LBS
APPROX. DIMENSIONS .................. 126" x 81" x 91"H

EQUIPPED WITH:

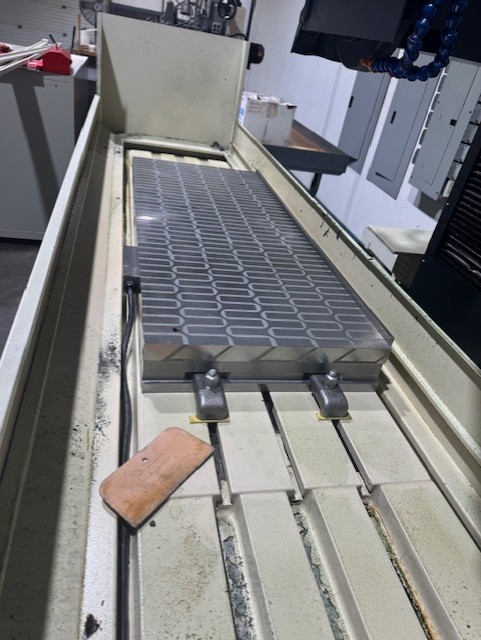

15.7" X 39.4" "O.S. WALKER" "INTERLOC" HIGH PERFORMANCE,
  LOW PROFILE, ELECTRO-MAGNETIC CHUCK.
  THIS CHUCK HAS SUPERIOR HOLDING POWER, AND DOES NOT
  IMPART HEAT ONTO THE PART, WHICH FACILITATES
  GREATER GRINDING ACCURACY COMPARED
  TO OTHER ELECTRO-MAGNETIC CHUCKS.

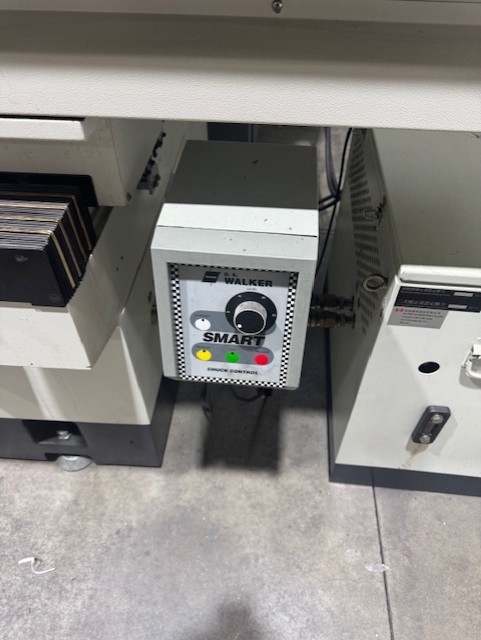

"O.S. WALKER" "SMART SERIES" VARIABLE HOLD
  NEUTROFIER CONTROL
POWER "OVER-THE-WHEEL" DRESSER

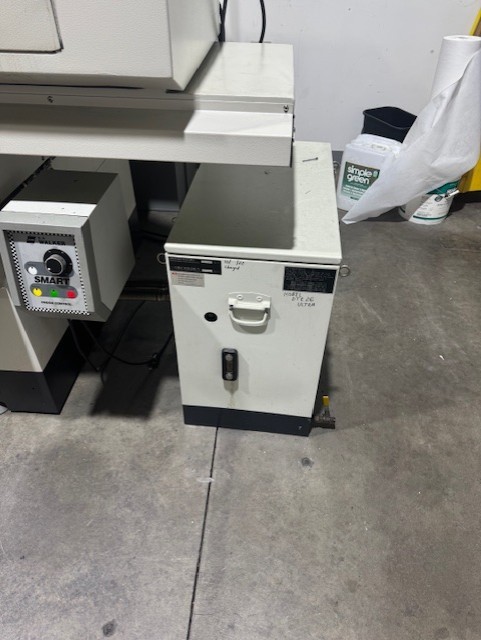

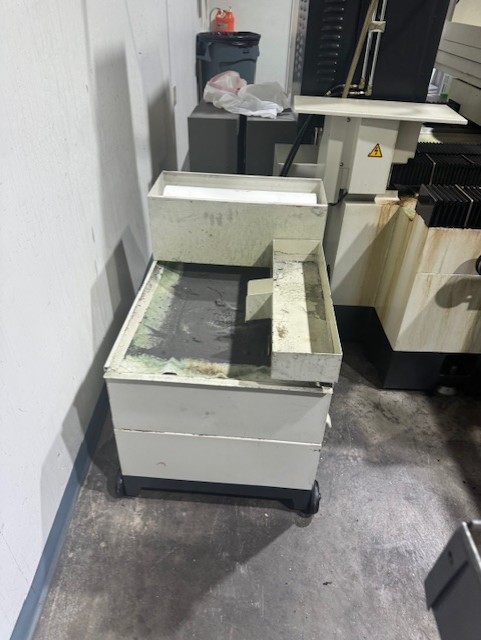

COOLANT SYSTEM WITH PAPER FILTRATION
3/60/208-230-460 VOLT ELECTRICS
MACHINE IS WIRED PRESENTLY FOR 3/60/230 VOLTS

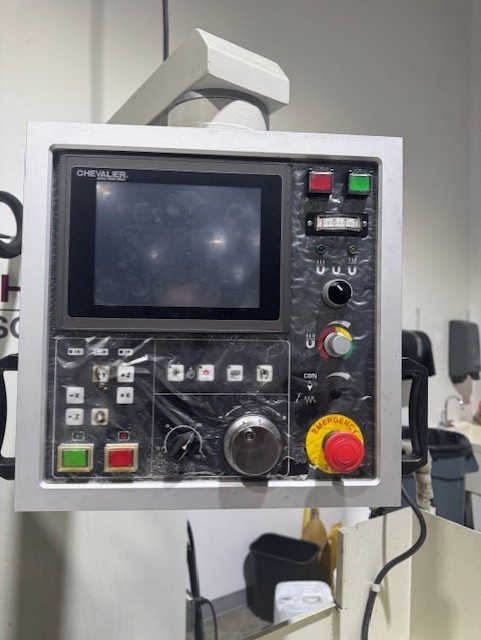

PLC touch screen 3 axes fully automatic
  surface & plunge grinding system:
"New" 8" TFT high resolution 65536 color control
  to ensure ease of operation.
Rough increment, finish increment, spark out (0-9 times),
  and automatic wheelhead retract can be preset in
  grinding cycle to reduce cycle time.
Cycle interrupt, flip over for part inspection
  and final dimensions set up.
Precision roller bearings on all three axes.
Heavy duty spindle with 2 sets (4) of class 7
  super precision angular contact ball bearings.
Hardened & ground elevating leadscrews
Crossfeed ballscrew
Hardened & ground guideways for durability
Quick table & crossfeed stroke adjusting device
Wheelhead will rise up to end, start and reference
  position and table parks
  at left or right side after cycle is completed.
MPG (manual pulse generator)
To achieve better accuracy, the number of free passes
  between downfeeds can be preset depending on work
  piece material.
I/O diagnosis & alarm display.
AC Servo Control for elevating/cross



CHEVALIER FSG-1640ADIII BROCHURE:
https://www.heinmanmachinery.com/image/pdf/Chevalier%20FSG-1224%201632%201640ADIII%20(201806).pdf

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** 2013 MACHINE - SUPERB LATE MODEL MACHINE TOOL **
