Acer Dynamic 2980G NEW LATHES

Price on Request

Make:: Acer

Model:: Dynamic 2980G

Year:: NEW

Ref #:: 161106

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

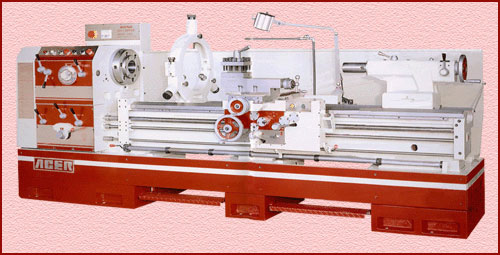

NEW ACER HIGH PRECISION ENGINE LATHE
MODEL: DYANMIC 2980G

FEATURES:
SPINDLE MOTOR: 15HP Single Speed/220V/3Phase/60Hz
12 Spindle Speeds: 25- 1,200 rpm
Headstock with Magnetic Clutch & Electreic Brake
Hardened and Ground Gears and Spindle
Hardened and Ground Meehanite Casting Bed Way

STANDARD ACCESSORIES:
20" D1-11 Four Jaw Chuck
20" Face plate
Micrometer Stop
Bearing Type Steady Rest
(Long Tip: 3.1" - 9.5")
(Short Tip: 7.8" - 14.5")
Built-In Coolant System
Chuck Guard with Safety Switch
4-Way Tool Post
Longitudinal Carriage Stop
Halogen Work Light
Toolbox with Tools

SPECIFICATIONS:

Center Height: 14-3/4"
Swing over bed: 29-1/8"
Swing over Cross slide: 20-1/2"
Distance between centers: 80"
Spindle nose: ASA1-11 or D1-11
Spindle bore diameter: 4-1/8"
Type of spindle nose: 108 x 1:12
Taper of center: MT.#5
Spindle speeds: 25~1200rpm (12 steps)
Cross slide travel: 18-1/4
Compound rest travel: 9"
Max size cutting tool: 1" x 1"
Spindle diameter: 3-1/32"
Spindle travel: 7"
Taper of center: MT.#5
Bed length: 122"
Bed width: 16-1/2"
Width of gap: 20-1/4"
Pitch of leadscrew: 1-1/2"Ø, 4 TPI
Metric pitch threads: 2~56 TPI (45 kinds)
Module pitch threads: 0.25~7 M.P. (23 kinds)
Diametral pitch threads: 4~112 D.P. (43 kinds)
Main drive motor: 15 HP
Coolant pump motor: 1/8 HP
Floor dimensions: 129"x50"
Net weight: 7680 lbs.
Gross weight: 9190 lbs
Packing dimensions: 144.5"x50"x74"

OPTINAL ACCESSORIES:
24" 4-Jaw Independent chuck (d1-11) w/ direct Mount
Follow Rest (0.4~3.4")
Face Plate (24")
Aloris tool Post with 4 Holder set (#5-BS)
Aloris tool Post with 6-Holder set (#5-Set)
Dorian tool Post with 4-Holder set (SD50DA-TS)
Micrometer Stop
Taper Turning Attachment
Newall 2-Axis D.R.O
Magnescale 2-Axis D.R.O.


 The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
