Agie MONDO 20, 1995, FUTURA II CNC, 40 AMPS CNC RAM TYPE EDM MACHINES

Price on Request

Make:: Agie

Model:: MONDO 20, 1995, FUTURA II CNC, 40 AMPS

Year:: 1995

Ref #:: 179342

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

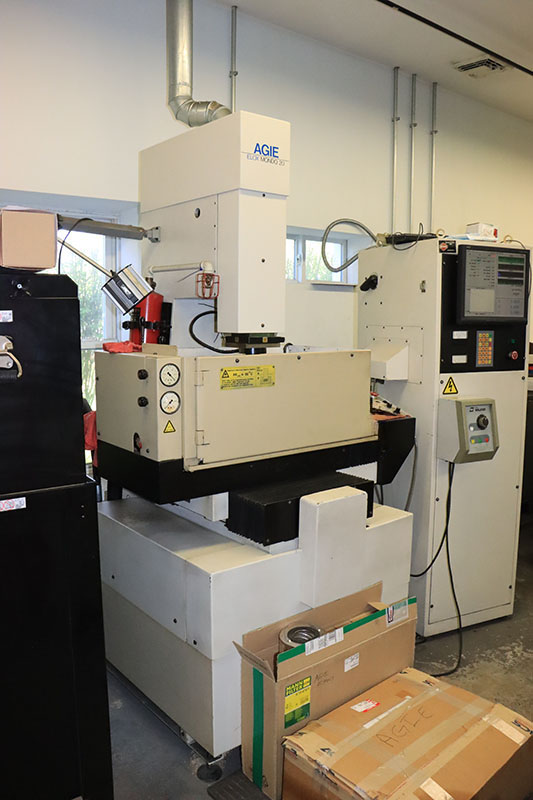

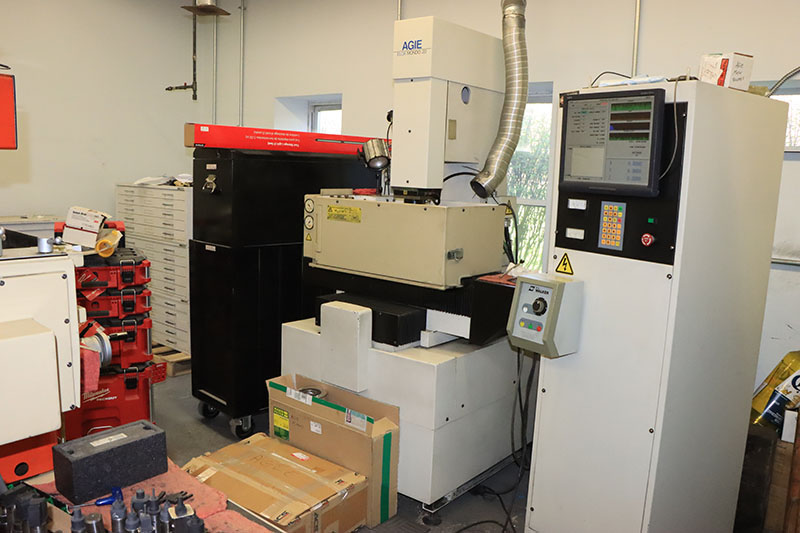

  AGIE MONDO 20 CNC RAM TYPE EDM
    ** MADE IN USA MACHINE **

S/N: 000001      NEW: 1995

TRAVELS:
X AXIS ......................... 11.8"
Y AXIS ......................... 9.8"
Z AXIS ......................... 9.8"
WORKTANK INNER DIMENSINS ....... 25" x 17" x 10.6"
WORK TABLE ..................... 15.7 x 11.8"
THROAT CLEARANCE ............... 14.3"
MAX. WORKPIECE WEIGHT .......... 440 LBS.
PLATEN TO TABLE CLEARANCE ...... 10.6" TO 20.4"
MAX. ELECTRODE WEIGHT .......... 55 LBS.

MINIMUM COMMAND UNIT ........... 0.00004"

DIELECTRIC FLUID RES. .......... 66 GALLONS

APPROX. DIMS (MACHINE) ......... 72" x 72" x 94"H
APPROX. DIMS. (AFII) ........... 36" x 46" x 85"H
APPROX. MACHINE WEIGHT ......... 3,000 LBS.

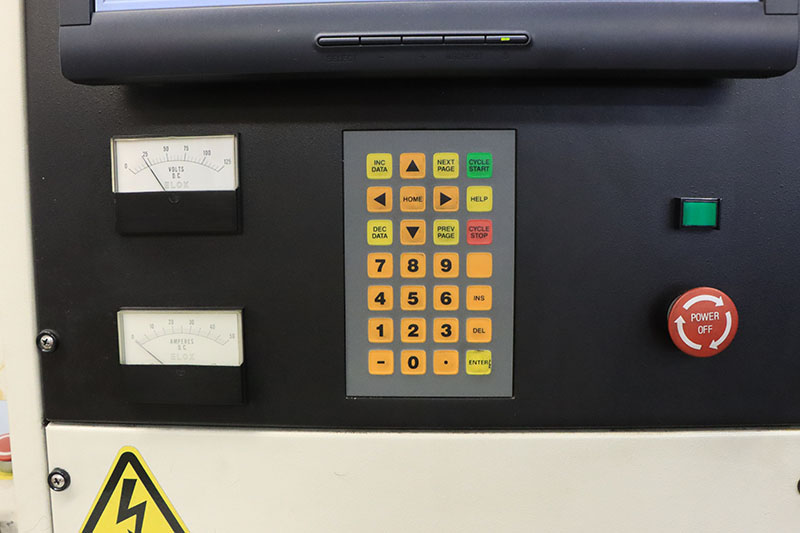

AGIE "FUTURA II" CNC CONTROL
 & POWER SUPPLY (40 AMP)
3-AXIS CNC (X, Y, Z)

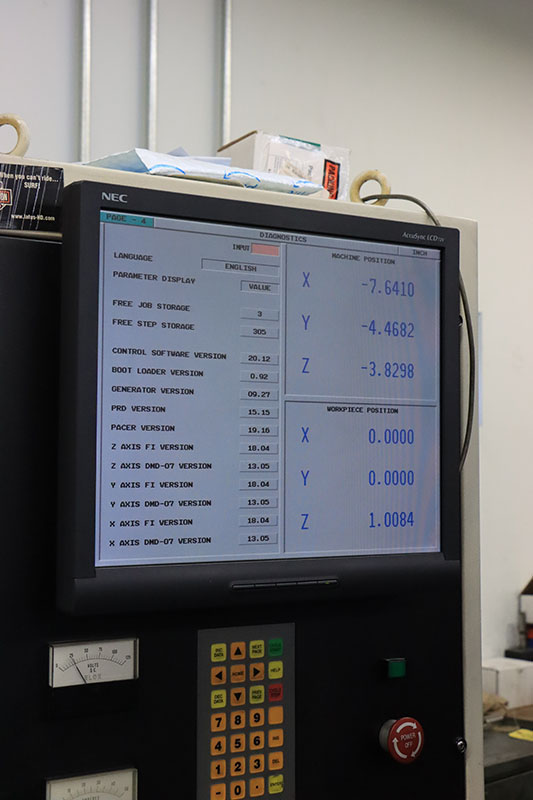

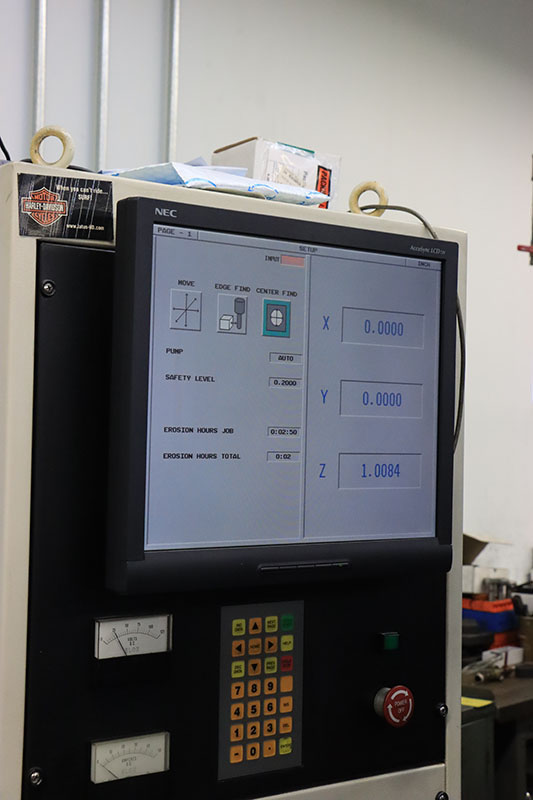

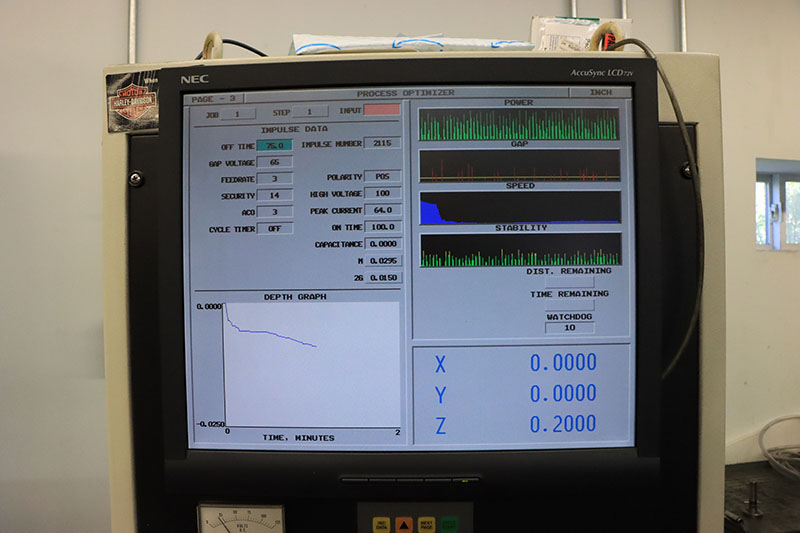

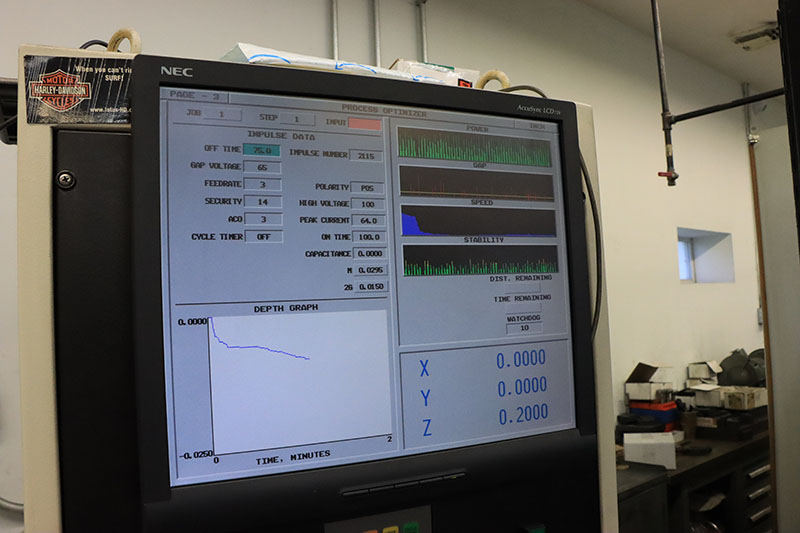

CRT DISPLAY REPLACED WITH COLOR FLAT PANEL DISPLAY
OS OPERATING SYSTEM
RS232C INTERFACE & FLOPPY DISC DRIVE

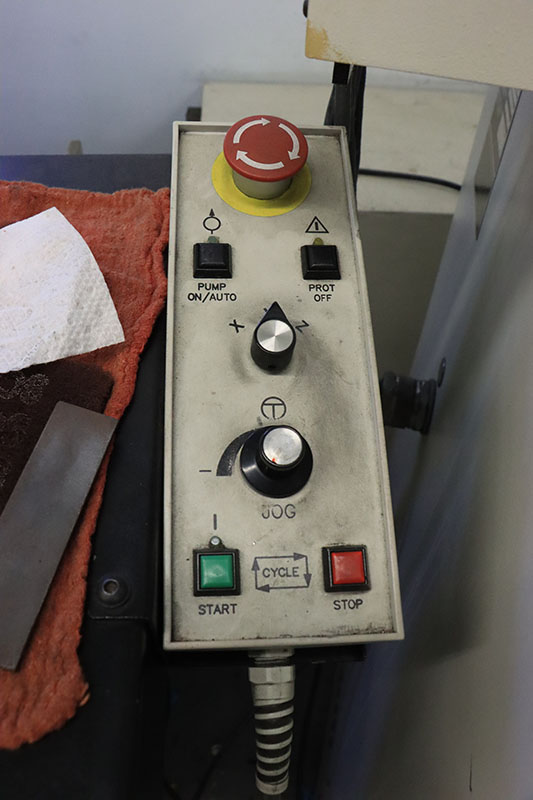

PENDANT CONTROL
WIRED PRESENTLY FOR 230 VOLTS,
  12 KVA, 15 FLA

EQUIPPED WITH:

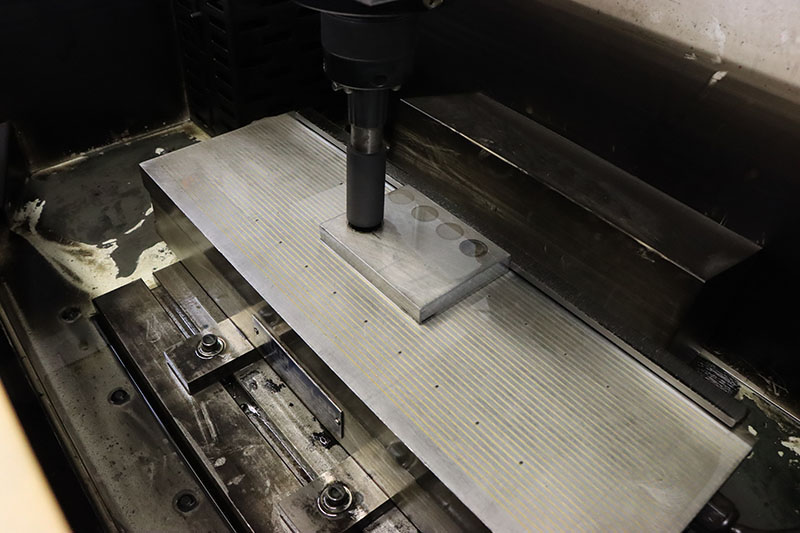

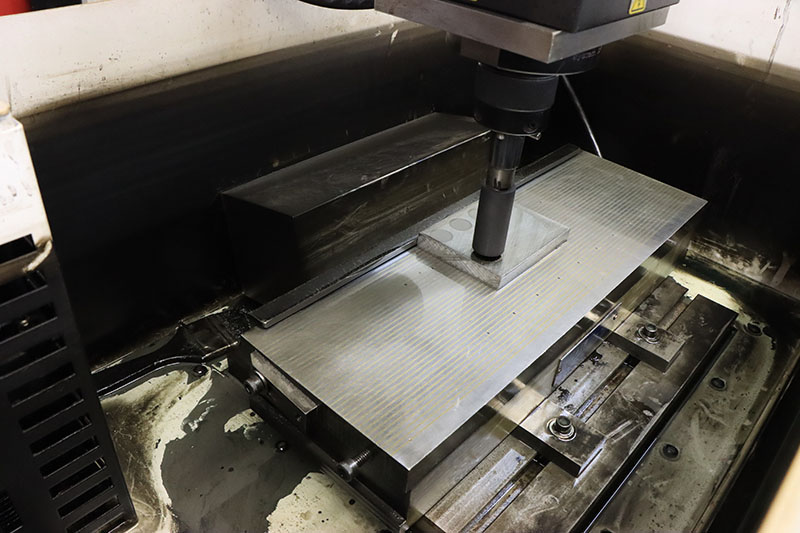

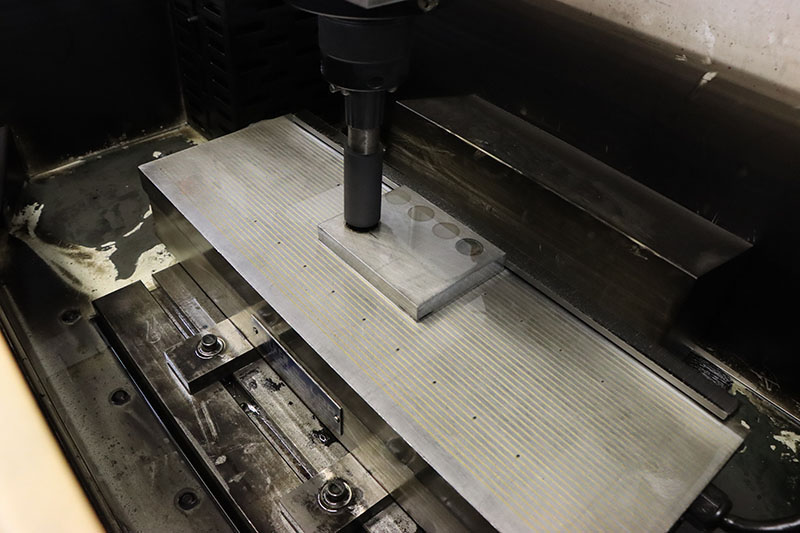

O.S. WALKER FINE-DIVISION "LBP" ELECTRO-MAGNETIC CHUCK

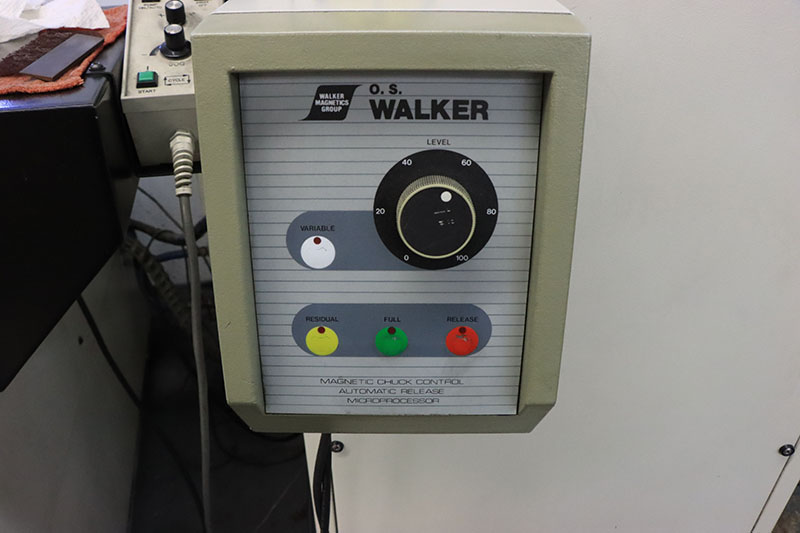

O.S. WALKER SMART SERIES VARIABLE HOLD NEUTROFIER CONTROL
CHUCK/WORKHOLDING UNIT, ON RAM
WORK LIGHT
FIRE EXTINGUISHER


** LOCATION: HARRISON, N.J. **
** ONE OWNER MACHINE - BEAUTIFUL **
** EXCEPTIONAL CONDITION & APPEARANCE **
