Alliant 42VC VERTICAL MILLS - VERTICAL MILLING MACHINES

$4,950

Make:: Alliant

Model:: 42VC

Year:: 2003

Ref #:: 178362

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

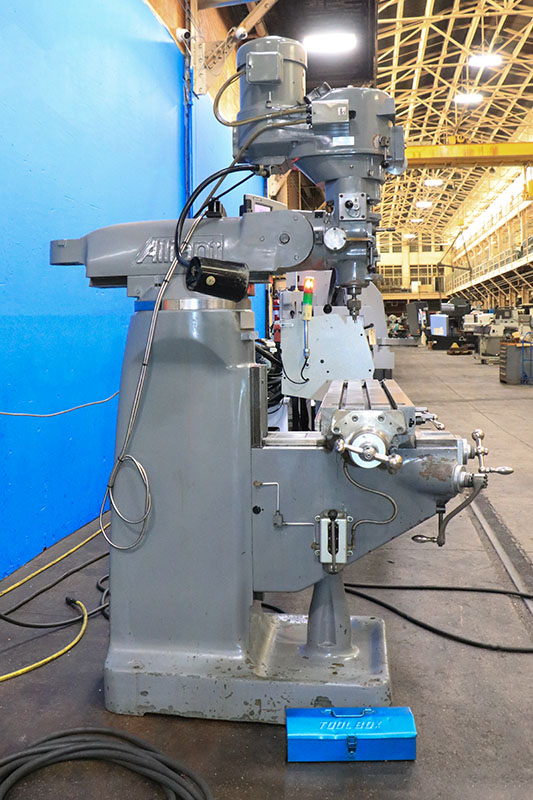

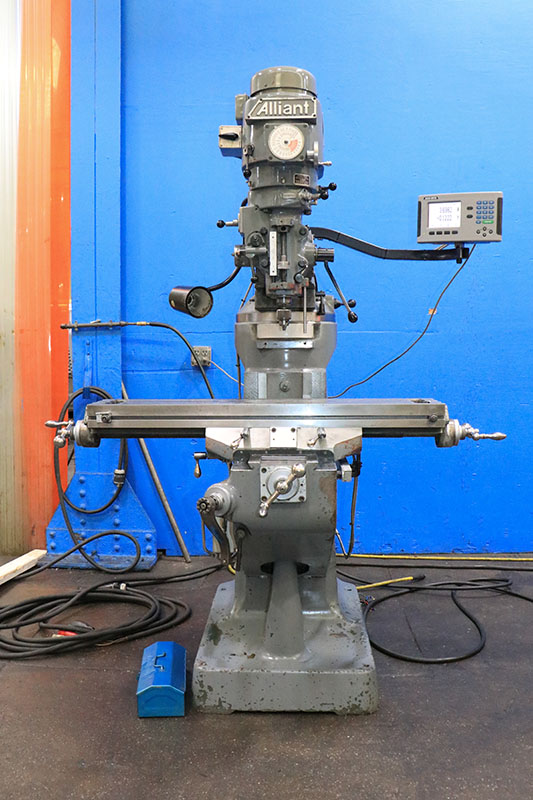

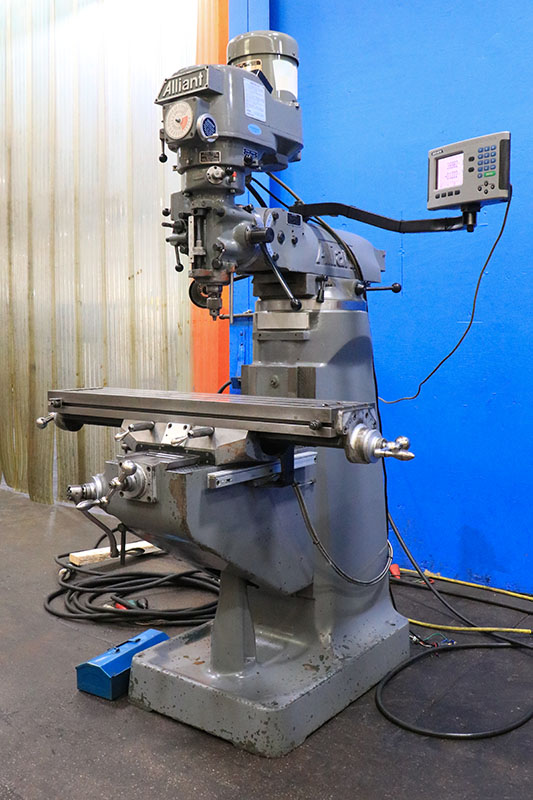

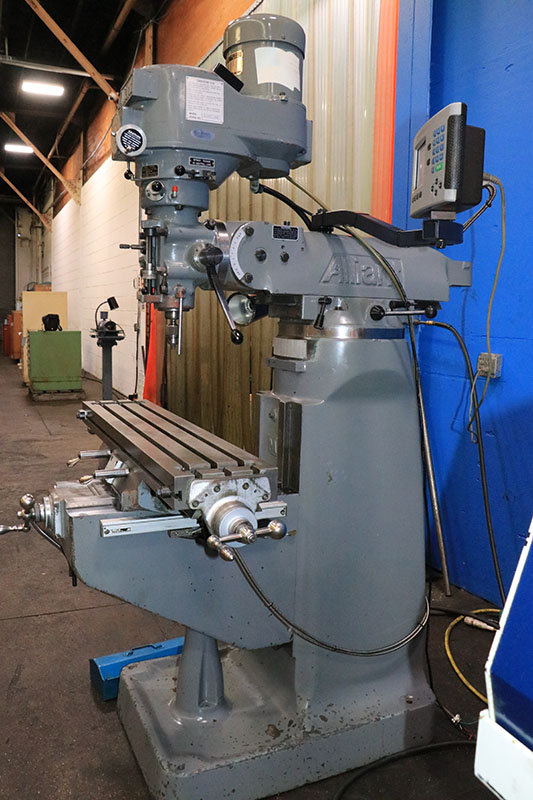

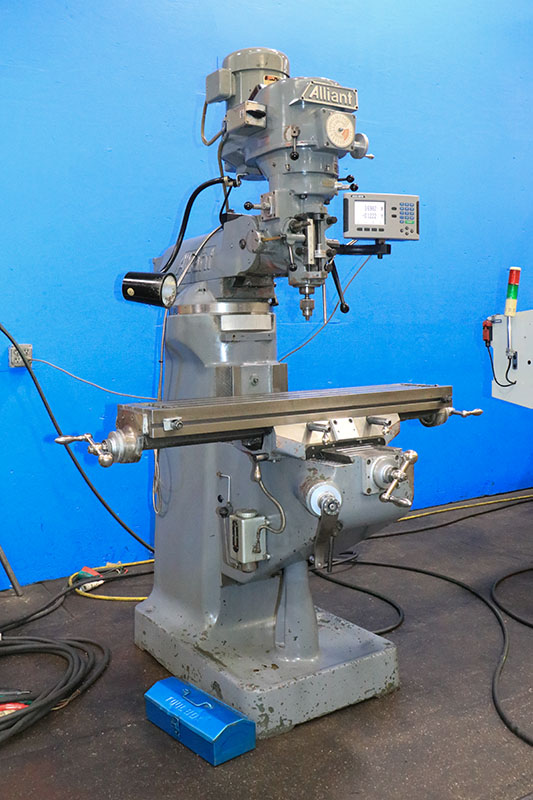

ALLIANT VERTICAL MILLING MACHINE

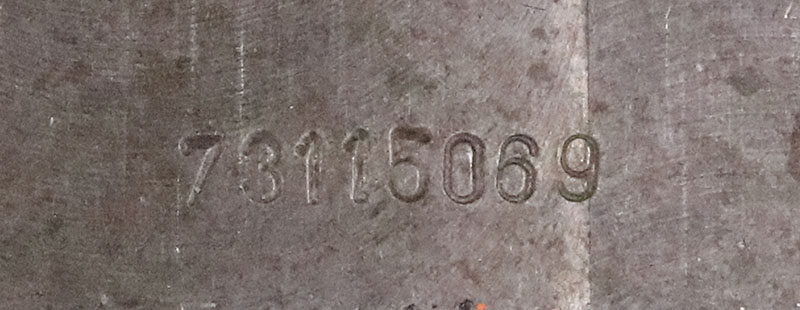

MODEL: 42VC, S/N: 73115069, NEW: 2003

SPECIFICATIONS:

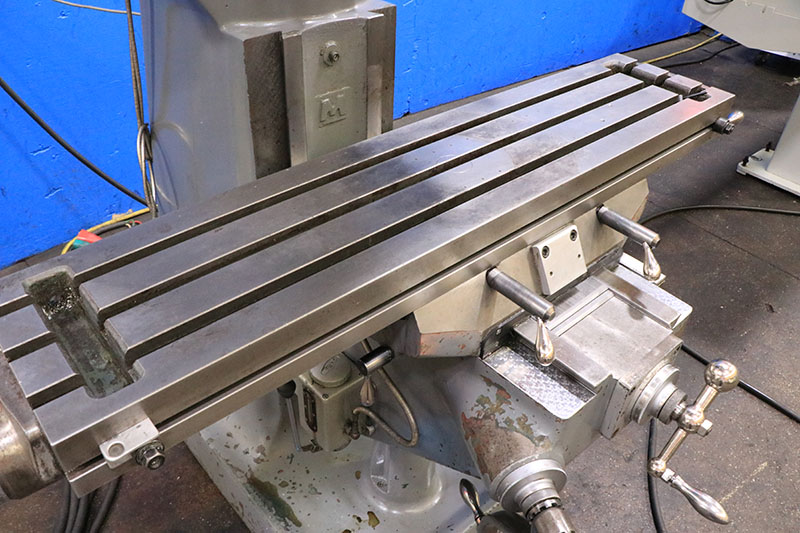

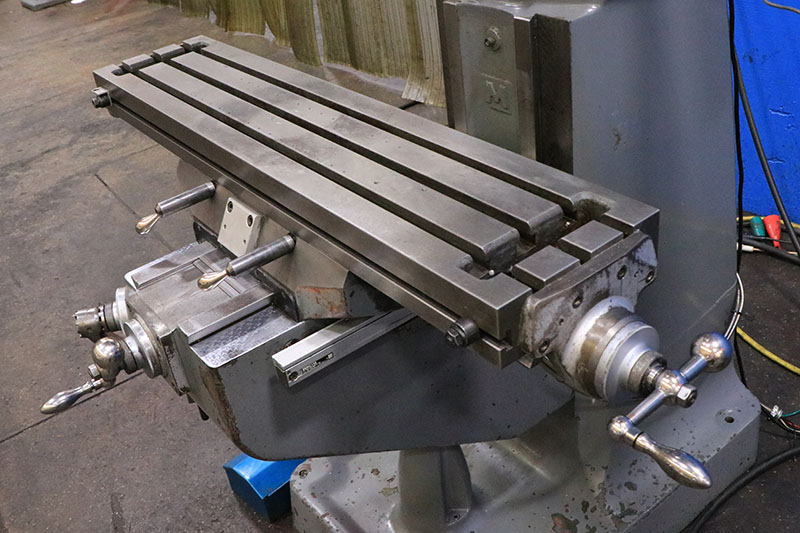

TABLE SIZE ........................... 9" X 42"
NUMBER OF T-SLOTS .................... 3
MAXIMUM WEIGHT OF WORKPIECE .......... 750 LBS
LONGITUDINAL TABLE TRAVEL ............ 30"
CROSS TRAVEL ......................... 12"
QUILL TRAVEL ......................... 5"
KNEE TRAVEL .......................... 16"
RAM TRAVEL ........................... 12"
MAX/MIN DIST, SPINDLE NOSE
    TO TOP OF TABLE ................ 18-1/2" / 2-1/2"
MAX/MIN DIST, CENTERLINE OF SPINDLE
    TO FACE OF COLUMN .............. 18-3/4" / 6-3/4"

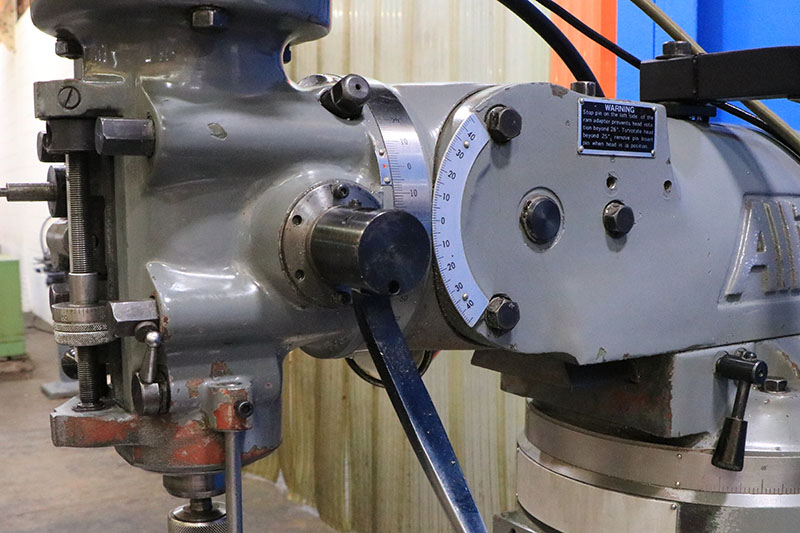

HEAD TILT:
    LEFT & RIGHT ................... 90 DEG
    FRONT & BACK ................... 35 DEG
INFINITELY VARIABLE SPEED RANGE ...... 60-4,500 RPM
POWER QUILL FEEDS (3) ................ .0015, .003, .006 IPR
INFINITELY VARIABLE SPEED RANGE ...... 60-4,200 RPM
SPINDLE TAPER ........................ R-8
MAX COLLET CAPACITY .................. 3/4"
APPROXIMATE WEIGHT ................... 2,000 LBS

EQUIPPED WITH:

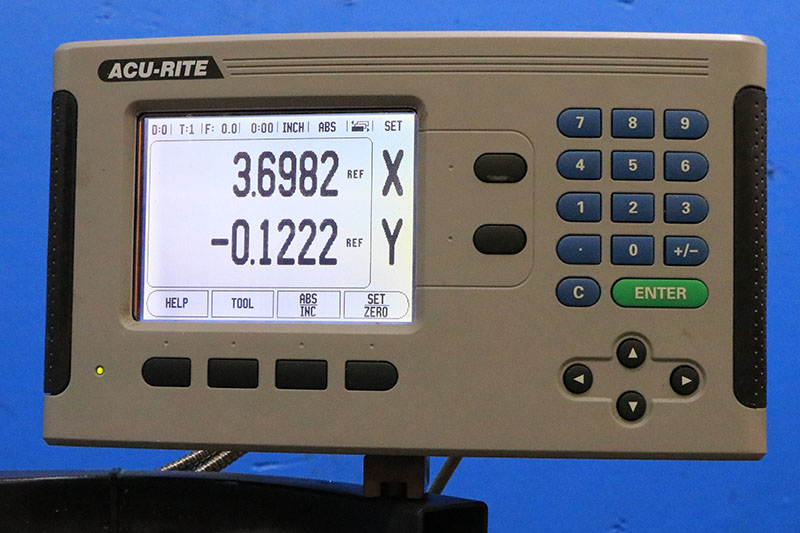

ACU-RITE TWO AXIS DIGITAL READOUT

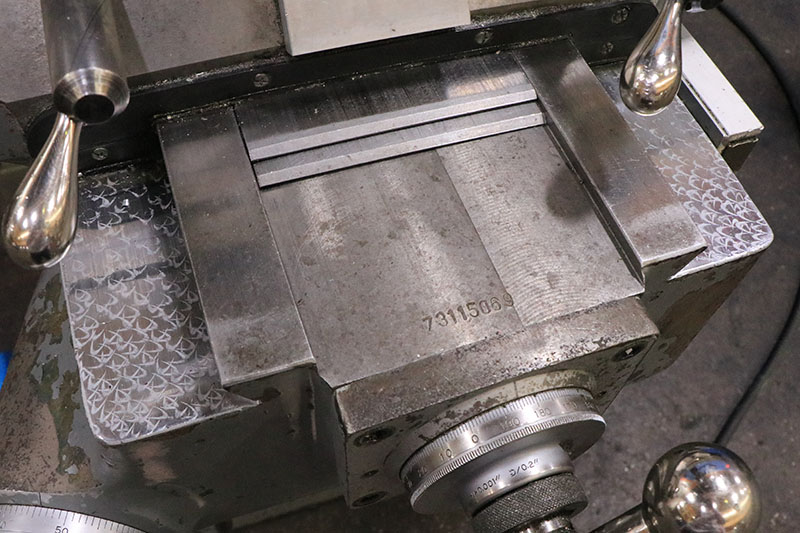

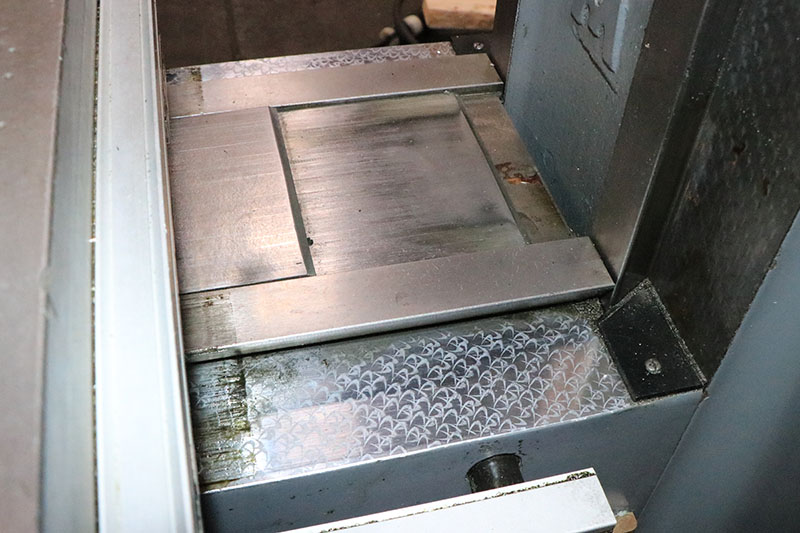

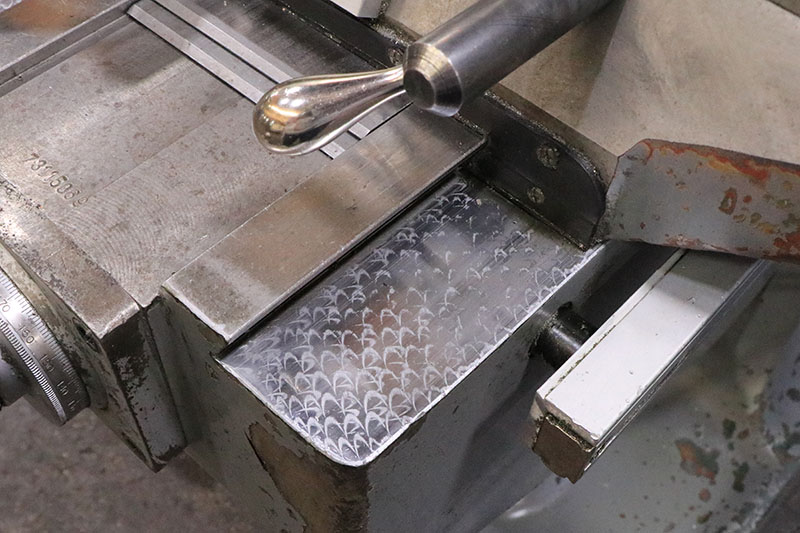

CHROME WAYS
ONE-SHOT LUBE

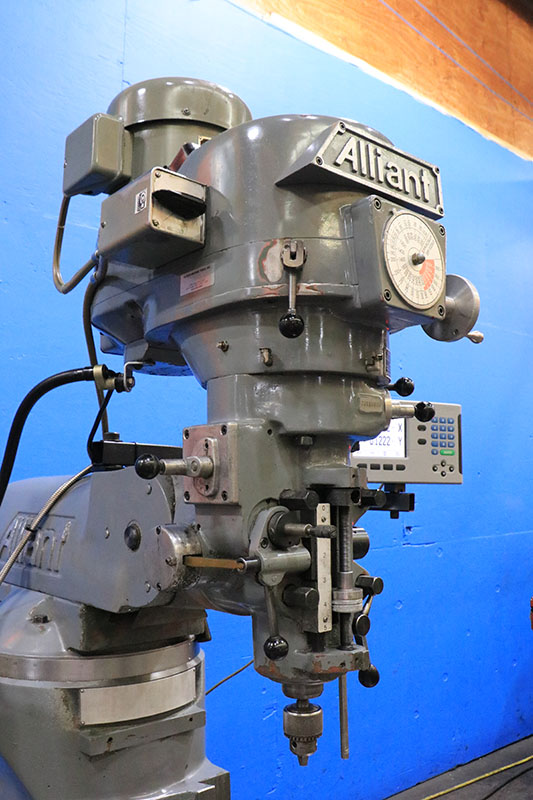

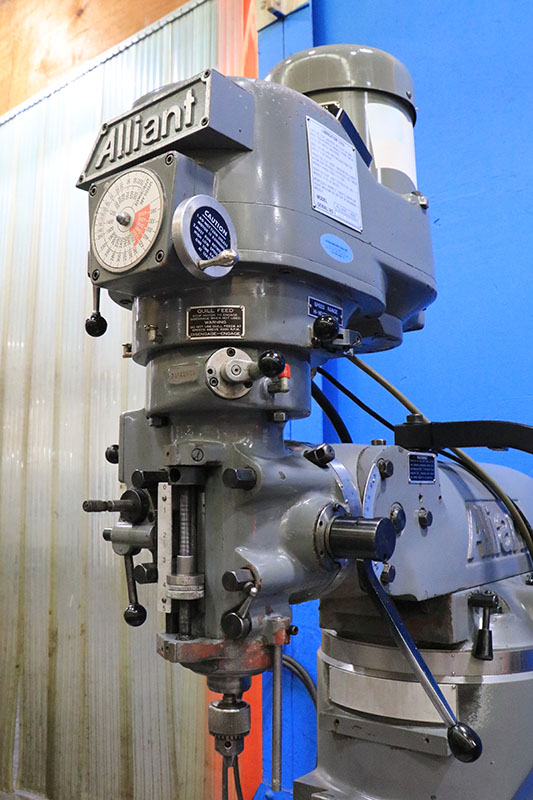

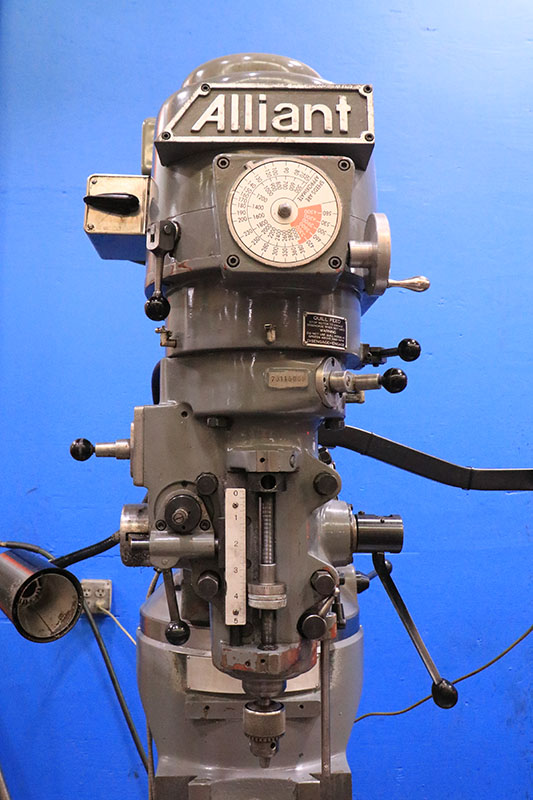

2 HORSE POWER MILLING HEAD

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
